Specification
Max Flow: 15 GPM
Horsepower: 1/5 HP
Input Voltage: DC 12V
Outlet Hose Length:13 ft/4 m
Fuel Inlet/Outlet Diameter: 1inch(NPT) / 3/4inch(NPT)
Applicable Fuel: Diesel, Kerosene, Transformer Fuel
Lift & Suction Lift: 33 FT/10.06 m & 8 FT/2.44 m
Inlet Hose Length: 21.1-38.2 in /535-970 mm

HIGH EFFICIENCY: This fuel transfer pump features a 1/5 HP high-speed brushless motor that delivers a maximum flow rate of 15 GPM, a maximum head of 40 ft. and a suction lift of 11.5 ft. This pump can transfer a 55-gallon drum of gasoline in less than 4 minutes.

DURABLE: This fuel transfer pump is made of rugged die-cast aluminium that is lightweight, strong and corrosion resistant. It includes overload protection and a bypass valve to prevent damage from overflow and high pressure. To prolong the life of the pump, shut it down for 20 minutes after 40 minutes of operation.

ROTARY GEAR: Rotary gears are used to efficiently transfer fluids and minimise friction and wear. Reduces maintenance requirements and increases flow and pressure. Ideal for long-duration fuel delivery tasks, it ensures reliable performance and durability, even under continuous use.

Aluminium alloy nozzle: allows precise control of fuel flow rate and quantity, ensuring a smoother and more accurate fuel delivery process.

SAFETY: Overload protection automatically shuts off the pump when the load is too high, preventing overheating and reducing the load on the motor. If the fuel delivery hose becomes clogged, a bypass valve keeps fuel flowing continuously, preventing high pressure from damaging the pump.

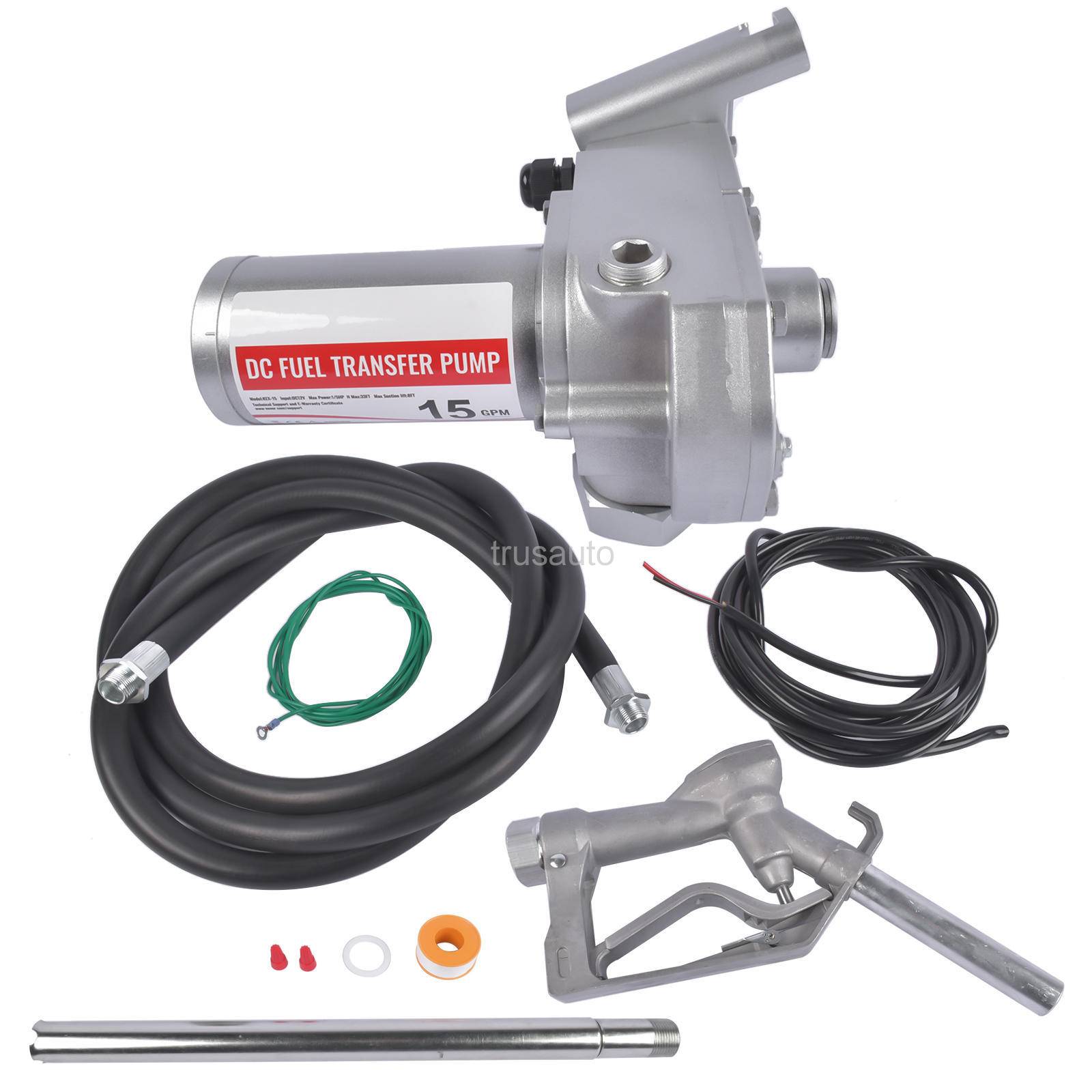

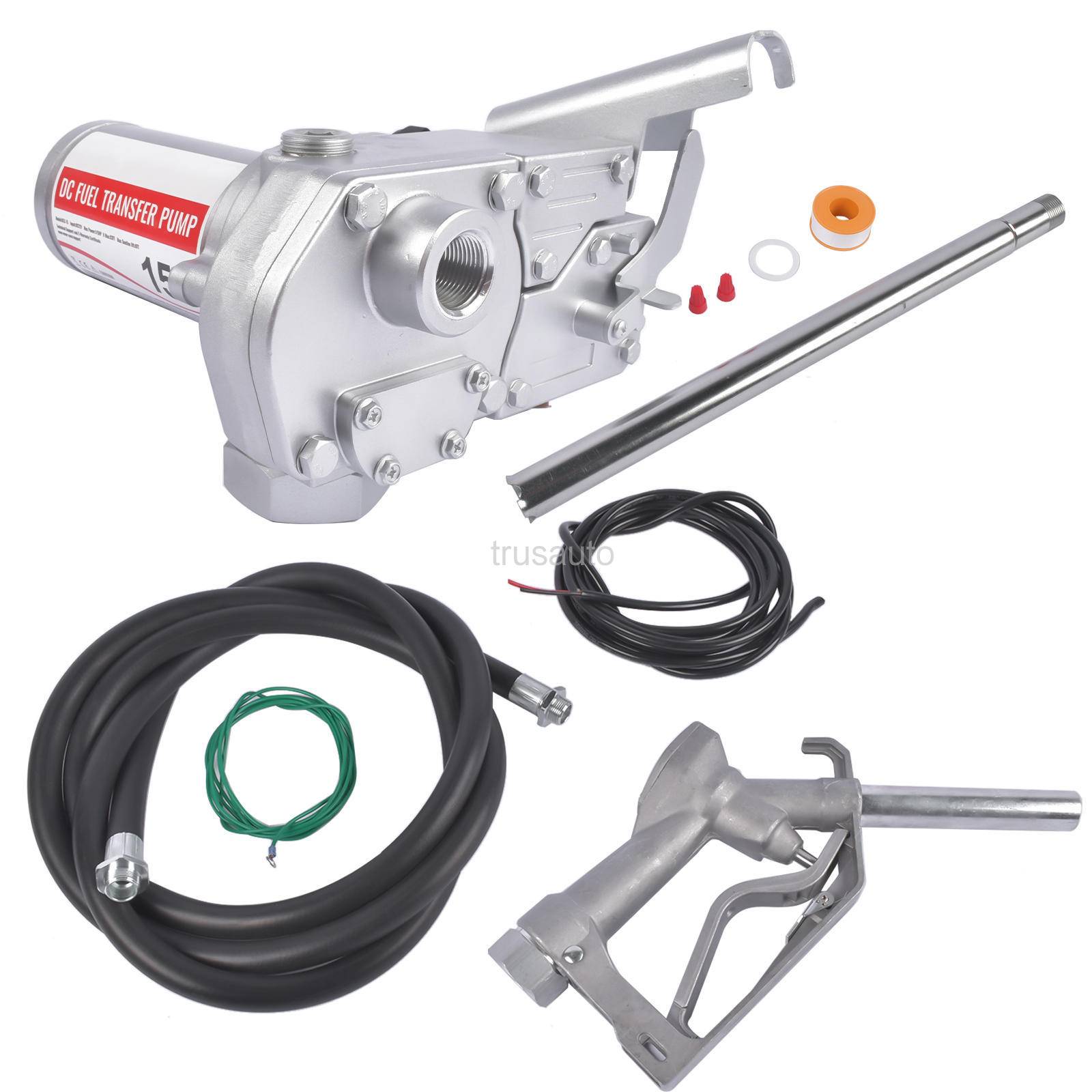

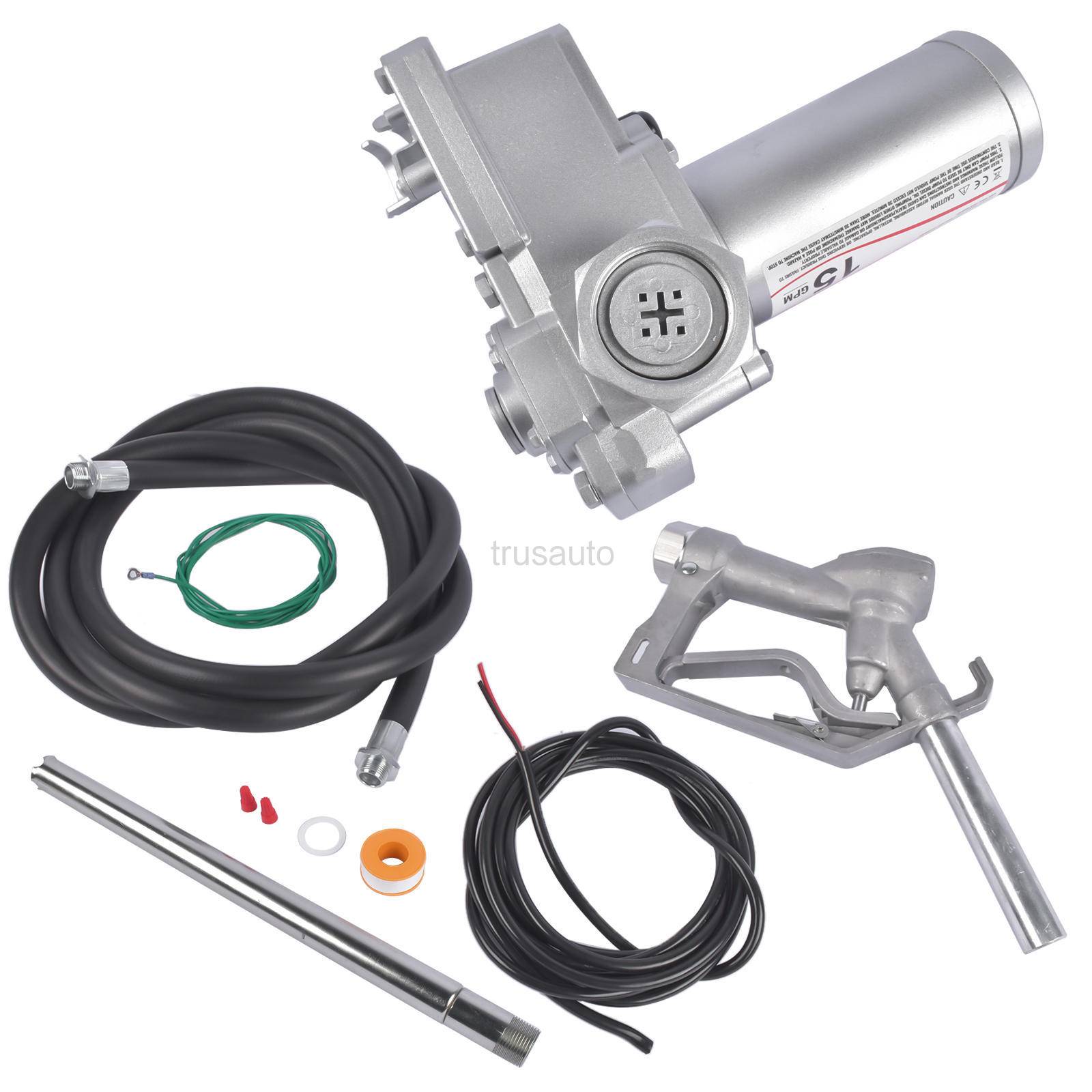

Package includes:
(As pics shown)
1 X Pump
1 X Outlet Hose
1 X Telescopic Rod
1 X Manual Fuel Nozzle
1 X Power Line
1 X Ground Wire
1 X Fuel Barrel Joint
1 X Thread tape
1 X User Manual
2 X Joints
