Package included:

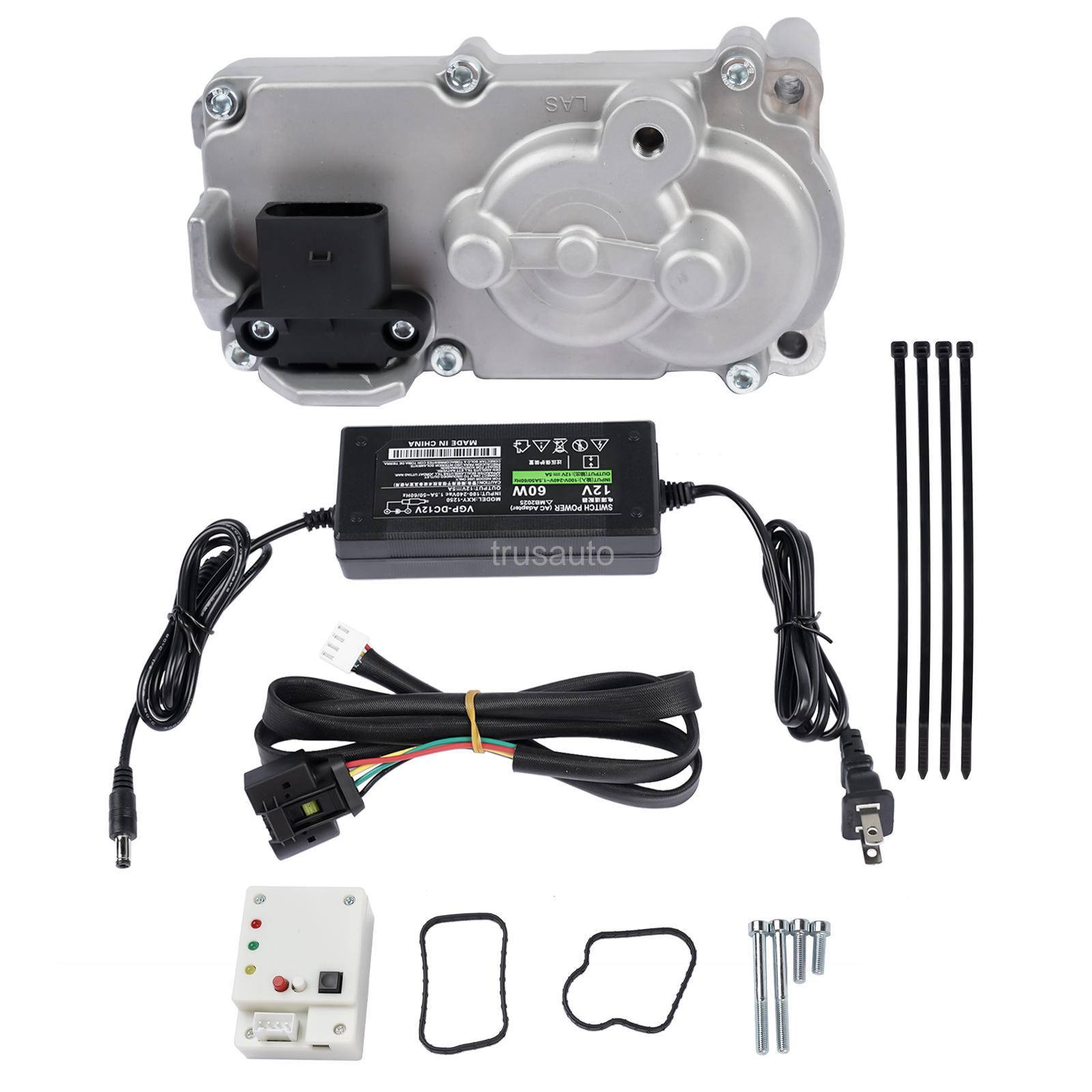

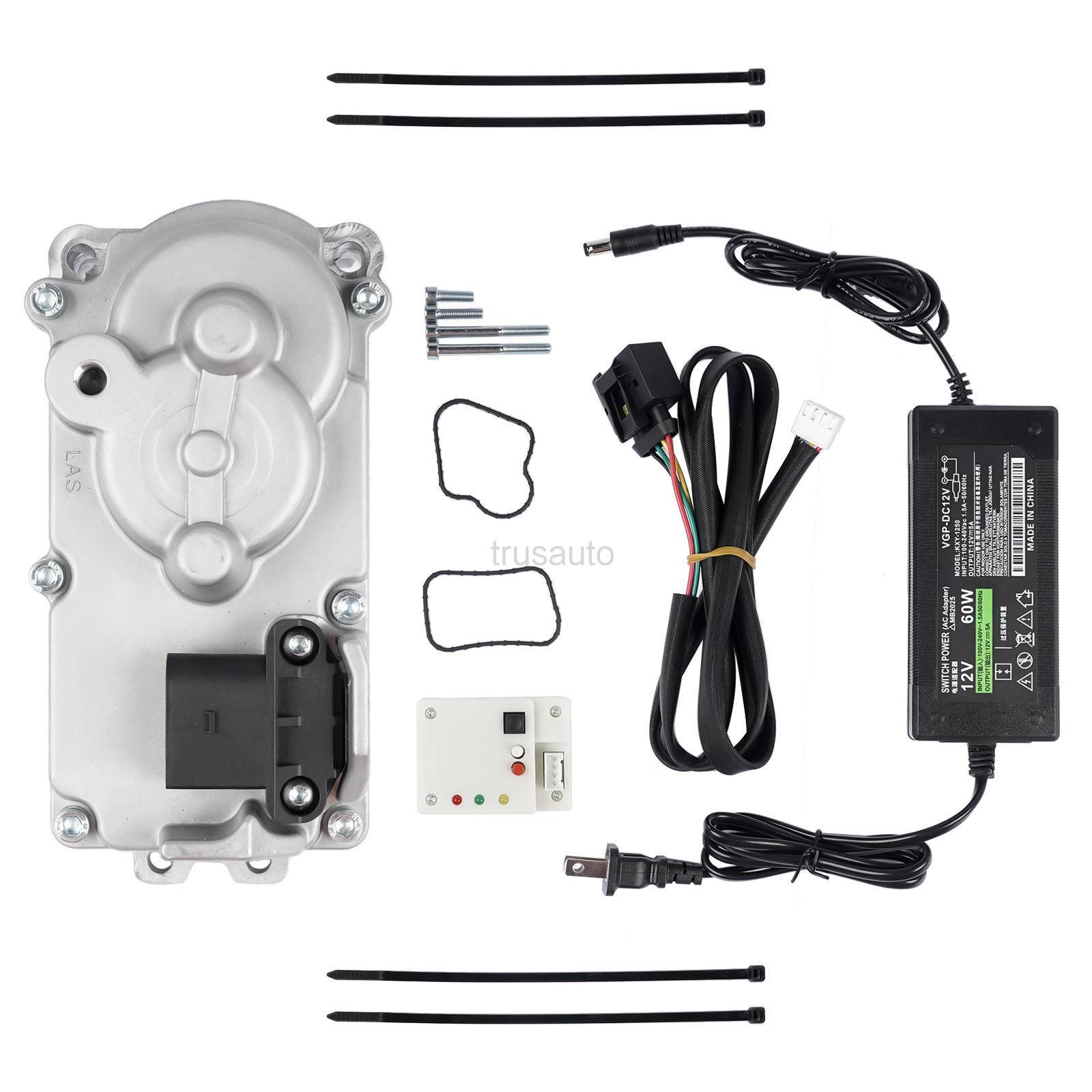

1 x Turbo Electronic Actuator with Calibration

OEM Part Number

3787604 3781632 5601240NX, 3794756, 3775439, 3787608

3781633, 3779986, 3798539 37985, 3794758, 3775427

3787607, 3781755, 3779987 5326054, 3781754, 3775426

3779989, 3784573, 3784574, 68307025AA, 3798575

5326054, 5326057, 5327046 532704600, 532704600HX

5459710RX, 68210648AA, 68212738AA, 68245792AA

68253983AA, 68295438AA, 68297874AA,

68321377AA,68445522AA

Fits For the Following

Cummins Holset 6.7 Diesel HE300VG

6.7L Turbo I6 Diesel

RAM 2500 2013, 2014, 2015, 2016, 2017, 2018
RAM 3500 2013, 2014, 2015, 2016, 2017, 2018
RAM 4500 2013, 2014, 2015, 2016, 2017, 2018
RAM 5500 2013, 2014, 2015, 2016, 2017, 2018

Turbo Actuator Calibration Tool:

Operating voltage: 8-28V,According to the actuator supply voltage
to determine(Usually 12V or 24V)

Operating temperature: -40~125°.

Human-machine interface: 3 switches, 1 status lamp, 1 Display
panel.

Calibration method(Holset)

Condition 1▬ Actuator had been removed from turbo Calibration Step:
press IP Key->Assemble the Actuator with turbo and then-> press IC Key
Condition 2▬ Actuator had been calibrated and assembled with turbo
Calibration Step:press IC Key

Warning: Before powering on the calibration box, ensure that the
actuator is properly connected to the calibration box

Warning: Any time when Reset key is pressed, make sure Actuator had
been removed from turbo, and then IP->IC

Warning: When IP success(digital tube display IP-S), make sure turbo
gear is in the left limitation location and then assemble
actuator. If not, calibration cannot success.
