OE Number

302-3, 81075, 12669528, 12625031

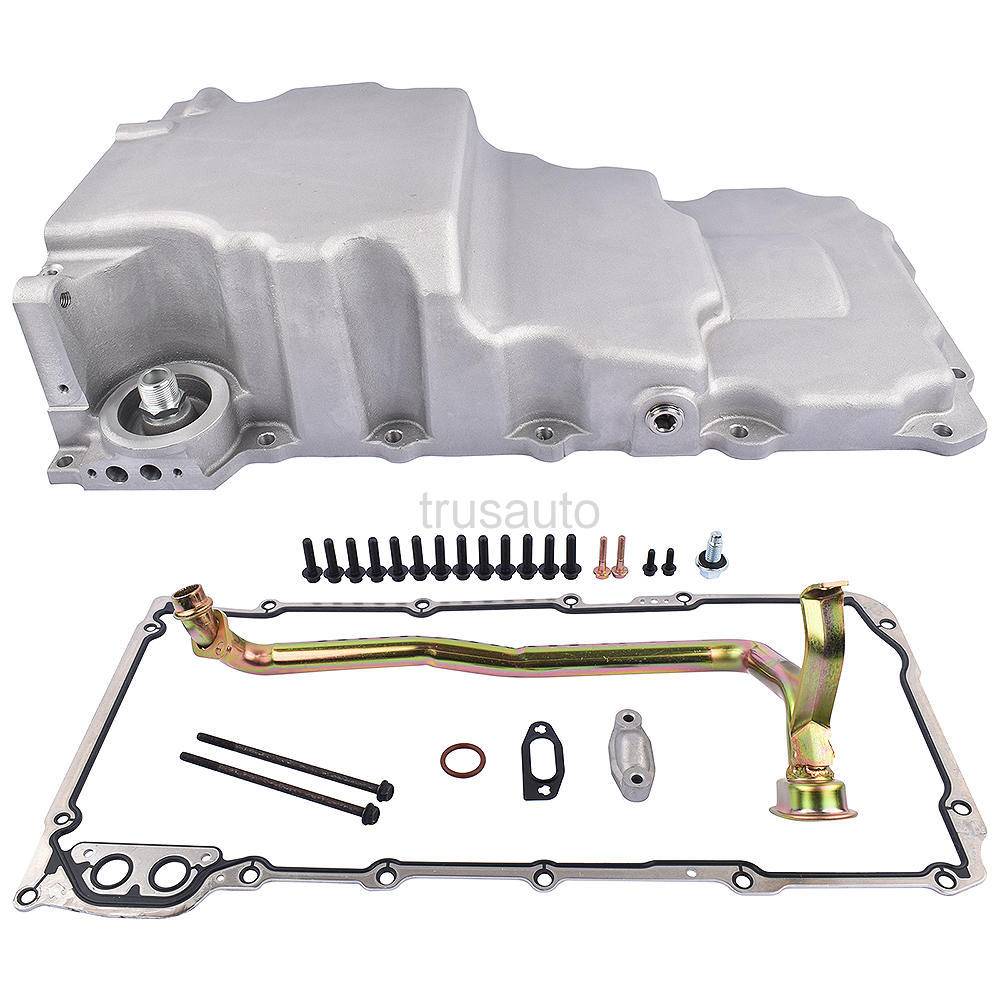

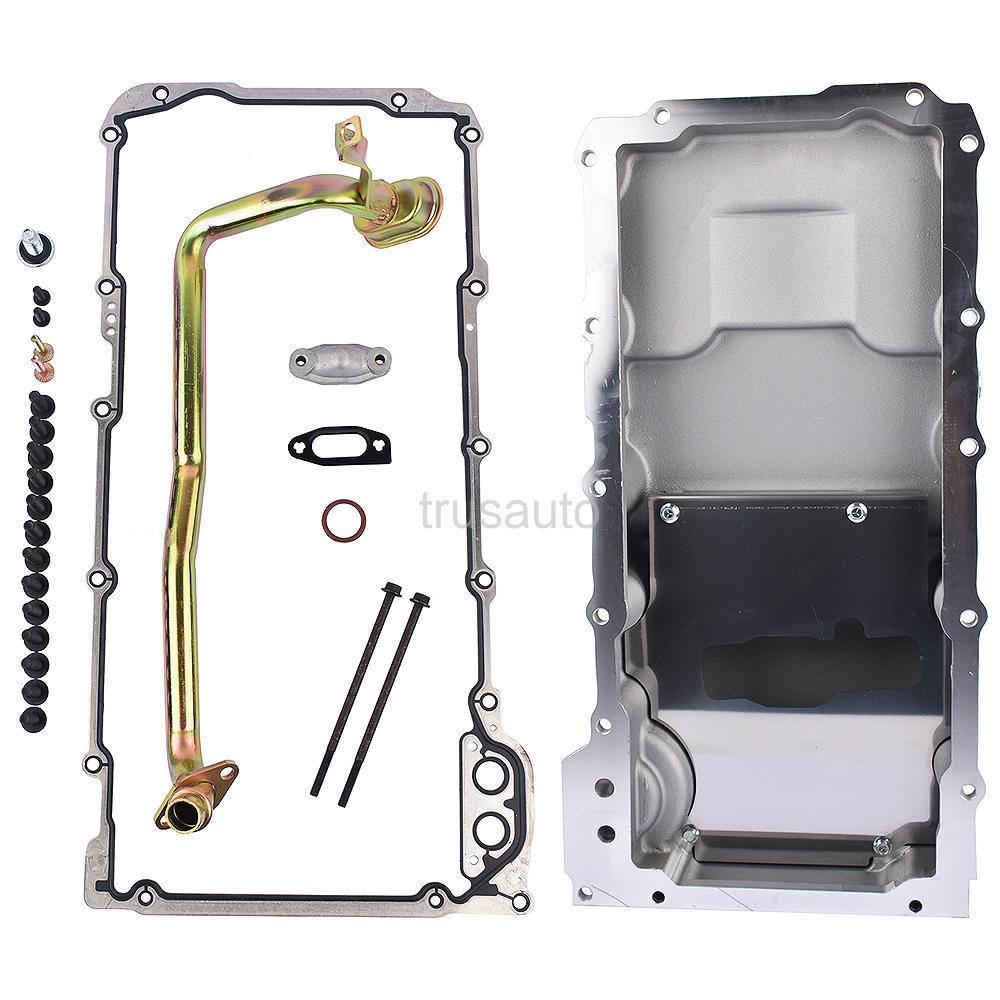

LS Low Profile Retro Fit Oil Pan with 1/2”NPT Ports & Frame Cut Outs

Aluminum LS Engine Swap 302-3 Oil Pan 4" Stroke 6.0 Quarts For Chevy 4.8L 5.3L 6.0L 6.2L

Will fit Following Models

Features:

1) Low Profile cast aluminum oil pan Gen III/IV blocks 4.8 - 5.3 - 5.7 - 6.0 - 6.2 LS1 - LS2 - LS3

2) Use with GM #12558253 windage tray, which must be altered to add clearance for the pick-up tube

3) Engine position (fore/aft or height) may need to be adjusted for clearance, Not fit Dry Sump Engines (LS7, LS9)

4) A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed.

5) Requires use LS3 dipstick (GM 12669528) and tube (GM 12625031)

Product : LS Retrofit Engine Oil Pans

Sump Style: Wet

Stroker Clearanced: No

Maximum Stroke with OE Rod: 4.000 in.

Dipstick Provision: No

Dipstick Included: No

Sump Location: Rear

Oil Pan Capacity: 6 quarts

Oil Pan Material: Cast aluminum

Oil Pan Finish: Natural

Baffled: No

Kicked Out: No

Windage Tray Included: No

Pickup Included: Yes

Oil Pump Included: No

Oil Pump Driveshaft Included: No

Crank Scraper Included: No

Gaskets Included: No

Hardware Included: Yes

Quantity: Sold as a kit.

Fit for:

1967-69 For Camaro/Firebird

1968-74 For Nova/Apollo/Ventura/Omega

1982-92 For F-body, 1978-87 G-body

1964-72 For A-body applications

1979-2004 For Mustang

1979-1986 For Capri Fox bodies
