Parameters
Part Type
replacement
Manufacturer Part Number
Linear Actuator, 30 inch, 12V, 440lbs/2000N, Speed 0.31"/sec, Mounting Brackets
Interchange Part Number
Linear Actuator, 30 inch, 12V, 440lbs/2000N, Speed 0.31"/sec, Mounting Brackets
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 85.50
Market Price: $96.00 0 People Puchased
Free Delivery
30" Long Stroke Linear Actuator 12V DC High Load 440lbs/2000N Speed 0.31"/sec
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 85.50
Market Price: $96.00 0 People Puchased
Free Delivery
30" Long Stroke Linear Actuator 12V DC High Load 440lbs/2000N Speed 0.31"/sec
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
I. Specifications
Voltage: DC 12V
Stroke length:30"(750mm)
Fully retracted length: 36"(900mm)
Fully extended length: 66"(1650mm)
No load speed: 0.31"/sec (8mm/s)
Maximum load:440lbs(2000N)
Maximum current draw:5A
II. Features
①Aluminum Alloy Material
More safe and well constructed for long-term use.
②Stable Base
Four corner fixation.
More durable and sturdy.
③IP65 Protection
Suitable for home and outdoor use.
Can withstand harsh working environments.

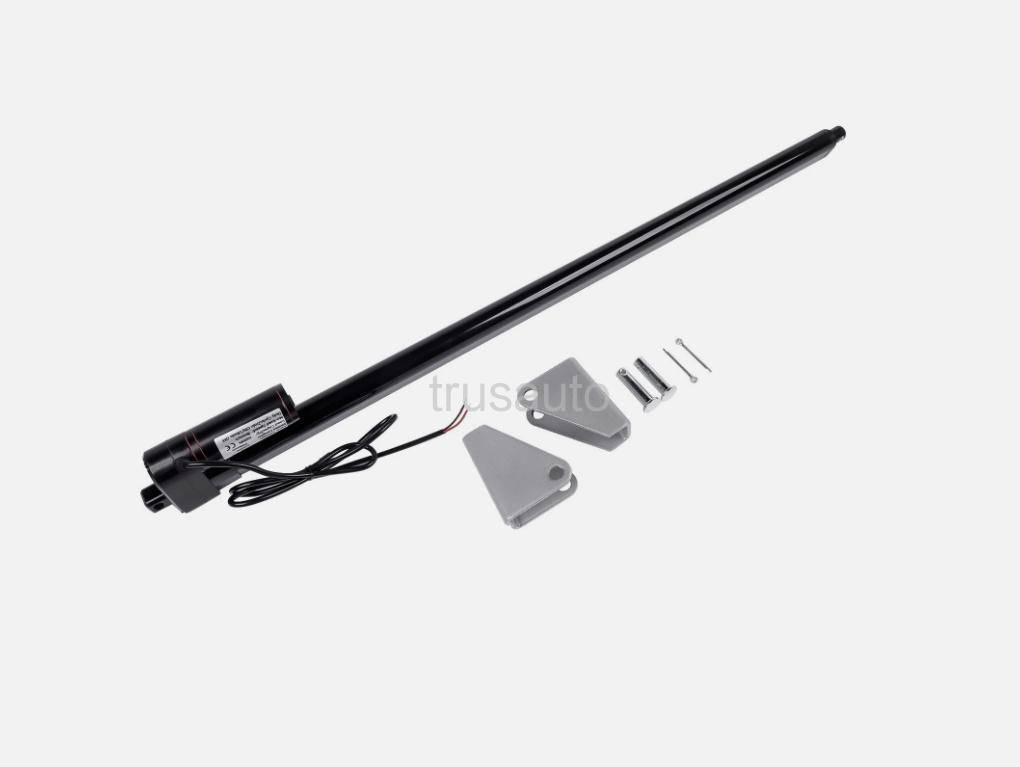

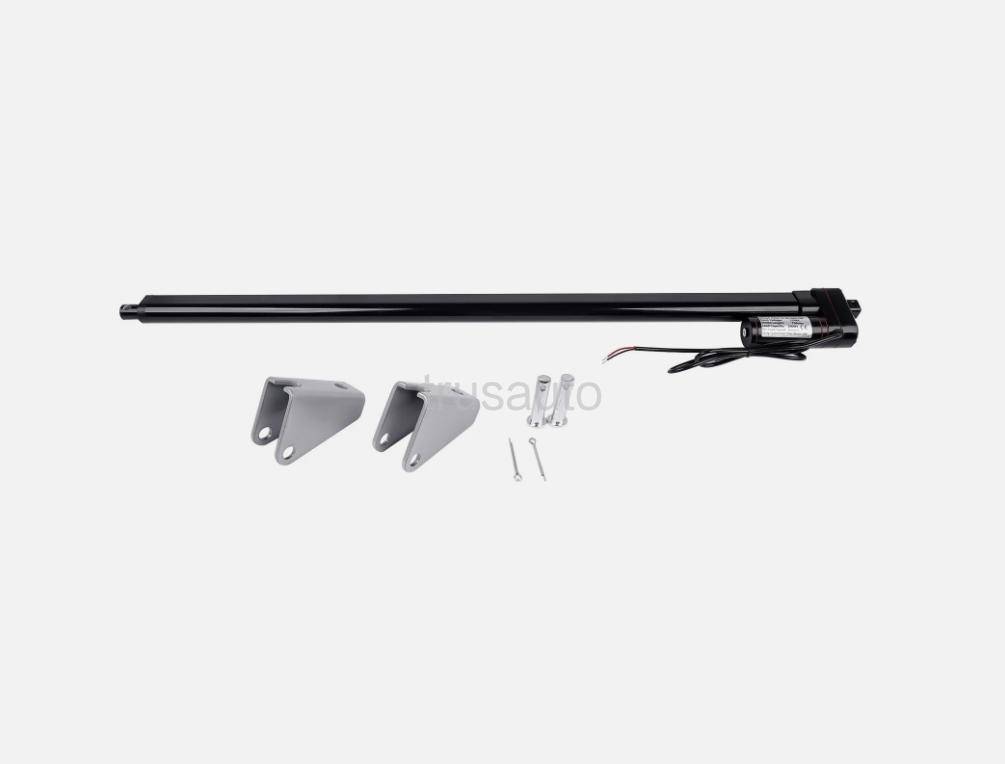

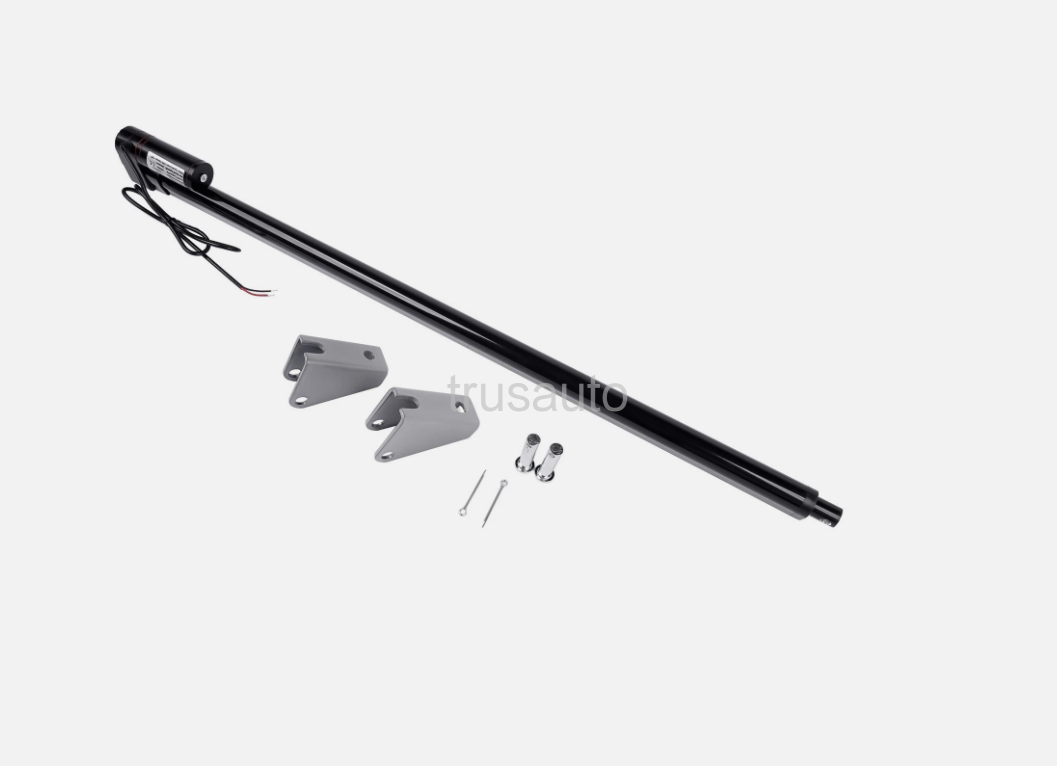

III. Package Includes
1x Linear Actuator
2x Mounting Brackets
(As Pics Shown)
IV. How to Connect
①Connect the two wires of the linear actuator to a 12V battery or 12V 5A adapter.
②Black to the positive and red to negative will make it extend. To make it retract, reverse the terminal connections.
③For optimal performance,you can use the actuator in conjunction with a controller,which makes it easier to control the extension and retraction of actuator.
