Parameters
Part Type
replacement
Manufacturer Part Number
Linear Actuator, 38 inch, 12V, 440lbs/2000N, Speed 0.31"/sec, Mounting Brackets
Interchange Part Number
Linear Actuator, 38 inch, 12V, 440lbs/2000N, Speed 0.31"/sec, Mounting Brackets
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 94.50
Market Price: $107.00 0 People Puchased
Free Delivery
38" Long Stroke Linear Actuator 12V High Load 440lbs/2000N Speed 0.31"/sec
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 94.50
Market Price: $107.00 0 People Puchased
Free Delivery
38" Long Stroke Linear Actuator 12V High Load 440lbs/2000N Speed 0.31"/sec
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
I. Specifications
Voltage: DC 12V
Stroke length:38"(950mm)
Fully retracted length: 44"(1100mm)
Fully extended length:82"(2050mm)
No load speed: 0.31"/sec (8mm/s)
Maximum load:440lbs(2000N)
Maximum current draw:5A
II. Features
Aluminum Alloy Material: More safe and well constructed for long-term use.
Stable Base: Four corner fixation. More durable and sturdy.
IP65 Protection: Suitable for home and outdoor use. Can withstand harsh working environments.

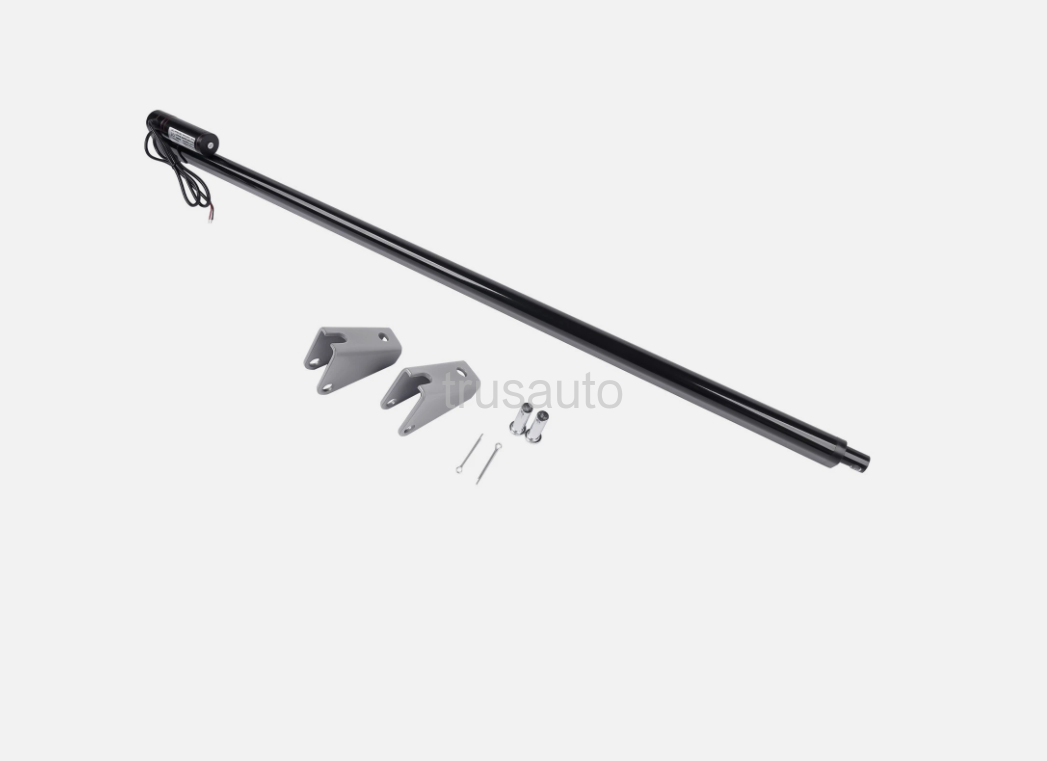

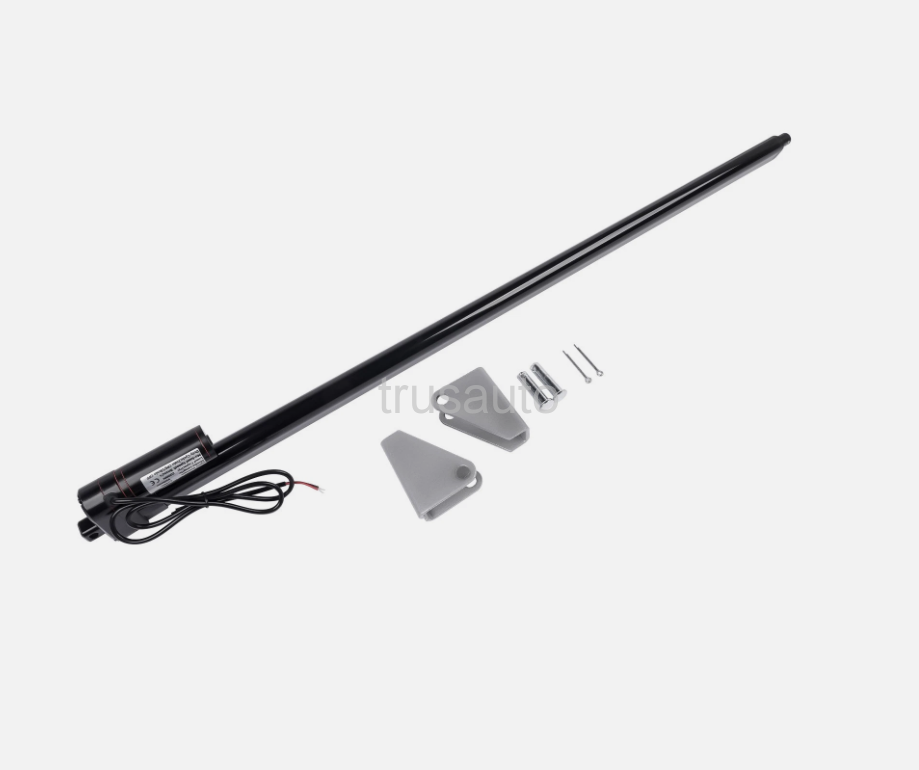

III. Package Includes
1x Linear Actuator
2x Mounting Brackets
(As Pics Shown)
IV. How to connect
Connect the two wires of the linear actuator to a 12V battery or 12V 5A adapter.
Black to the positive and red to negative will make it extend. To make it retract, reverse the terminal connections.
For optimal performance, you can use the actuator in conjunction with a controller, which makes it easier to control the extension and retraction of actuator.
