Note:

Ensure that there is adequate room around the motor to circulate air and keep the motor cool. Have a qualified electrician check for loose connections and check the voltage at the pump motor while it is in operation. The voltage must be within 10% of the motor's data plate rating. If the voltage is not within 10%, contact a qualified electrician and/or the local power service provider.

Specifications:

1-4 Horsepower

2 Speed

56Y Frame

230 Volt

160 Gallons Per Minute Flow Rate

2" Intake and 2" Discharge

-For 56-Frame Motors

-Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life.

-Two speed motors have four sets of insulated windings for increased efficiency.

-56-frame motor for added strength, cooler operating temperature, and longer motor life.

-Larger 2" intake for improved flow performance and reduced noise.

-Large 6-1/2" diameter wet end for higher head pressure.

-Split capacitor, (start and run) for less energy consumption.

-Thermally protected to extend life expectancy of motor.

-Highly versatile wet end can be rotated 90 degrees either way.

-Viton Seals

OEM Part Number:

3721621-1D, 37216211D

Package Includes:

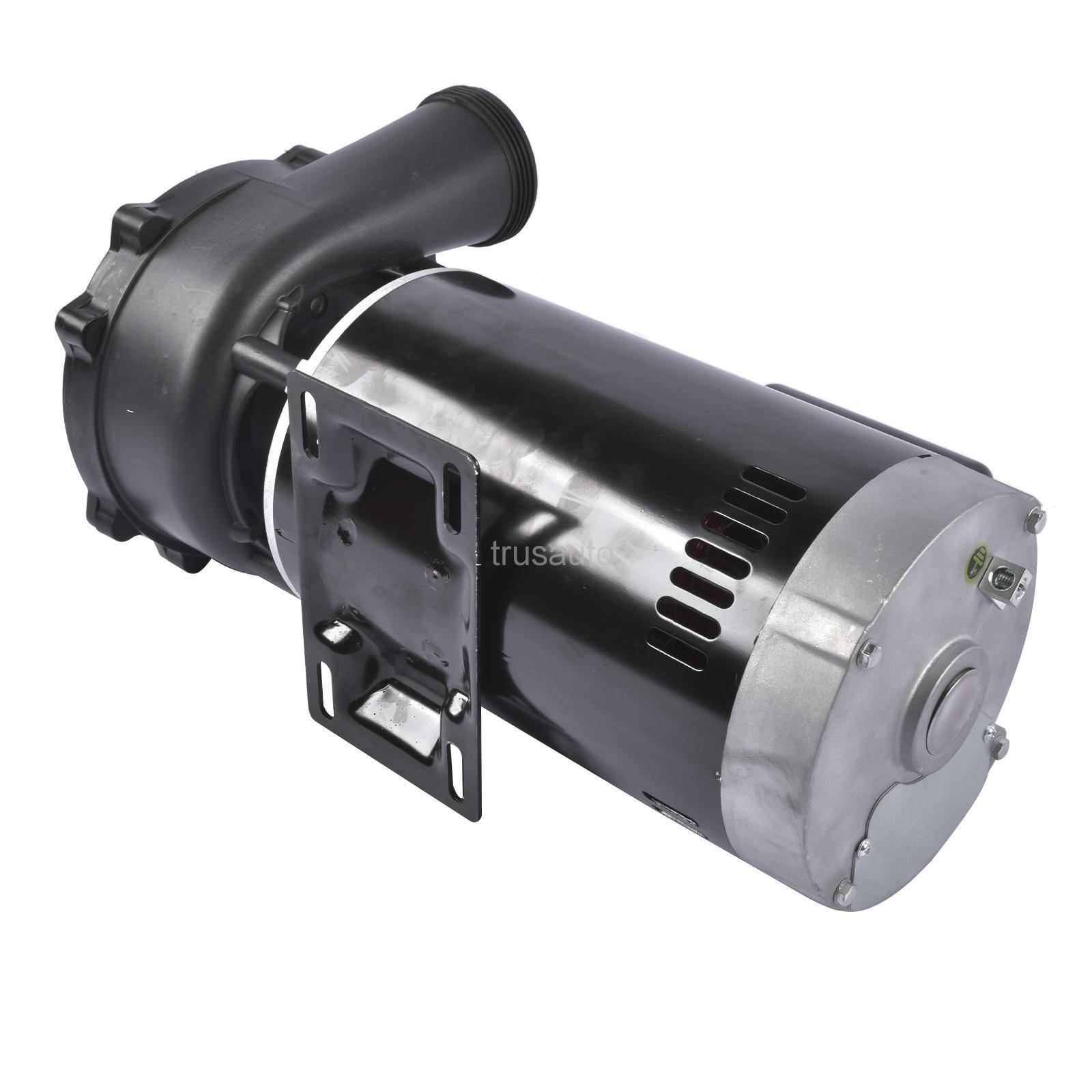

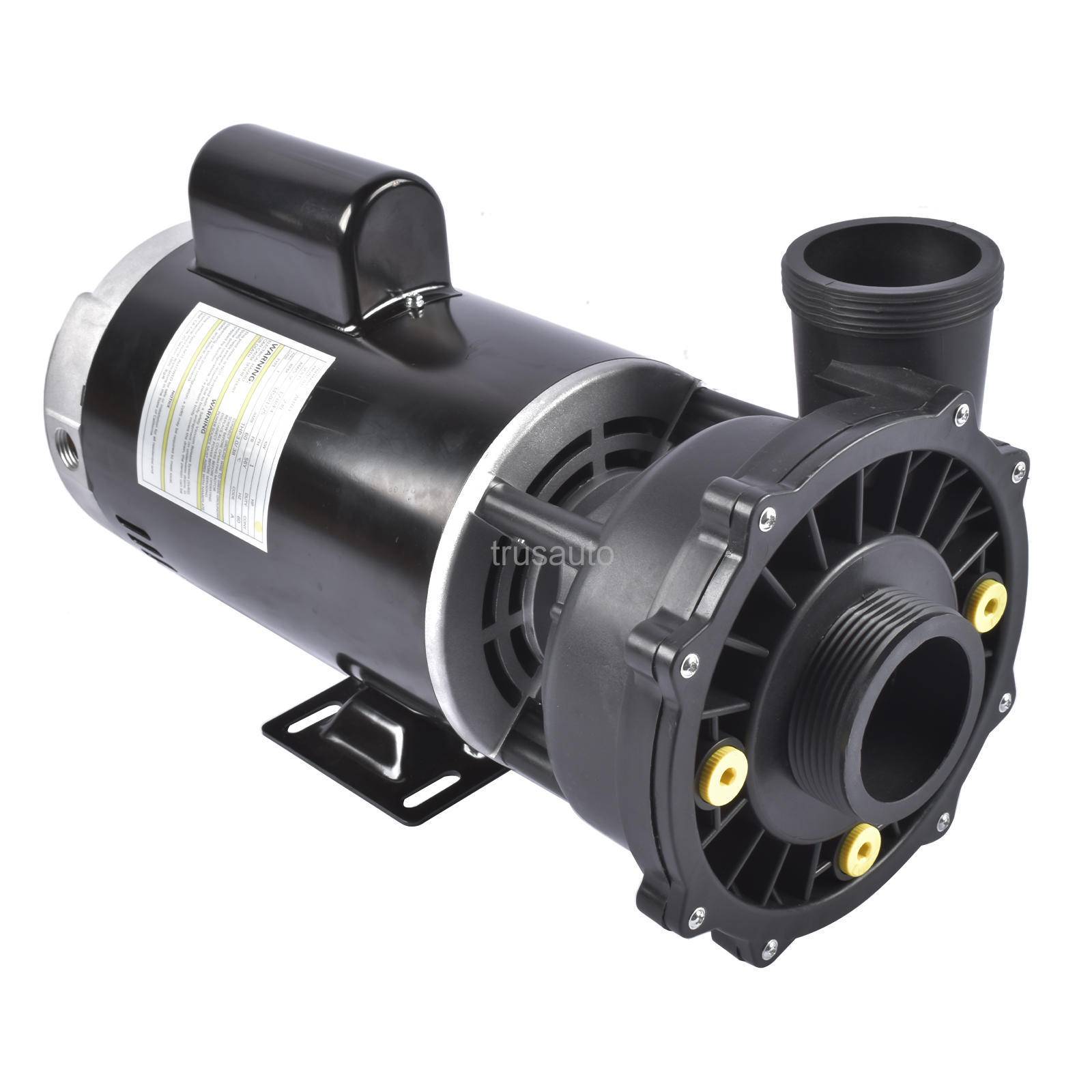

1x Dual-Speed Spa Pump (same as picture show)
