Parameters
Part Type
replacement
Manufacturer Part Number
S-24736, TRB5914-T, HE9BL-T, E-14634, 22-924, AA00003037, 500410, Bushing Installation Tool
Interchange Part Number
S-24736, TRB5914-T, HE9BL-T, E-14634
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 295.20
Market Price: $328.50 0 People Puchased
Free Delivery

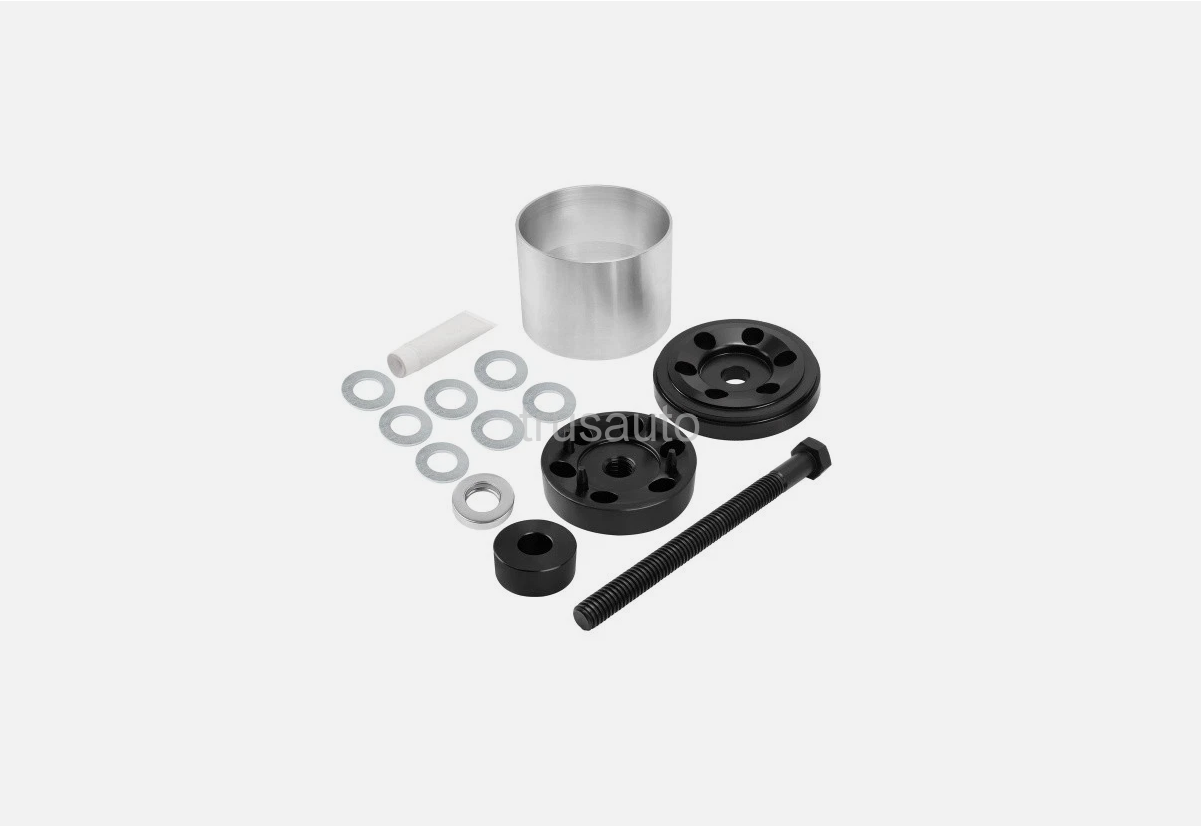

Bushing Installation Tool for Hendrickson Vantraax Narrow Bushing S-24736 New
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 295.20
Market Price: $328.50 0 People Puchased
Free Delivery
Bushing Installation Tool for Hendrickson Vantraax Narrow Bushing S-24736 New
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OE Number
S-24736, TRB5914-T, HE9BL-T, E-14634, 22-924, AA00003037, 500410
Specification
Bushing Type:Narrow Bushing
Part Type:Bushing Installation Tool
High Graded Steel Components,Durable & Strength,Resists Corrosion,Black Oxide Coating
For use with Bushing Kits
Ensure that threads on tool are well lubricated before and during use to avoid damaging threads
Fit for the Following
Cross References:
Compatible With BWP HE9BL-T
Compatible With Hendrickson S-24736
Compatible With Euclid E-14634
Compatible With Power Products 22-924
Compatible With TRB5914-T
Compatible With 500410
Compatible With AA00003037
Applications:
For Dana Webb: RF/S-20,23,25,30 Trailer Air Ride Suspension
For Hendrickson: HK/HS190-230 HT190-230-250-300 Air Suspension
For Hendrickson: Intraax AA-EDT/NT/T Vantraax HKA/NT/T Air Suspension
For Hendrickson: Intraax AA-L/NL/NLS/EDL HKA-L/RL/NL Air Suspension
For Hendrickson: T-4/6/9/15/17 Air Suspension
For Hendrickson: Toughlift FM/W/B LK Lift Axle Air Suspension
For Watson & Chalin: TA250/300T Trailer Air Suspension
Installation of Bushing
1.Lubricate the bushing and insert the bushing into compression cylinder.
2.Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing. Hook up hydraulics and begin installation operation.
4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)
Removal of Bushing：
1.Scribe the bushing orientation on the beam tube and compression tube.
2.The spring pins are not required to line up with the bushing holes during removal.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation.
4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)
