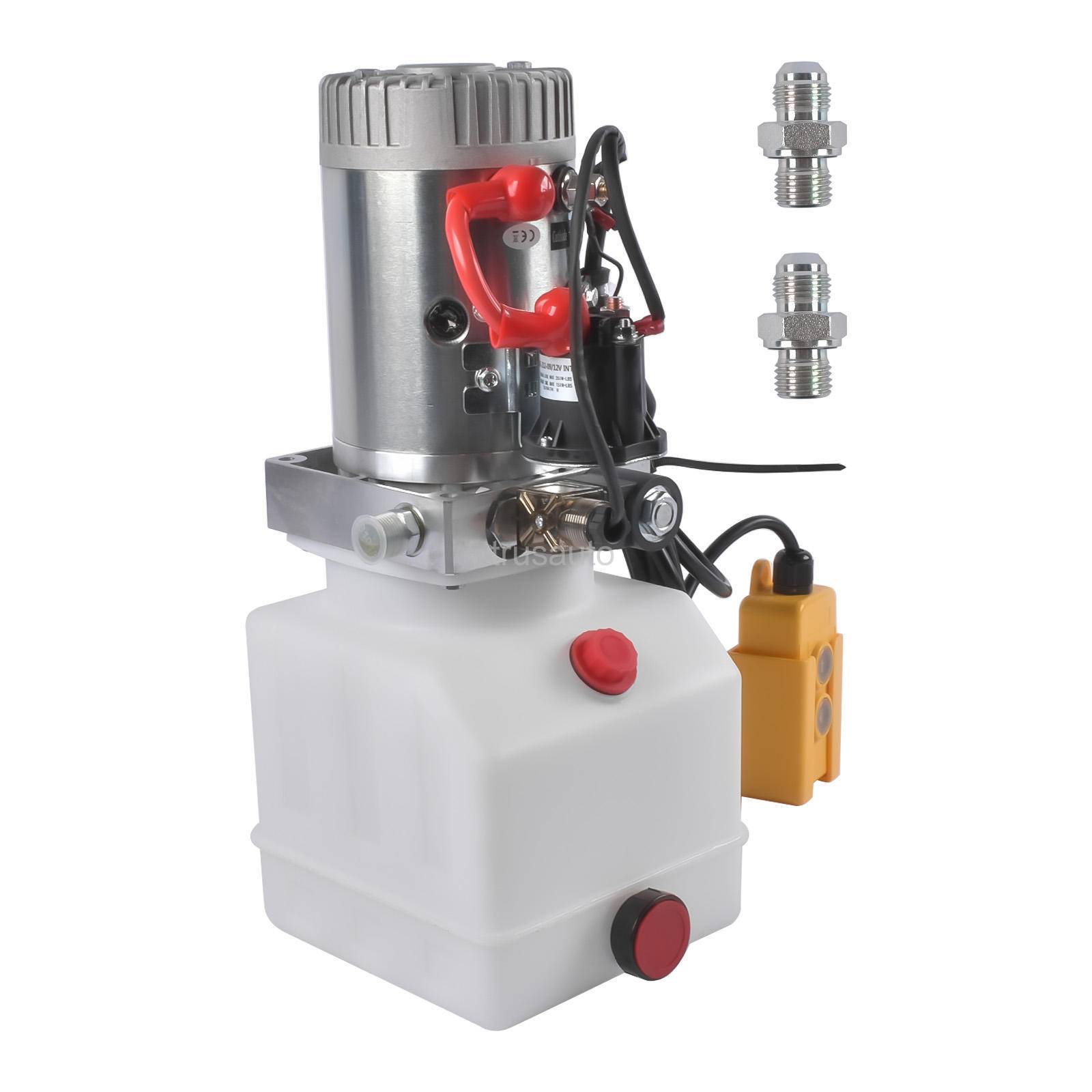

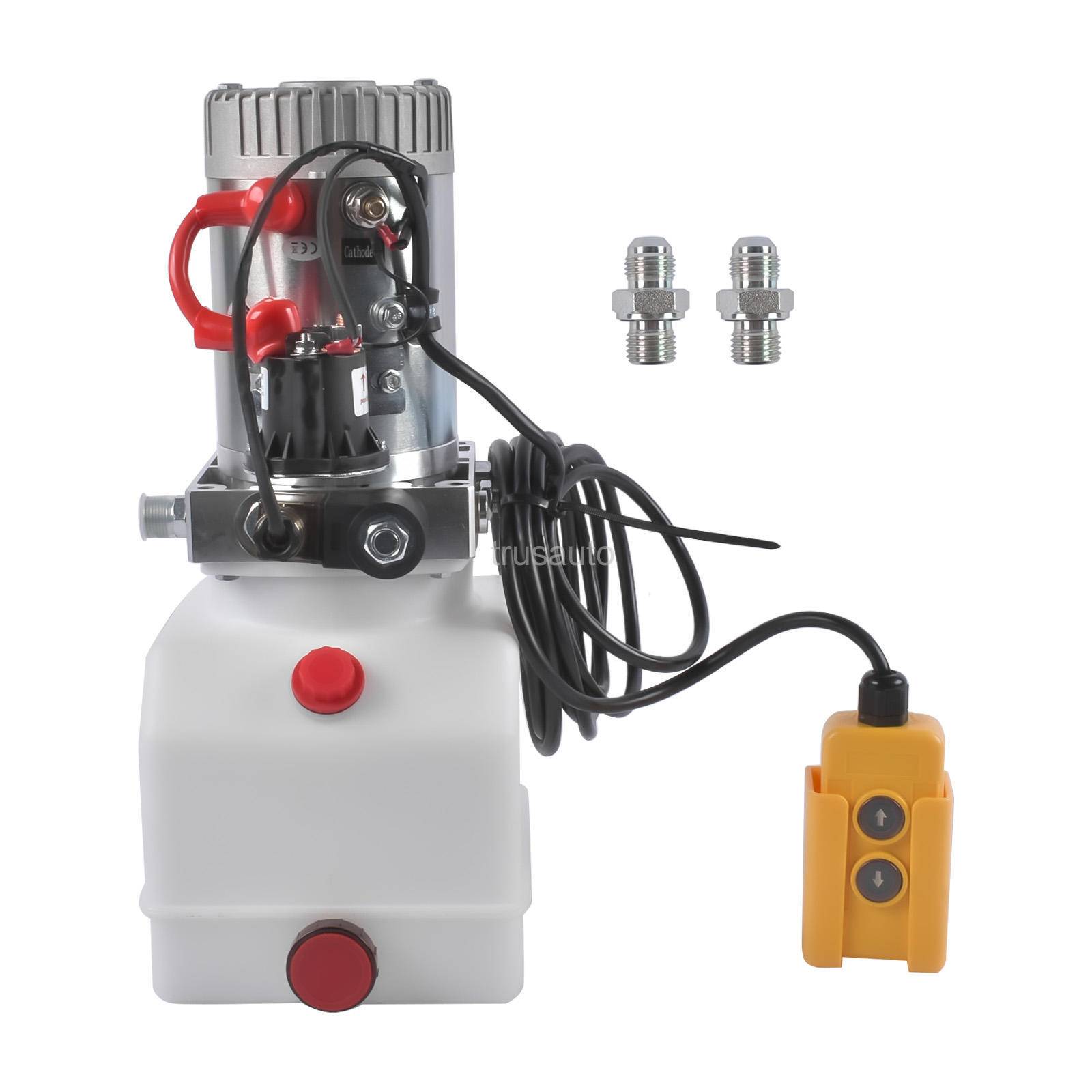

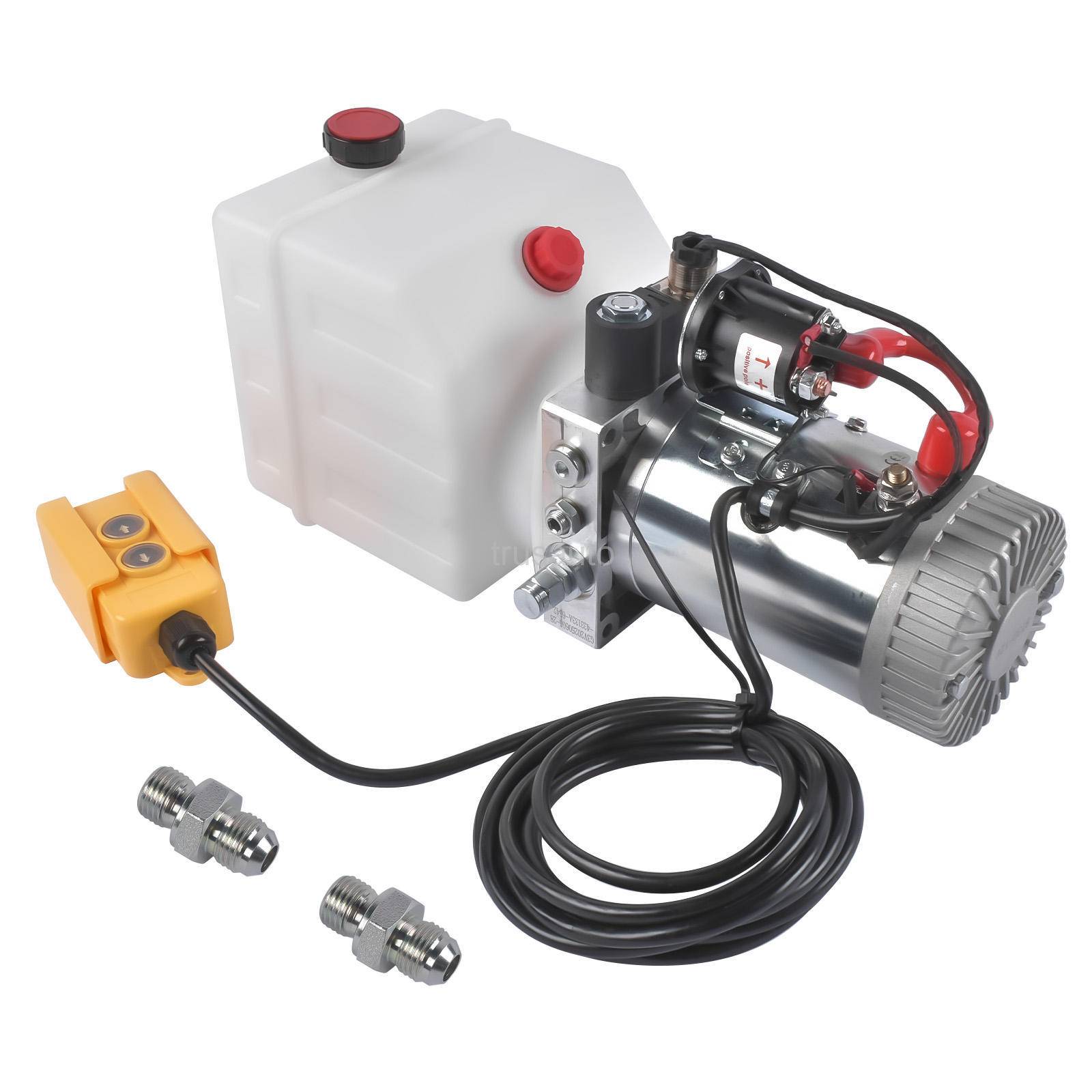

4 Quart Single Acting Hydraulic Pump

This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 4-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.

Key Features

【Single-Acting Power Unit】This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 4-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.

【Convenient Design】Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.

【Quick Start＆Lifting】With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.

【Long Lasting】You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.

【Simple Installation】All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.

【Wide Application】As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

Specifications

Material of tank: Plastic
Displacement of hydraulic pump: 0.562-4.350GPM
Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
Rated speed: 2850R/MIN
Motor power: 1.6-3KW
Motor voltage: DC12V
Fuel tank: 4L
Single acting Power-Up/Gravity Down
1500 PS Max Relief Setting on B port
4 Quart Translucent Reservoir
SAE # 6 Port, Horizontal mount
Hand held pendant with about 15 feet(177in / 4.5m)removal cord and start solenoid

Package Content

1 × 4 Quart Single Acting Hydraulic Pump
1 × English Manual
Several related accessories (including connectors)
