I. Item Description

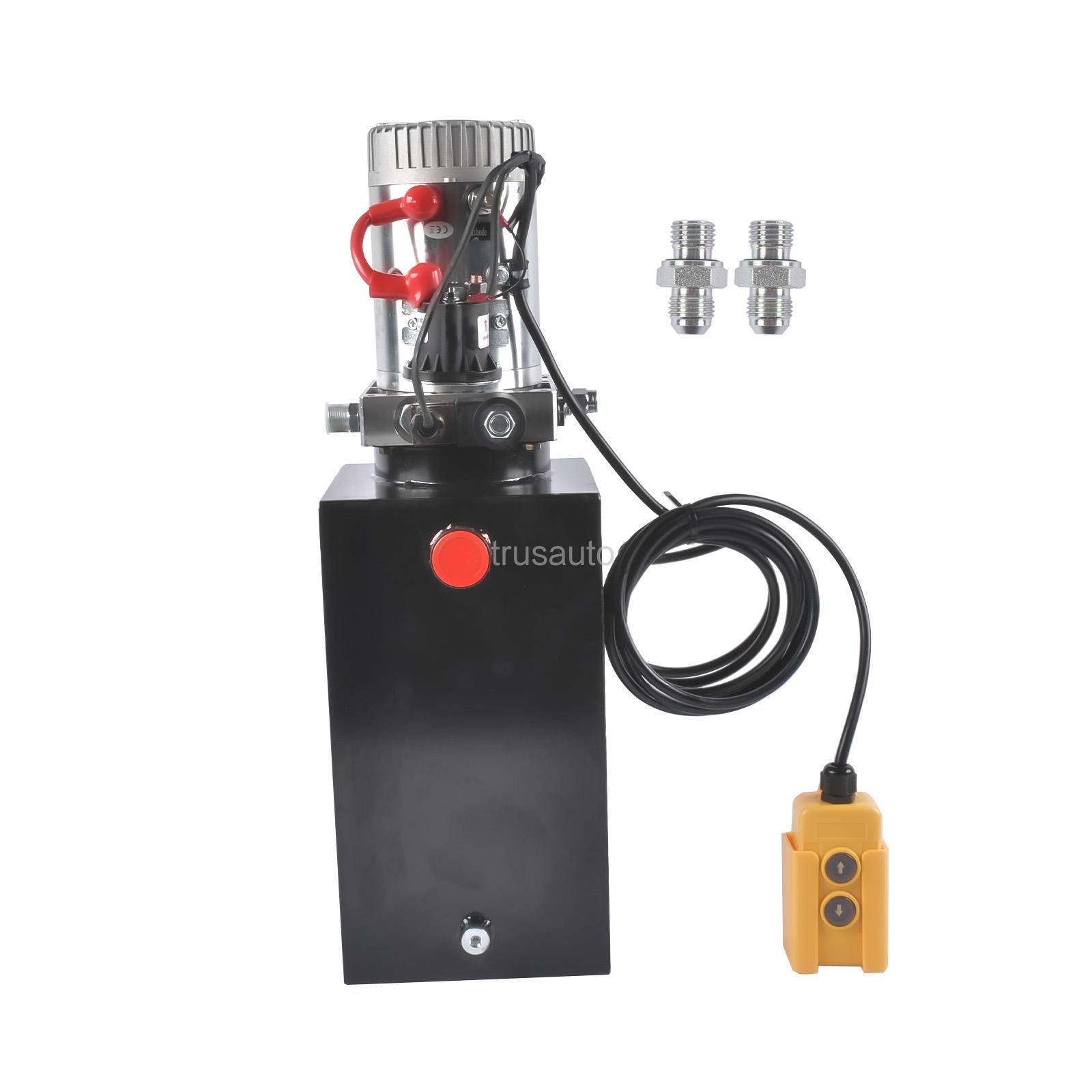

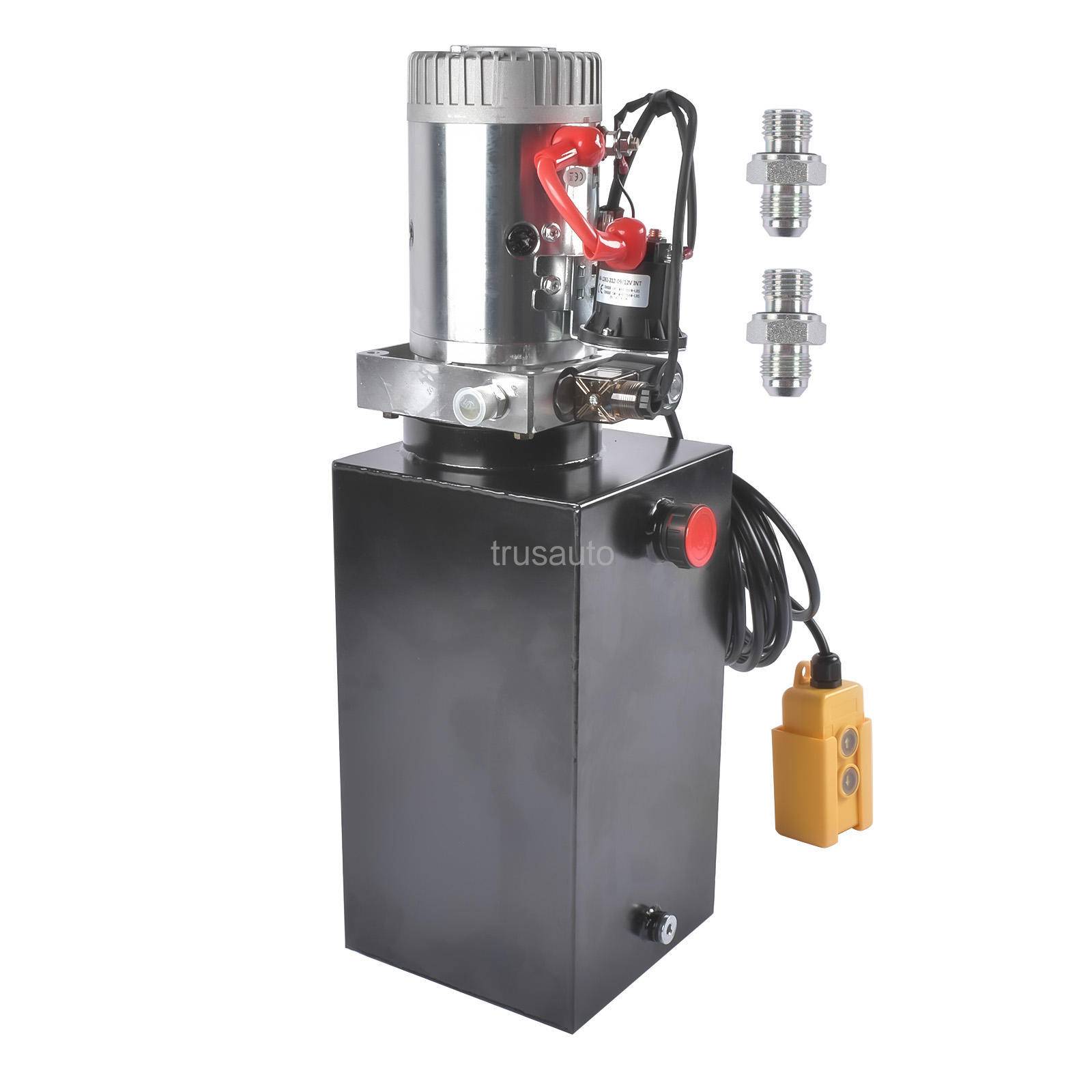

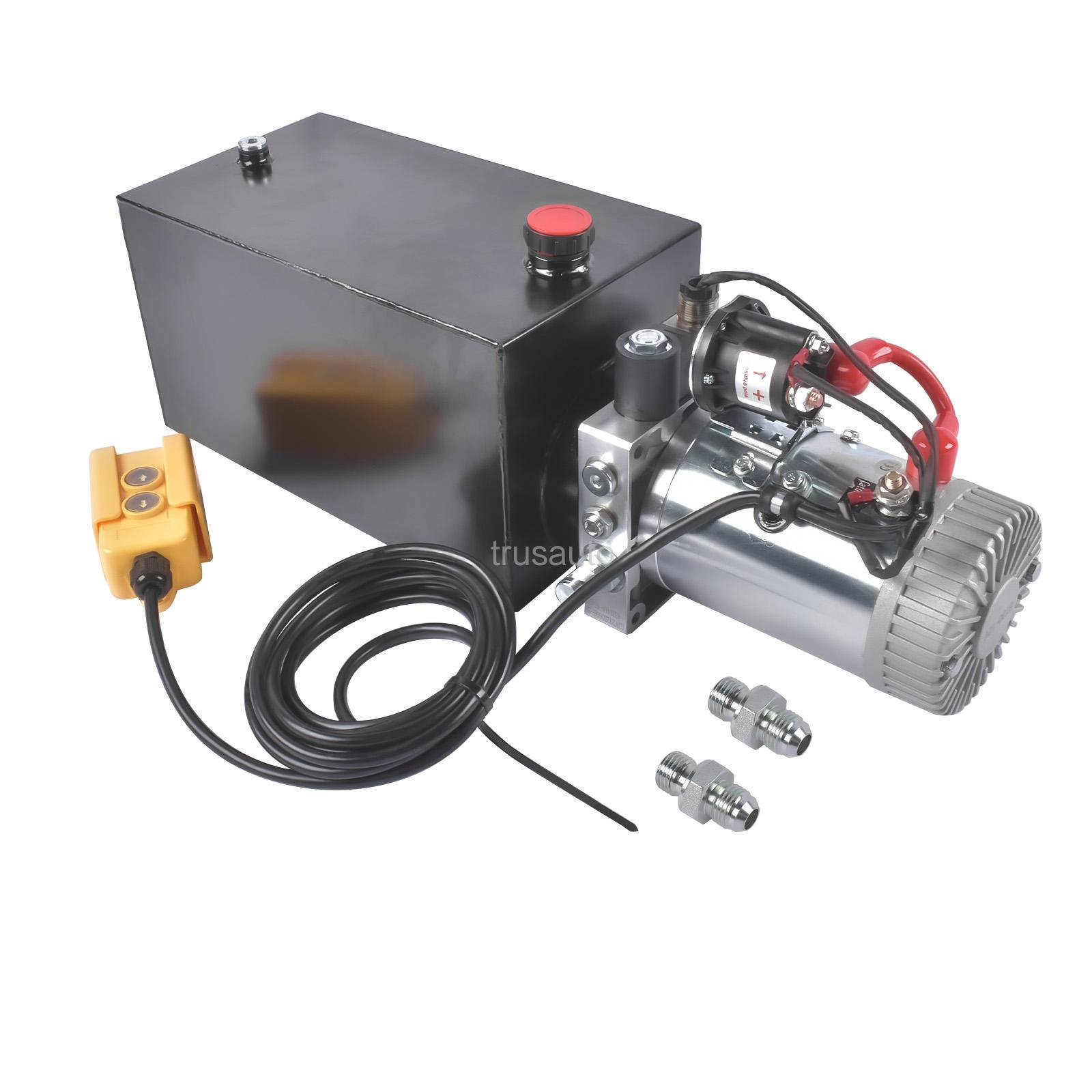

This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 10-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.

II. Item Specifics

Colour: Black
Model: 10QSAMHP
Tank Material: Metal
Tank Capacity: 10L / 10Quart / 2.5 Gal
Flow: 2.0 GPM
Max. Relief Valve Setting A Port: 3200 PSI
Max. Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min
Traffic: 1.1 cc/r
Rotation: Clockwise
Connector: SAE # 6
Mount Position: Horizontal / Vertical
Control: Solenoid and Handheld Pendant
Pendant Control Length: 15ft / 4.5 m

III. Item Features

🧵High-Performance Pump: Equipped with a 12V DC motor (1.6-3.0kw) and a 10-quart tank, this hydraulic pump offers max pressures of 3200 PSI (A port, SAE#6) and 1500 PSI (B port, SAE#6), operating as a single-acting pump for power-up/gravity-down motion.

🧵Plug-and-Play Convenience: Fully pre-assembled, this 12V power unit includes simple wiring, clear instructions, an additional SAE#6 connector, and a 15 ft remote control for effortless operation.

🧵Durable Construction: Built with robust metal, the dump trailer pump resists cracking and damage. Ideal for remote hydraulic systems, it features an overflow valve for automatic pressure release, ensuring safety and reliability.

🧵Swift Operation: Powered by a high-performance motor, the strong motor ensures quick startup and oil output, providing efficient power for dump trailers and beds to lift loads rapidly.

🧵Versatile Compatibility: Suitable for stackers, lifting platforms, and various dump trailers, this 12V DC power unit serves as a direct replacement for remotely controlled hydraulic systems.

IV. Package Included

1x 10 Quart Double Acting Hydraulic Pump
1x English Manual
Several Related Accessories (Including a Connector)
(As Pics Shown)
