Item Specifics

Fuel Type :Gas

Drive Type :Electrical

Gallons Per Hour (GPH) :130

PSI :14

inlet and outlet Size :3/8"

Interchange Part Number :KMJ 2802

Gasket Included :No

Internal or External :External

Package Contents :1PC Fuel Pump

Custom Bundle :No

Condition :New

Fitment Type :Direct Replacement

Mounting Hardware Included :No

Modified Item :No

Color :Silver

The fuel pump may need to be replaced if:

Hard to start up

Abnormal noise

Low fuel pressure

Insufficient driving force and driving with difficulty

Vehicles accelerate inefficiently and unstable speed?

Package Include:

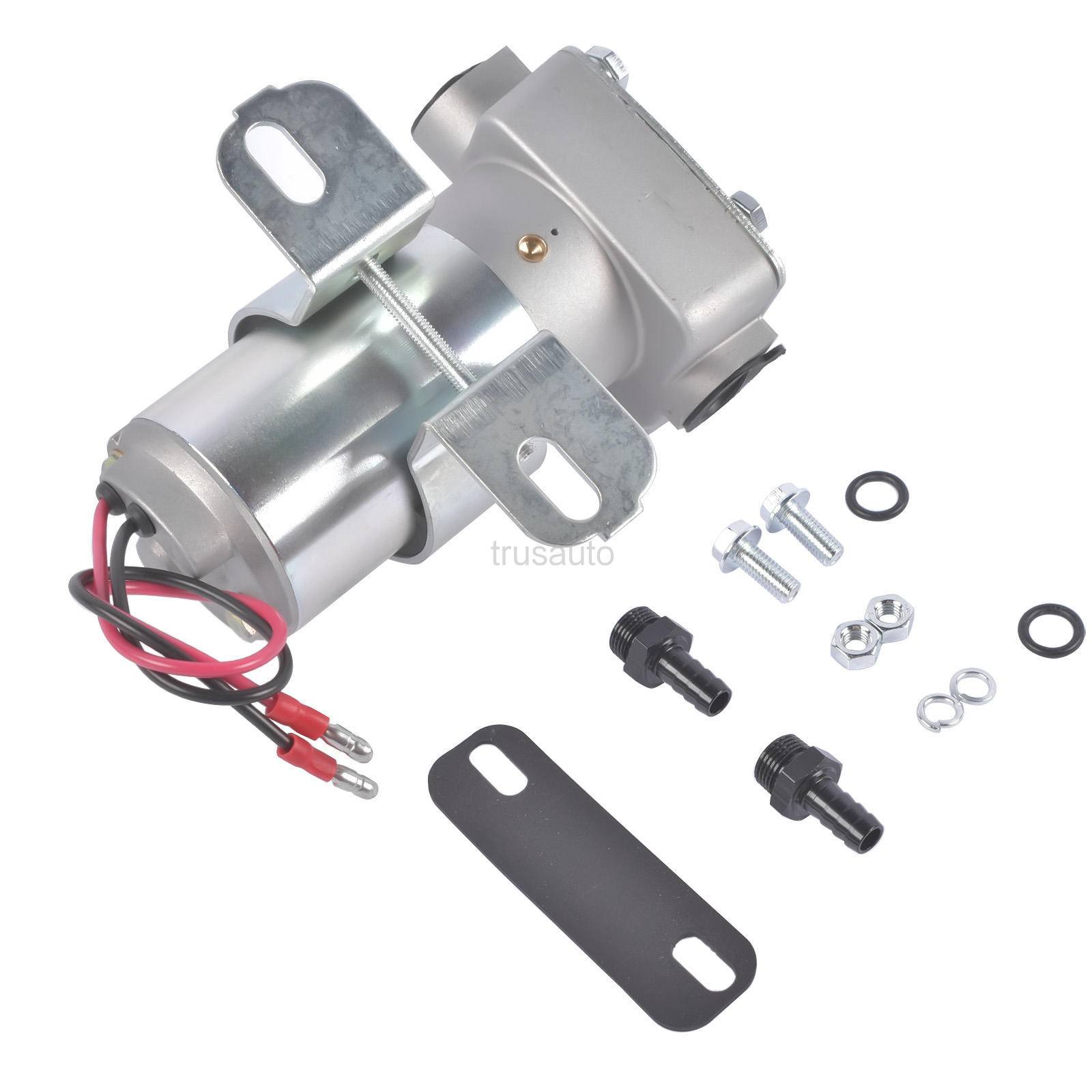

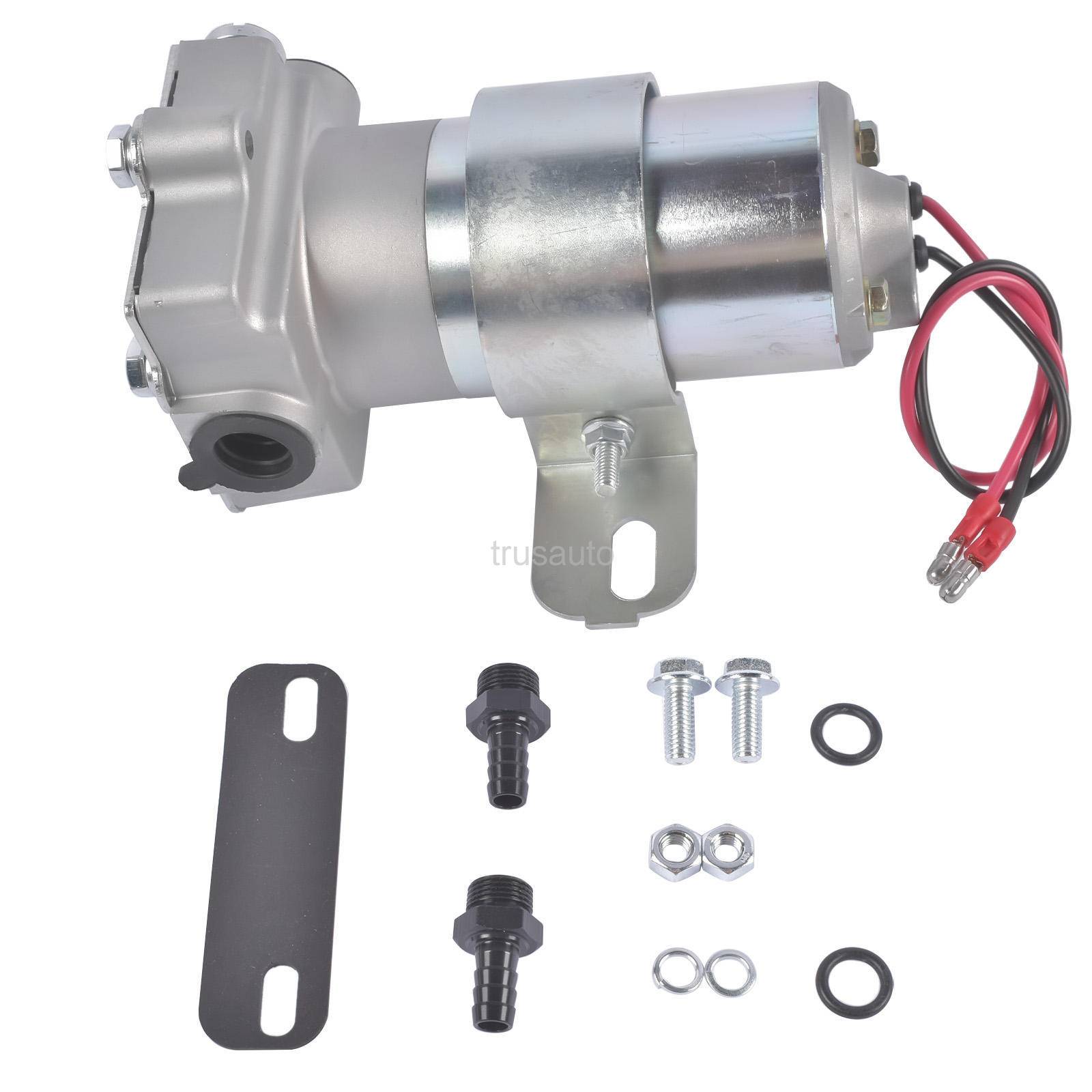

1 x FUEL PUMP MODULE ASSEMBLY

Notes:

Due to the complexity of installing and diagnosing a fuel pump, it’s highly suggested it should be operated by a certified technician.

How to replace:

*Park the vehicle on a firm, level surface and set the parking brake.

*Find the fuel pump, which on most vehicles is in the fuel tank.Once located, open the fuel cap and have an assistant turn the key to the ON position while you listen at the filler opening. The fuel pump will hum for two to three seconds, if working properly. If no sound is made, replacing the pump may be necessary.

*Relieve the fuel system pressure. Disconnect the negative battery cable.

*Siphon or drain as much fuel as possible from the fuel tank. Disconnect the filler tube hose and the electrical connection to the pump.

*Support the fuel tank with a jack and a block of wood.Remove any retaining straps or bolts holding the tank to the frame. Lower the tank.

*Disconnect the fuel lines and remove the fuel pump from the tank.Compare the new fuel pump with the original to verify that you have the correct part. Install the new fuel pump.

*Connect the fuel lines to the pump. Lift the fuel tank up and install the retaining strap. Reconnect the filler tube hose and the electrical connector.

*Reconnect the negative battery cable. Fill the tank with gas. Conduct a road test to confirm a successful repair.
