Parameters
Part Type
replacement
Manufacturer Part Number
151-0401, 151-0701, 1510401, 1510701, OMR-80-151-0401, OMR-80-151-0701, OMR80-151-0401, OMR80-151-0701, OMR80-1510401, OMR80-1510701, OMR801510401, OMR801510701, OMRX80-11185560, OMRX8011185560
Interchange Part Number
OMR80 - 151-0401, OMR80 - 151-0701
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 207.00
Market Price: $230.00 0 People Puchased
Free Delivery

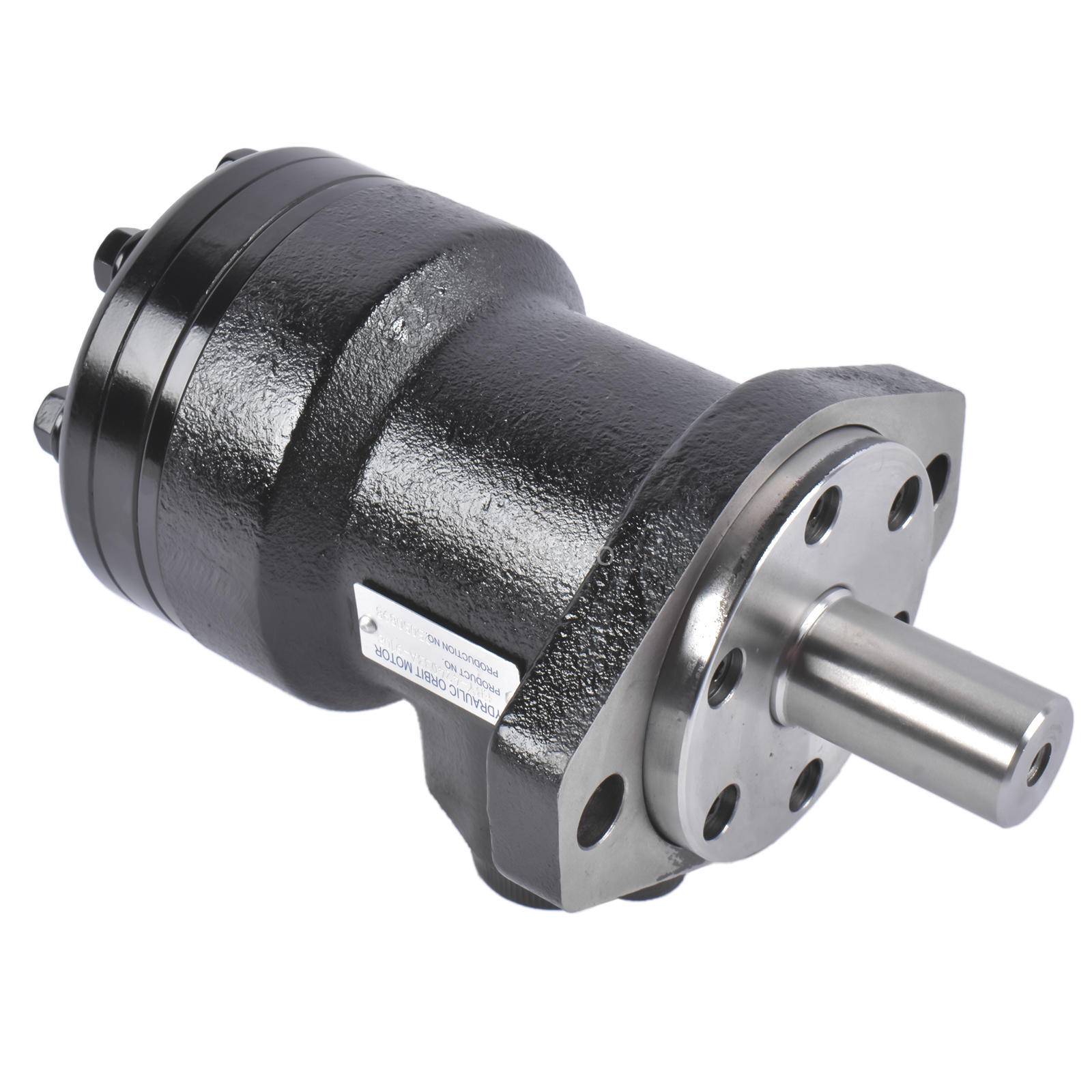

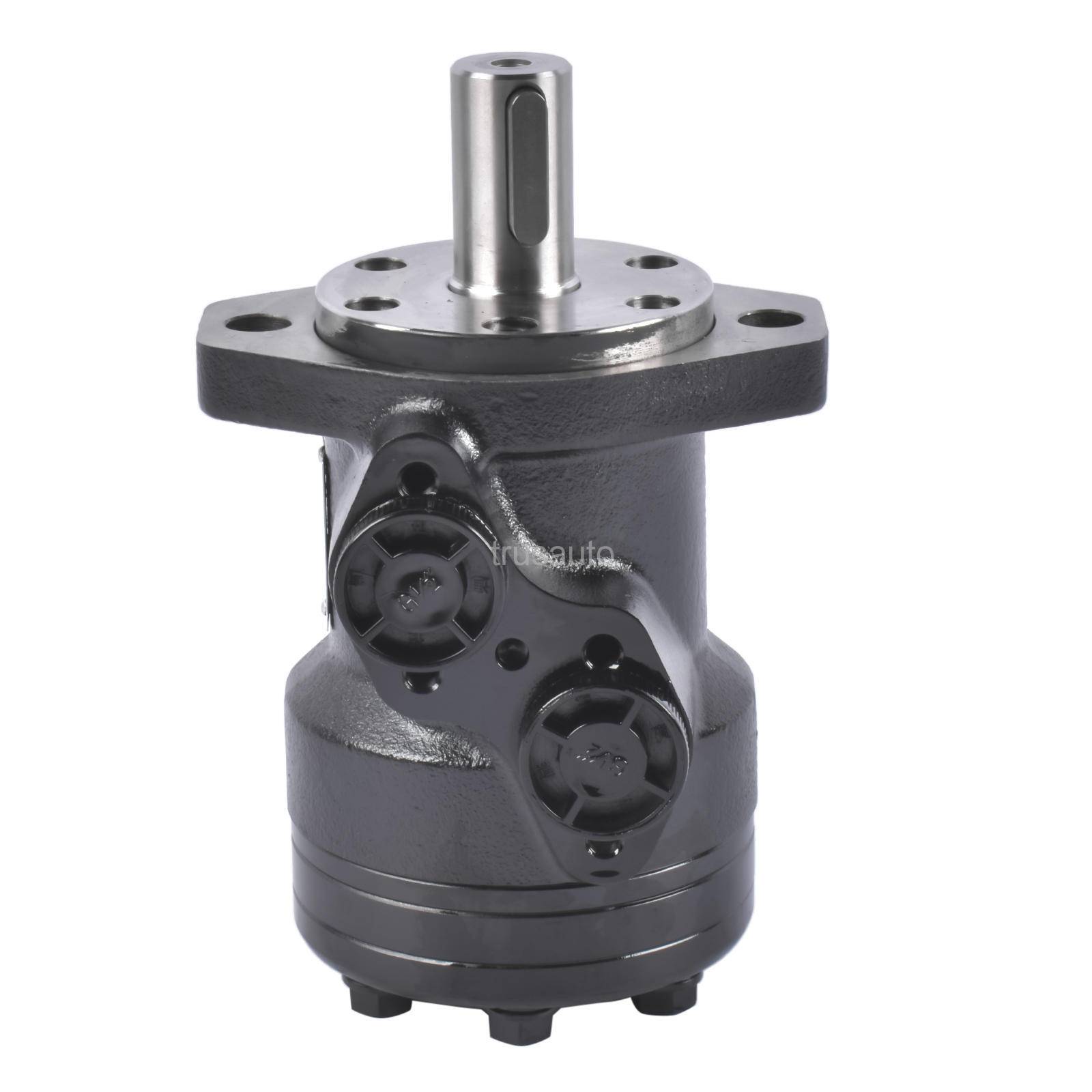

Hydraulic Orbital Motor for Excavator Forklift 1" Shaft OMR80-151-0401 151-0401
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 207.00
Market Price: $230.00 0 People Puchased
Free Delivery
Hydraulic Orbital Motor for Excavator Forklift 1" Shaft OMR80-151-0401 151-0401
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OEM Part Number
151-0401, 151-0701, 1510401, 1510701
OMR-80-151-0401, OMR-80-151-0701
OMR80-151-0401, OMR80-151-0701
OMR80-1510401, OMR80-1510701
OMR801510401, OMR801510701
OMRX80-11185560, OMRX8011185560
Fit for The Following Models
For Excavator, Forklift and so on Machines
Specification:
Geometric displacement: 80.3cm³/[4.91in]
Max speed cont: 750rpm
Max speed int: 940rpm
Max torque cont: 195Nm/[1730lbf in]
Max torque int: 220Nm/[1960lbf in]
Max output power cont: 12.5kW/[16.8hp]
Max output power int: 15.0kW/[20.1hp]
Max pressure drop cont: 175bar/[2540psi]
Max pressure drop int: 200bar/[2900psi]
Max pressure drop peak: 225bar[3260psi]
Max oil flow cont: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 10bar/[145psi]
Min starting torque at max press drop cont: 150Nm/[1330lbf in]
Min starting torque at max press drop int: 170Nm/[1510lbf in]
Max inlet pressure cont: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max inlet pressure peak: 225bar/[3260psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Max return pressure with drain line peak: 225bar/[3260psi]
