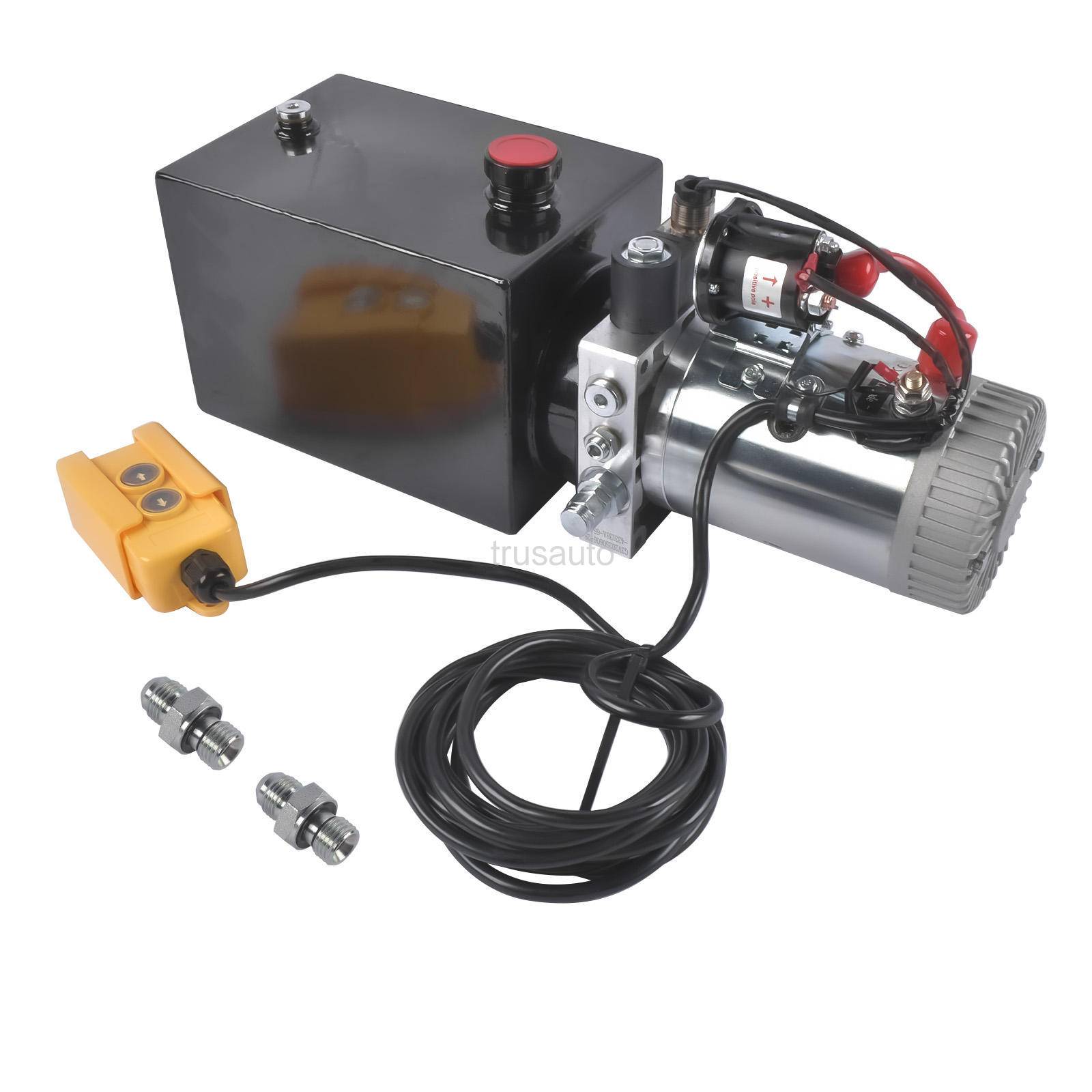

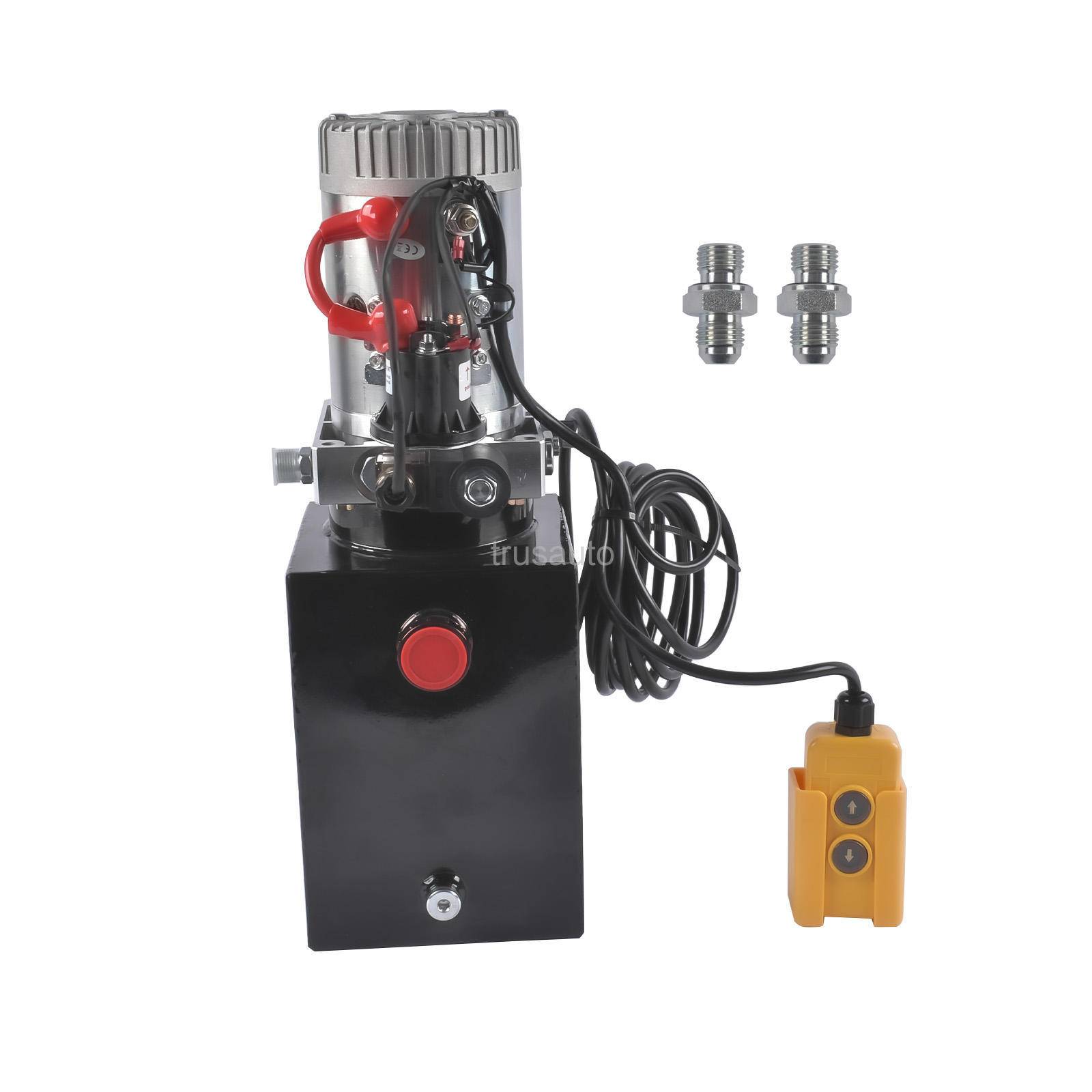

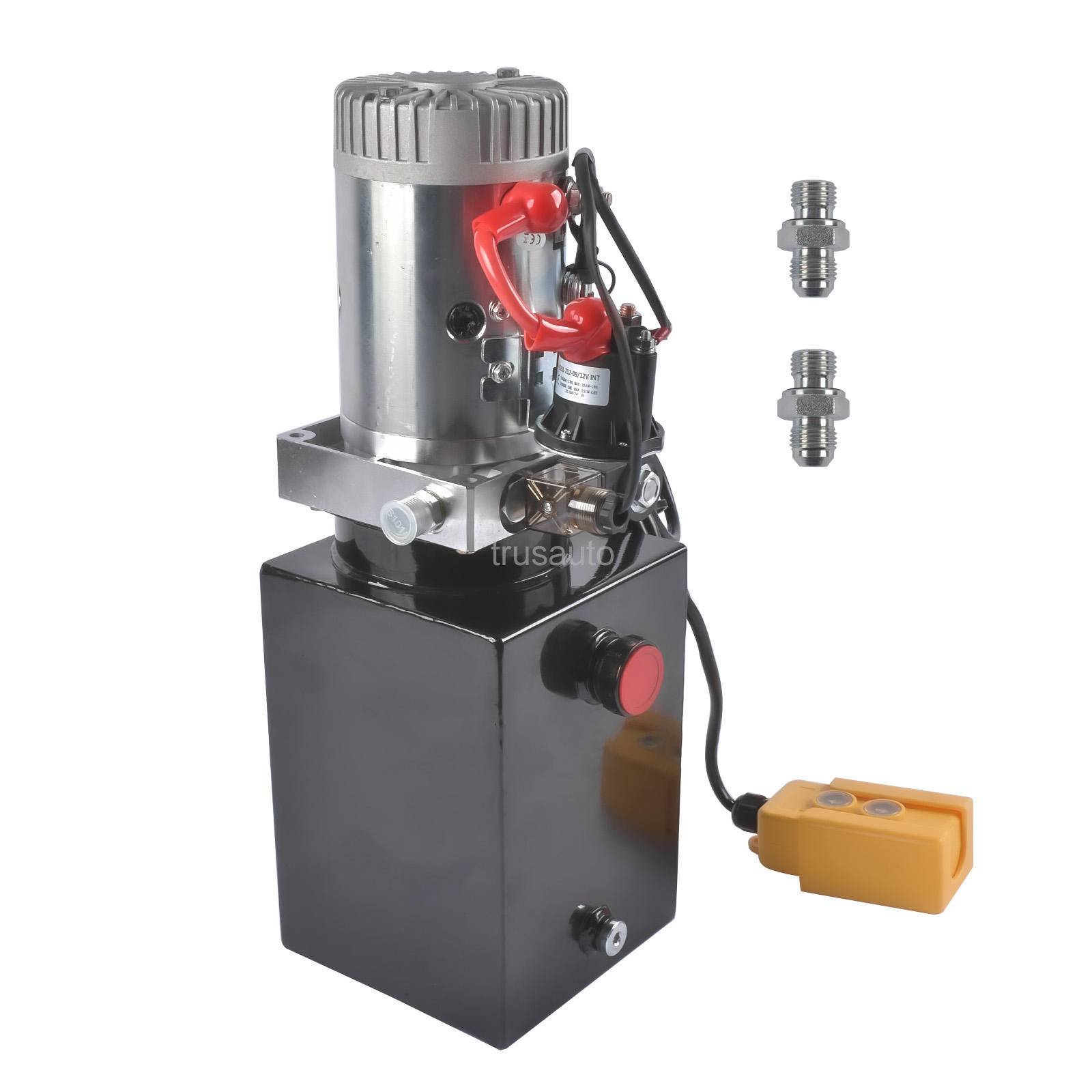

6 Quart Single Acting Hydraulic Pump

This hydraulic pump is a single-acting power unit. It has a 6-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.

Specifications

Mode: Single-Acting
Tank Material: Metal
Tank Capacity: 6L / 6Quart / 1.5 Gal
Flow: 2.0 GPM
Max. Relief Valve Setting A Port: 3200 PSI
Max. Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC 12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min

Traffic: 1.1 cc/r

Connector: SAE # 6

Features

【High-Powered Performance】Our hydraulic pump uses a 12V, 1.6kW DC motor, which can provide strong power to the hydraulic system and complete the lifting in a short time. With a 6-quart tank and 16-20Mpa oil pressure, this powerhouse releases a maximum pressure of 3200 psi; the dump trailer pump can effortlessly handle heavy vehicles and machinery, lifting them with ease.
【Hassle-free Setup】The 12V hydraulic pump arrives pre-assembled. Add hydraulic oil and connect the power supply and tubing, and you're ready to start. Hydraulic pump includes an SAE#6 converter, making it compatible with metric and American interfaces for your convenience.
【High Quality Material】This Dump trailer pump is made of sturdy metal, the tank is not easy to be cracked or damaged, corrosion-resistant, abrasion-resistant, high strength and hardness to ensure a longer service life. Equipped with a relief valve, automatic release when overpressure, more safe and reliable, is the ideal replacement pump for remote hydraulic systems
【Versatile Applications】This hydraulic pump isn't limited to one task. It's a versatile workhorse, suitable for various lifting and stamping applications. From dump trailers and container truck tailplates to hydraulic wood splitters, small presses, lifting platforms, semi-electric push trucks, bucket transporters, and more.

Package Content

1× 6 Quart Single Acting Hydraulic Pump

1× Instruction Manual

Several Related Accessories (Including connectors)
