Specifications

Material of Tank: Metal
Power / Gravity: Single Acting Power-Up/Gravity Down
Reservoir: 13 Quart
Port: SAE # 6 Port, Horizonal mount

Feature

Easy to Use

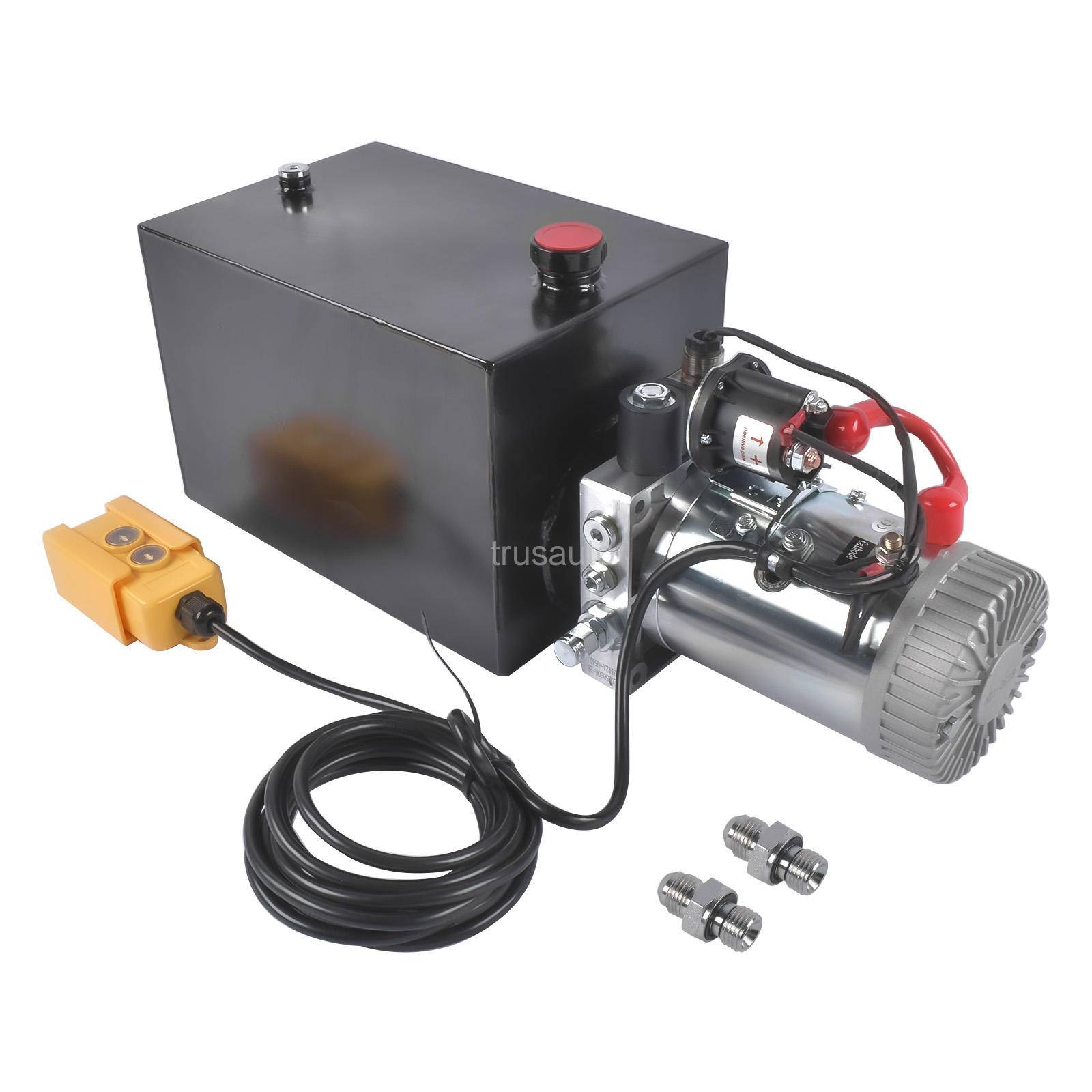

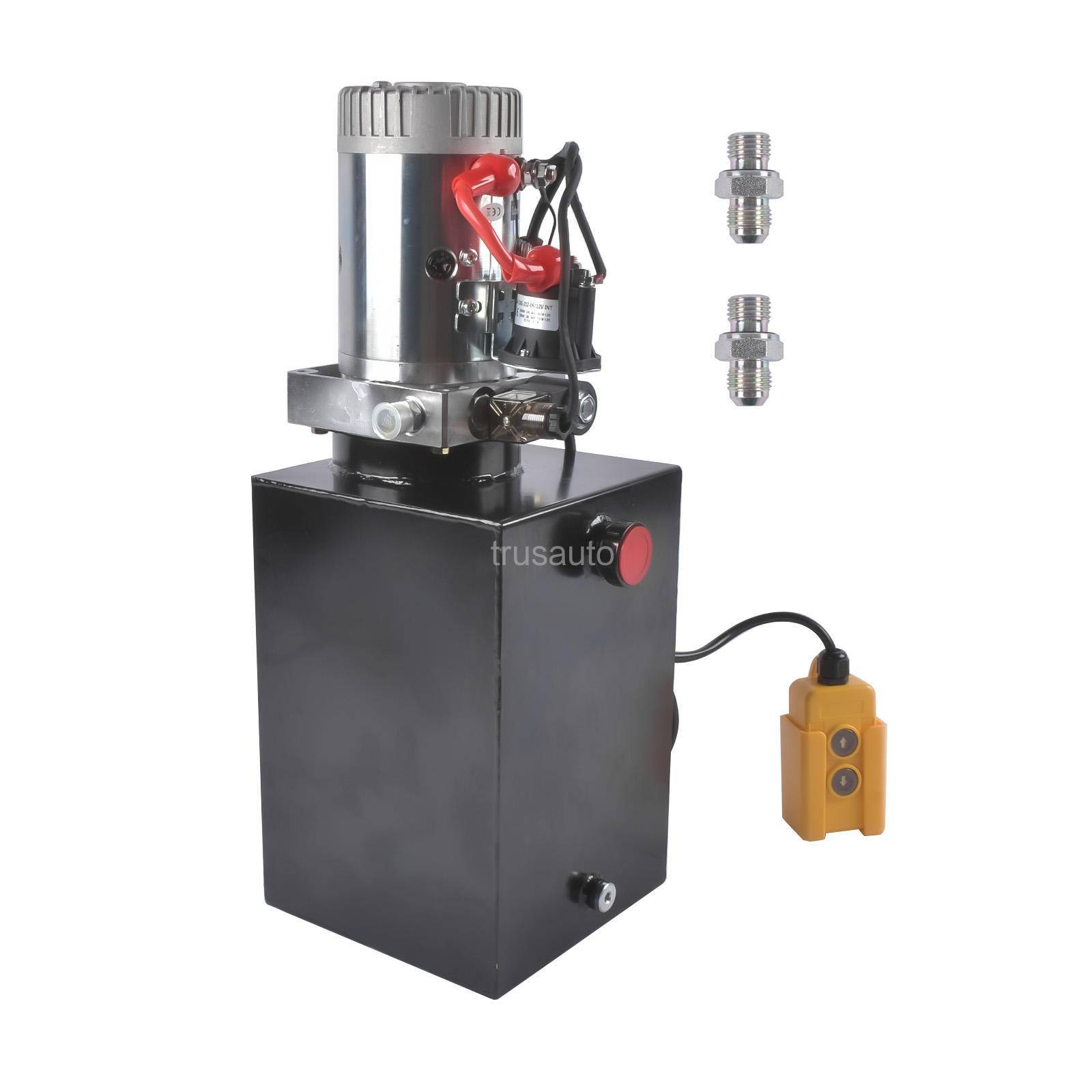

This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.

Single-Acting Power Unit

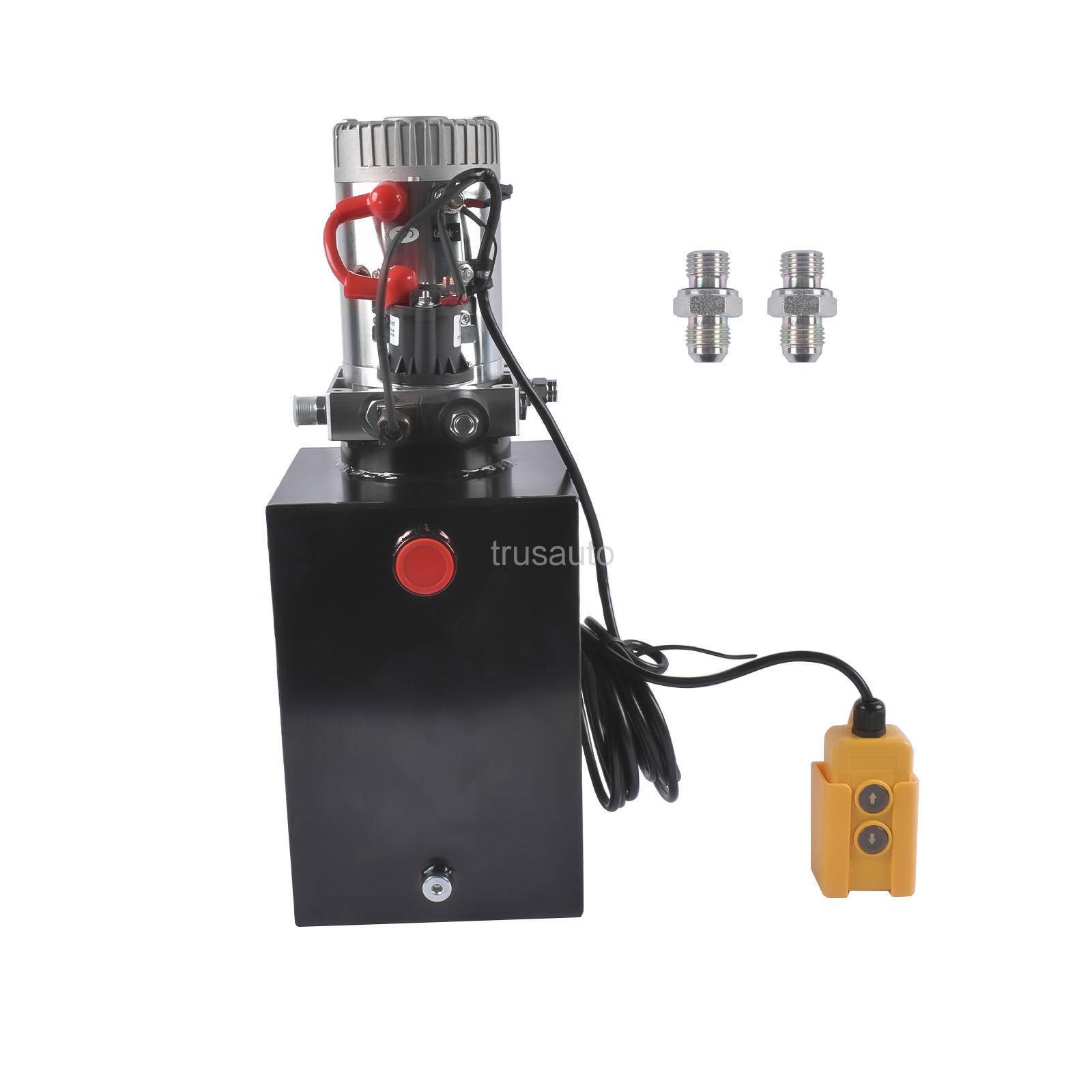

This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3kw) and a 13-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.

Reliable Quality

This dump truck pump is constructed from sturdy metal materials, ensuring that the fuel tank is resistant to cracking or damage. As a power unit, this pump serves as an ideal replacement for remote hydraulic systems. Equipped with a relief valve, it automatically releases excess pressure when overloaded, ensuring safe and reliable operation.

Quick Start-Up

With its powerful motor, this hydraulic electric pump starts up quickly and delivers rapid oil pressure output. It provides strong power for hydraulic systems in dump trailers, dump truck beds, and other applications, and can complete lifting operations in a short time.

Wide Application

This power unit is widely used in stackers, small and medium-sized lifting platforms. It is compatible with various dump trailers and material handling equipment and can directly replace 12V DC remote-controlled hydraulic systems.
