Note: The product has a protection device, no need to add a fuse. If you do, the fuse must not be lower than 50amp, otherwise it will burn out the circuit of this product.

Item Specifications:

Rated Voltage: 12V
Max, Capacity: 20GPM
Rated Power:  1/4HP
Max. Lift:  8Feet
Duty. cycle: 30mins.
Nozzle Type: Manual
Compatible Fluids: Gas/Diesel
Hose: 3/4"x12ft

Feature

Time and Effort Saver：The high - flow feature directly means you can get your fuel transfer done in a flash. In busy workplaces like gas stations, truck fleet repair sites, or farms where frequent fueling is needed, this pump gets you back to work quicker, reducing wait times and boosting overall productivity.An interval of 30 minutes is recommended.

Enhanced Fuel Purity: The built - in filter of the 12V fuel transfer pump plays a crucial role in maintaining the purity of the fuel. It effectively removes impurities, dirt, and debris from the fuel during the transfer process. By filtering out harmful substances, the fuel transfer pump with a filter helps to protect the internal components of the equipment that the fuel is being transferred to.

Will Fit for The Following Models

This fuel transfer pump adopts professional explosion-proof components and technology. The 12V battery connector allows you to run the pump on cars, motorcycles, trucks, four-wheel drive vehicles and other 12 volt vehicles. It is suitable for a variety of environments such as home, outdoor, living, work, and production.

This oil pump is convenient, reliable, easy to operate and simple to maintain. Compatible with Diesel, Gasoline, Kerosene, E15, and Biodiesel up to B20.

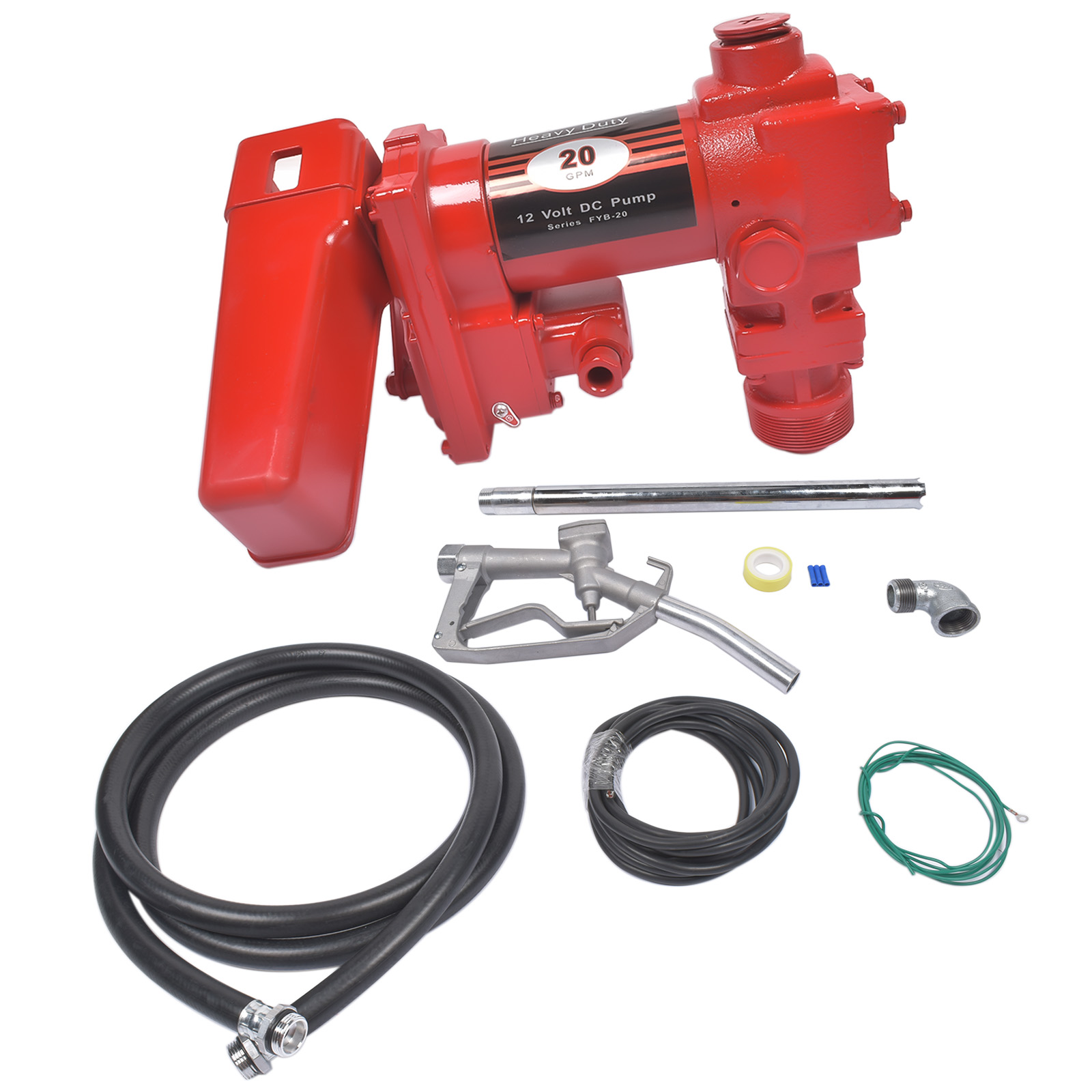

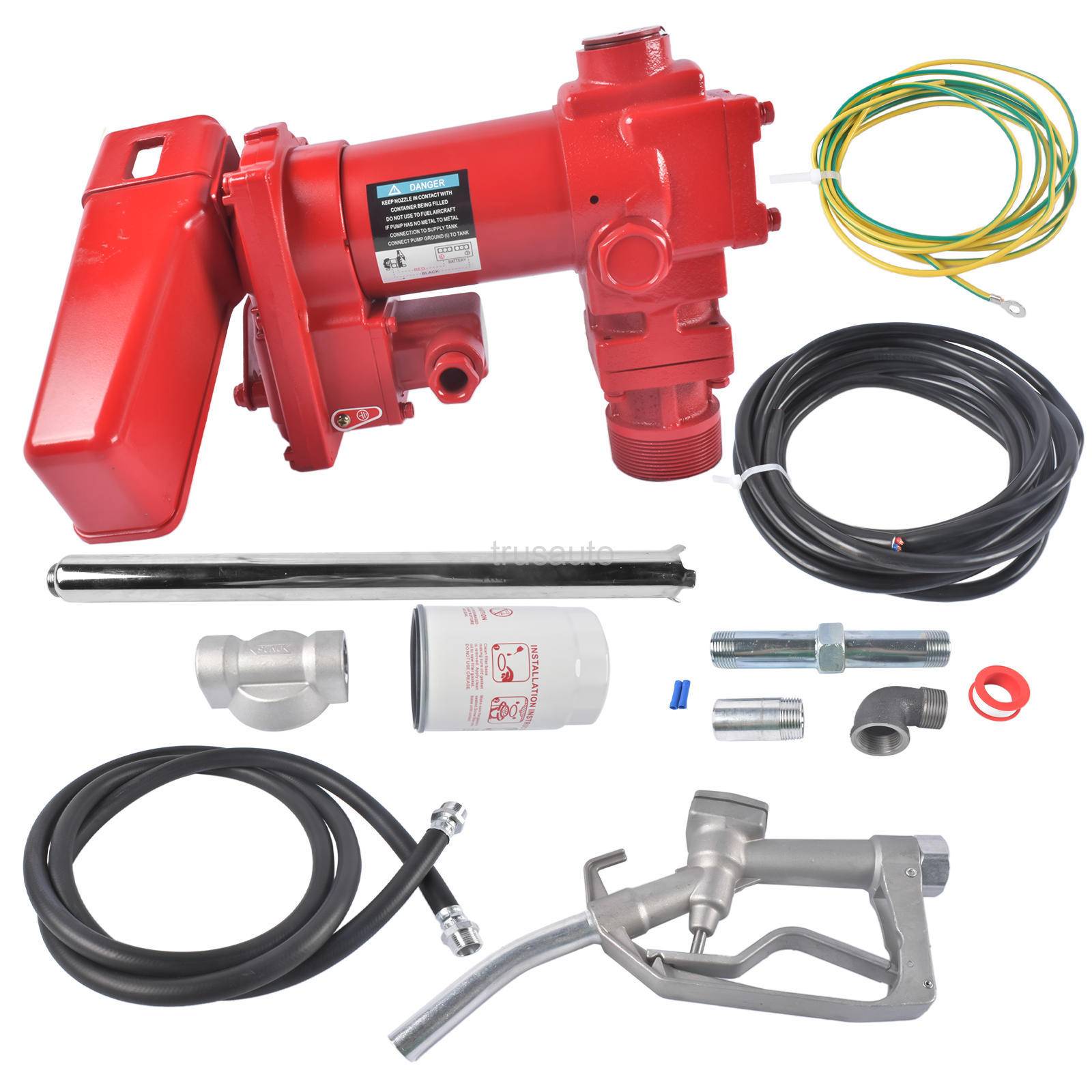

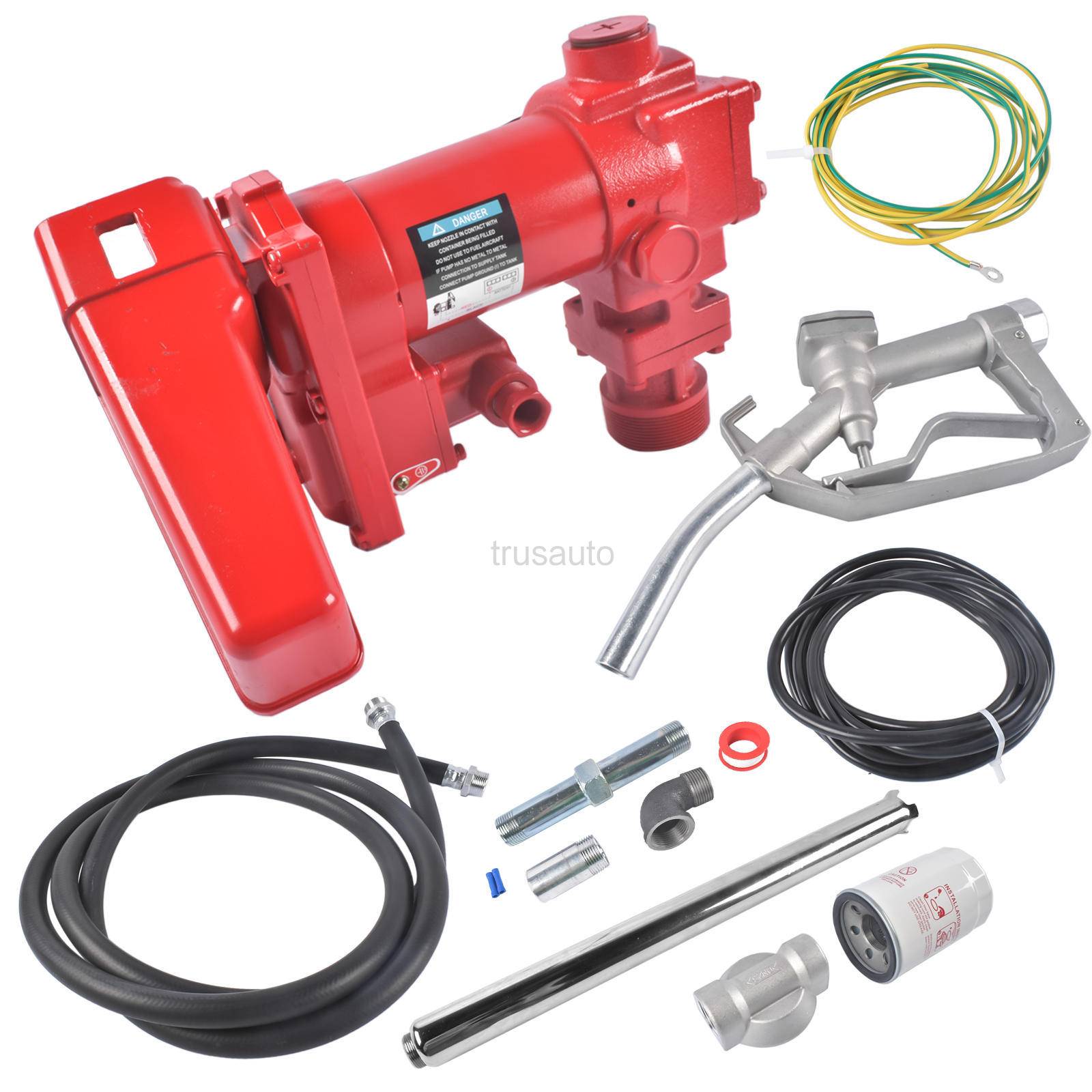

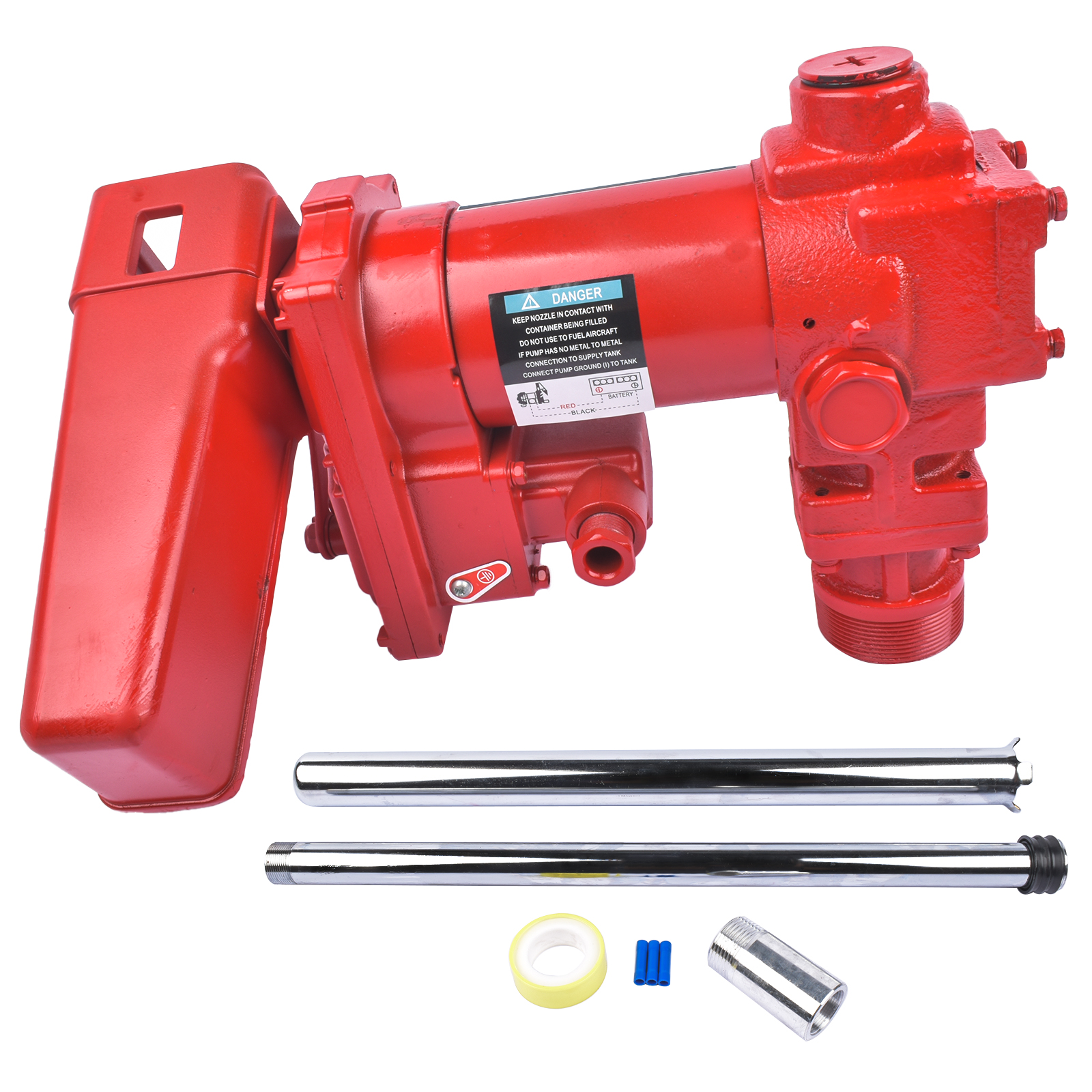

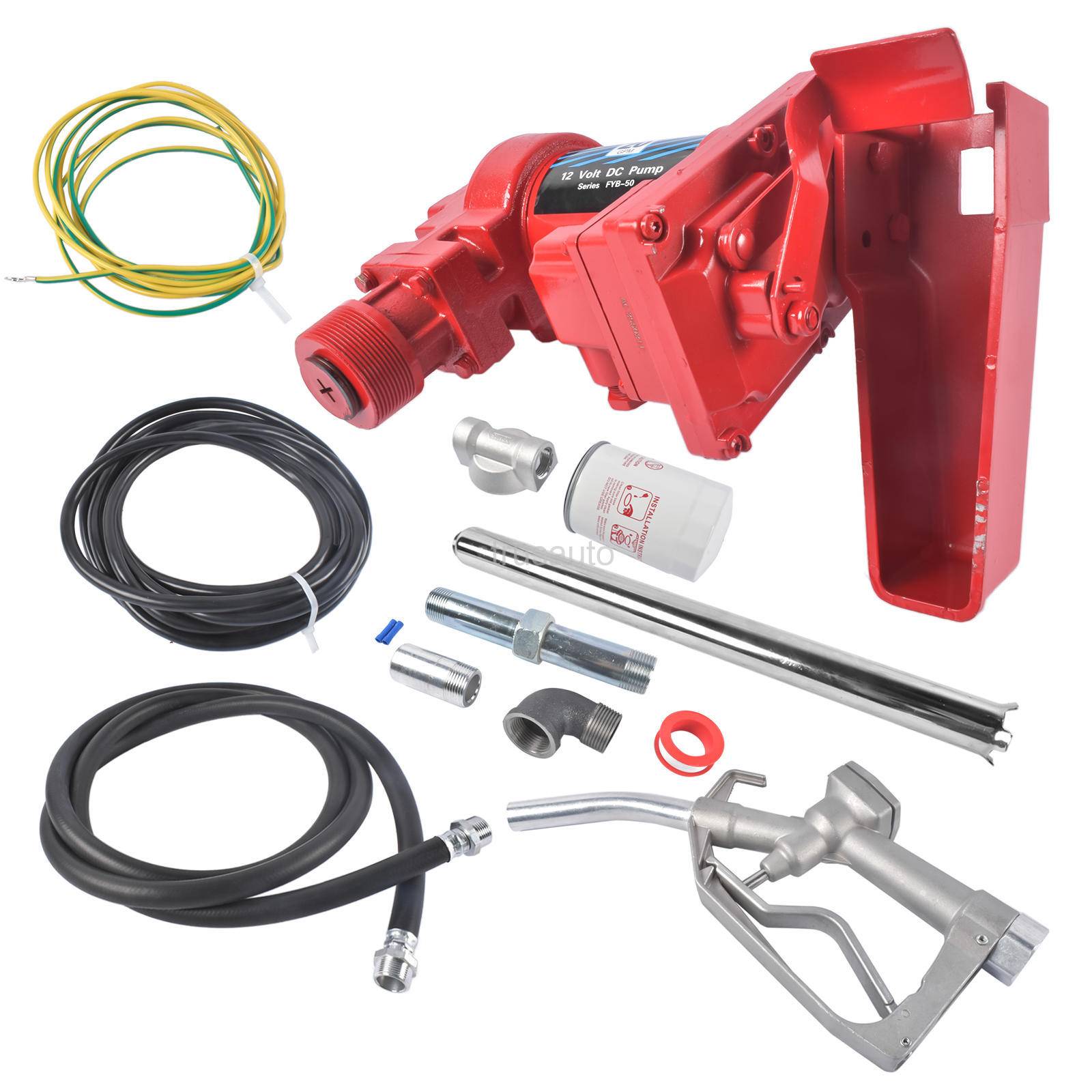

Package Includes:
As pics shown

Safety Information

WARNING! Electrical wiring should be performed ONLY by a licensed electrician in compliance

with local, state, and national electrical code NEC/ANSI/ NFPA 70, NFPA 30, and NFPA 30A, as

appropriate to the intended use of the pump. Threaded rigid conduit, sealed fittings, and

conductor seal should be used where applicable. The pump must be properly grounded.

Improper installation or use of this pump can result in serious bodily injury, or death!

WARNING! To ensure safe and proper operation of your equipment, it is critical to read and

adhere to all of the following safety warnings and precautions. Improper installation or use of

this product can cause serious bodily injury or death!

NEVER smoke near the pump, or use the pump near open flames when pumping a flammable

liquid! Fire can result!

A filter should be used on the pump outlet to ensure no foreign material is transferred to the fuel tank.

Threaded pipe joints and connections must be sealed with the appropriate sealant or sealant

tape to minimize the possibility of leaks.

Storage tanks must be securely anchored to prevent shifting or tipping when full or empty.

To minimize static electricity build up, use only static wire conductive hose when pumping flammable fluids, and keep the fill nozzle in contact with the container being filled during the filling process.

The pump motor is equipped with thermal overload protection; if overheated, the motor will shut off to prevent damage to the windings.

WARNING! This product shall not be used to transfer fluids into any type of aircraft.

WARNING! This product is not suited for use with fluids intended for human consumption or fluids containing water.

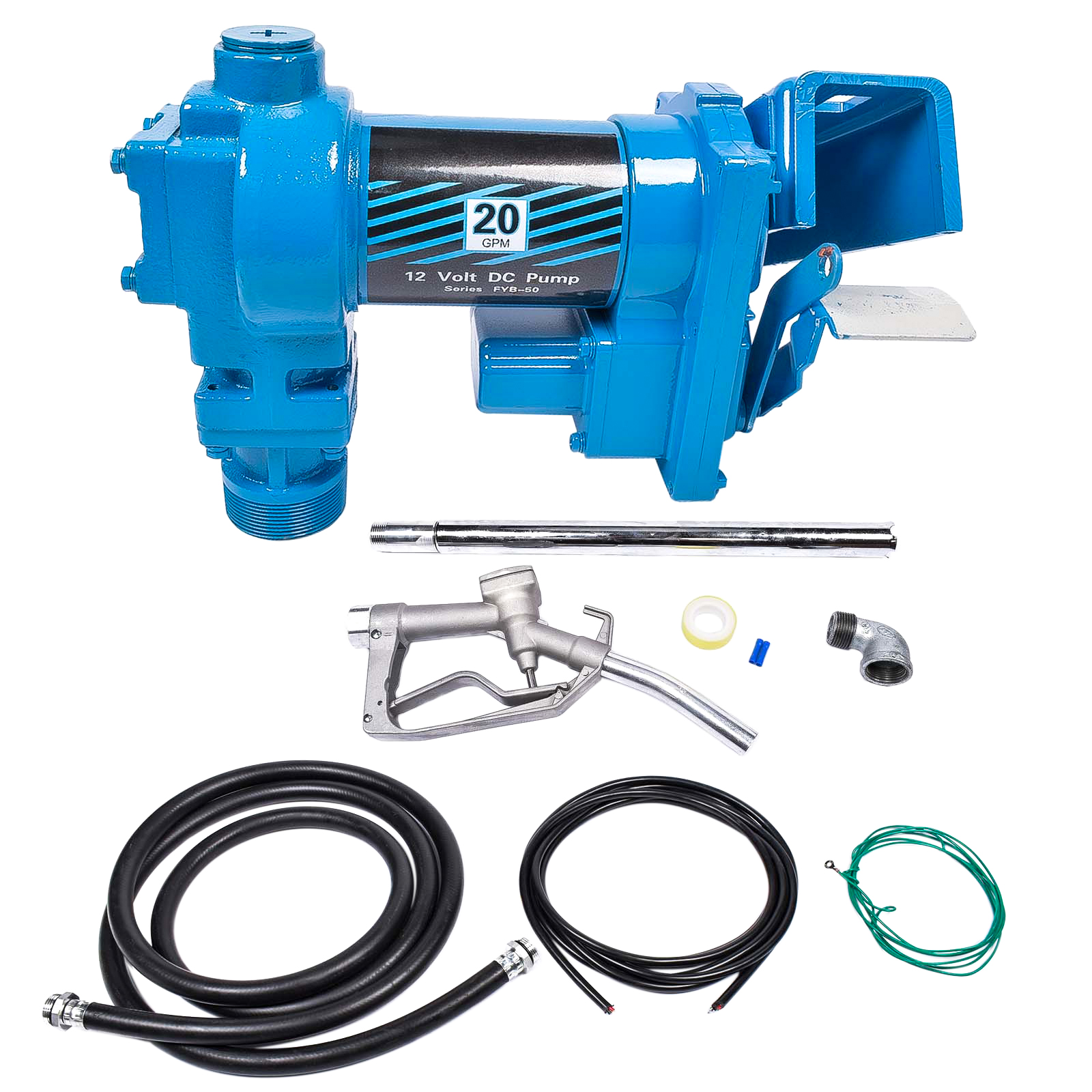

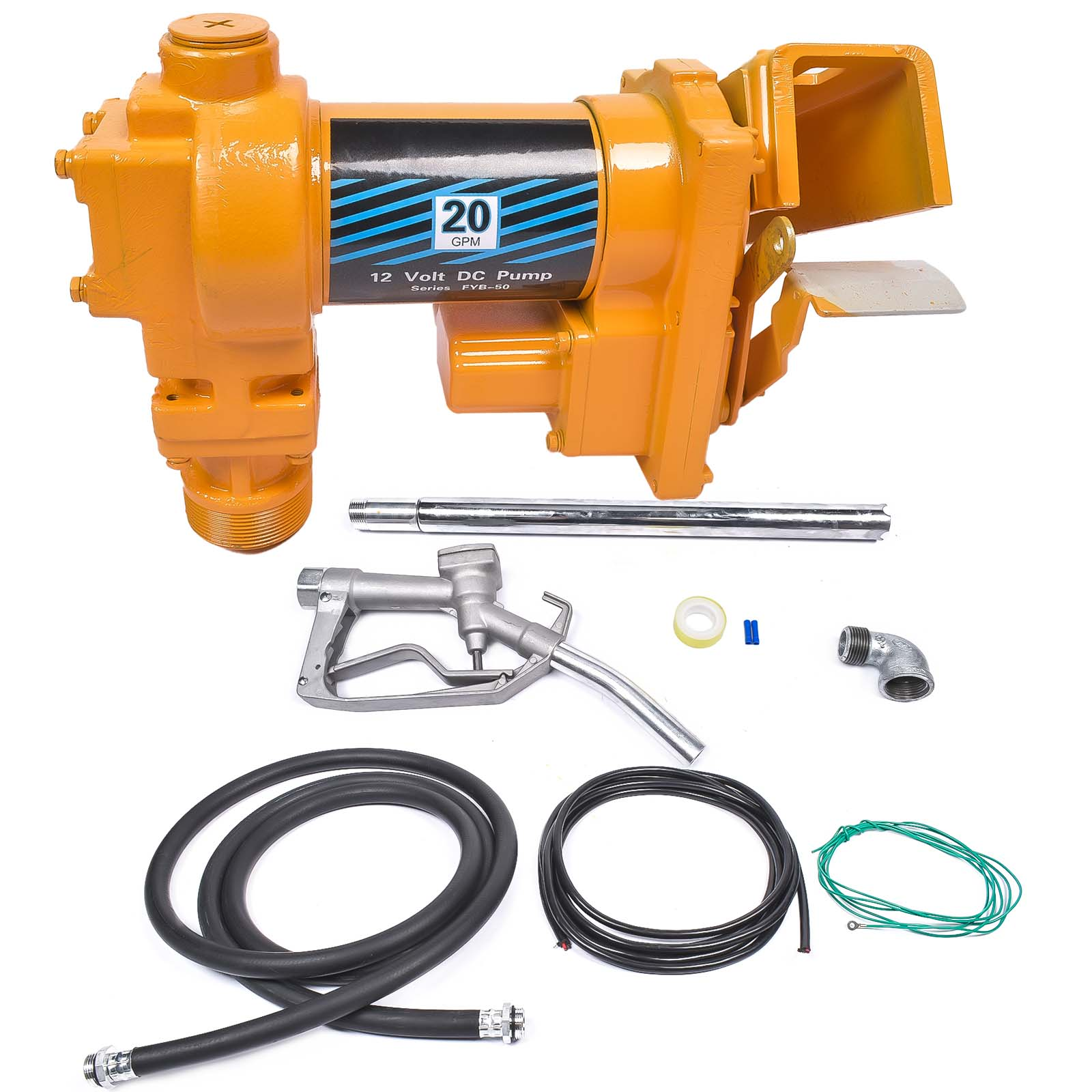

More for Selection

Pump
description	Pump w/Nozzle Kit	Pump w/Nozzle Kit	Pump w/Nozzle Kit	Pump+Oil Line
Color	Yellow	Blue	Red	Red
Capacity	20GMP	20GMP	20GMP	15GMP
Fuel Transfer Hose	✓	✓	✓
Manual Nozzle	✓	✓	✓
Suction Pipe	✓	✓	✓
Flow Meter
