Features:

Made of high quality steel, and made with craft of chrome processed, which is durable and high ability of suspension.

Chrome surface finish, which is perfectly decorate to the models of Harley.

5 step pre-load adjustment range to help tune them for your weight

Pre-load adjustment tool included

Measure your stock shocks to verify the length.

These will only lower the bike if they are shorter than stock.

These shocks will lower your cycle about 1.5" on most XL and FXR models.

They are perfect for those riders with shorter legs that have troubles getting their feet on the ground while keeping the same quality ride experience.

Specifications:

Item Type: 11.75" Rear Shocks Absorbers

Material: High Quality Steel

Color: Chrome

Surface Finish: High Quality Chrome Processed

Dimension:

Diameter of eye opening is 1/2".

Lemgth of Eye to Eye Core: 11.75" (298mm)

Eye Diameter(with Bushing): 13mm 16mm

Eye Thickness: 30mm

Eye Maximum Tensile Strength: 2,000 Kgf

Spring Thickness: 7mm

Spring Width: 70mm

Working Stroke: 60mm

OE Number:

54568-92

Will Fit Following Models:

1982-1994 Harley FXR

1979-2012 Harley XL Sportster

1980-2022 Harley Touring Tour Glide FLT, Electra Glide FLHT, Road King FLHR, Road Glide FLTR, Street Glide FLHX

Excluding Trike and Models with Fork Cartridge

Please must check the size of eye to eye 11.75" before ordering, thanks!

Note:

When installing replacement shocks on 1979 - 2012 XL models, it may be necessary to modify or space the chain/belt guard to allow proper shock clearance.

Please check the size measurement chart carefully before purchasing

Please allow 1-2mm for variance due to manual measurement

Installation instruction is not included

Package Includes:

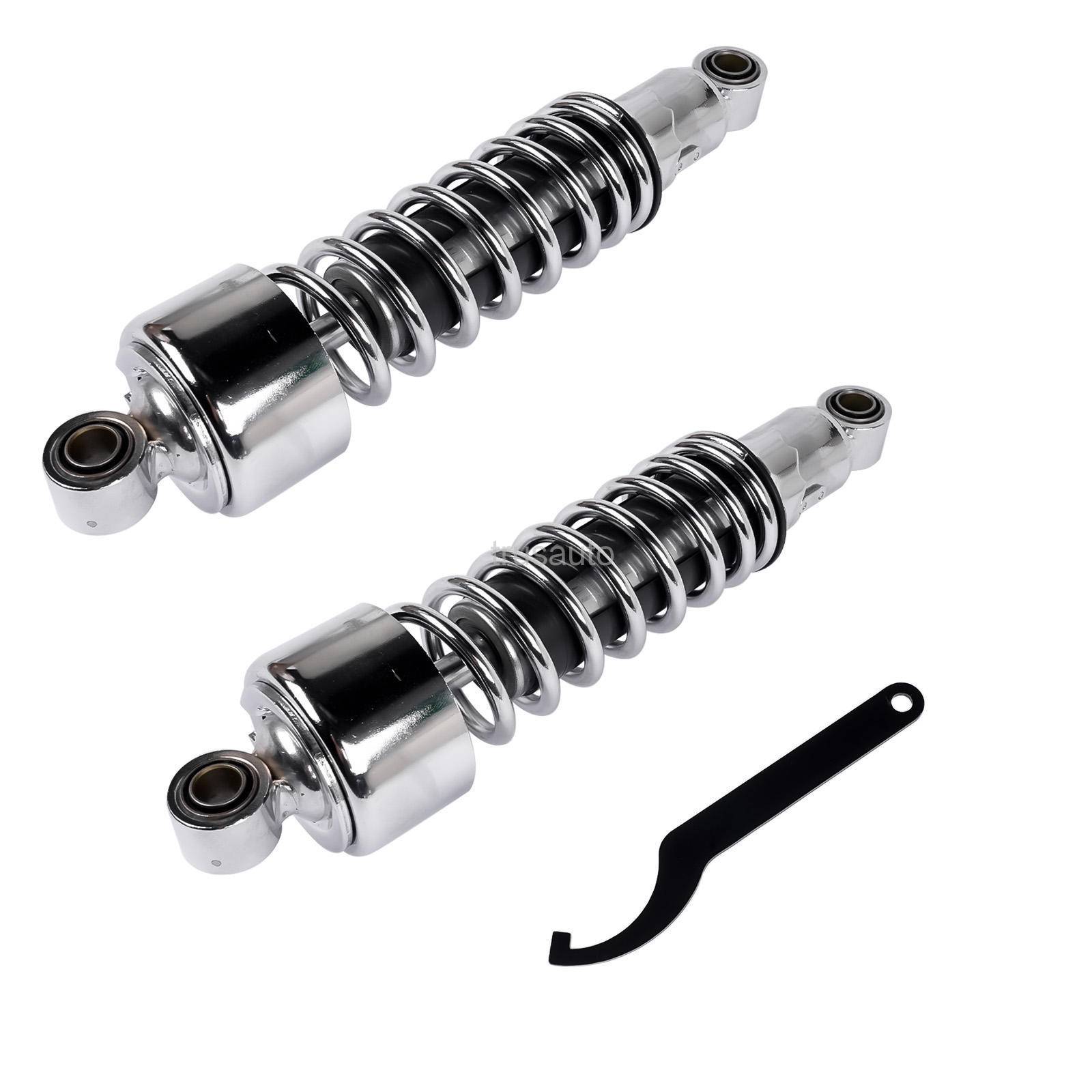

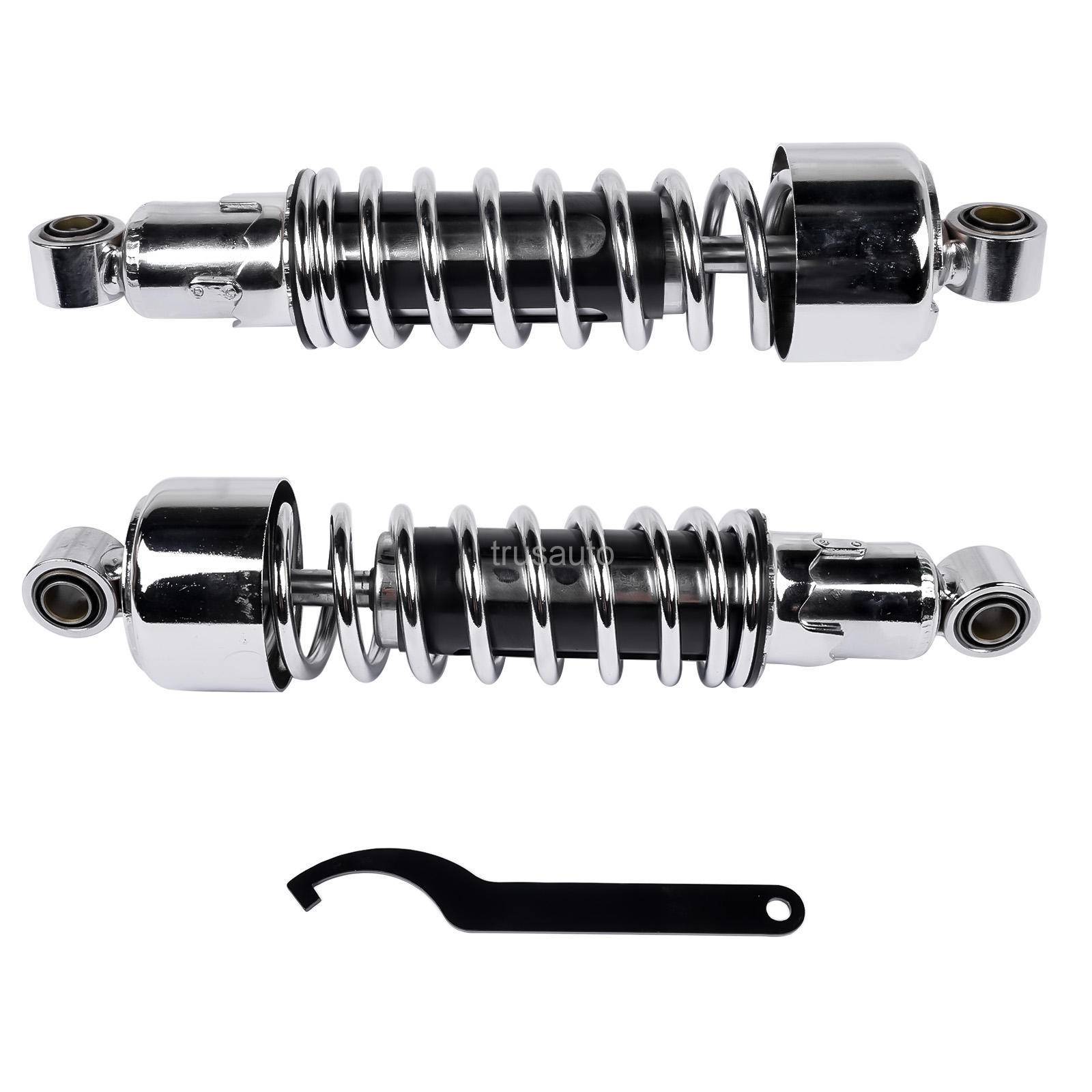

1x Pair Rear Suspension Shock (same as picture show)

Installing Kits
