Part Number

95400

Specification

This set includes two specifications of chucks: imperial and metric. The imperial ones include 3/16 inches, 1/4 inches, 5/16 inches, 3/8 inches and 1/2 inches. Metric systems include 4mm, 5mm, 6mm, 8mm, 10mm and 12mm.

Function

Simplify the process of extracting pins and remove the pins without damaging the surrounding components.

Feature

Alloy steel material
Surface phosphating black technology
Apply anti-rust oil to the surface

Material upgrade: Manufactured from alloy steel with black phosphating treatment to prevent rapid corrosion. Surface coated with rust-inhibiting oil to extend service life. Due to special processing techniques, minor surface scratches may be present. These do not affect performance, and the product remains fully functional. Please use with confidence.

Easy to use: Operates without a slide hammer, making it extremely convenient to handle. We have not applied paint to its surface to prevent the generation of debris during use, which could lead to insufficient lubrication, laborious operation, and hand injuries.

Scope of Application

As long as it is within the specified size and design parameters of the tool, the tool can provide sufficient force to remove the pin, regardless of its material composition.

Usage method

(1) Select the appropriate chuck: Choose a chuck from the tool set that matches the size of the locating pin to be disassembled. This set includes two specifications of chucks: imperial and metric. The imperial ones include 3/16 inches, 1/4 inches, 5/16 inches, 3/8 inches and 1/2 inches. Metric systems include 4mm, 5mm, 6mm, 8mm, 10mm and 12mm.

(2) Install the chuck: Place the selected chuck over the locating pin to ensure a tight fit between the chuck and the locating pin.

(3) Tighten the sleeve: Tighten the sleeve of the chuck to firmly fix it on the locating pin.

(4) Connect and disassemble tools: Install the outer cylinder and nut properly, and then you can choose to use a pneumatic ratchet wrench or a traditional ratchet wrench for the disassembly operation.

(5) Disassemble the locating pin: By operating the ratchet wrench, use the pulling force generated by the outer cylinder and the nut to pull the locating pin out of its installation position.

Note:

Check the product specifications to confirm which sizes of dowel pins it can accommodate.Please pay attention to the size and parameter range before purchasing.

Kit Includes:

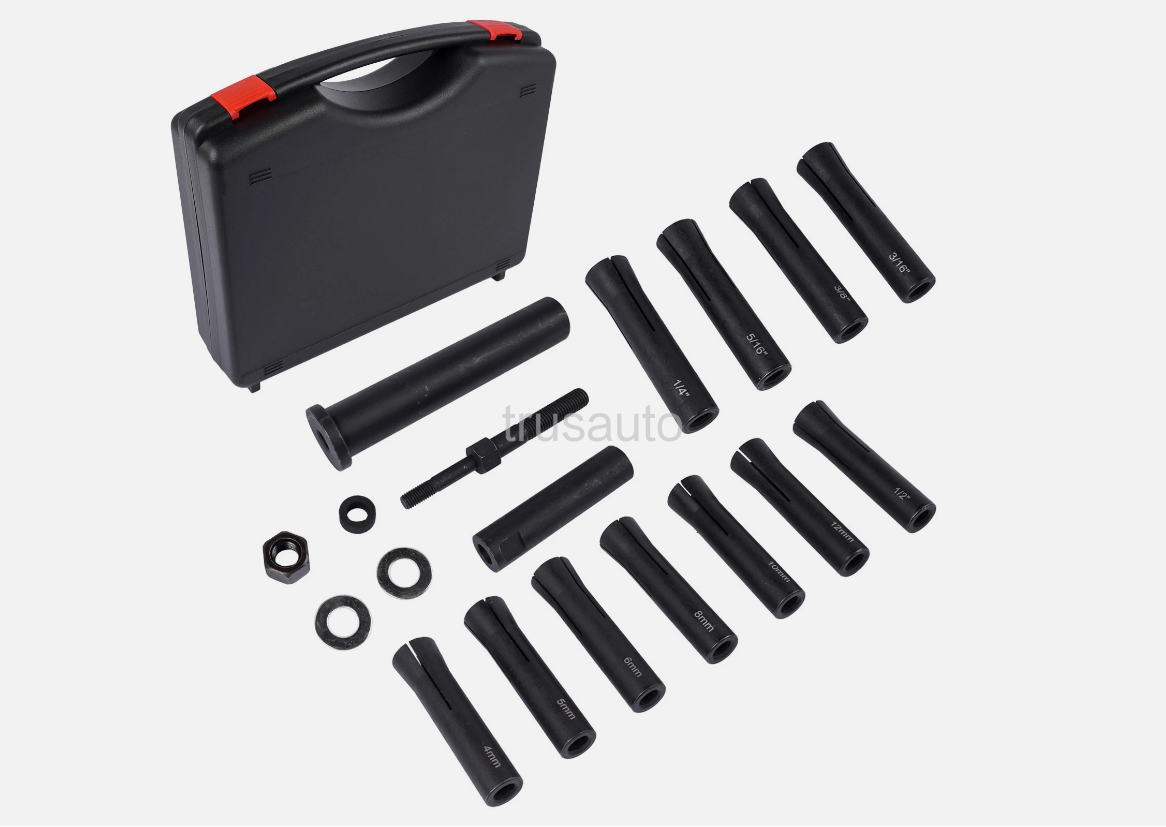

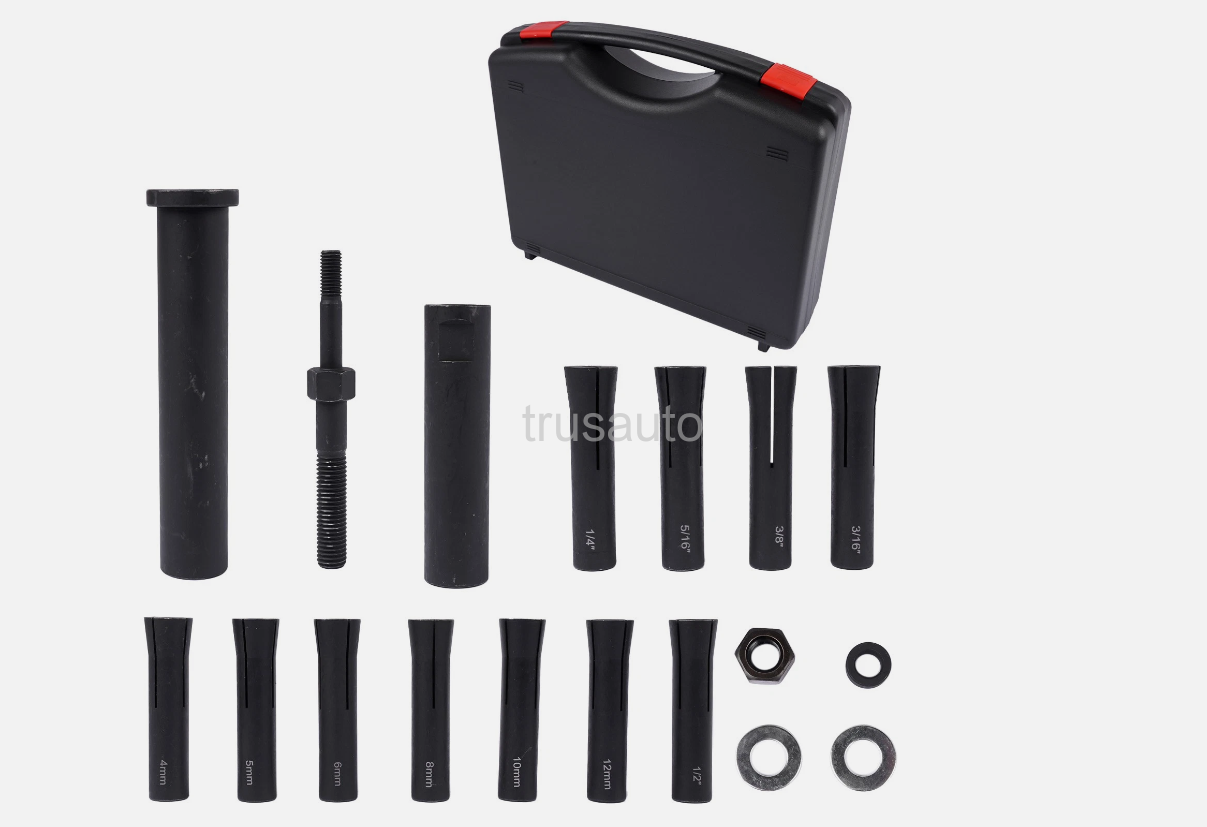

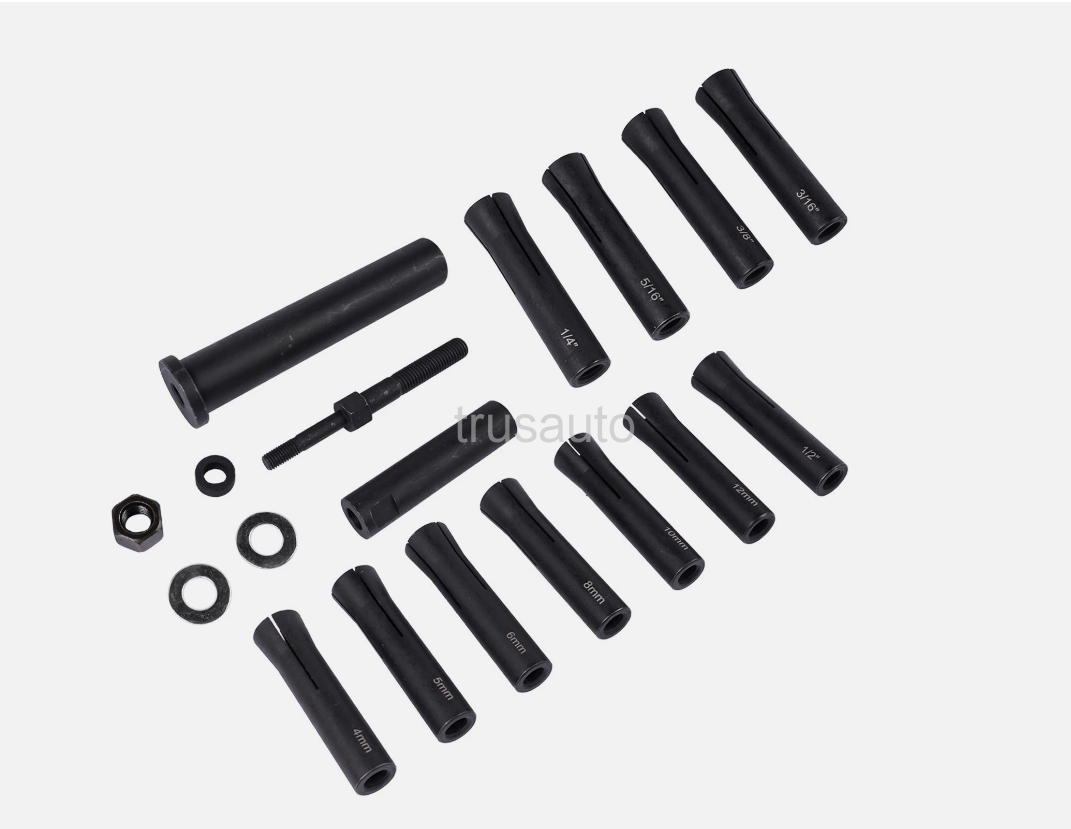

As pics shown！！
