📣Specifics

Output Force: 468(KGF)

Application: Up to 300HP

Max Pressure: 6.9 Mpa/1000psi

Hose Length: 24 FT

Steering Wheel Dia.: 13.5"

Material: Aluminum Alloy+Stainless Steel

📣Application

Suitable for boats with a maximum speed of 60 mph equipped with a single external engine (power not exceeding 300 hp) or twin external engines (power not exceeding 450 hp, non-counter-rotating). Twin engine applications require the installation of a connecting rod kit.

📣Features

⇥Hydraulic Cylinder: The stainless steel O-ring (ORB) fitting is for easy hose routing. And robust barrel design and the sealing system can withstand the harsh environment.

⇥Hydraulic Helm Pump: The helm has a maximum operating pressure of 6.9 MPa/1000 psi. It is equipped with replaceable shaft seals to prevent fluid leakage, ensuring easy maintenance for long-term use. ORB fittings facilitate hose routing and quick assembly. Efficient low-friction design ensures easy handling and reduces steering fatigue.

⇥Hydraulic Hose: Equipped with two 24ft hoses, featuring a high-strength nylon reinforced design, suitable for harsh marine environments. Maximum working pressure up to 200 bar (approx. 2900 psi). And 1/4-inch pipe fittings for easy installation, compatible with most outboard motors and accessories. The hose can be cut to the desired length as needed for custom installation.

⇥Steering Wheel: Made from aluminum alloy material with corrosion resistance for long-term use. Additionally, the anti-slip wave design provides a more comfortable operating experience.

⇥Accessories: The kit includes two tubes. One plastic tube connects to a quarter-liter bottle, and the other end is threaded to the pump's oil filling port for system venting.

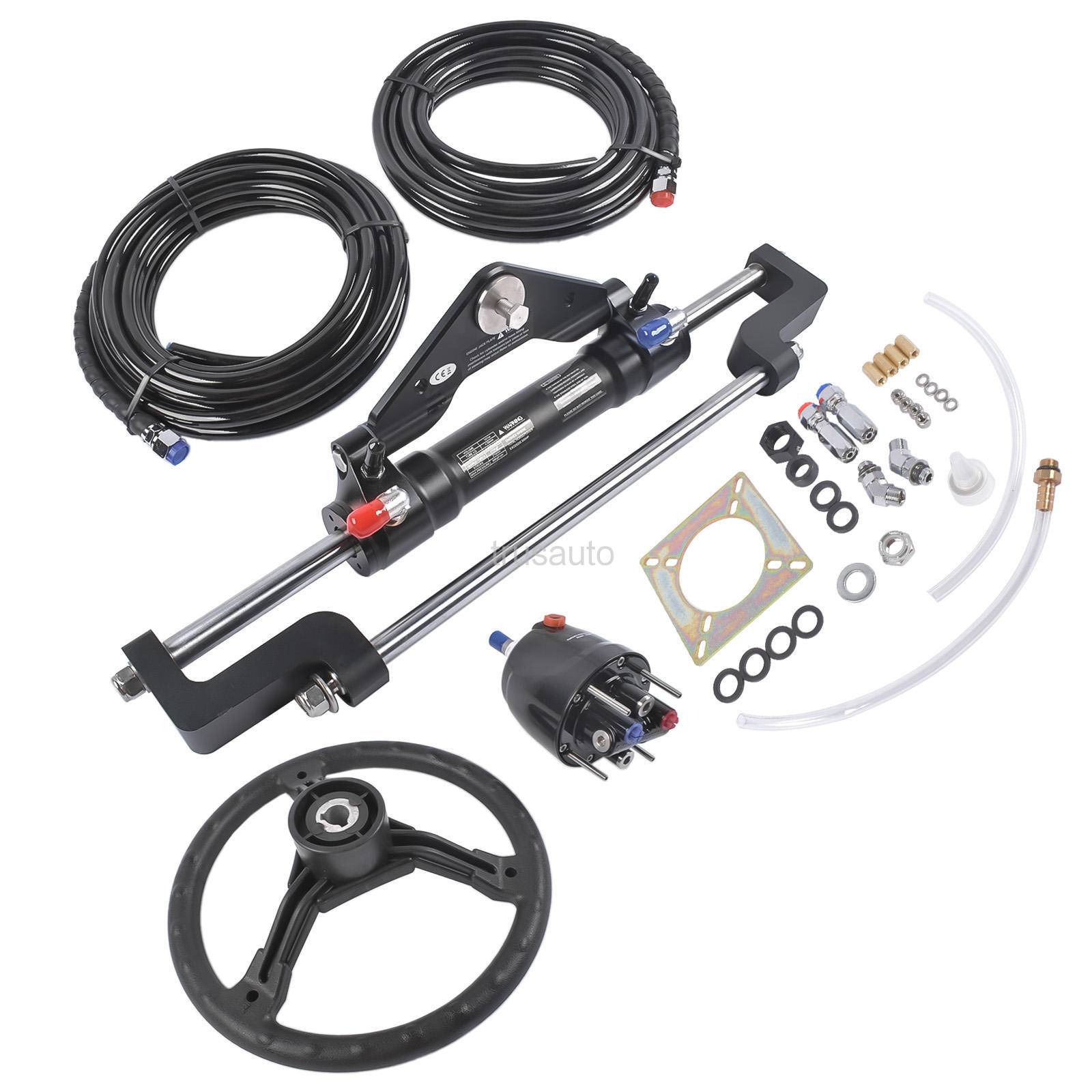

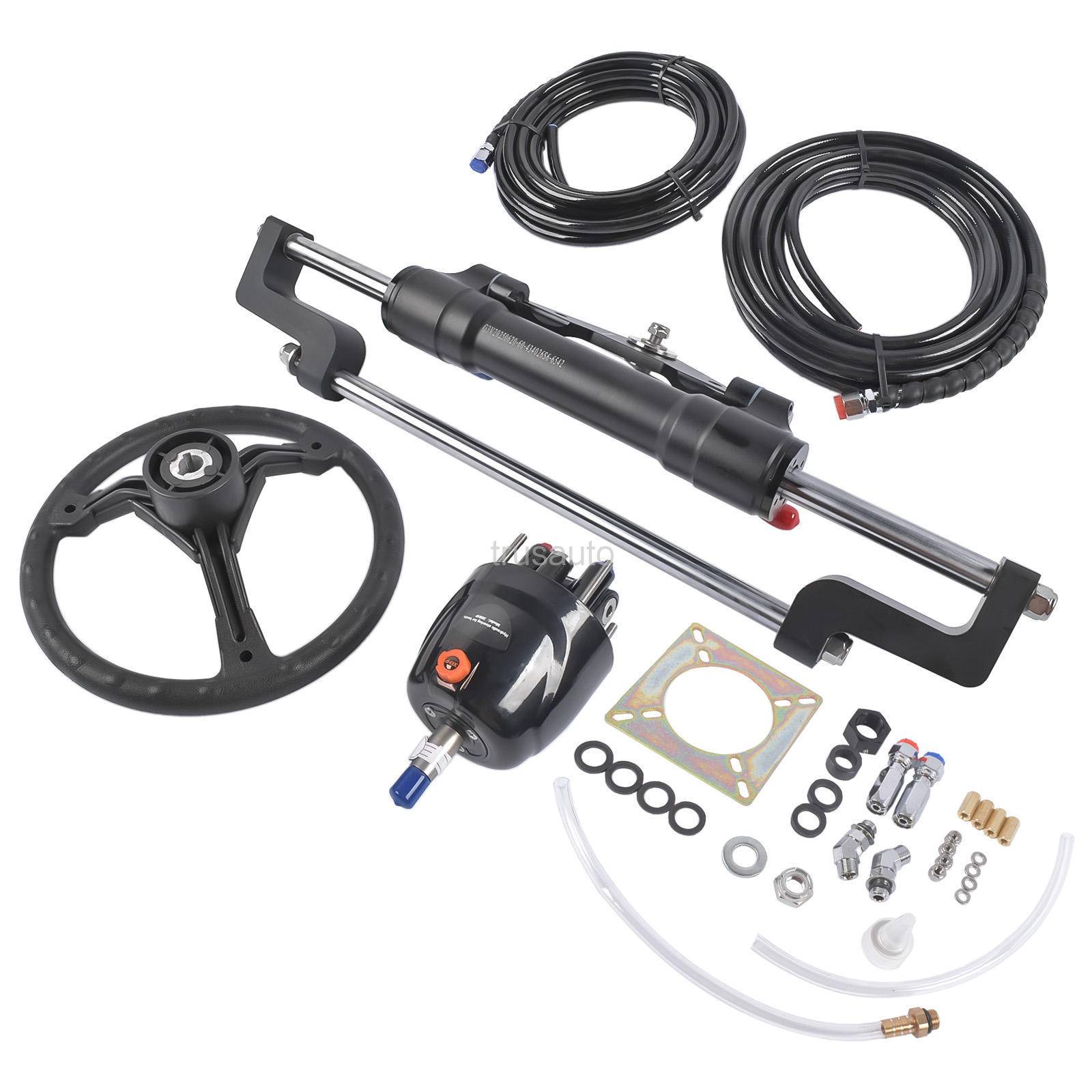

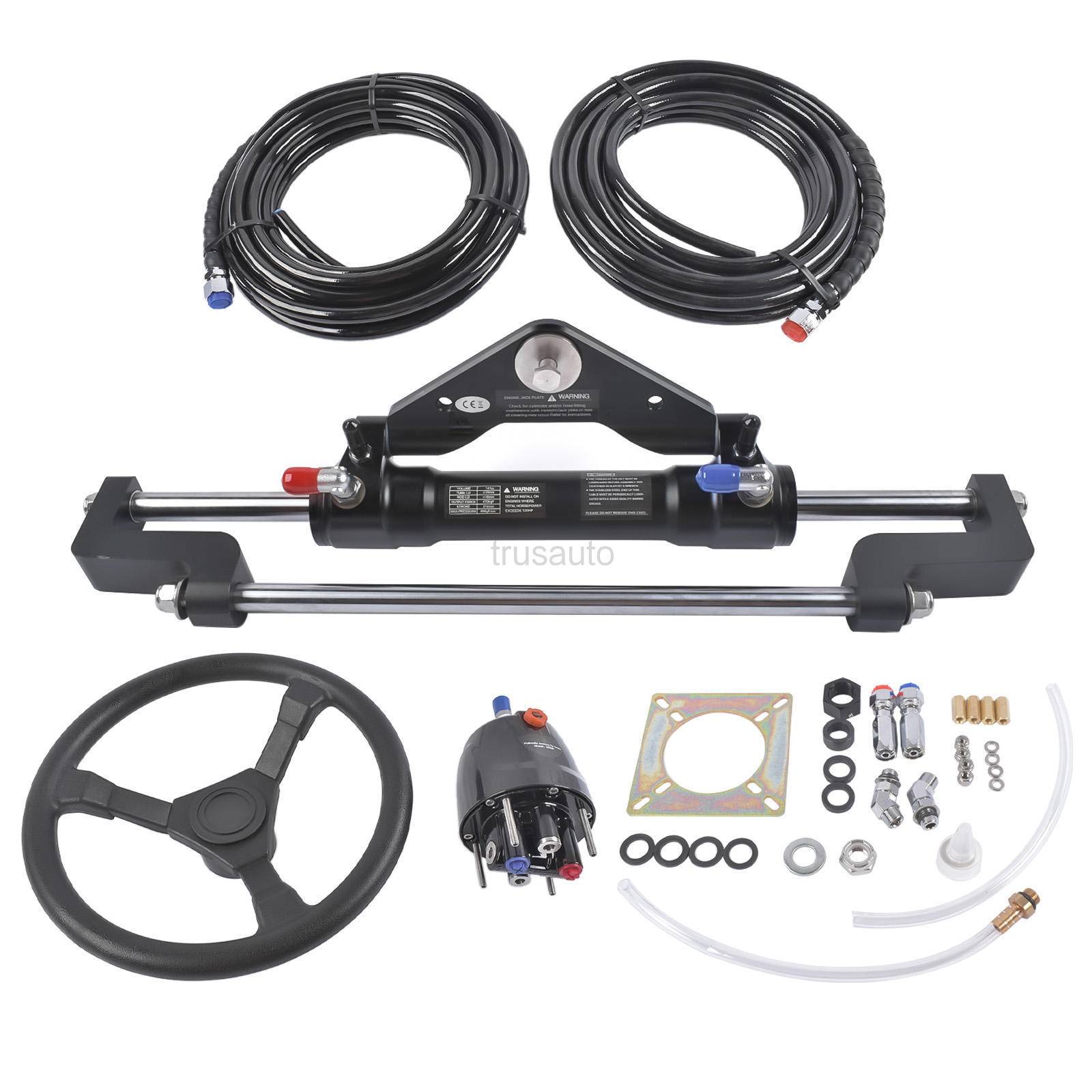

📣Package Included

1 x Hydraulic Pump

1 x Cylinder

2 x 24 ft Hose

1 x 13.5" Steering Wheel

1 x Accessory Kit
