A PTO (power take-off) pump refers to a pump in a power take-off system. It can be widely used in truck hydraulic systems because it can be directly connected to the engine. Examples include dump trucks, truck cranes, refrigerated trucks, etc.

Item Specifications

Product Type: Hydraulic PTO Pump
Max Flow: 11 GPM
Displacement: 90 cc/r
Rated Speed: 540 RPM
Power Source: Hydraulic Oil
Rated Pressure: 2250 psi (155 bar)
Inlet Port Diameter: 1-5/16-12UN-2B
Outlet Port Diameter: 1-1/16-12UN-2B
Material: Cast iron, Aluminum alloy (6061-T5, HT200)

Features


•Durable and Robust
This PTO pump is manufactured using high-quality materials and advanced sealing technology, enabling it to withstand harsh environments, debris, and temperature fluctuations. Its compact design ensures excellent wear resistance and an exceptionally long service life.

•Instant Start-Up
The PTO pump achieves instant start-up every time and can operate continuously for extended periods. This effectively reduces labor intensity and enhances work efficiency.

•Safe and Stable
The pump operates continuously and stably, suitable for use under normal working conditions, delivering outstanding performance. It seamlessly integrates with standard agricultural and commercial PTO systems, ensuring worry-free compatibility. Even under extreme loads, it maintains stable torque and smooth operation.

•Easy Operation
Easy to install, with simple pump operation.

•Wide Application
Suitable for various types of tractors, collaborating with numerous international OEM manufacturers, and typically used in conjunction with a driveshaft.

Package Included

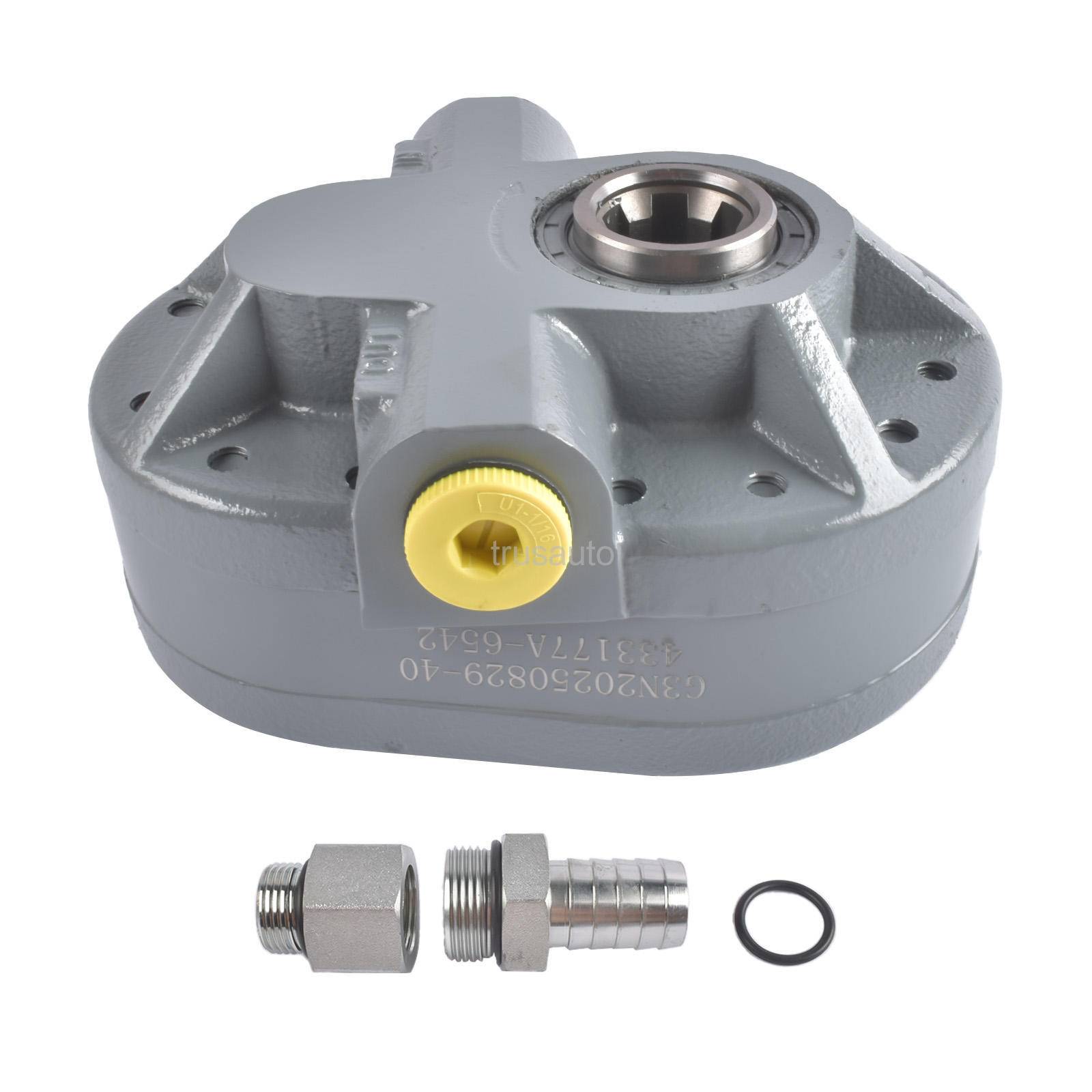

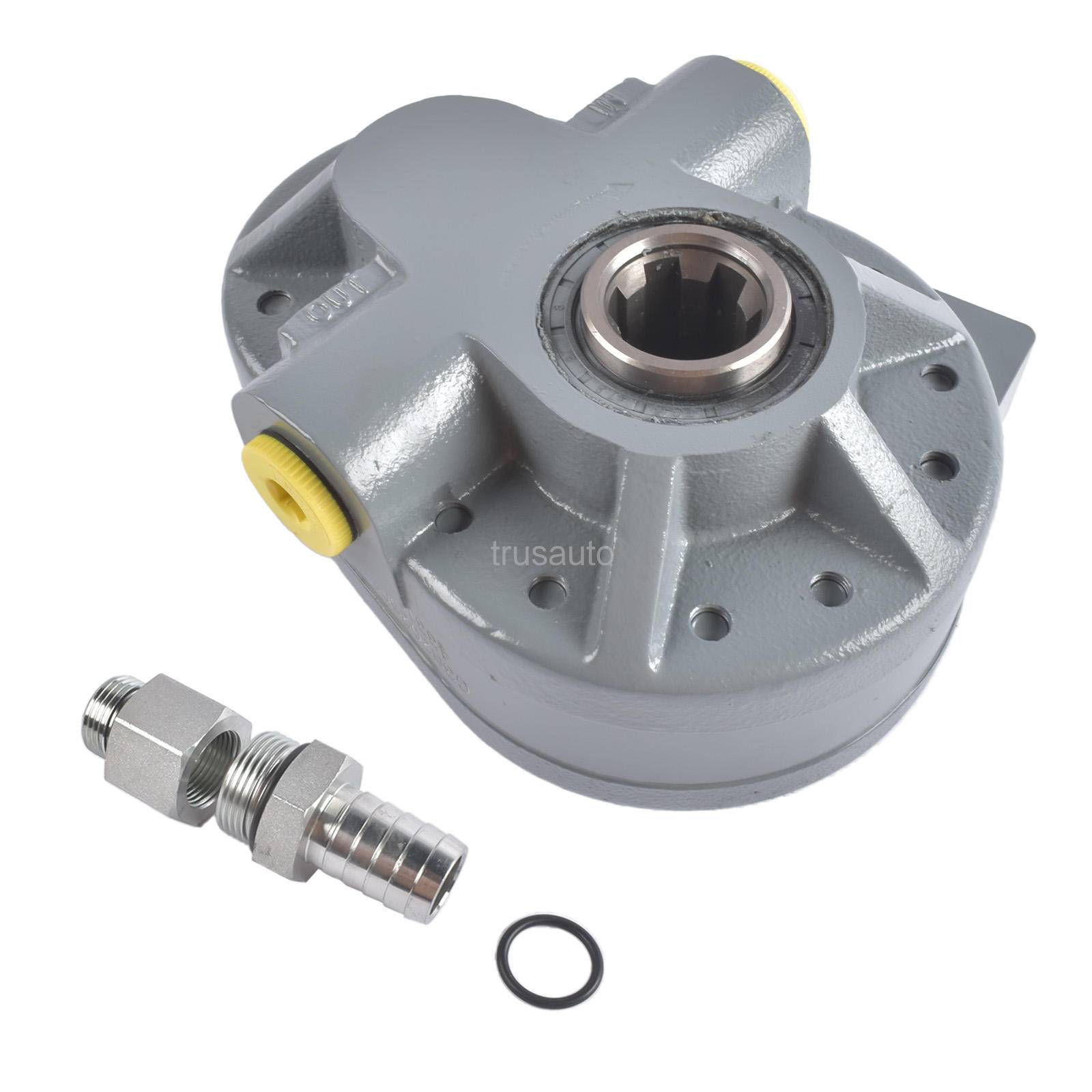

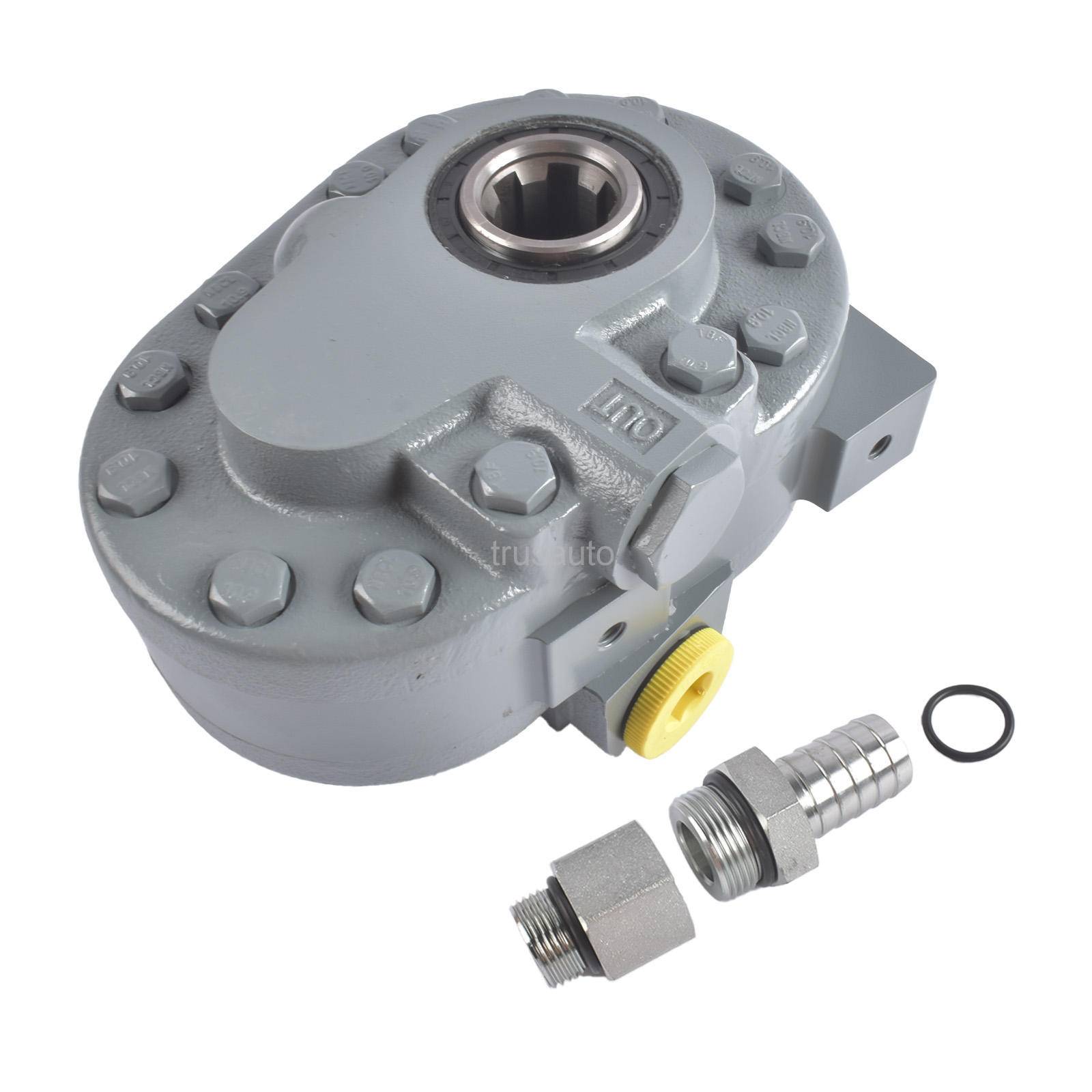

1x Hydraulic PTO Pump
2x connectors
1x Seal Ring
(As Pics shown)
