Parameters
Part Type
replacement
Manufacturer Part Number
151G0006
Interchange Part Number
OMM32-151G0006, OMM32151G0006
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 155.70
Market Price: $173.00 0 People Puchased
Free Delivery

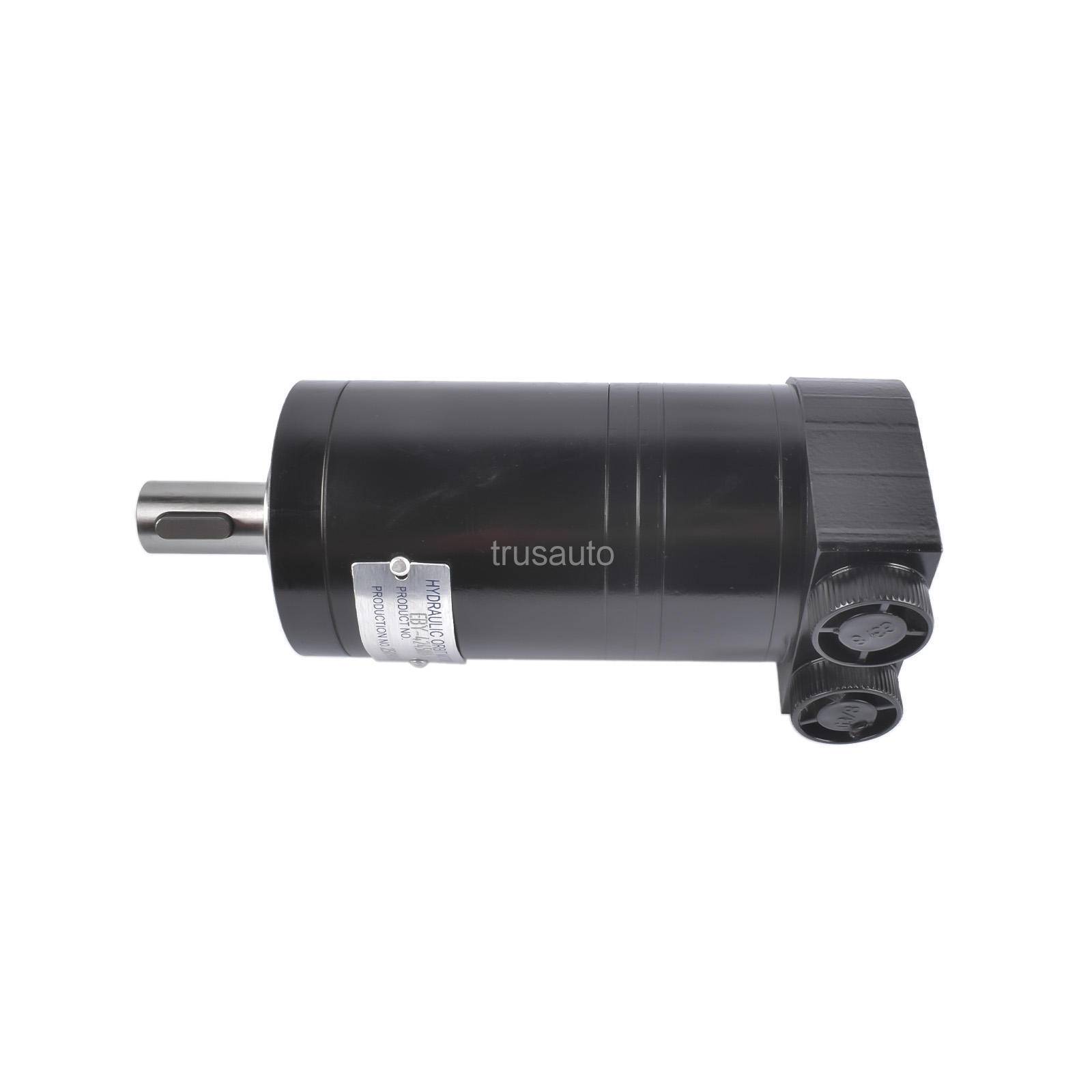

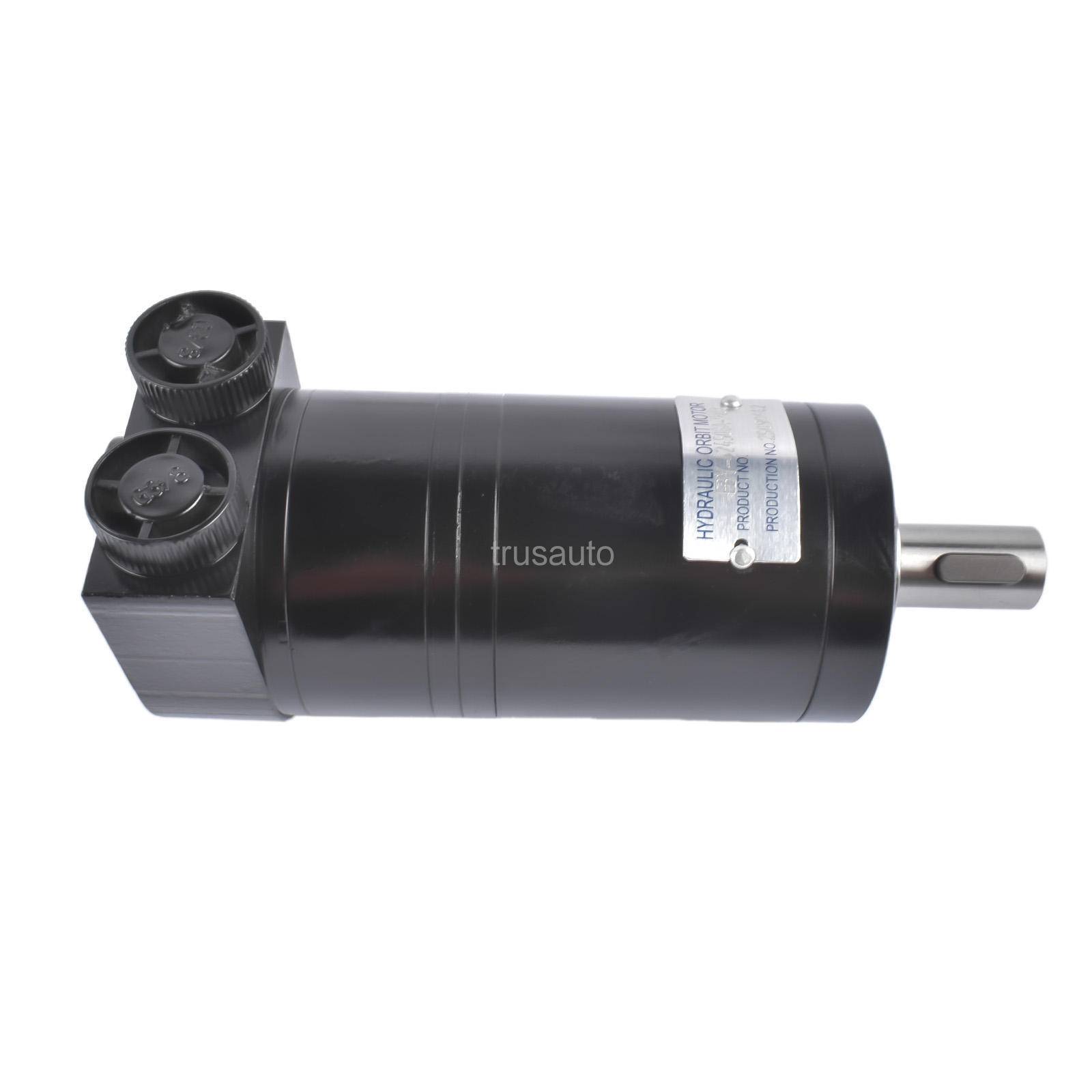

Hydraulic Motor For Danfoss 16mm G3/8'' 151G0006 OMM32-151G0006 OMM32151G0006
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 155.70
Market Price: $173.00 0 People Puchased
Free Delivery
Hydraulic Motor For Danfoss 16mm G3/8'' 151G0006 OMM32-151G0006 OMM32151G0006
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OEM Part Number
OMM32-151G0006
OMM32151G0006
151G0006
Specification:
Shaft Ø (mm): 16
Main Port Thread Size: 3/8''
Motor size: 32
Geometric displacement( cm^3[in]): 31.6[1.93]
Max speed cont: 630 rpm
Max speed int: 800 rpm
Max torque cont(Nm[lbf in]): 40[350]
Max torque int(Nm[lbf in]): 57[500]
Max output power cont(kW[hp]): 2,4[3,2]
Max output power int(kW[hp]): 3,2[4.3]
Max pressure drop cont(bar[psi]): 100[1450]
Max pressure drop int(bar[psi]): 140[2030]
Max pressure drop peak(bar[psi]): 160[2320]
Max oil flow cont(l/min[gpm]): 20[5.3]
Max oil flow int(l/min[gpm]): 25[6.6]
Max starting pressure with unloaded shaft(bar[psi]): 4[60]
Min starting torque at max press drop cont(Nm[lbf in]): 34[300]
Min starting torque at max press drop int(Nm[lbf in]): 48[425]
Max inlet pressure cont(bar[psi]): 140[2030]
Max inlet pressure int(bar[psi]): 175[2540]
Max inlet pressure peak(bar[psi]): 225[3260]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 225[3260]
