Parameters
Part Type
replacement
Manufacturer Part Number
5-1679-4
Interchange Part Number
5-1679-4
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 178.20
Market Price: $198.00 0 People Puchased
Free Delivery

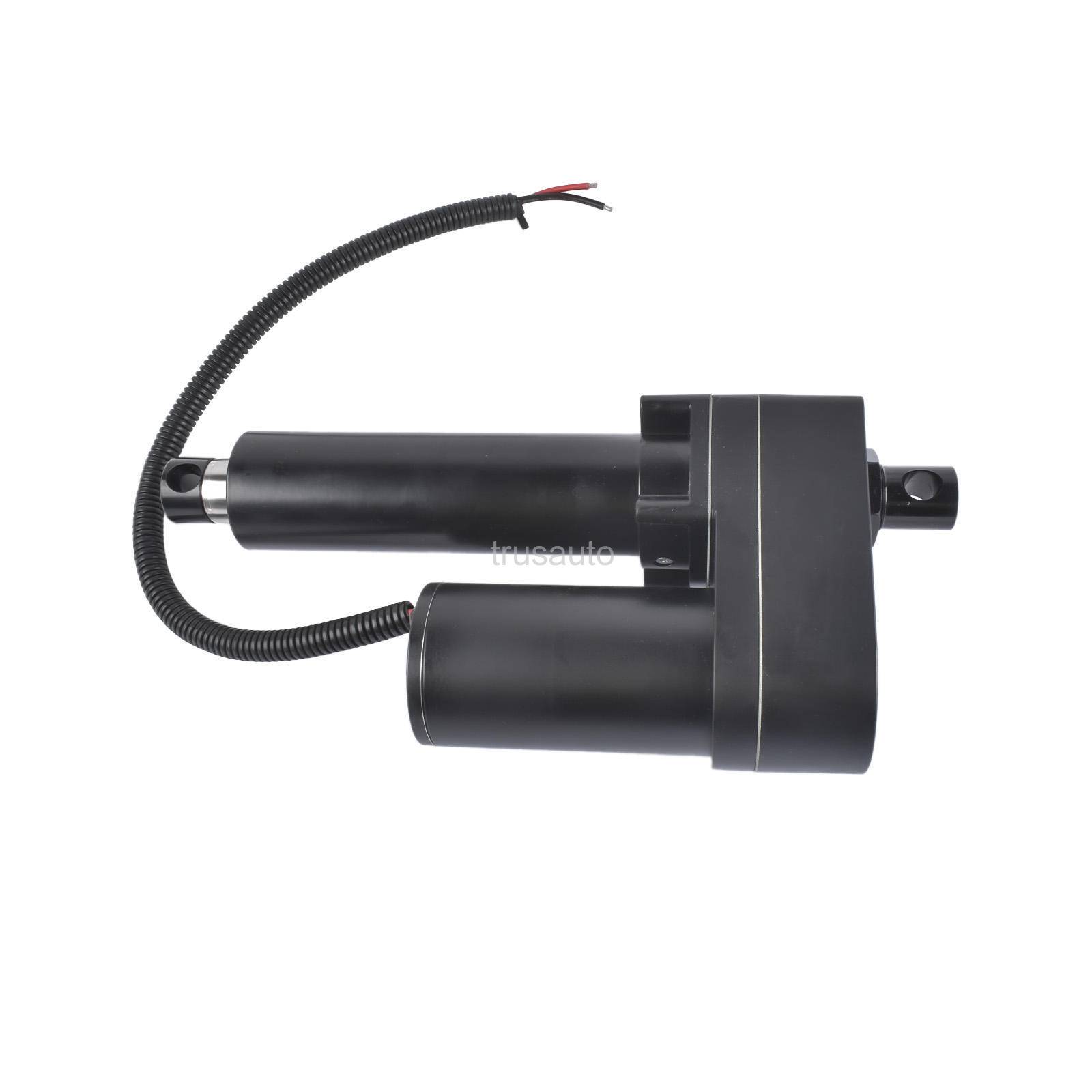

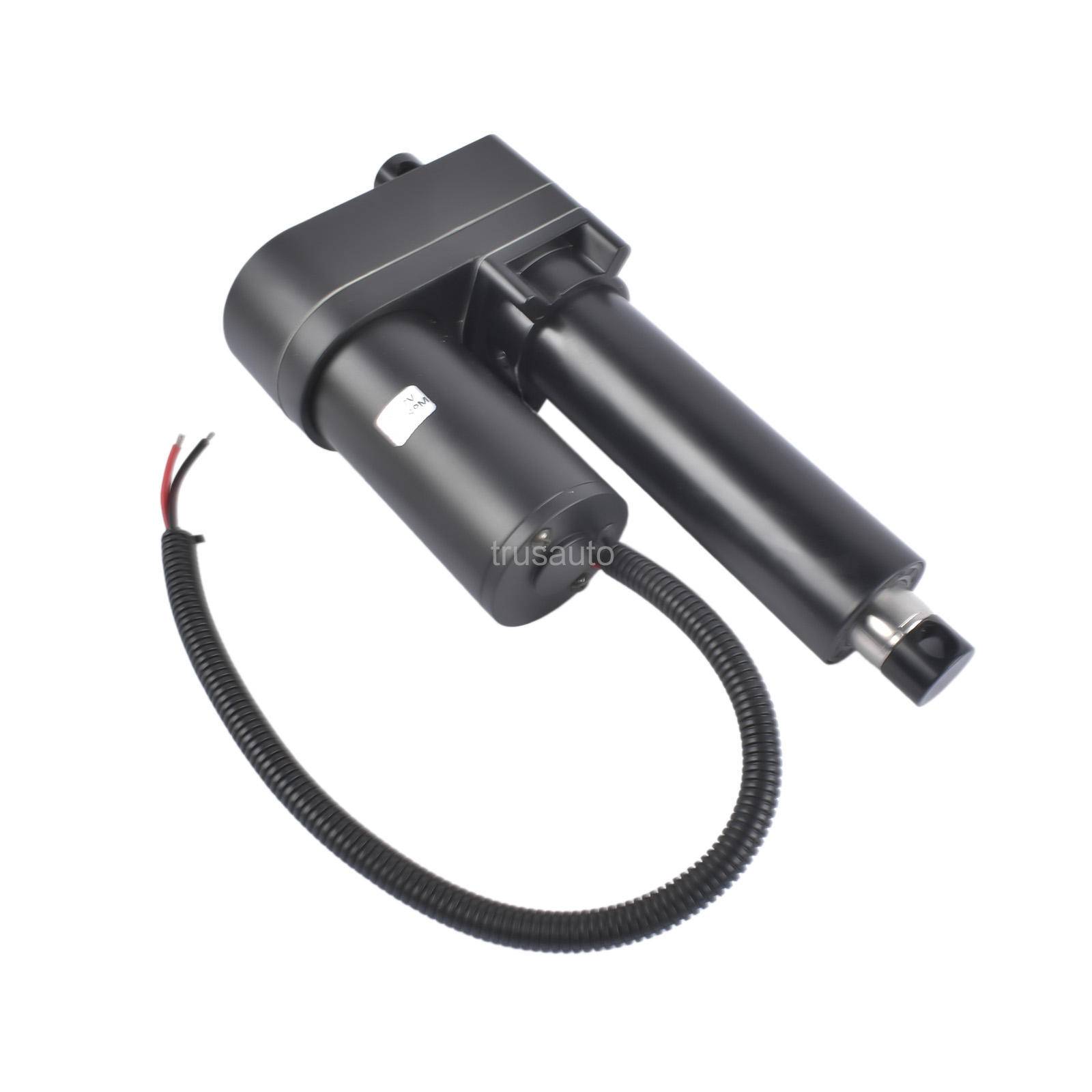

Linear Actuator 500 LBS, 4.02" Stroke, 12V DC For GlideForce LACT4-500A 5-1679-4
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 178.20
Market Price: $198.00 0 People Puchased
Free Delivery
Linear Actuator 500 LBS, 4.02" Stroke, 12V DC For GlideForce LACT4-500A 5-1679-4
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Part Name:
4.02" Stroke Linear Actuator
OE Part Number:
5-1679-4
Specification:
For GlideForce LACT4-500A 5-1679-4
Stroke Length: 102 mm (4.02")
Voltage: 12V DC
Push/Pull Force (Dynamic): Up to 500 lbs
Extension Speed:
No Load: 0.66 in/sec
Max Load: 0.56 in/sec
Current Draw:
No Load: 2.4 Amps
Full Load: 13.2 Amps
Gear Ratio: 20:1
Duty Cycle: 25%
Temperature Range: -13°F to +149°F
Water/Dust Protection: IP65 Rated
Pin Hole Diameter: 1/2"
Retracted Length: 10.24"
Shaft Diameter: 1-1/8"
