Please Note: With Electric

Our custom shock absorbers are designed for automotive enthusiasts who demand exceptional driving performance without compromising comfort. This suspension system excels in daily use while also meeting the demands of occasional track driving. Constructed with premium components, it ensures long-term durability and stability. Each set undergoes comprehensive testing, precision assembly, and rigorous road trials to fulfill customers' dual requirements for outstanding performance and driving comfort.

🔖 Specifications

Color: Red & black

Shock Type: Twin Tube

Top mount structure: Rubber construction

Front spring rate: 10 kg/mm (560 lb/in)

Rear spring rate: 8 kg/mm (448 lb/in)

Front spring inner diameter: 70.5mm

Rear spring inner diameter: 70.5mm

Front spring length: 230mm

Rear spring length: 230mm

Recommended spring preload: 7-10mm

Adjustable camber plate: No

Adjustable damping: Supported, 24-stage damping force adjustment

Adjustable ride height: Supported, front and rear coilovers can be individually adjusted to modify vehicle height.

Compatible with OEM solenoid valves and inductive wiring

Coilover Wrench Included: Yes

🔖 Feature

☞ Fully Adjustable Shock Absorbers: Featuring 24-stage damping adjustment, these shock absorbers offer dual rebound and damping control, enabling precise tuning for any riding scenario. Adjustable spring preload effectively suppresses body sway.

☞ 24-Stage Rebound Damping for Enhanced Control: Optimize vehicle performance through 24-stage rebound damping adjustment! Set to softest stage for comfortable cruising; Set to 16th stage for spirited driving; Set to the hardest stage for occasional track days.

☞ Independent Ride Height Adjustment: This shock absorber supports height adjustment, enabling precise control over vehicle stance! Lowering range extends up to 1 inch, achieving a lower center of gravity and enhancing sporty appearance.

☞ Twin-tube construction with dust boots: The twin-tube shock design effectively reduces internal friction resistance, enhancing efficiency while maintaining low operating temperatures. This advanced twin-tube technology delivers exceptional handling characteristics for most driving scenarios.

☞ Premium Materials: CNC-machined aluminum top mounts and locking brackets deliver exceptional strength with reduced weight; all bushings feature custom-length rubber sleeves for enhanced shock absorber protection and longevity; aluminum components undergo anodized treatment with anti-corrosion coating, while carbon steel parts utilize powder coating for high strength and durability. The entire product ensures safe and reliable installation.

☞ Spring Stiffness: High-rigidity 55CrSi steel cold-formed coil springs feature front suspension parameters of 10 kg/mm (560 lb/in) and rear suspension parameters of 8 kg/mm (448 lb/in). After enduring over 600,000 consecutive cycles of testing, spring deformation remains below 0.04%, ensuring exceptional tensile strength.

☞ High-Viscosity Index Shock Absorber Fluid: This specially formulated lubricant maintains stable damping performance and smooth operation across a wide temperature range. It ensures driving stability and comfort remain unaffected by significant temperature fluctuations during vehicle operation.

🔖 Fit For the Following Models

For Mercede-Benz S-Class W220 2000-2006 with Airmatic Suspension without 4Matic
For Mercedes-Benz S Class S430 2000-2006
For Mercedes-Benz S Class S500 2000-2006

(Not fit for models with ABC (Active Body Control) or 4MATIC (All Wheel Drive))

🔖 Package Included

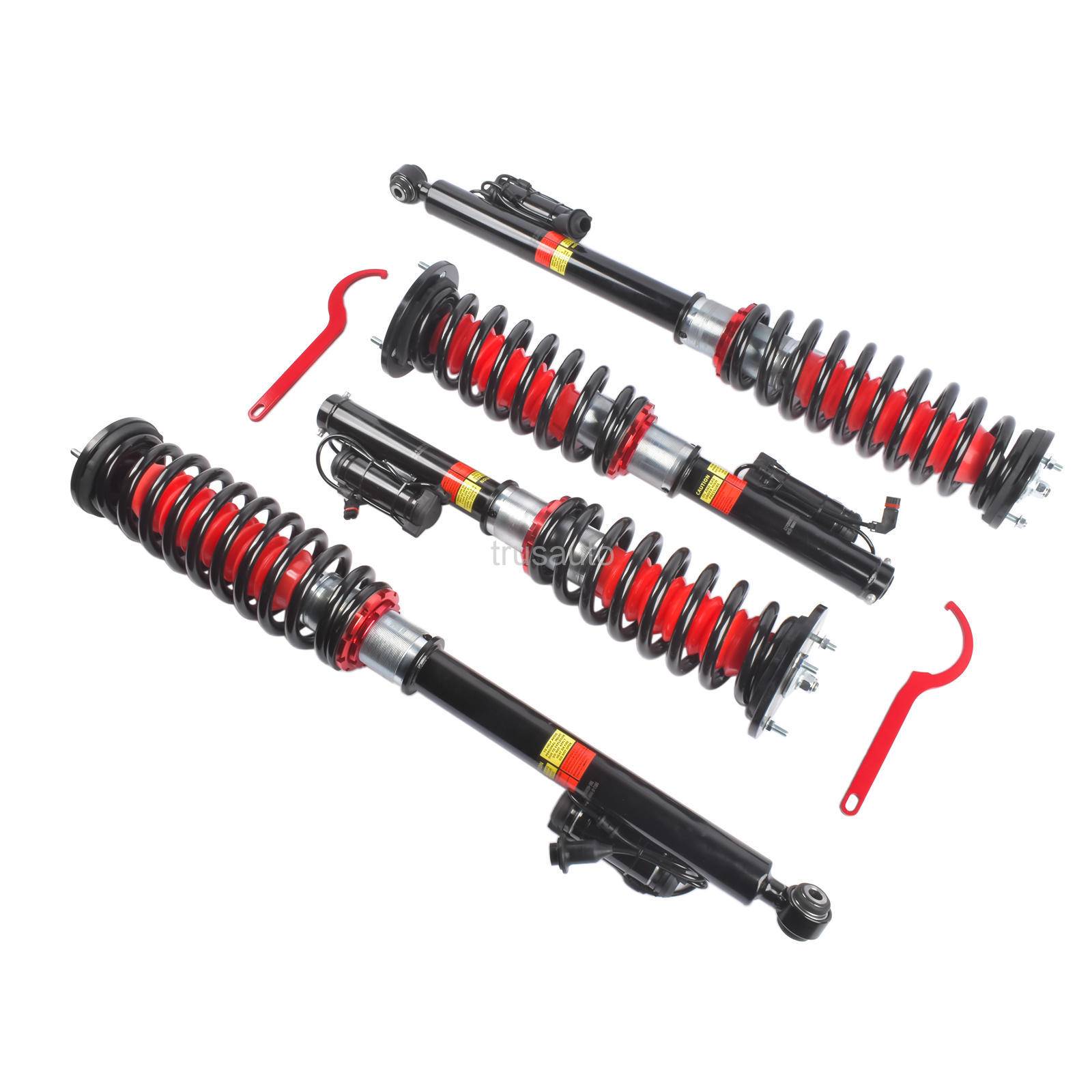

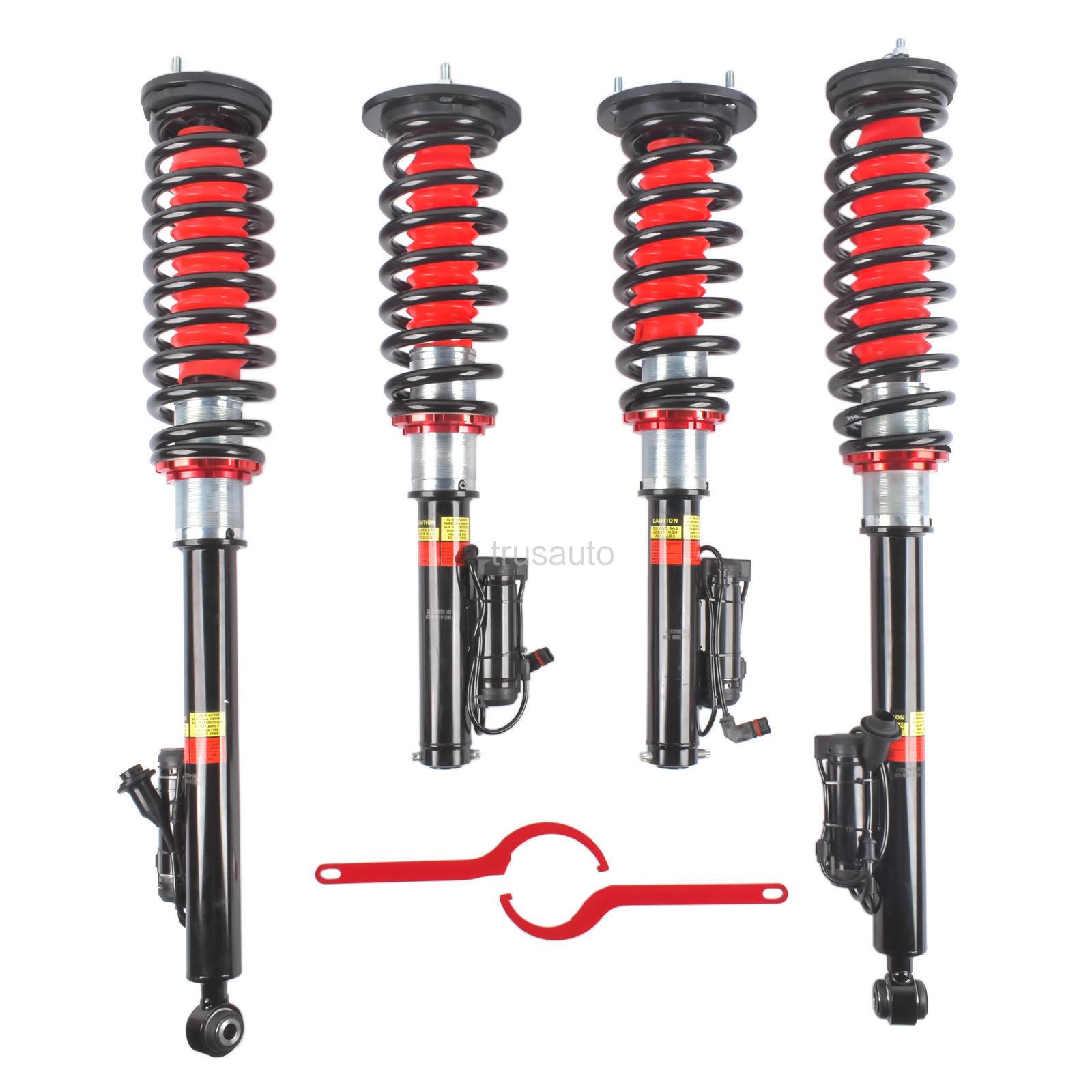

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of Wrenches for Height Adjustment
(As pics shown)

🔖 Note

① All aftermarket parts must be installed by certified technicians and comply with local modification regulation.

② Before and after installation, ensure all components are tightened to the correct torque specifications (refer to the vehicle maintenance manual for details). Any loose nuts, bolts, or fasteners may cause abnormal noises. Inspect and retighten promptly to prevent serious issues.

③ Impact wrenches are strictly prohibited during installation to prevent product loosening or damage.

④ Verify clearance between tires and suspension components, ensuring a minimum clearance of 4mm. Add wheel spacers if clearance is insufficient. Note: Torque beam rear suspension systems cannot meet this requirement.

⑤ Regular maintenance of adjustable shock absorbers is recommended. Spraying WD40 every 3 to 4 months keeps components smooth and clean, effectively extending their service life.

*Compatible table only for reference. Professional instruction and installation is highly recommended.

Before purchasing, please carefully check the description and illustrations to make sure it is compatible with your model. If you are not sure, please feel free to contact us. We are always here to solve any problems you may encounter, and we'll reply you as soon as possible.

Then, if you have any problems after purchasing, please contact us before opening a return or case. We will do our best to provide you with the best solution. Thanks for your understanding.
