Specifications:

Check Valve Function: No

Drain Port Dimension: 3/8 - 24 UNF-2B SAE O-Ring Port

Dust Seal: Standard

Front Bearing Type: Journal Bearing

Geometric Displacement [cm3/r [in3/r]]: 31.6 [1.93]

Hydraulic Valve Function: None

Main Port Dimension: 9/16 - 18 UNF-2B SAE O-Ring Port

Main Port Style: Sideport - Aligned

Main Port Thread Type: UN / UNF

Motor Series: J Series

Motor Function: Standard

Motor Size: 30

Motor Type: Standard

Mounting Flange Dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]: 31.5 x 5.1, 45.0, 1/4 - 28 UNF [1.24 x 0.20, 1.77, 1/4 - 28 UNF]

Mounting Flange Type: 5 Bolt - Round

Orbital Gearwheel Set: Standard

Orbital Gearwheel Set Type: Geroler

Rear Bearing Type: Journal Bearing

Shaft Key: Square Key

Shaft Seal: NBR - Standard

Shaft Dimension: Dia. 5/8 inch, 1/4 - 28 UNF-2B thread in shaft end

Shaft Type: Straight

Special Features Assembly: Standard

Special Features Hardware: Standard

Valve System: Spool Valve

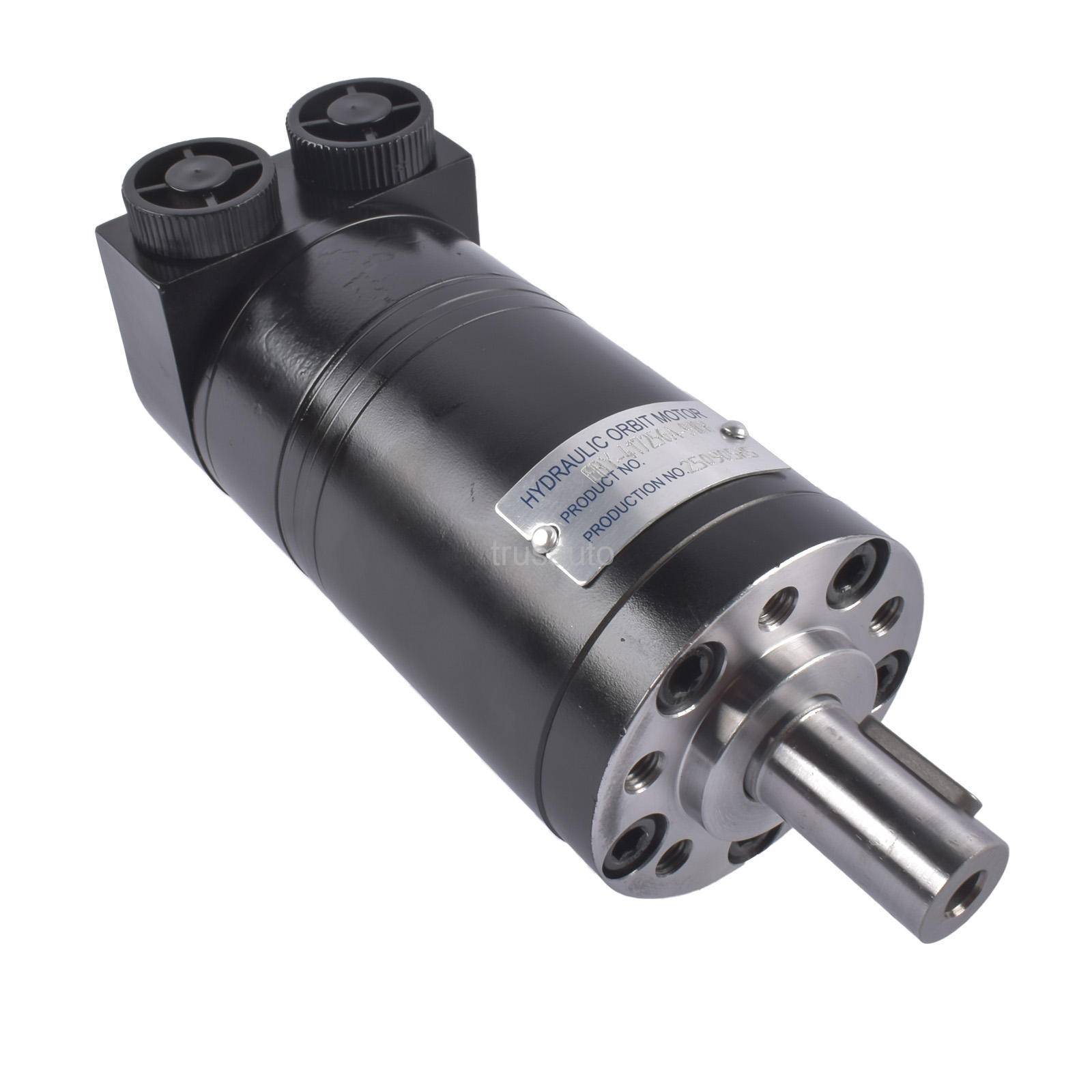

OEM Part Number:

129-0020-002, 129-0020-AFT

Fit For the Following Models:

For Char-Lynn Eaton Motor

Note: Please compare your item carefully with photo and OE Number to avoid mistake!!!
