Parameters
Part Type
replacement
Manufacturer Part Number
28097
Interchange Part Number
28097
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 162.00
Market Price: $179.00 0 People Puchased
Free Delivery

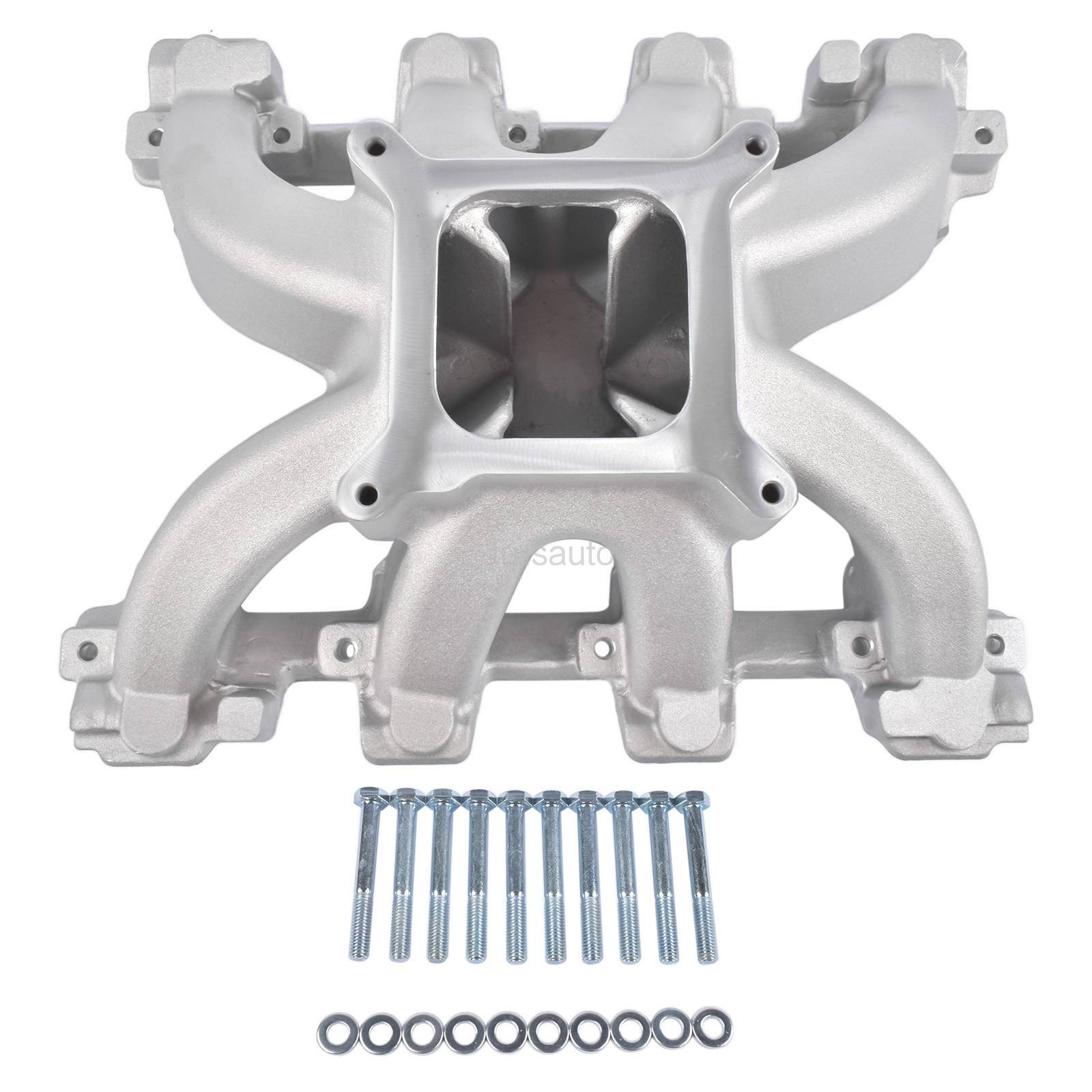

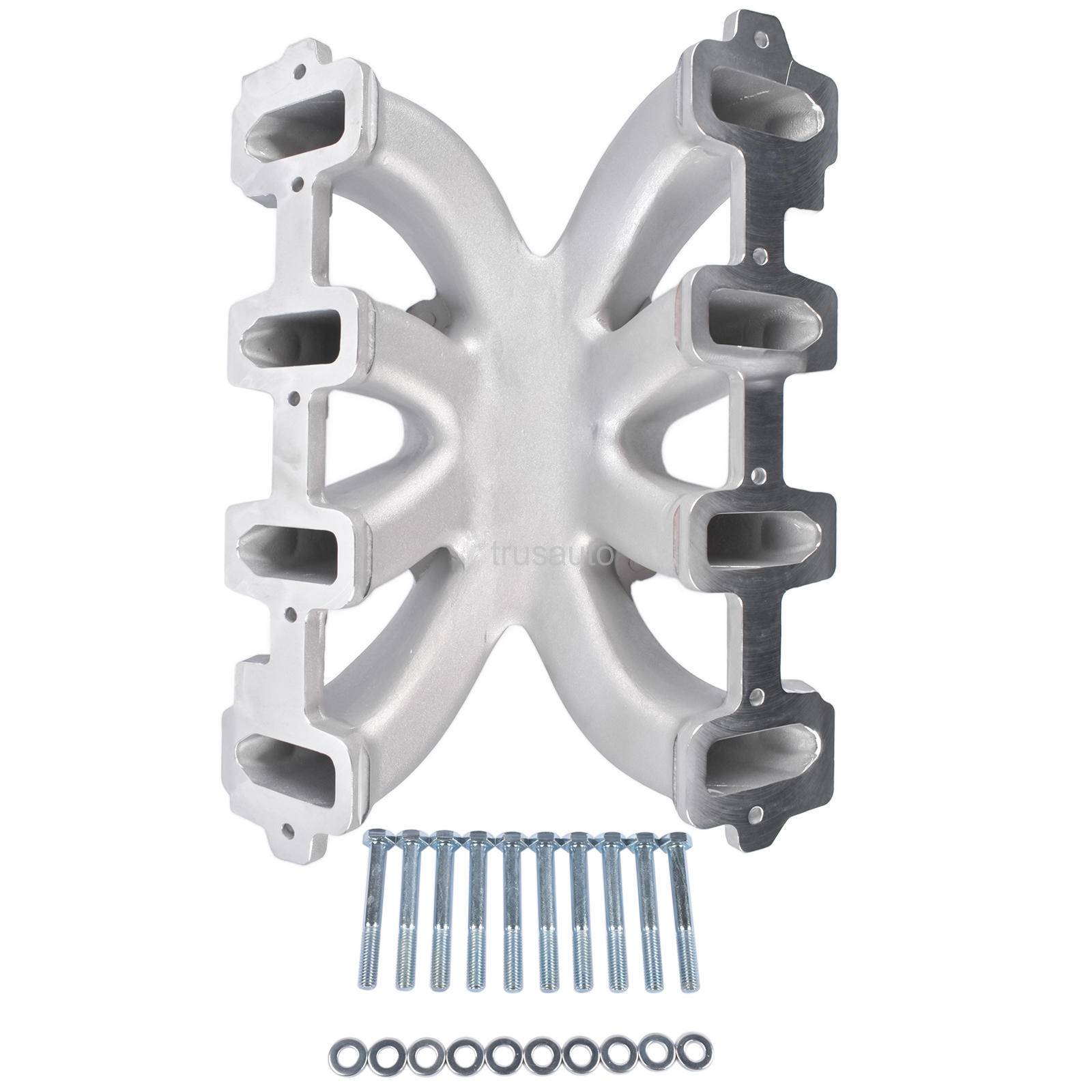

Port Single Plane Intake Manifold for GM III LS1/LS2 RPM 3500-8000 High Quality
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 162.00
Market Price: $179.00 0 People Puchased
Free Delivery
Port Single Plane Intake Manifold for GM III LS1/LS2 RPM 3500-8000 High Quality
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OEM Part Number:
28097
Fit For the Following Models:
This fits Standard Deck Height GEN III/IV LS Engines with LS1/LS2/4.8/5.3/6.0 Cathedral Port Heads. Will NOT work on LS3/L92/L76 Heads.
Description
Gen III LS1/LS2
Part Type: Intake Manifolds, Carbureted
Intake Style: Single plane
Basic Operating RPM Range: 3,500-8,000
Intake Manifold Height: 6.070 in.
Intake Color: Natural
Intake Material: Aluminum
Installation Notes:
Carb Mount Pad is 1.12" taller than the Victor Jr. LS1
Carb Pad Height: 6.07"
Port exits Dimensions: 1.08" X 2.74"
Recommended Intake Gasket: Fel-Pro #1312-3

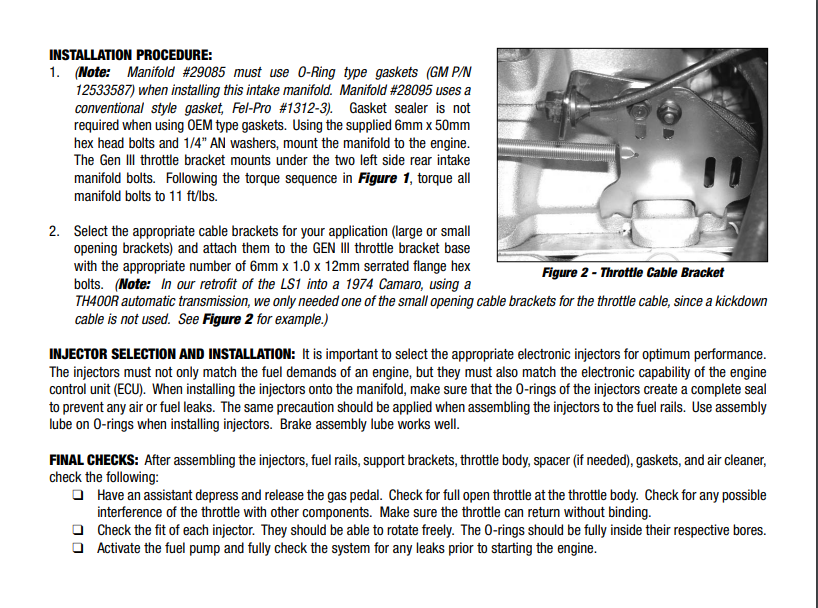

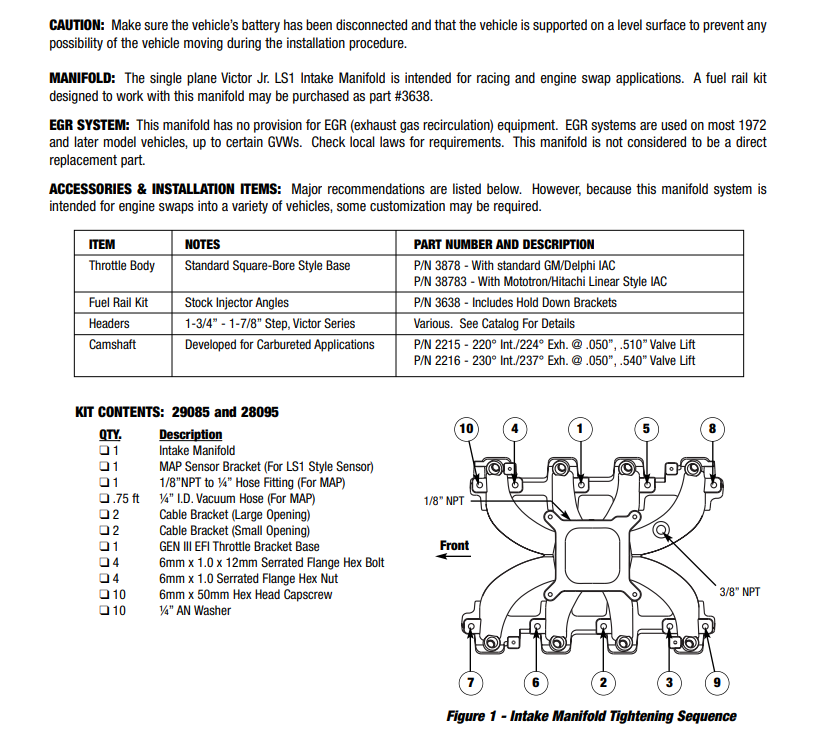

Installation Instruction
