Parameters
Part Type
replacement
Manufacturer Part Number

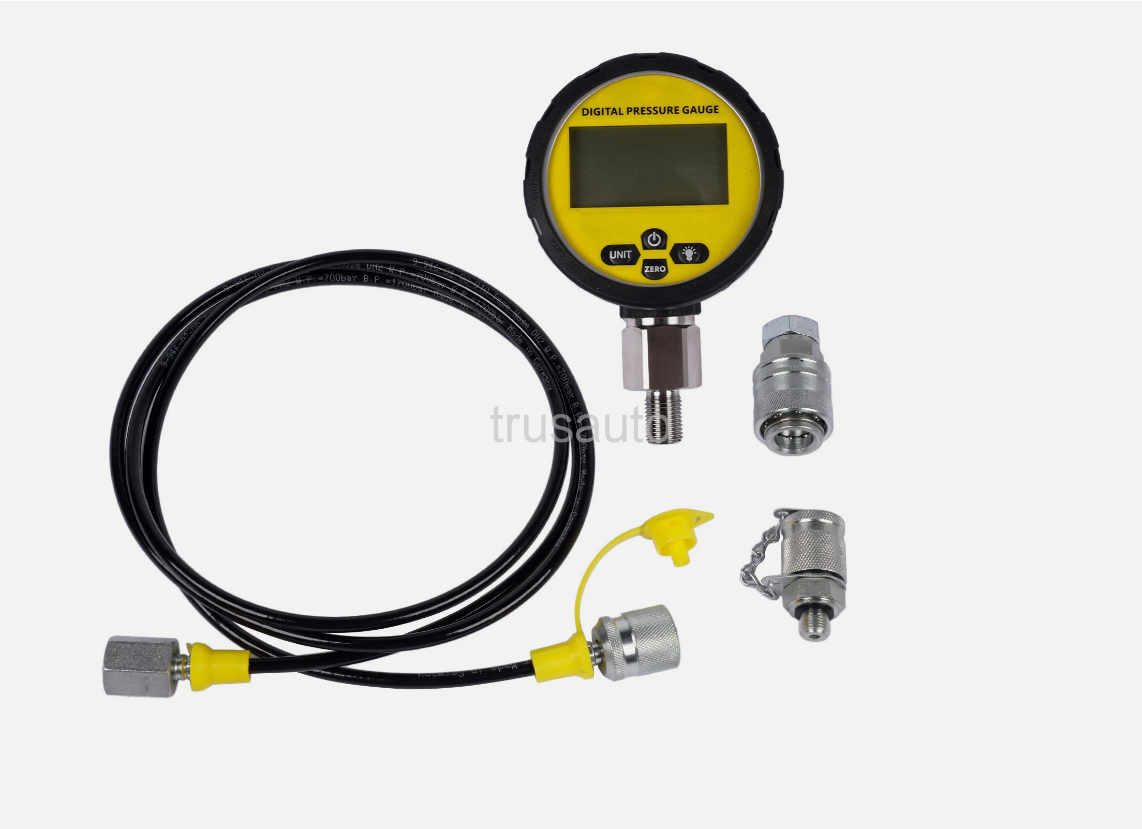

Digital Pressure Gauge, Intelligent Digital Pressure Gauge, Black Silicone Protector, Test Hose, Test Couplings, 4-digit LCD Screen, 10000PSI, 1/4 Inch NPT Connector
Interchange Part Number
Black Silicone Protector, Test Hose, Test Couplings, 10000PSI Digital Hydraulic Pressure Test Coupling Kit, Pressure Gauge Manometer Tester, Manometer Tester, 5.2FT (1.6m) Test Hose
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 94.50
Market Price: $105.00 0 People Puchased
Free Delivery
10000PSI Digital Hydraulic Pressure Gauge Test Coupling Hose Kit for Excavator
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 94.50
Market Price: $105.00 0 People Puchased
Free Delivery
10000PSI Digital Hydraulic Pressure Gauge Test Coupling Hose Kit for Excavator
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
✨Specifics
Material: Steel, Acrylic, Polyurethane
Pressure Range: 0-700BAR/10000PS/70Mpa
Connection: NPT 1/4" male
Display Unit: Bar, PSI, MPa, Kgf/cm2.
Overload Capacity: <10MPa 150%; >10MPa 120%
Accuracy: 0.2%FS (Temperature 20-25℃); 0.4%FS (Temperature -10-50℃)
Long-term Stability: 0.2%Fs/year
Input Voltage: 3V (2x 1.5V AAA batteries)
Sampling Rate: 3 Times/second
Screen Display: 4-digit LCD Screen
Working Temperature: -20℃-70℃
Compensation Temperature: 0℃-60℃
Connector Material: 304 Stainless Steel
Shell Material: 304 Stainless Steel
Protection Class: IP65
Thickness: 46mm (1.81 in.)
Outline Dimension: 80mm (3.15 in.)
Length: 125mm (4.92 in.)
Test Hose Length: 5.2FT (1.6m)
Function: on/off, zero clearing, units changing, backlight
✨Fit for the Following Models
Replacement for Excavators
✨Exceptional Compatibility
Suitable for excavators and construction machinery from various brands, including most American brands. Widely used in construction, machinery, shipping, chemical, mining, petroleum, and other industries. It measures gases, liquids, oils, and other non-corrosive media in stainless steel materials.

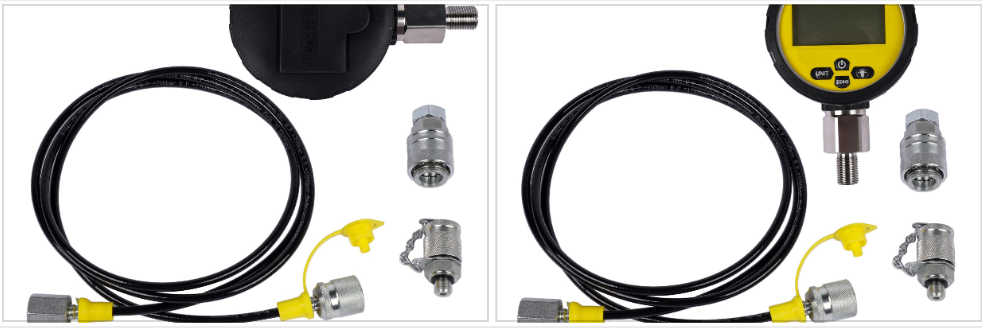

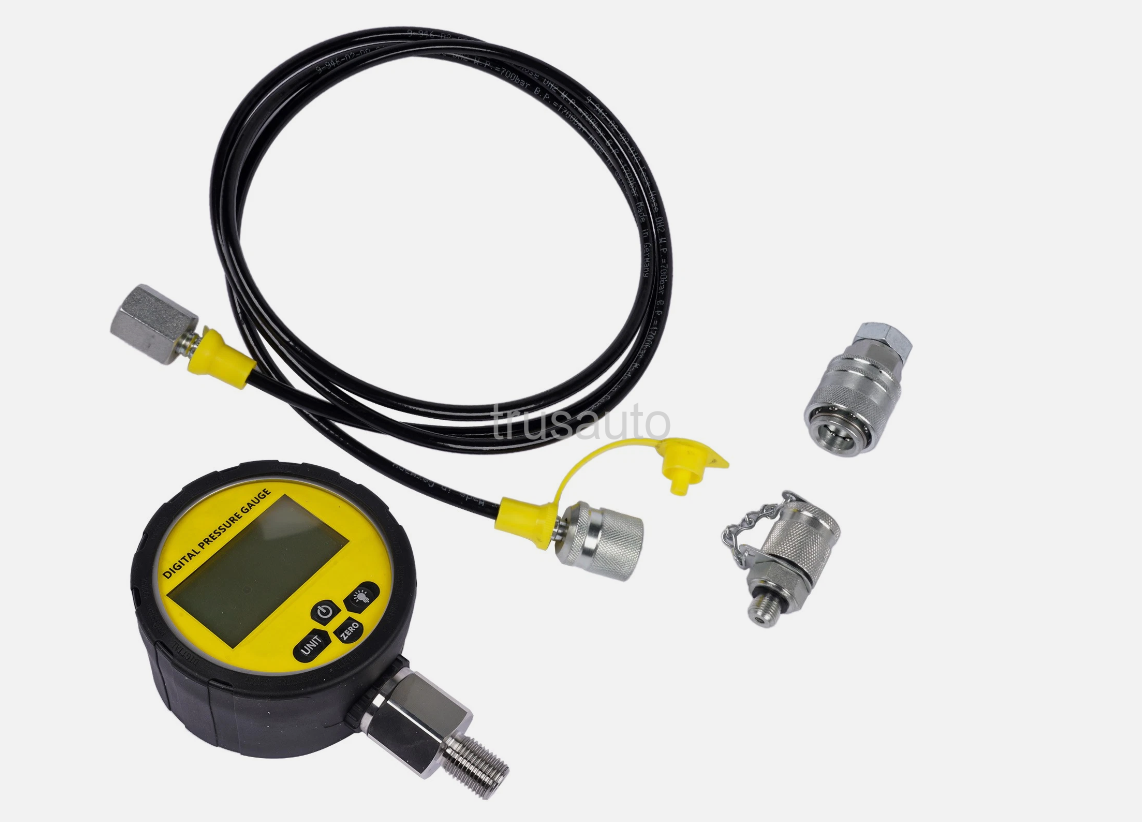

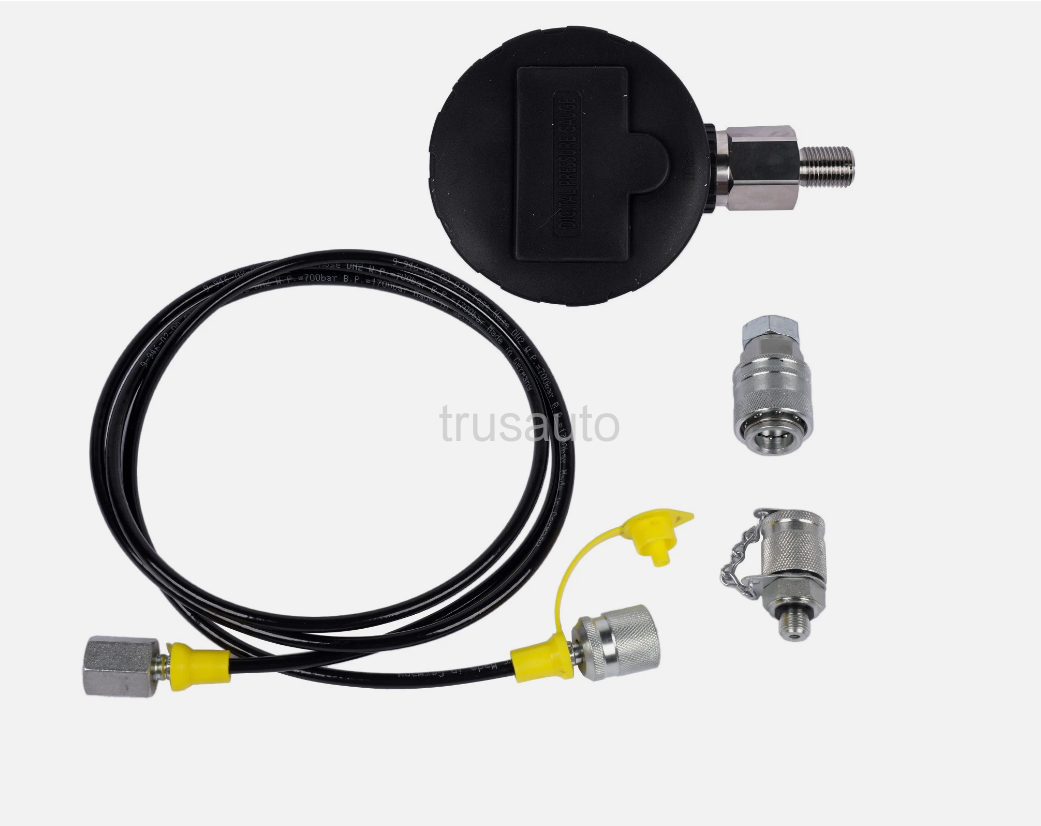

✨Package Included
1 x Black Silicone Protector
1 x Test Hose 5.2FT/1.6m
2 x Test Couplings
(As Pics Shown)
Professional installation is recommended.
