Specifications

Rated Voltage (V): 12V DC
Current (A): 33-66A
Rated Power (W): 792W
Rated Cooling Capacity (W): 1800-3000W
Refrigerant: R134A
Refrigerant Oil: POE68
Charging Quantity of Refrigerant (g): 600g
Power Cord Specification (mm²): 3 Meters (8mm²)
Type of Heating and Cooling: Cooling & Heating (Optional)
Compressor Cooling: Inhalation Refrigerant Cooling
Displacement: 12ml/re
Refrigerator Oil: RL68H/100ml

Electric Compressor
Voltage: DC 12V
Current: 63A
Rated Speed: 2100Rpm
Speed Range: 1500Rpm - 2100Rpm
Cooling Capacity: 1000-2000W
Rated Power: 650W
Condensing Temperature Range: 26.7℃ - 68℃
Evaporating Remperature Range: -10℃ - 12.5℃
Oil: RL68H/130ml
Compressor Type: Scroll Compressor
Electronic Fan Connection Harness: 2 Meters
Internal Machine Connection Harness: 3 Meters
Main Power Harness: 3 Meters
Fluorine-Resistant Hose: 3 Points (Thin Tube) - 3 Meters; 4 Points (Thin Tube) - 2 Meters; 5 Points (Thin Tube) - 3 Meters

Application

Universal Automotive Air-Condition

For Truck, Tractor, Digger, Trailer, Excavator, Agricultural Vehicles, Pickup, etc.

Multi Installation Ways

The 12V electric air conditioning system have multi installation ways to ensure it can be suitable for most vehicles in the market.
1) Rooftop Mounted Air Conditioner
For Van, Truck, Commercial Vehicles, Special Vehicle, Trailer, Earth-Moving Machine, Motorhome, RV (Recreational Vehicle)
2) Back-Wall Mounted Air Conditioner
For Truck, Tractor, Trailer, Heavy Duty Truck, Light Truck, Truck Cab, Truck Sleeper, Sleeper Cab

Features

Fast Cooling
High wind speed makes it possible to quickly cool the car from a high temperature to a comfortable temperature. (When the external ambient temperature exceeds 60 degrees, the cooling effect of the air conditioner will weaken.)
Heating Principle
Using the engine coolant to heat the air vent core. This air conditioning system is water heating, which warms the water tank by heating the engine coolant. The blower blows the warm air out of the car to achieve heating.
Low Noise
The running sound is low, providing a quiet and comfortable environment for the driver.

Muti-Protection
It is driven by safe DC power supply, with multiple protections (leakage protection, short circuit protection, overvoltage protection, overheating protection), safe and without danger.
Good Performance
Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night, it can run continuously 6 to 8 hours.

Package Includes

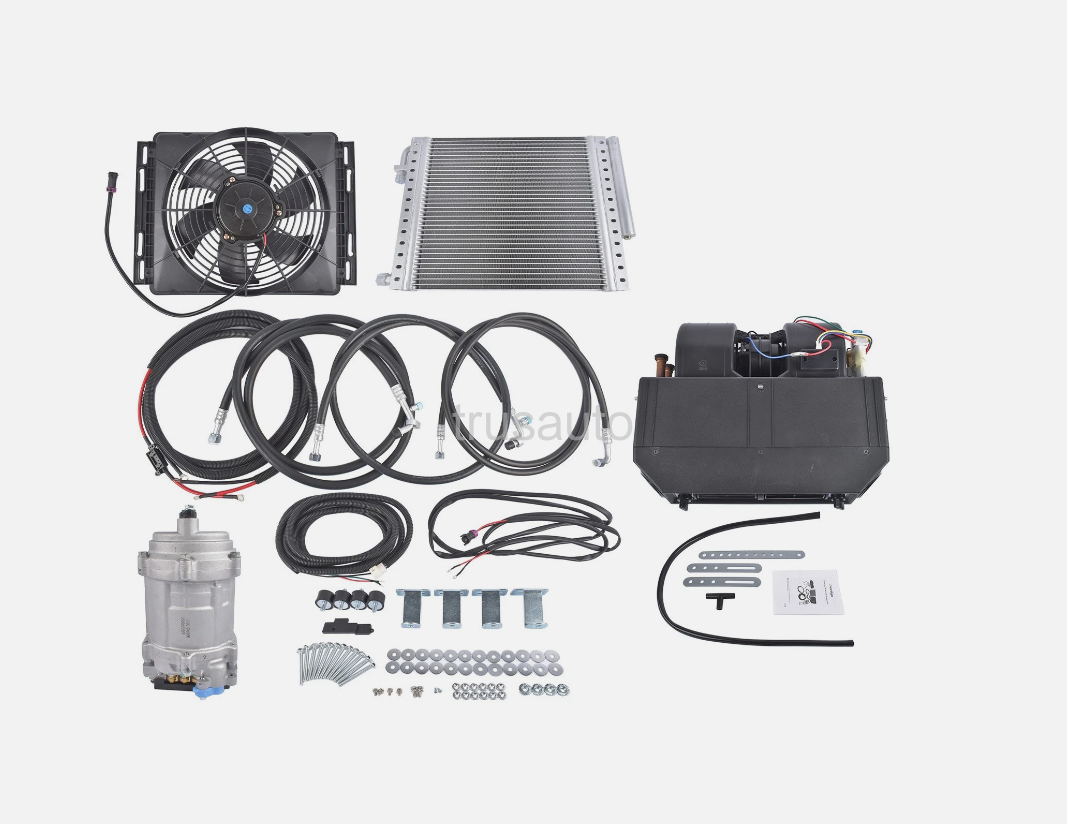

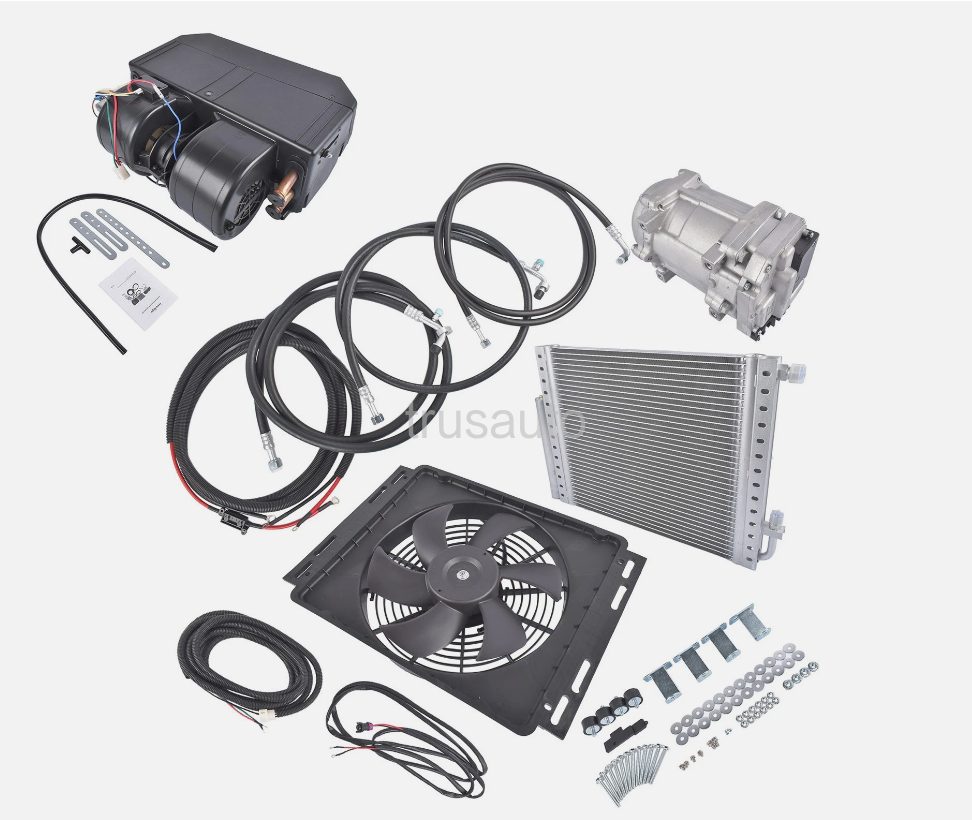

1x A/C Kit (As Pics Shown!)

Notes

1.The total leakage of the compressor is not greater than 5g/year.
2.The noise is not greater than 74dB in rated speed.
3.Insulation resistance must be greater than 20MΩ .
4. It is recommended to clean the air conditioner once a month to ensure its normal operation.
5. Before cleaning, turn off the air conditioner and power switch.

What Is Parking Air Conditioner?

The parking air conditioner is a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the driver.

Normally drivers leaving the engine running for hours to use the air conditioner during parking or rest time at night, it is bad for the environment and tons of fuel wasted, it also wears down the engine faster. Parking air conditioner works with truck battery power without engine on which can save energy and fuel and at same time provide safe and comfortable environment for driver.
