Parameters
Part Type
replacement
Manufacturer Part Number
OMSW250-151F0533,151F0533
Interchange Part Number
OMSW250-151F0533,151F0533
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 342.00
Market Price: $380.00 0 People Puchased
Free Delivery

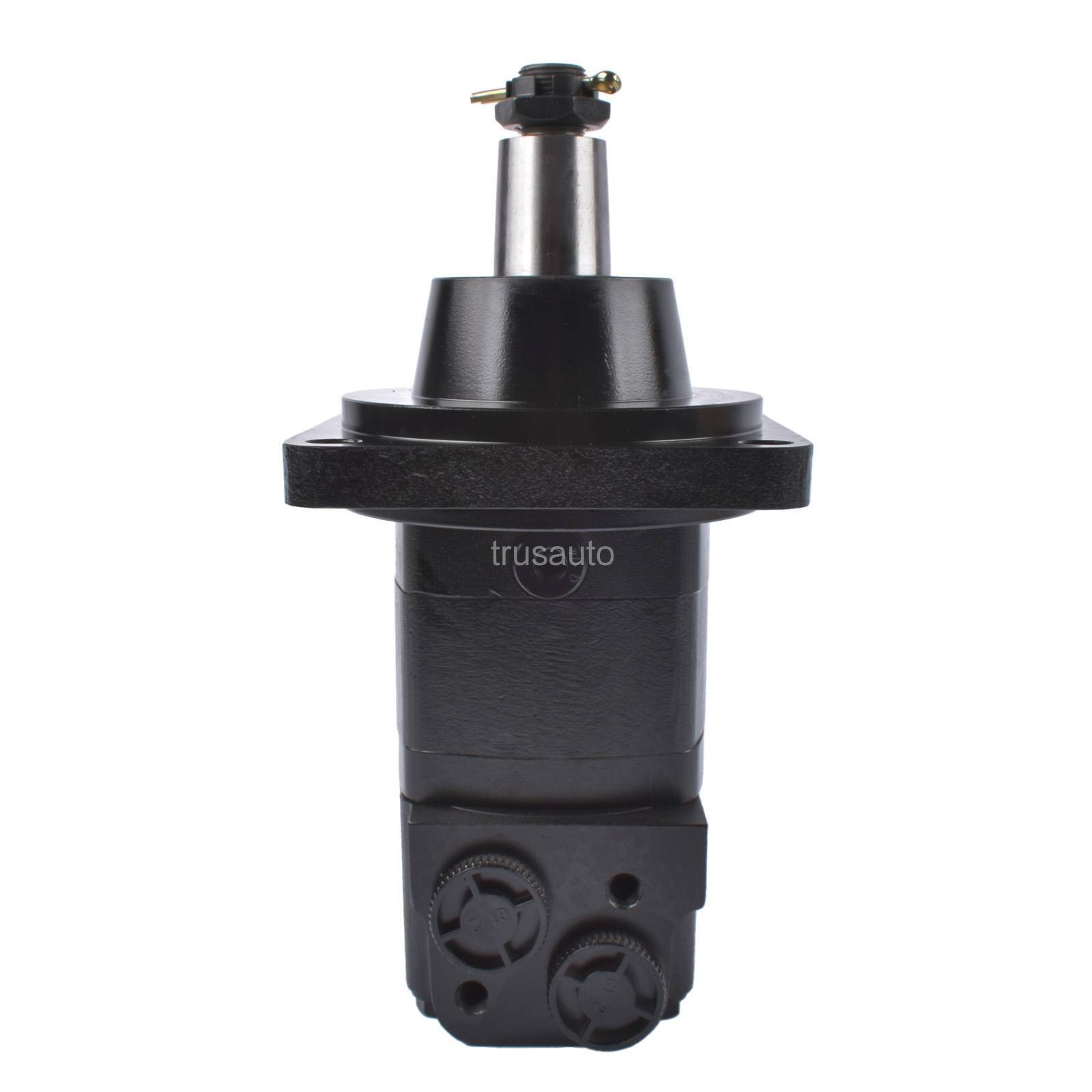

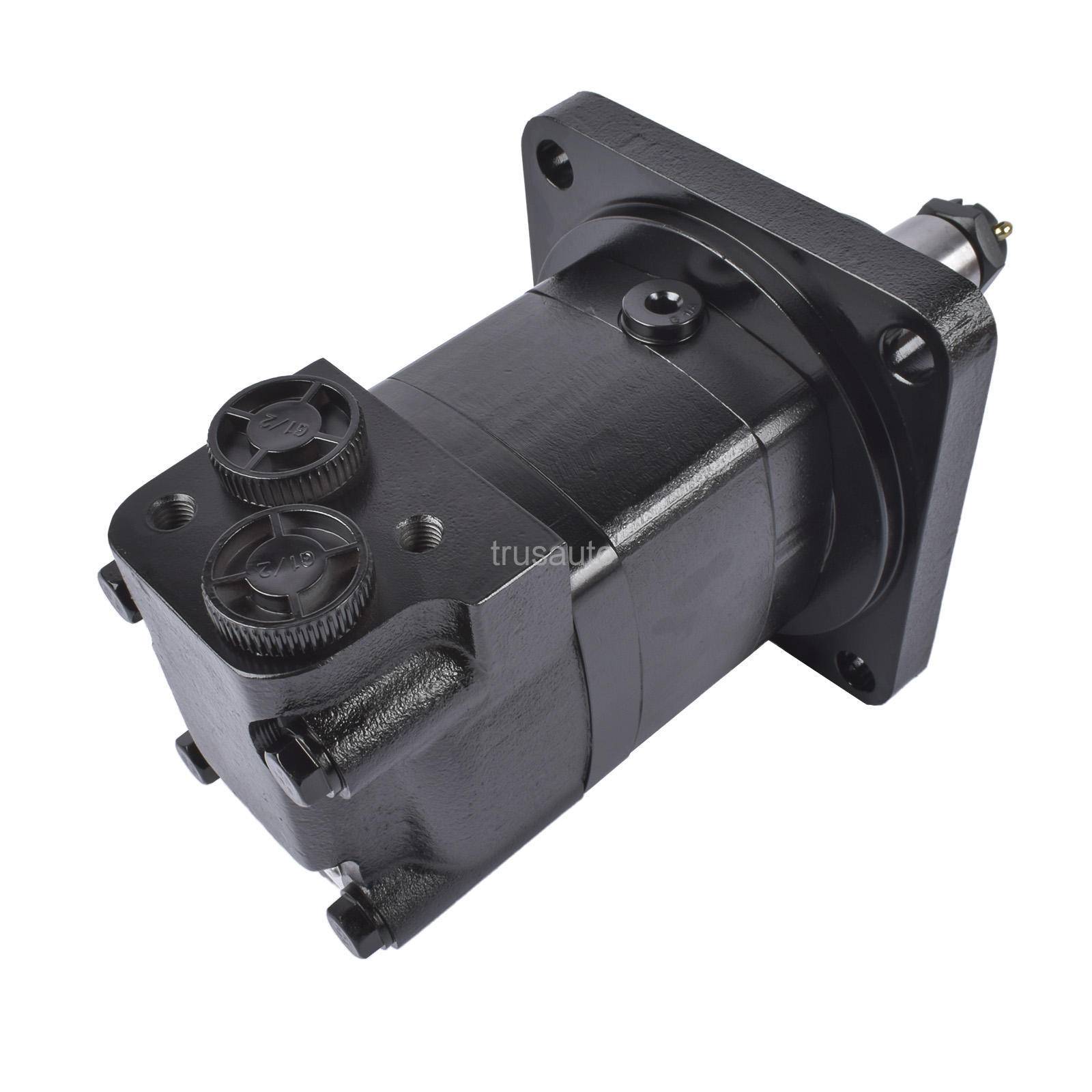

250cc Hydraulic Wheel Motor OMSW250 720Nm Torque 35mm Output 300RPM Max 151F0533
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 342.00
Market Price: $380.00 0 People Puchased
Free Delivery
250cc Hydraulic Wheel Motor OMSW250 720Nm Torque 35mm Output 300RPM Max 151F0533
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OEM Part Number
OMSW250-151F0533
OMSW250151F0533
151F0533
BMSY-250-W-T1-
Parameters:
Tapered output shaft 35mm with 1/2 BSP port
OMSW 250 Low Speed High Torque Wheel motor, Geometric Displacement 250.0 cm3
Specification:
Motor size: 250
Geometric displacement( cm^3[in]): 250,0[15.26]
Max speed cont: 300 rpm
Max speed int: 360 rpm
Max torque cont(Nm[lbf in]): 720[6370]
Max torque int(Nm[lbf in]): 870[7700]
Max output power cont(kW[hp]): 14,5[19.4]
Max output power int(kW[hp]): 18,0[24.1]
Max pressure drop cont(bar[psi]): 200[2900]
Max pressure drop int(bar[psi]): 250[3630]
Max pressure drop peak(bar[psi]):270[3920]
Max oil flow cont(l/min[gpm]): 75[19.8]
Max oil flow int(l/min[gpm]): 90[23.8]
Max starting pressure with unloaded shaft(bar[psi]): 8[115]
Min starting torque at max press drop cont(Nm[lbf in]): 560[4960]
Min starting torque at max press drop int(Nm[lbf in]): 700[6200]
Max inlet pressure cont(bar[psi]): 230[3340]
Max inlet pressure int(bar[psi]): 295[4280]
Max inlet pressure peak(bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 210[3050]
