Parameters
Part Type
replacement
Manufacturer Part Number
UST1202
Interchange Part Number
UST1202
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 162.00
Market Price: $180.00 0 People Puchased
Free Delivery

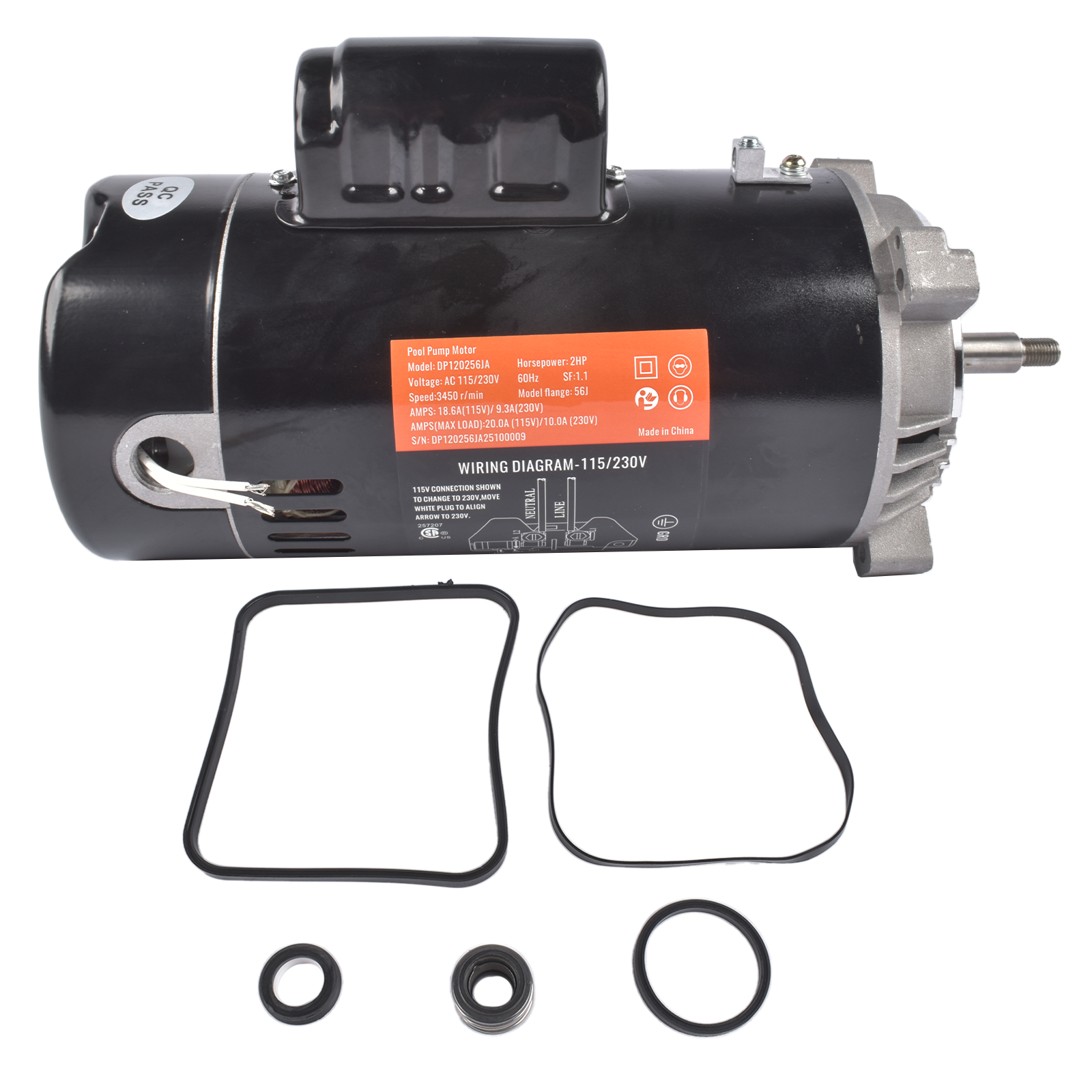

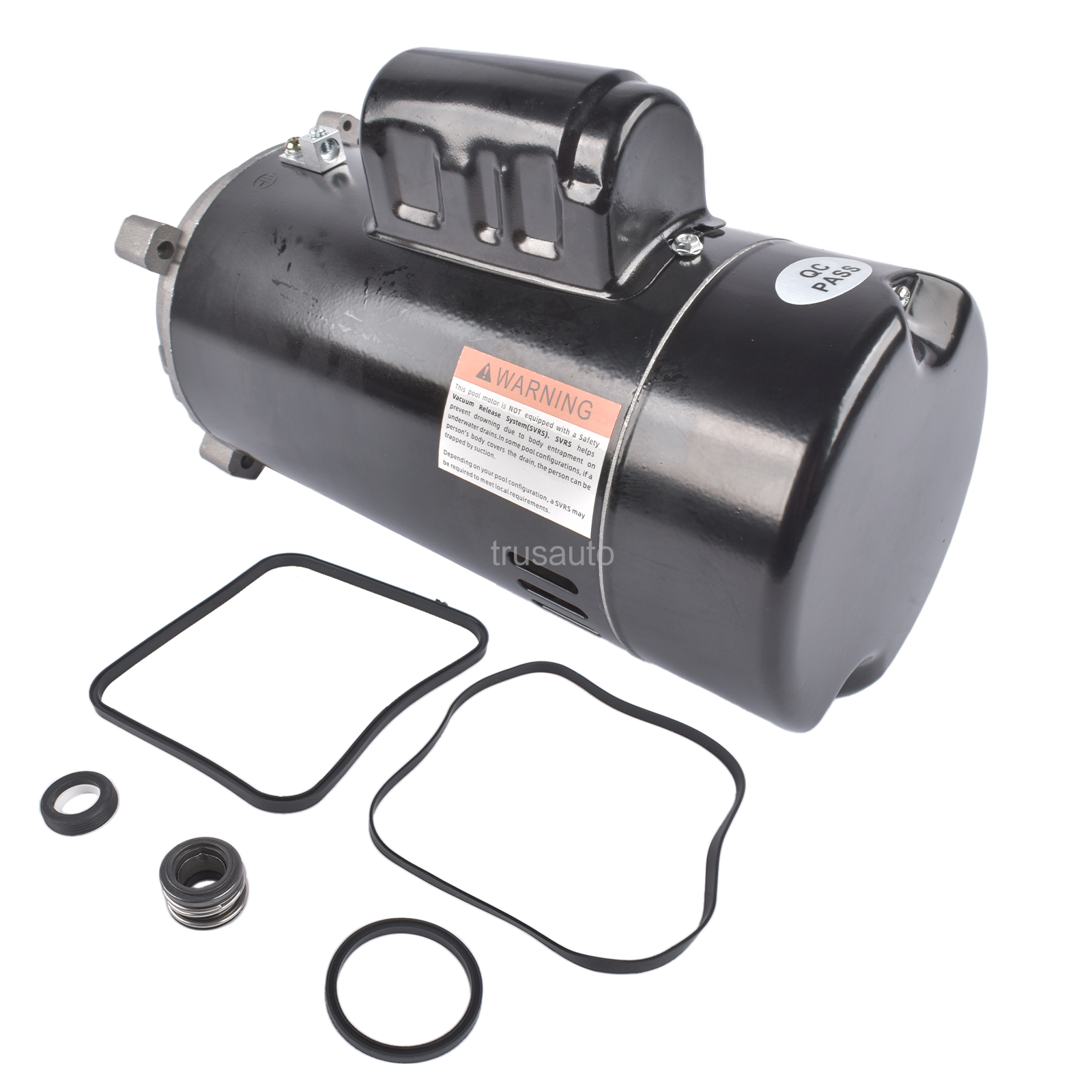

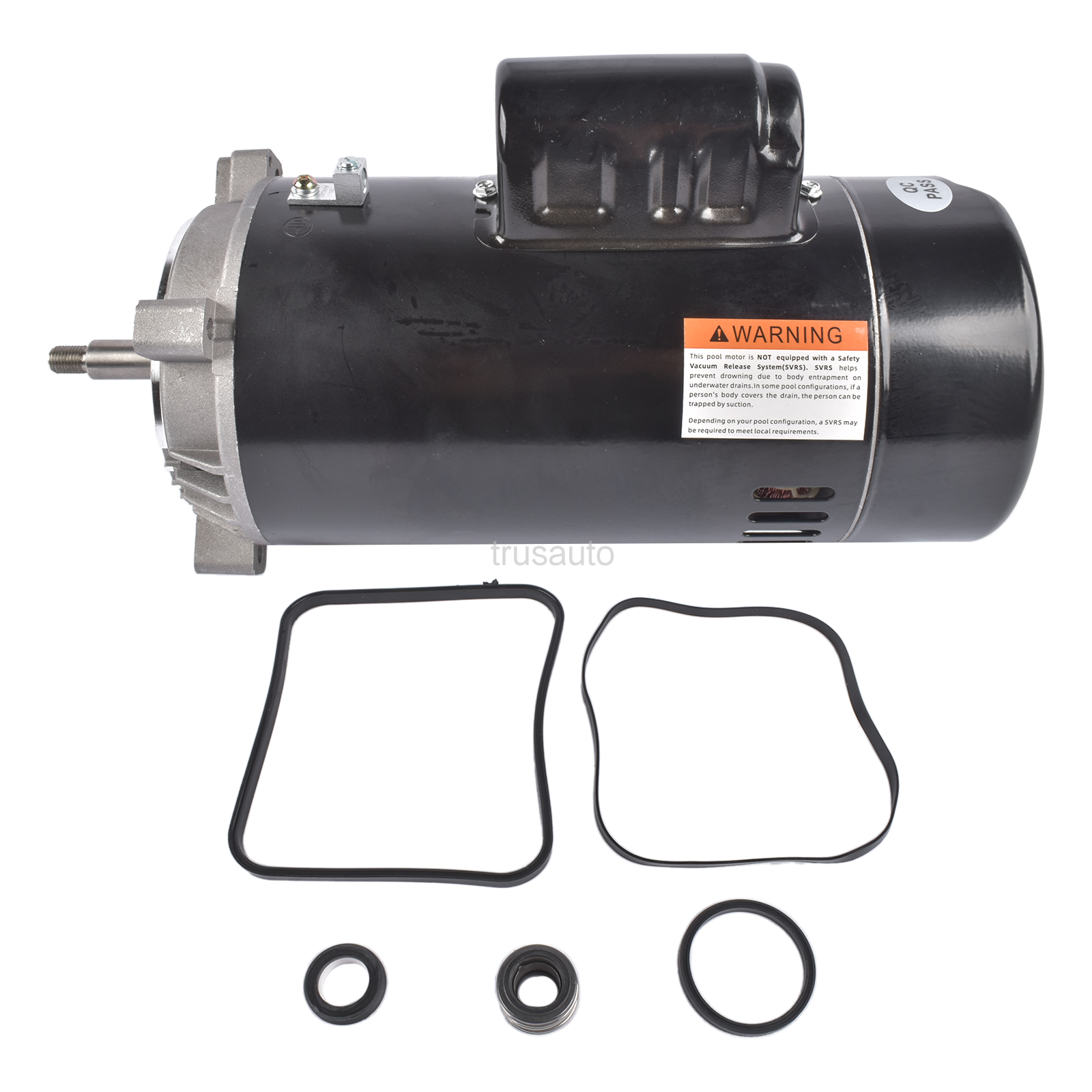

Round Flange Pool Pump Motor UST1202 for Hayward Super Pump 2 HP 60 Hz 56J Frame
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 162.00
Market Price: $180.00 0 People Puchased
Free Delivery
Round Flange Pool Pump Motor UST1202 for Hayward Super Pump 2 HP 60 Hz 56J Frame
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
The two horsepower round flange up-rated replacement motor for swimming pool pumps has a threaded shaft and fits most pumps that require a round flange motor. It operates on both 115 and 230-Volts. The UST1202 is compatible with Hayward Super, Super II, and Max-Flow pumps, Jacuzzi Magnum pumps, and Pentair Pinnacle pumps.
OEM Part Numbers:
UST1202
Will Fit for Following Models:
Replacement for Hayward/ Super Pump/ Super II/Northstar and Jacuzzi Magnum Pumps and so on.
Specification:
2 HP
3450 RPM
18.6/9.3 AMPS
115/230V
56J Frame
1.10 Service Factor
Rotation: CCW Pump End
Sealed Ball Bearings
Sealed switch design
1081 Design
50 C Ambient
60 Hertz
303 Stainless Steel Shaft
Installation Instructions:
Ensure the pool motor is compatible with your pool pump.
Turn pump power off during replacement.
Check voltage requirements on your current setup.
Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
Turn on the pump to test for leaks and pump operation.
Please Note: We recommend professional installation.
