Parameters
Part Type
replacement
Manufacturer Part Number
Expand Your Hydraulic Control with Ease, Hydraulic Multiplier Valve Kit, Rocker Switch, Quick-Connect Couplers & Fittings, Hydraulic Multiplier SCV Splitter Diverter Valve
Interchange Part Number
HM108CF2, SCV Splitter/Diverter Valve, with Couplers and Ag Fittings, Hydraulic Multiplier Valve Kit, 2-Circuit SCV Splitter Diverter Manifold, Hydraulic Multiplier SCV Splitter Diverter Valve
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 256.00
Market Price: $285.00 0 People Puchased
Free Delivery
Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 256.00
Market Price: $285.00 0 People Puchased
Free Delivery
Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
◾ TECHNICAL DATA ◾
Part Name: Manual Hydraulic Multiplier
Color: Multicolor
Material: Iron
Number of Ports: 3
Operation Mode: Manual
Outlet Connection Type: NPT
Inlet Connection Size: 0.75 Inches
Inlet Connection Type: O-Ring Boss
Outlet Connection Size: 0.75 Inches
Threaded Ports: 3/4-16 ORB (-08)
Max Operating Pressure: 3000 PSI
Flow Rating: 20 GPM
Supplied With: Manual hydraulic multiplier valve, couplers, adapter fittings
◾ PRODUCT FEATURES ◾
▸ Multi-functional hydraulic expansion module: Expands original hydraulic interfaces, delivers precise dual-circuit control, and enhances the application range of hydraulic setups.
▸ Rapid circuit transition: Specialized handle design enables effortless switching; a 45° rotation provides smooth shifting between Circuit 1 and Circuit 2 for improved usability.
▸ High-flow, high-pressure capability: Rated for 20 GPM flow and 3000 PSI maximum pressure, guaranteeing stable, unobstructed performance under heavy-duty use.
▸ Extensive system compatibility: Suitable for single and double-acting cylinders, compatible with open, closed, and FPC hydraulic systems. Includes adjustable fittings for direct tractor SCV port mounting, with standard 3/4-16 ORB (-08) threaded ports.
▸ Simplified, quick installation: Direct plug-in to tractor rear remote ports via custom offset fittings with 2”–2.5” adjustable center distance. Intuitive joystick for independent or simultaneous dual-circuit operation.
◾ PACKAGE CONTENTS ◾

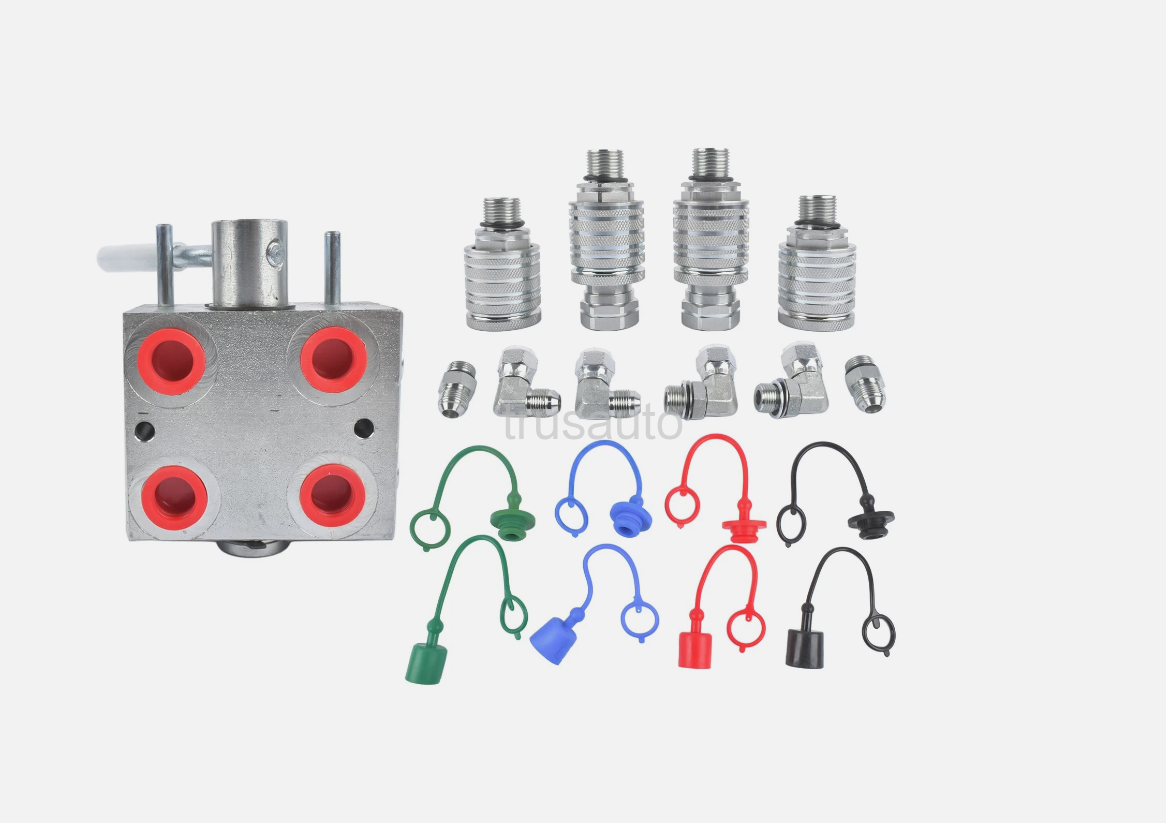

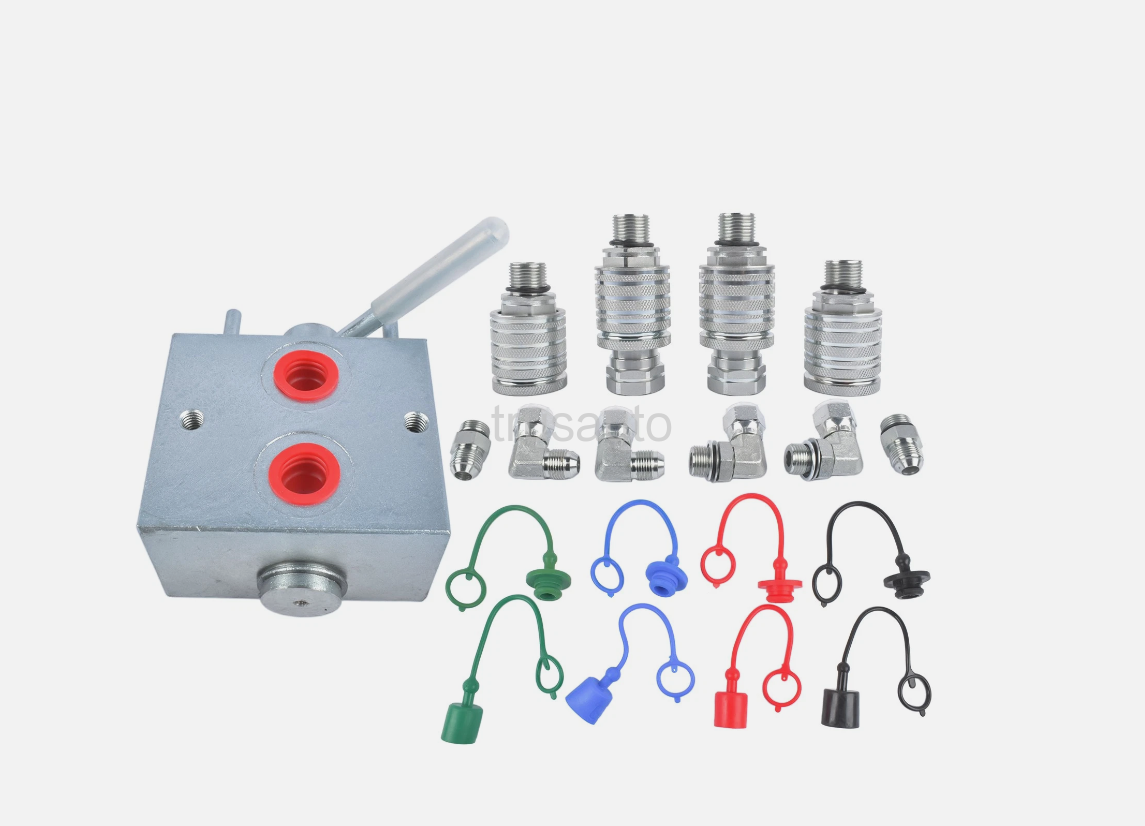

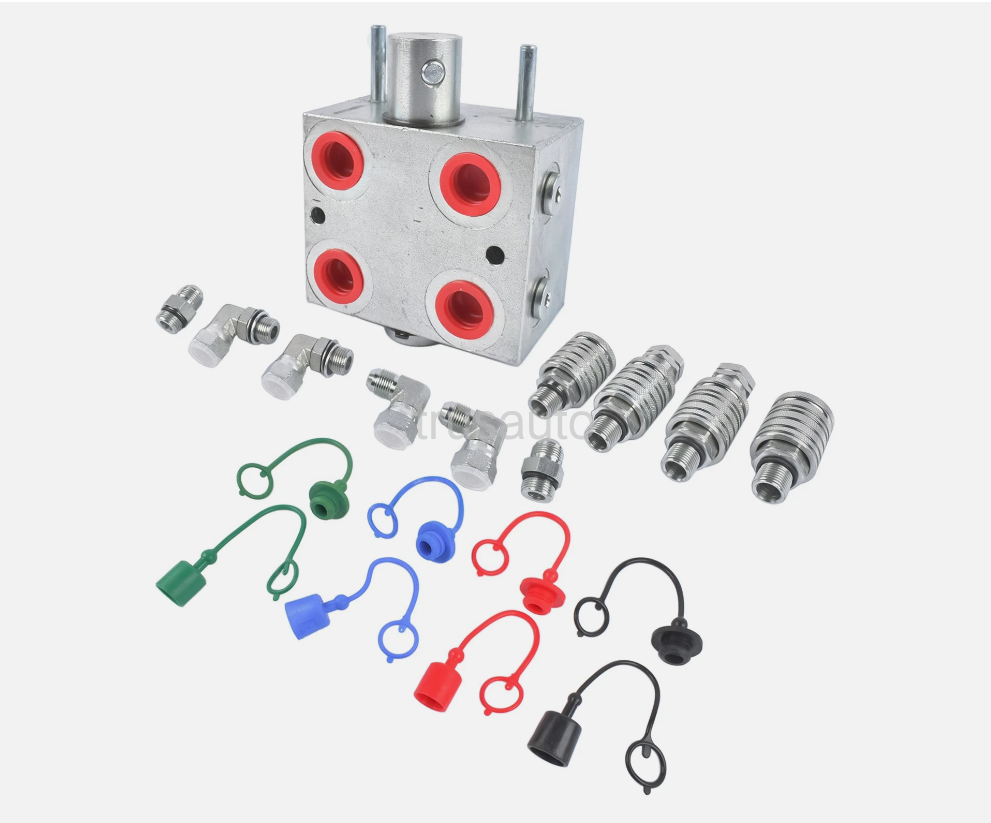

1 × Manual Hydraulic Multiplier Complete Kit (As Shown In Images)
