Parameters
Part Type
replacement
Manufacturer Part Number
EBY-416566S2
Interchange Part Number
EBY-416566S2
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 112.50
Market Price: $125.00 0 People Puchased
Free Delivery
For SBC Chevy Saginaw Keyway Power Steering Pump & Bracket & 2 Groove Pulley Kit
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 112.50
Market Price: $125.00 0 People Puchased
Free Delivery
For SBC Chevy Saginaw Keyway Power Steering Pump & Bracket & 2 Groove Pulley Kit
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Description:
Power Steering Pump:
This is the 1966 to 1976 GM saginaw style pump. But it will mount to most Chevy/GM engines with the correct mounting bracket.
This pump uses the 5/8" keyed shaft for the pulley.
Also note that this pump has 3/8"-16 "Inch" mounting holes. Some of the later model pumps have Metric threads. The Metric thread pumps do not always work well with brackets that have inch mounting hardware.
Power Steering Pump Pulley:
Color: Black
Material: Iron, with Anti-corrosion surface treatment
Pump Style: Saginaw
Pulley Style: V-Belt
Groove Quantity: 2
Pulley Attachment: Keyway
2 groove V-belt for KEYWAY design. (NOT FOR PRESS-ON DESIGN)
Keyway Bore: 5/8"
Outside Diameter: 5 3/4"
These feature deep grooves to prevent belts from slipping
Power Steering Pump Mounting Brackets:
Power steering pump bracket for your 1970-Later Small Block Chevy Engine with a short or long water pump.
Designed to provide a perfect fit and a secure grip.
This bracket works for both Short & Long Water pumps, Single or Double Groove Pulley.
This quality bracket fits a wide variety of applications due to its optional low or high mounting positions.
Mounts on the Drivers Side Bottom of the engine.
All hardware to mount this kit are included.
The power steering bracket mounts to the front of the lower driver side using the 2 lower bolt holes located by the timing chain cover (the old front mount holes).
The adjusting arm mounts to the lower water pump hole. No drilling or tapping required.
Specifications:
Color: Black
Pulley Shaft Diameter: 5/8" Key-Way
Pulley Groove: Double Groove
Pulley Diameter: 5-3/4"
Surface Finish: Chrome
Professional Installation Highly Recommended (No Instructions Included)
Will Fit Following Models:
For Small Block Chevy 265 283 305 327 350 383 and 400 Engines.
Most Common Were 70-74 Camaro & Firebird, 70-74 Nova, 65-79 Chevy / Gmc Trucks, 70-74 Chevelle Malibu El Camino, 70-74 Monte Carlo, 65-79 Impala, Caprice, Bel Air, Etc.
Note: Please compare your item carefully with photo and OE Number to avoid mistake!!!
Package Includes:
1x Power Steering Pump
1x Power Steering Pump Bracket
1x Power Steering Pump Pulley
Mounting Hardware

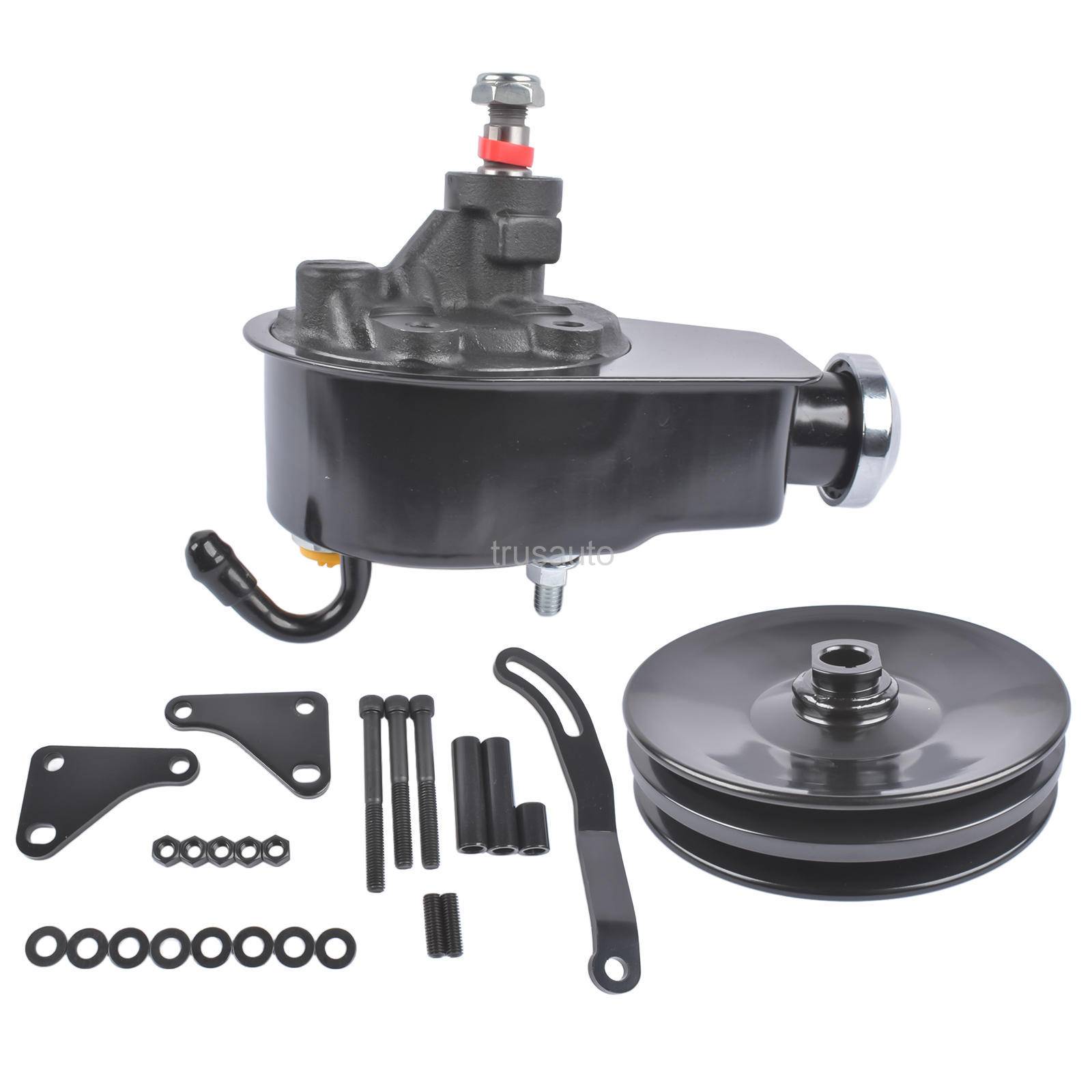

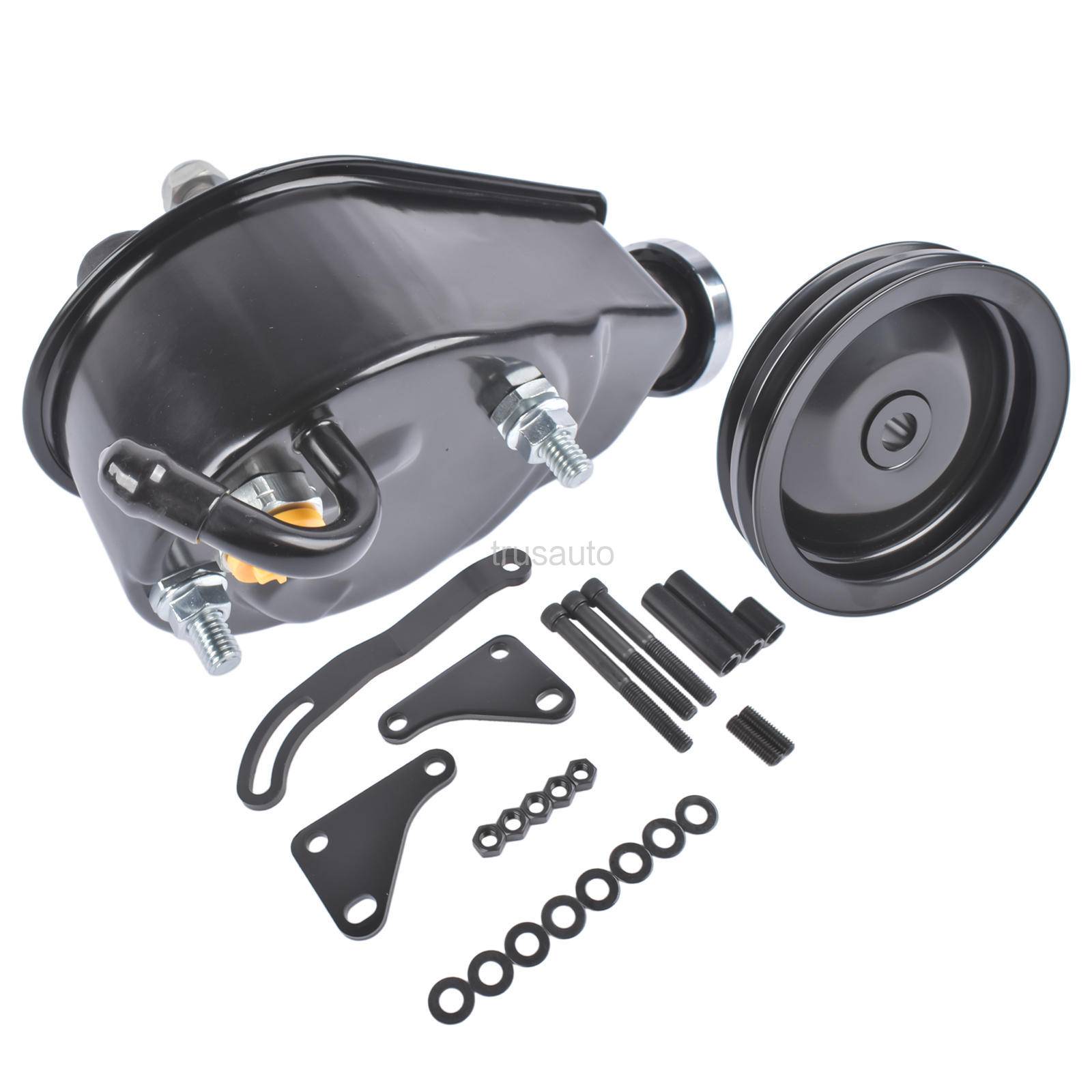

As shown in the picture above
