Parameters
Part Type
replacement
Manufacturer Part Number

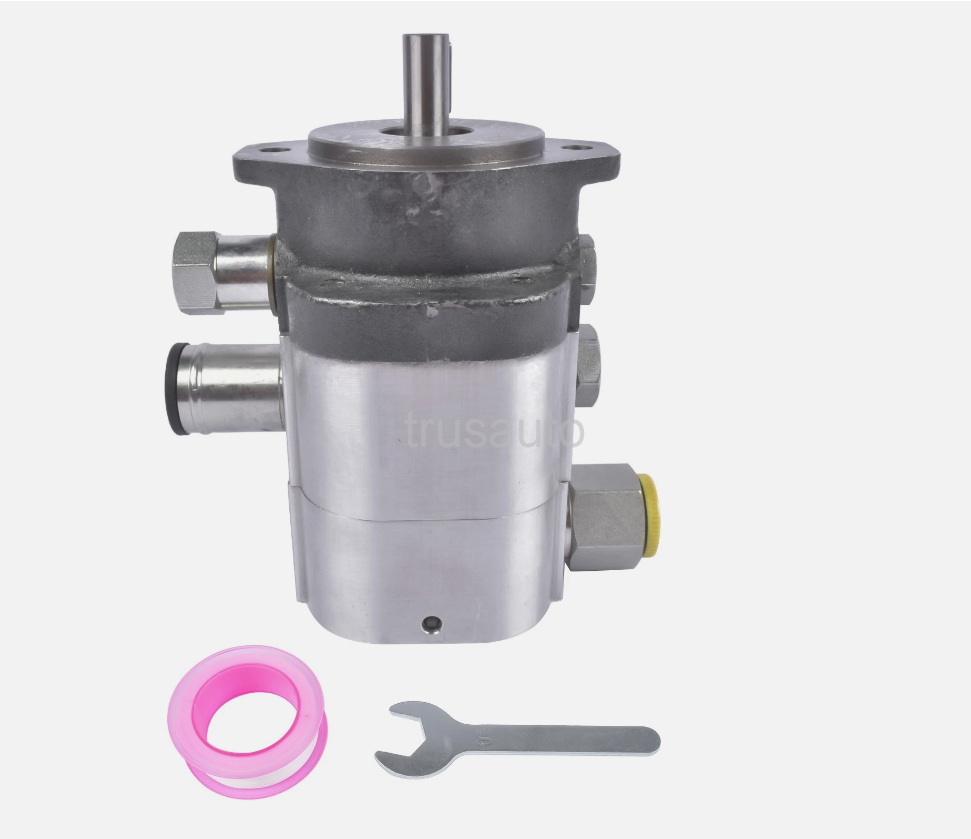

Hydraulic Wood Log Splitter Pump Kit
Interchange Part Number
Hydraulic Wood Log Splitter Pump Kit
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 122.40
Market Price: $137.00 0 People Puchased
Free Delivery
Hydraulic Wood Log Splitter Pump 22 GPM | 2 Stage | 3000 PSI | HI/LO Gear Pump
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 122.40
Market Price: $137.00 0 People Puchased
Free Delivery
Hydraulic Wood Log Splitter Pump 22 GPM | 2 Stage | 3000 PSI | HI/LO Gear Pump
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
2-Stage HI/LO Gear Pump
22GPM Hydraulic Log Splitter Pump
2-Stage HI/LO Pressure Hydraulic Gear Pump. Use a mineral or synthetic based hydraulic fluid, which viscosity you use will be determined by your environment.
Specifications:
Unloading Pressure: 400-900 PSI
Inlet Port:NPT1
Outlet Port: NPT3/4
Power Source: Hydraulic
Flow: 22 GPM
Pressure: 3000 PSI max.
Speed: 3600 RPM max.
Displacement: HI: 0.465 cu.in/r LO: 0.93 cu.in/r
Features
[Standard Connecting Ports] - 2-stage HI/LO gear pump.This hydraulic pump has a maximum rotational speed of 3600 RPM, a maximum working pressure of 3000 PSI.The 2-stage pump can provide faster cycle times and higher possible pressure.
[Strong Material] - Made of high-strength extruded aluminum housing,and the end plate is cast steel. it can resist impact, rust, and high pressure. It has long service life.
[Standard Connecting Ports]- Our log splitter pump includes a standard NPT3/4 outlet port and NPT1 inlet port. The 5/8" diameter shaft allows clockwise rotation.
