Parameters
Part Type
replacement
Manufacturer Part Number
OMM32-151G0036, 151G0036, OMM32151G0036
Interchange Part Number
151G0036,OMM32151G0036
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 167.40
Market Price: $186.00 0 People Puchased
Free Delivery

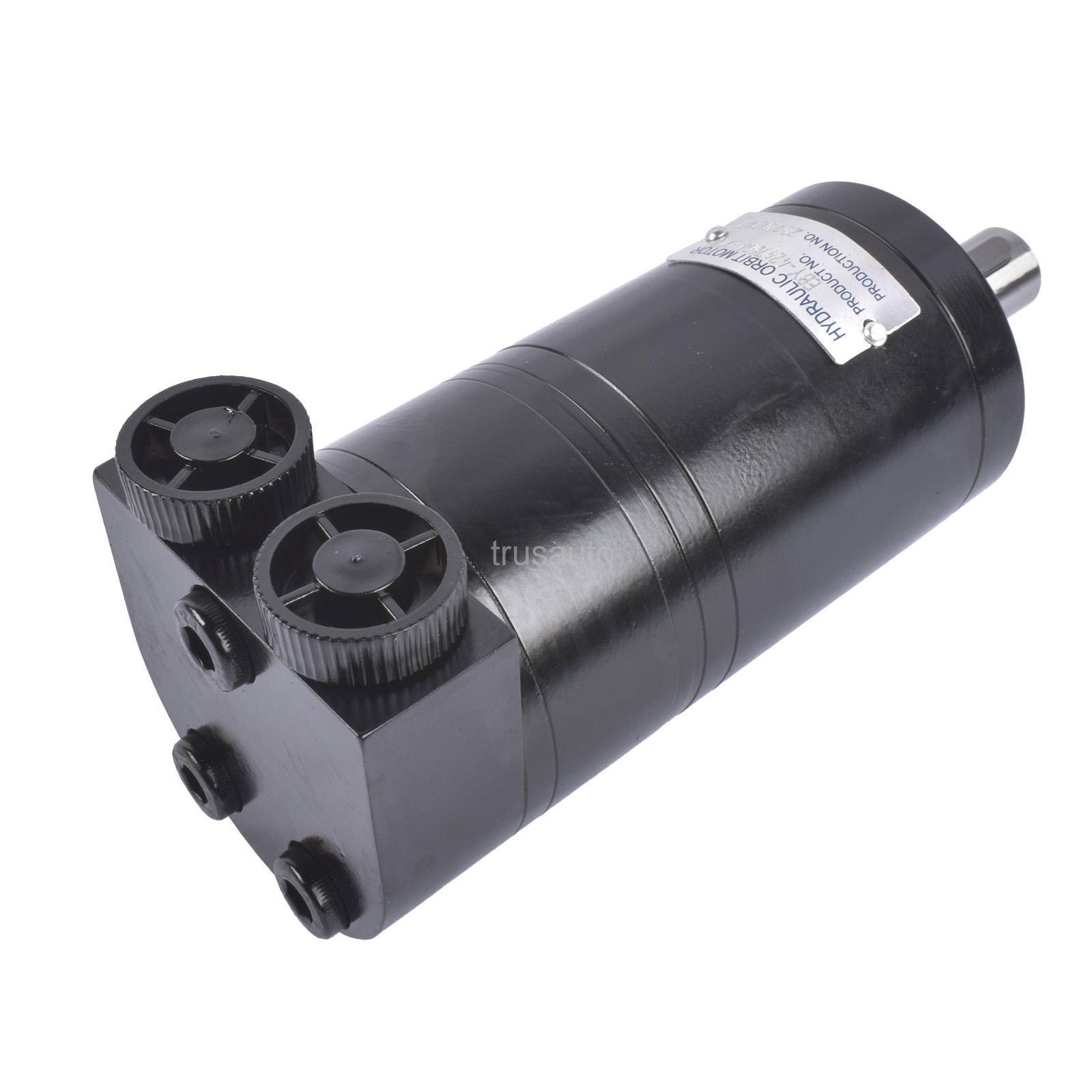

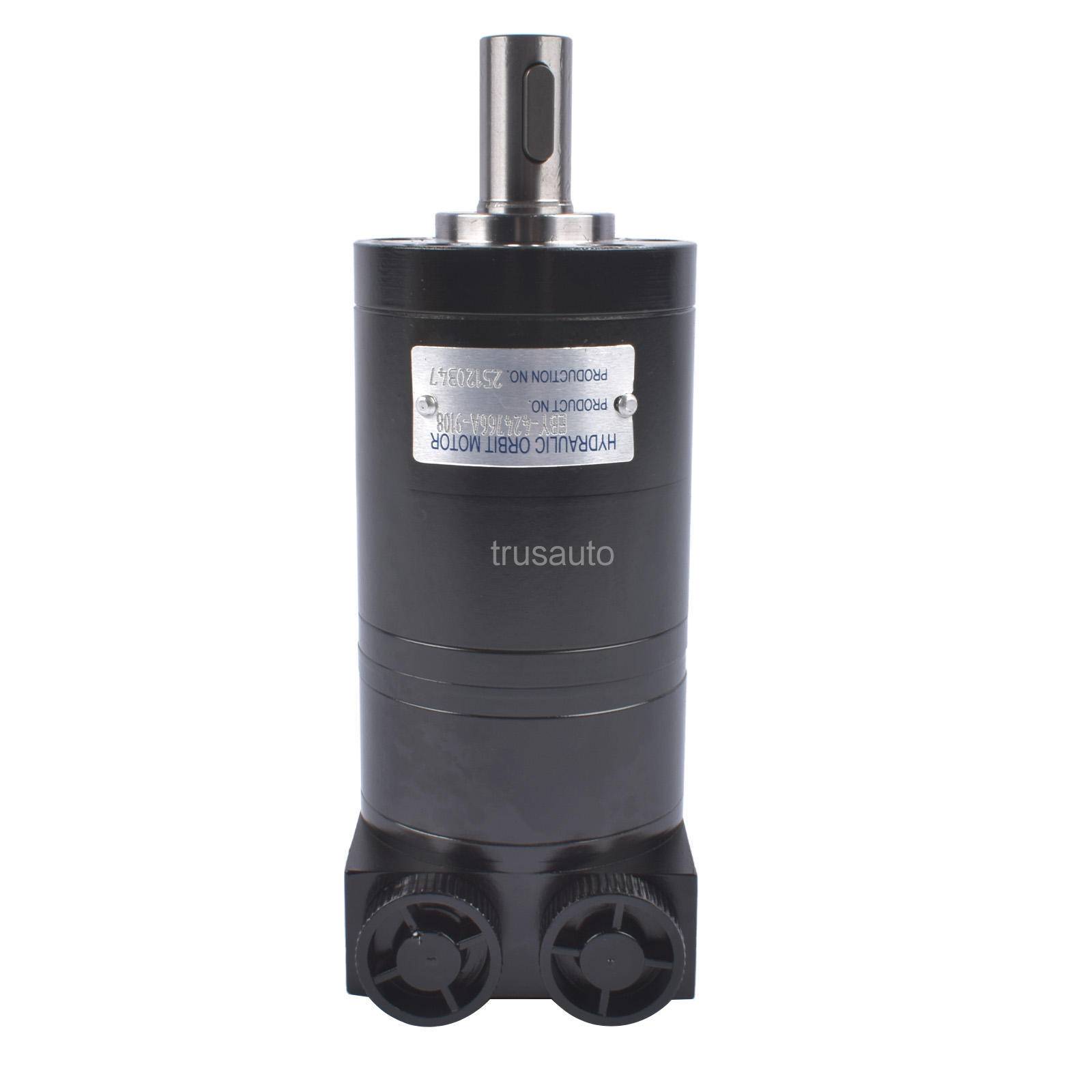

Hydraulic Orbital Motor OMM32151G0036 OMM32-151G0036 151G0036 5/8" 9/16-18UNF
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 167.40
Market Price: $186.00 0 People Puchased
Free Delivery
Hydraulic Orbital Motor OMM32151G0036 OMM32-151G0036 151G0036 5/8" 9/16-18UNF
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
OE Number
OMM32-151G0036
151G0036
OMM32151G0036
Will fit Following Models
Type: OMM
Motor Size: 32
Geometric displacement: 31.6cm³/[1.93in]
Max speed cont: 630 rpm
Max speed int: 800 rpm
Max torque cont: 40Nm/[350lbf in]
Max torque int: 57Nm/[500lbf in]
Max output power cont: 2.4kW/[3.2hp]
Max output power int: 3.2kW/[4.3hp]
Max pressure drop cont: 100bar/[1450psi]
Max pressure drop int: 140bar/[2030psi]
Max pressure drop peak: 160bar[2320psi]
Max oil flow cont: 20L/min
Max oil flow int: 25L/min
Max starting pressure with unloaded shaft: 4bar/[60psi]
Min starting torque at max press drop cont: 34Nm/[300lbf in]
Min starting torque at max press drop int: 48Nm/[425lbf in]
Max inlet pressure cont: 140bar/[3050psi]
Max inlet pressure int: 175bar/[3630psi]
Max inlet pressure peak: 225bar/[4350psi]
Max return pressure with drain line cont: 140bar/[2030psi]
Max return pressure with drain line int: 175bar/[2540psi]
Max return pressure with drain line peak: 225bar/[3050psi]
