Specifications:

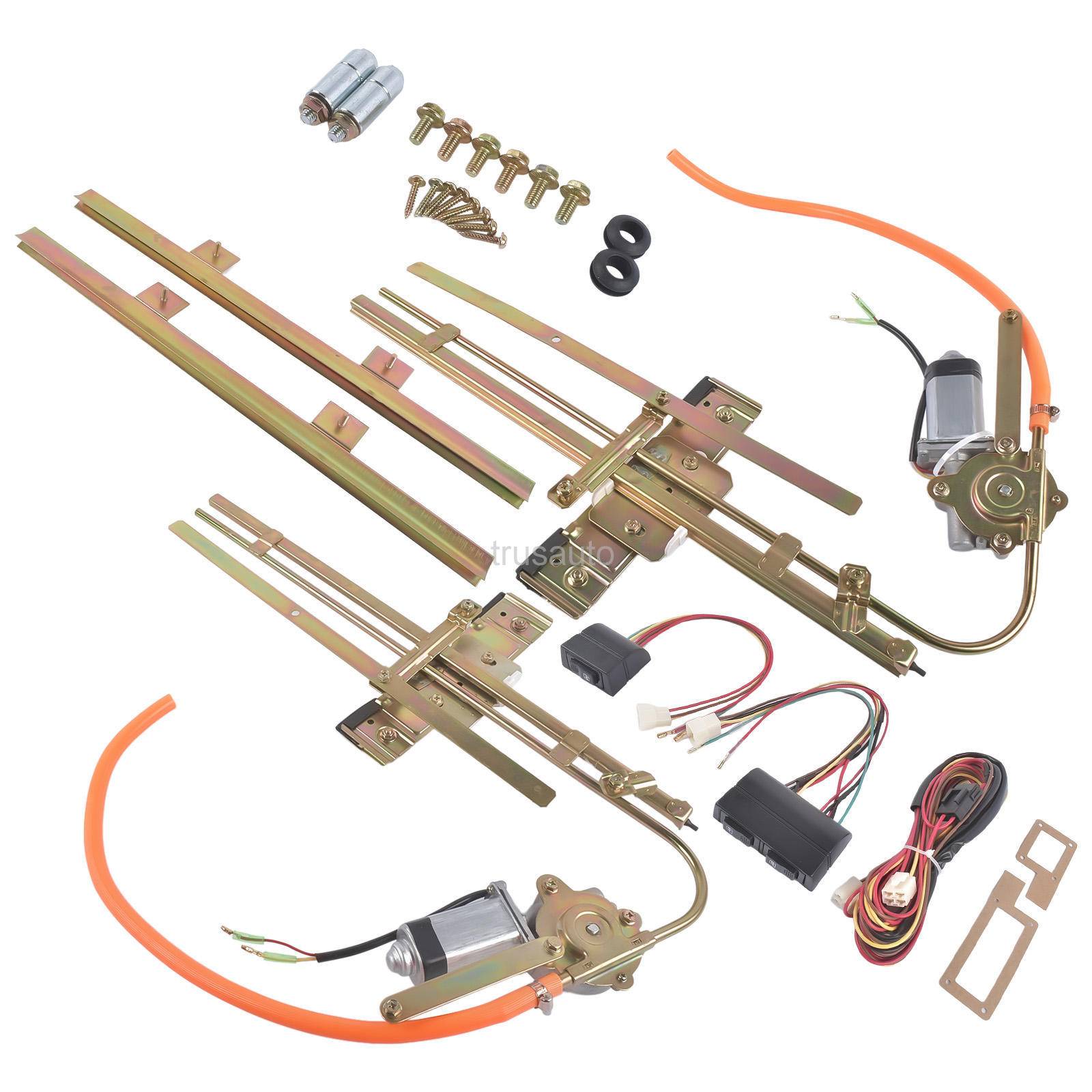

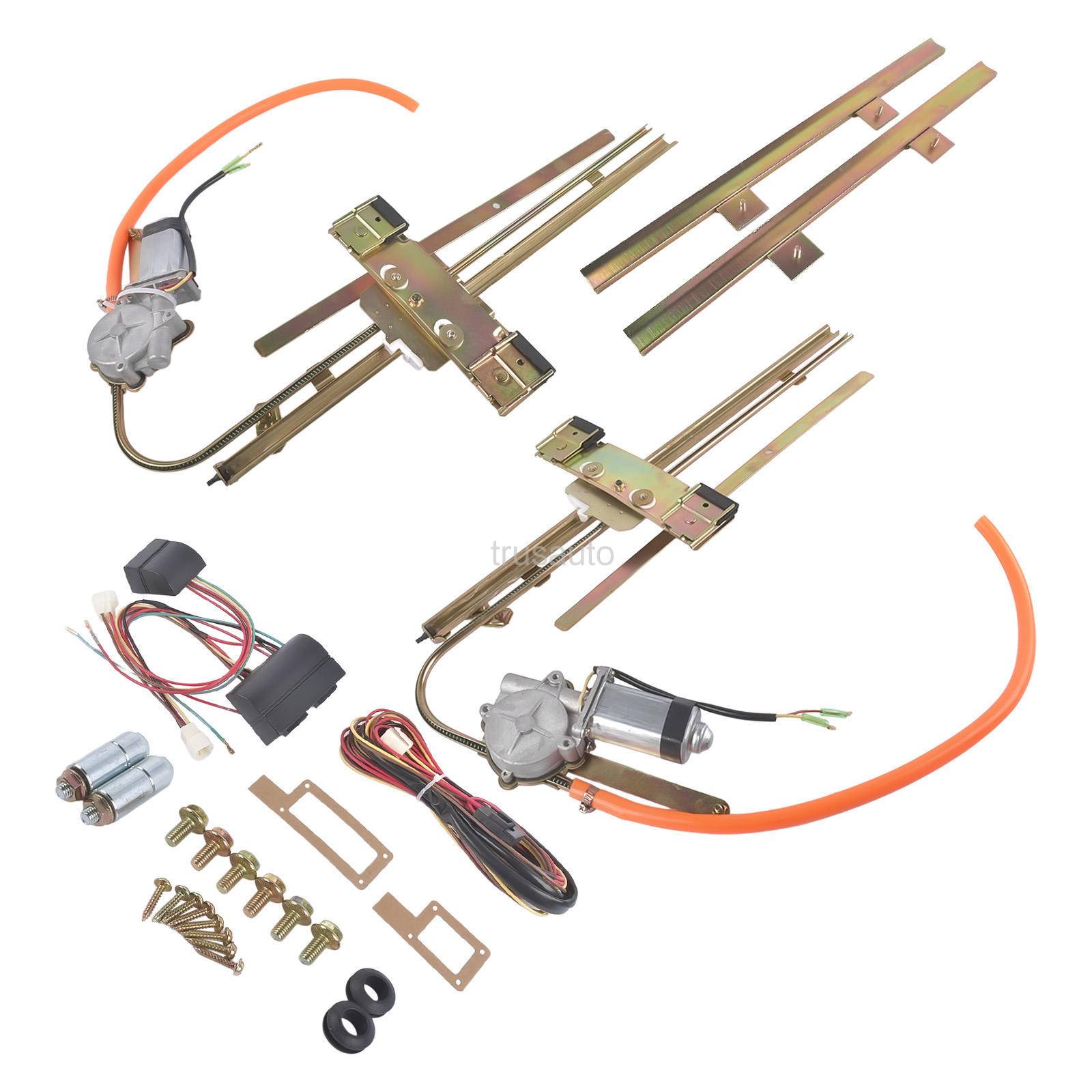

This complete kit includes switches as well as all necessary wiring and installation parts.

These heavy duty motors raise and lower glass without the use of a track.

This universal kit can be cut to fit and the kit can be mounted in various positions.

This kit will NOT Replacement for Ford most small Model A doors, but will work with most 1932 and up Replacement for Ford, Replacement for Chevy, Replacement for Chrysler, etc. cars and trucks with flat glass windows. Replacement for many classic car and custom street rod applications

Kit includes the necessary switch and wiring kit.

Works for flat glass windows only

Kit for 2 doors

OE Number:

7558925

Note:

Glass must extend down into the door a minimum of 1-1/2” for attachment to the regulator.

16” straight up and down travel

Must have a minimum of 1” clearance between glass and door to mount regulator

Tracks measure 20” long x 1-3/8” wide

Motor measures 5” wide x 6-1/4” long

Kit has an overall depth of 2-3/8”

Recommended available depth in door cavity of 2-1/2”

Must have a minimum of 7” below the glass when the window is at its lowest position
