Parameters
Part Type
replacement
Manufacturer Part Number

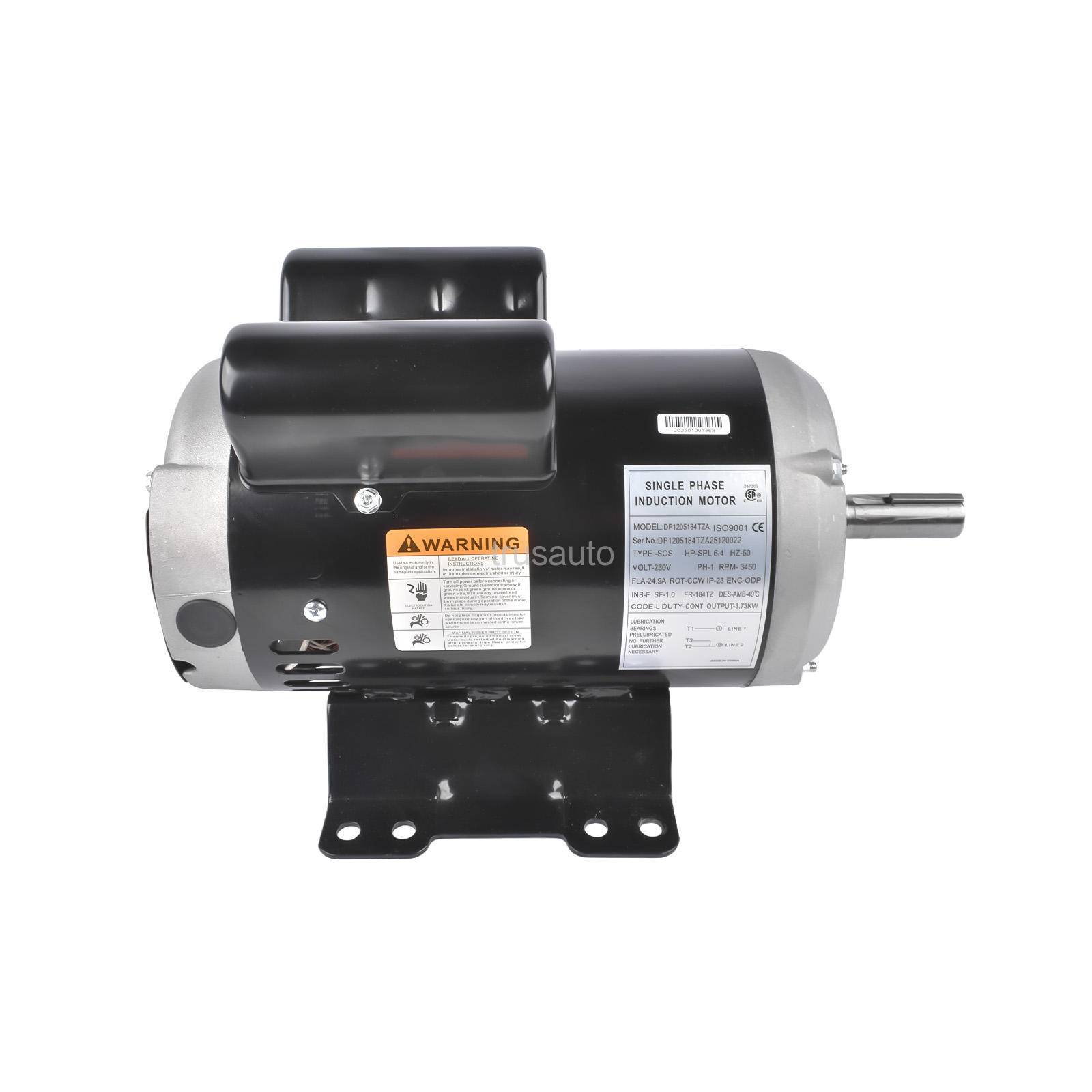

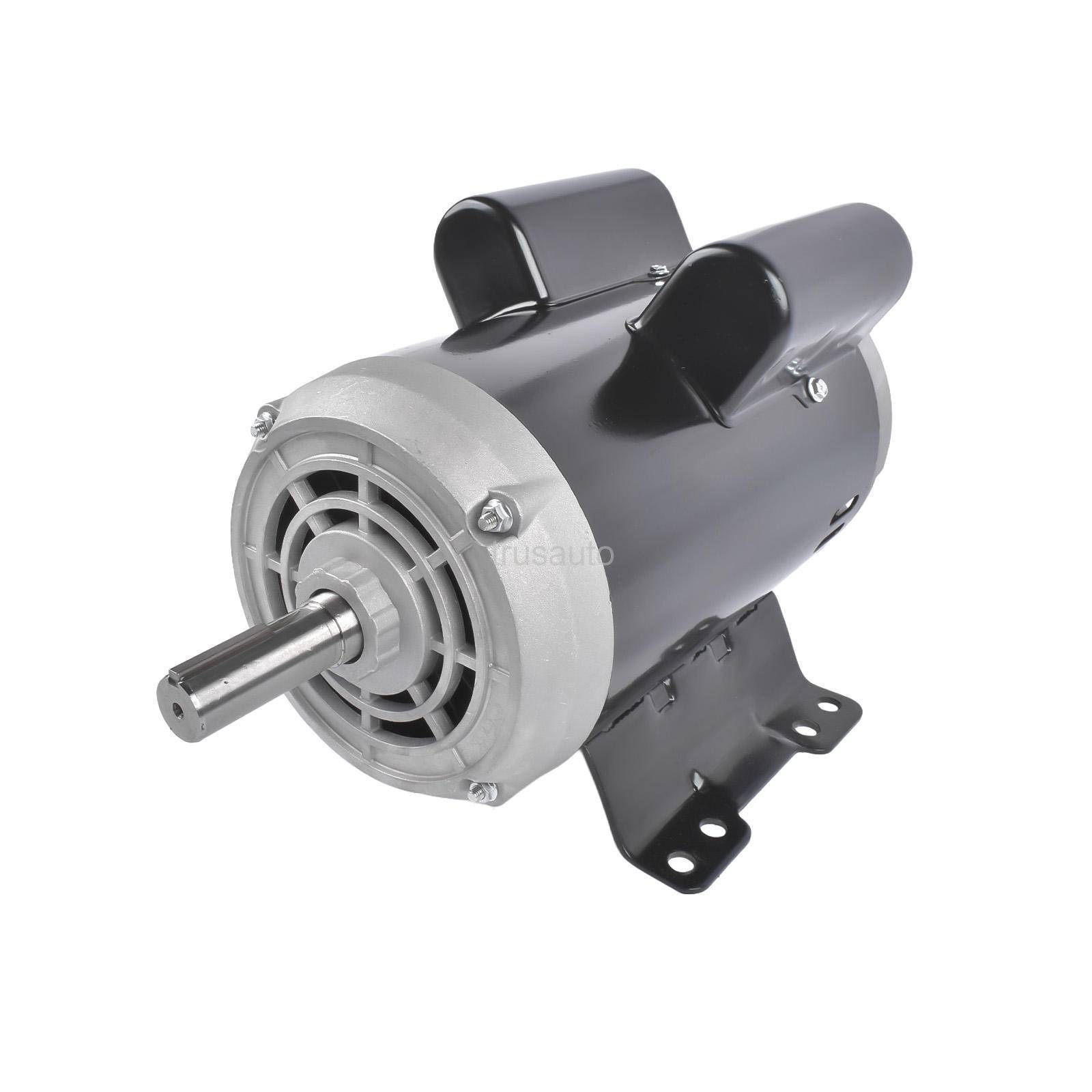

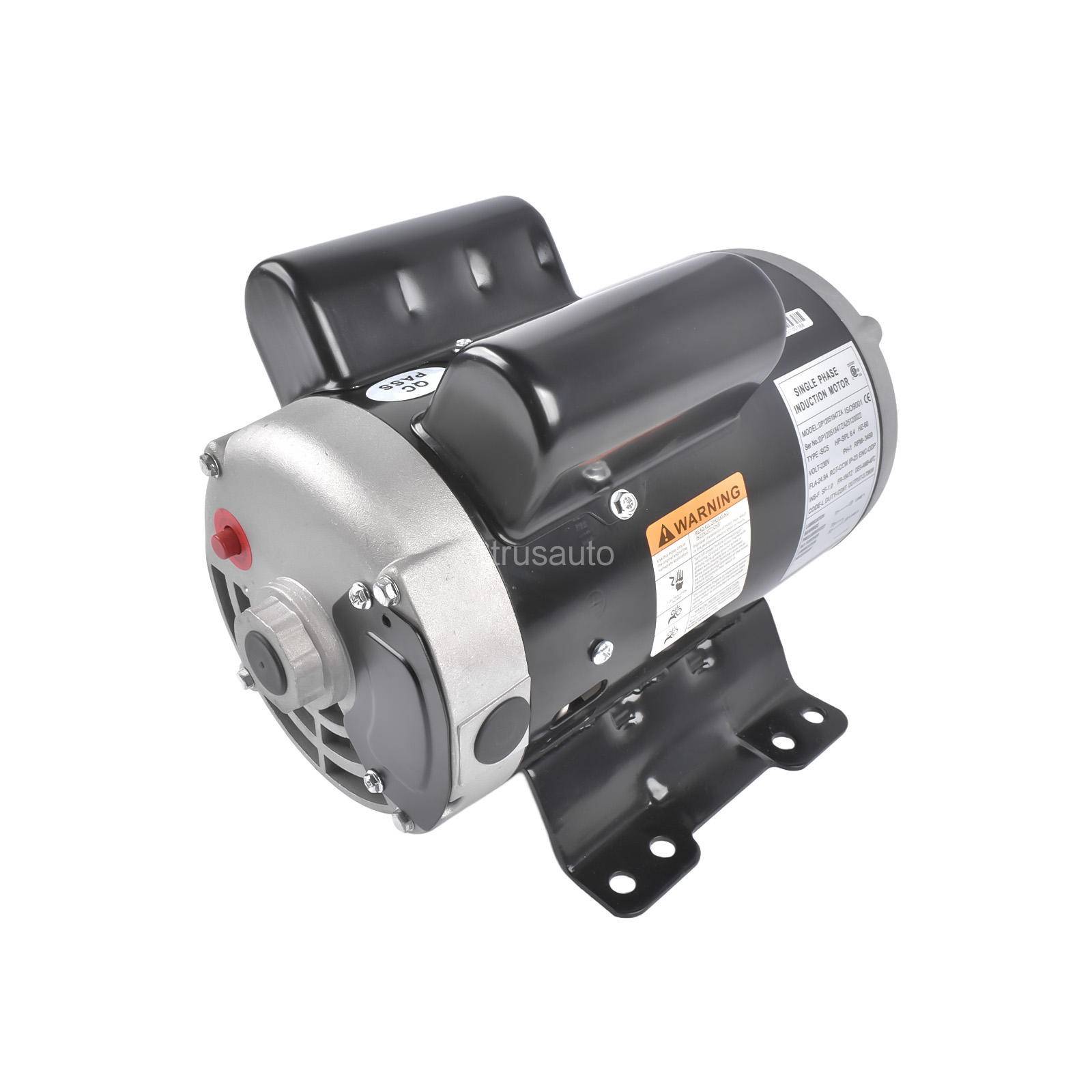

6.4 Hp 3450 RPM Single Phase 240V 56 Frame Electric Air Compressor Motor 7/8"
Interchange Part Number
6.4 Hp 3450 RPM Single Phase 240V 56 Frame Electric Air Compressor Motor 7/8"
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 379.80
Market Price: $425.00 0 People Puchased
Free Delivery
230V 24.9A 6.4HP 3450RPM Single Phase 56 Frame CCW Electric Air Compressor Motor
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 379.80
Market Price: $425.00 0 People Puchased
Free Delivery
230V 24.9A 6.4HP 3450RPM Single Phase 56 Frame CCW Electric Air Compressor Motor
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
This is a brand new motor that is designed to meet the high torque requirements of air compressor loads. Ball bearings designs and manual reset thermal protection are standard features on all ratings. Special electrical and mechanical features ensure reliable service and long motor life.

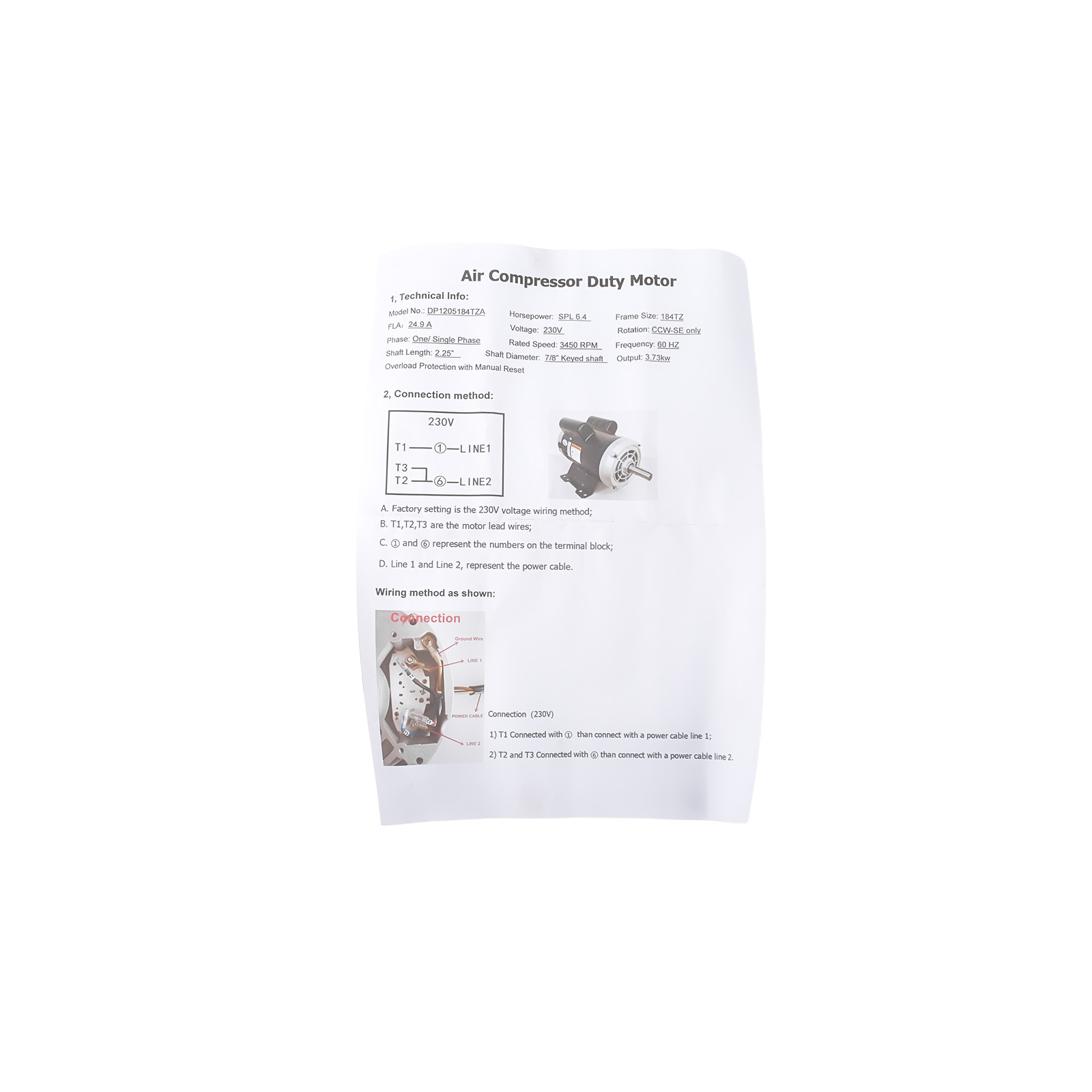

Technical Info
Voltage: 230V
FLA: 24.9A
Horsepower: SPL 6.4
Frame Size: 184TZ
Rotation: CCW-SE Only
Phase: One/Single Phase
Rated Speed: 3450RPM
Frequency: 60HZ
Shaft Length: 2.25"
Shaft Diameter: 7/8" Keyed Shaft
Output: 3.73KW
Overload Protection with Manual Reset
Part Number
11164442
Notes
Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
When the motor is received,
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal.
3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.
