Parameters
Part Type
replacement
Manufacturer Part Number

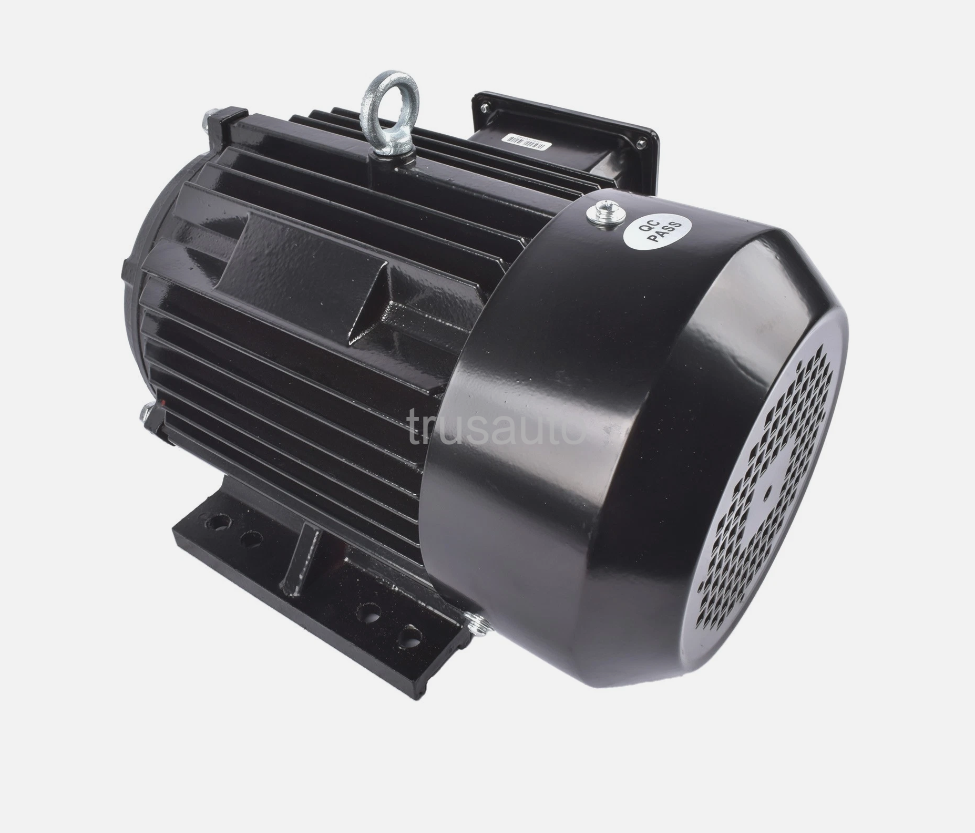

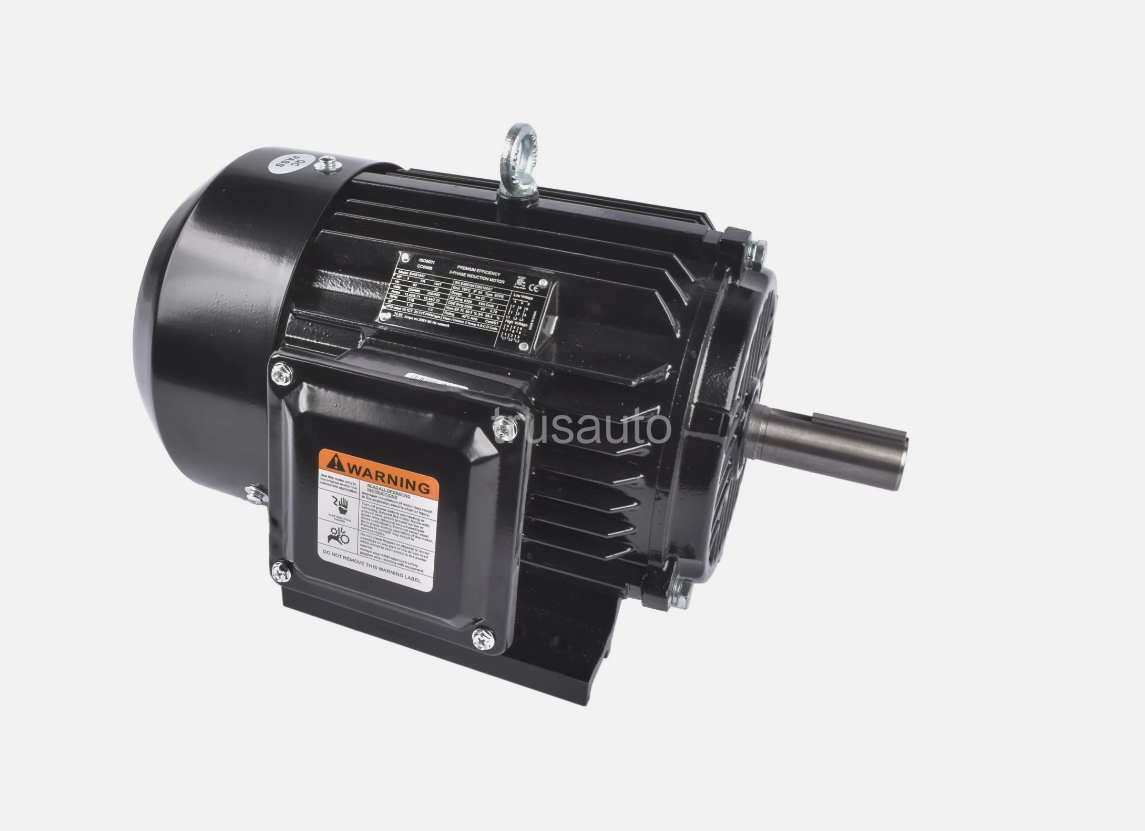

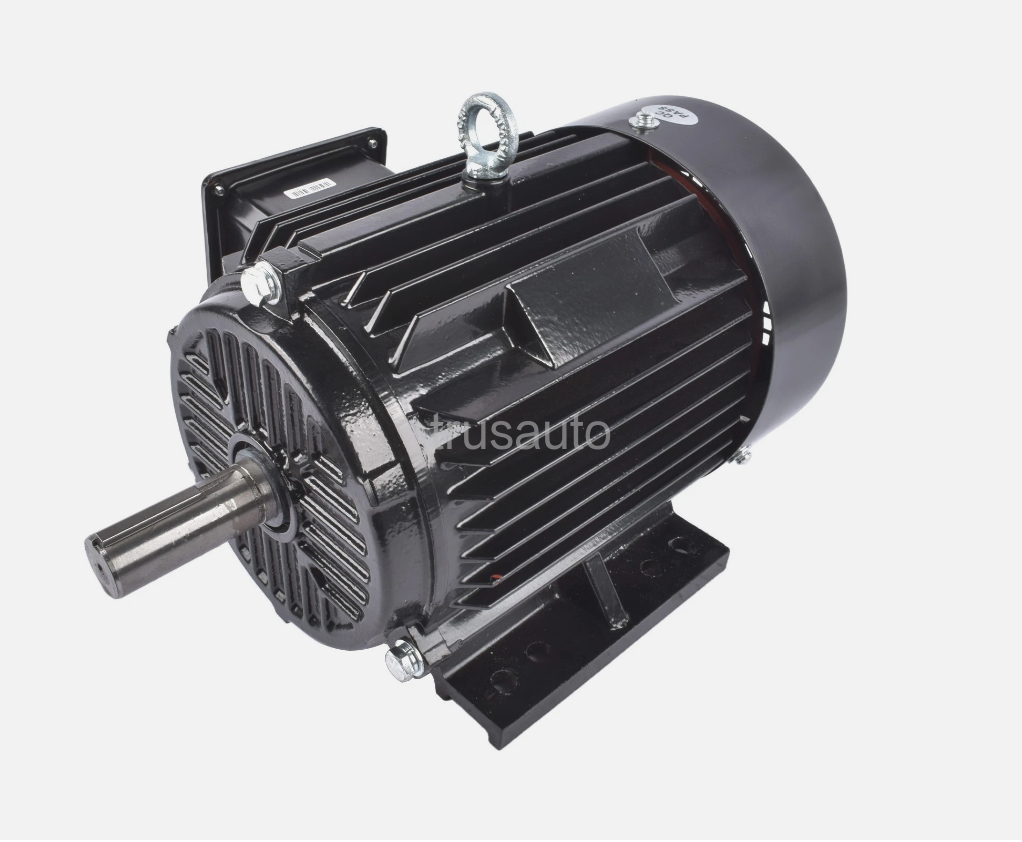

5HP Electric Motor 1800 RPM 184T Frame TEFC 230/460 Volt Severe Duty 3 Phase TR50214
Interchange Part Number
TR50214, 5 Horsepower 3 Phase TEFC, IP55 Fully Enclosed 184T Frame Se, 5HP Electric Motor, 230/460V Severe Duty 3 Phase
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 328.50
Market Price: $367.00 0 People Puchased
Free Delivery
5HP Three Phase Air Compressor Motor TR50214 230/460V 1800 RPM TEFC 184T
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 328.50
Market Price: $367.00 0 People Puchased
Free Delivery
5HP Three Phase Air Compressor Motor TR50214 230/460V 1800 RPM TEFC 184T
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
◈Specifications
Air Compressor Motor
Cast Iron + Copper Winding
Black
IP55
AC Current
3 Phase
Keyed
F Insulation Class
5 Horsepower
Fan Cooled
184T Frame
Bi-Directional Rotation
1.0/1.15 Service Factor
40 Degrees C
13.42/6.71 Amps
50/60 Hz
Design B (General Purpose)
230 V/ 460 V
1800 RPM (Full Load Speed 1755)
TEFC (Totally Enclosed Fan Cooled)
◈OEM Part Numbers
TR50214
◈Features
- Bi-Directional & Stable Operation: Bi-directional running capability, stable rigid base installation, high-quality ball bearings, and Class F insulation protection
- Compact & Efficient Design: Space-saving compact design, convenient to carry and install, with superior heat dissipation performance for continuous operation
- Rugged & Durable Construction: Made with rugged forged iron construction that ensures exceptional durability, wear resistance, and extended working life
- High Performance: Industrial-grade heavy-duty 5 HP motor, operating at 1800 RPM, rated voltage 230/460V, standard 184T three-phase frame
◈Package Includes
1x Air Compressor Motor (As Pics Shown)
