Parameters
Part Type
replacement
Manufacturer Part Number
MHP20
Interchange Part Number
MHP-20, MHP20, 1400W Electric Hydraulic Hole Puncher, 22T Heavy Duty Hydraulic Hole Punch, Portable Punching Machine with 5 Dies, Precise Drilling Aluminum Copper Plate Angle Iron Steel, 1400W pure copper 4-plunger cylinder motor, Φ6.5mm, Φ9mm, Φ13mm, Φ17mm, Φ20.5mm
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 315.00
Market Price: $354.00 0 People Puchased
Free Delivery
Electric Hydraulic Puncher MHP-20 1400W 22Ton w/5 Punch Dies Φ6.5/9/13/17/20.5mm
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 315.00
Market Price: $354.00 0 People Puchased
Free Delivery
Electric Hydraulic Puncher MHP-20 1400W 22Ton w/5 Punch Dies Φ6.5/9/13/17/20.5mm
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
【Basic Info】Model: MHP-20Voltage: 110V | Power: 1400WMain Material: Steel + Copper AlloyOperation Type: Automatic | Fit Type: Direct Replacement【Core Punching Performance】Motor: 1400W pure copper 4-plunger cylinder motorPunch Force: 22 tons | Punch Speed: 2–3s per hole

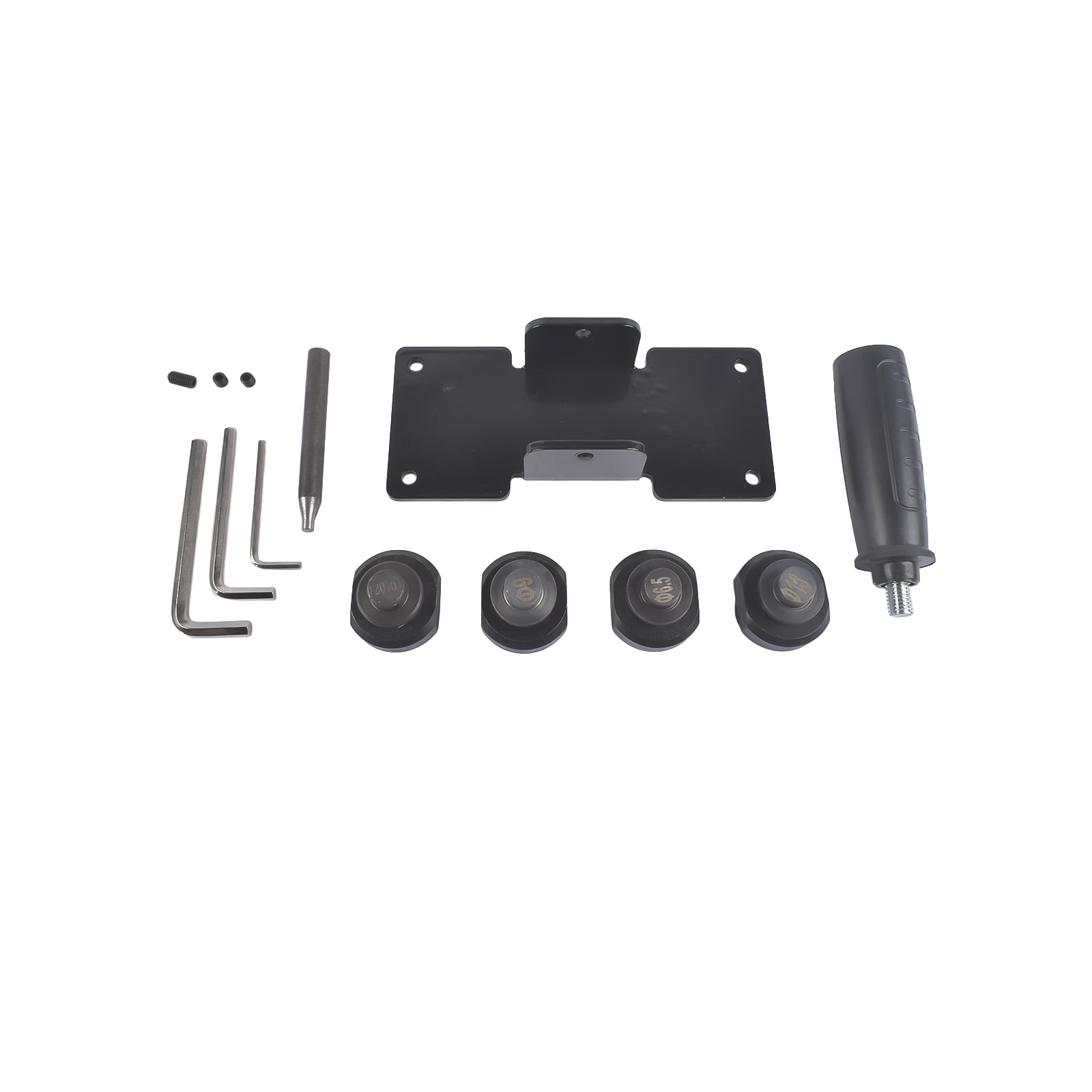

【Applicable Scope & Dies】Thickness Limit: Steel/iron/copper/aluminum plate ≤0.315in (3–8mm); #4–#8 angle iron ≤0.31inIncluded Dies (5 sizes): Φ6.5mm(1/4") / Φ9mm(3/8") / Φ13mm(1/2") / Φ17mm(11/16") / Φ20.5mm(13/16")【2 Working Modes】Fixed: Base-mounted on platform, start via hand switchHandheld: Auxiliary handle installed for multi-angle punching in comp
lex environments【Usage Tips】Rest 10–15 mins after 50–70 continuous punches
Tighten all bolts (especially bracket-cylinder sealing bolts) after 300–500 usesAvoid working on hard metals in harsh cold weather to protect motor housing
