Parameters
Part Type
replacement
Manufacturer Part Number
MA0515E
Interchange Part Number
MA0515E
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 178.00
Market Price: $198.00 0 People Puchased
Free Delivery

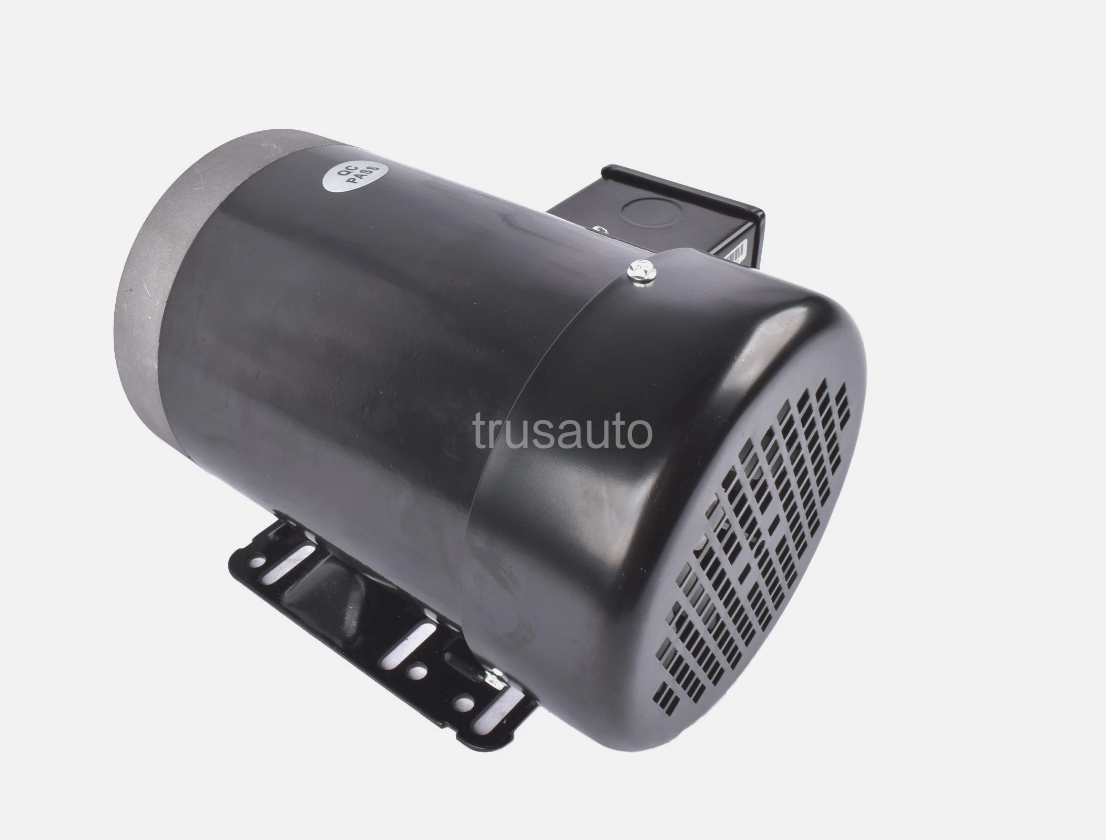

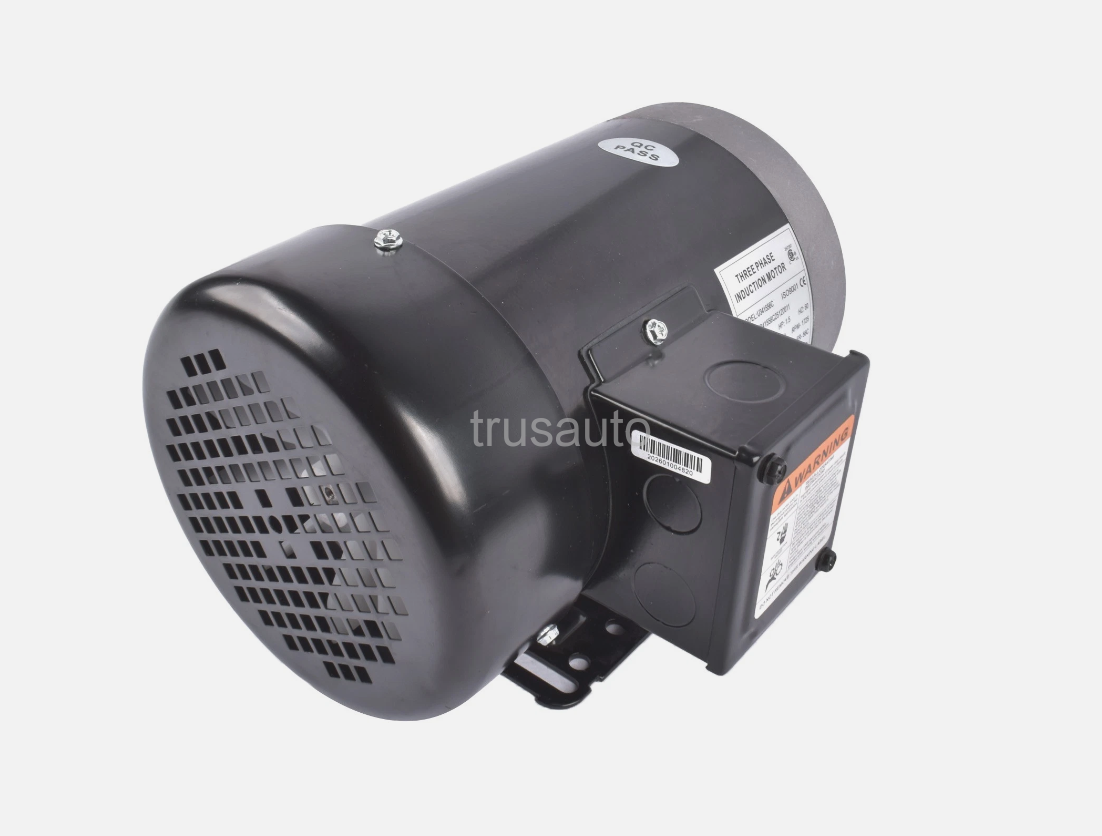

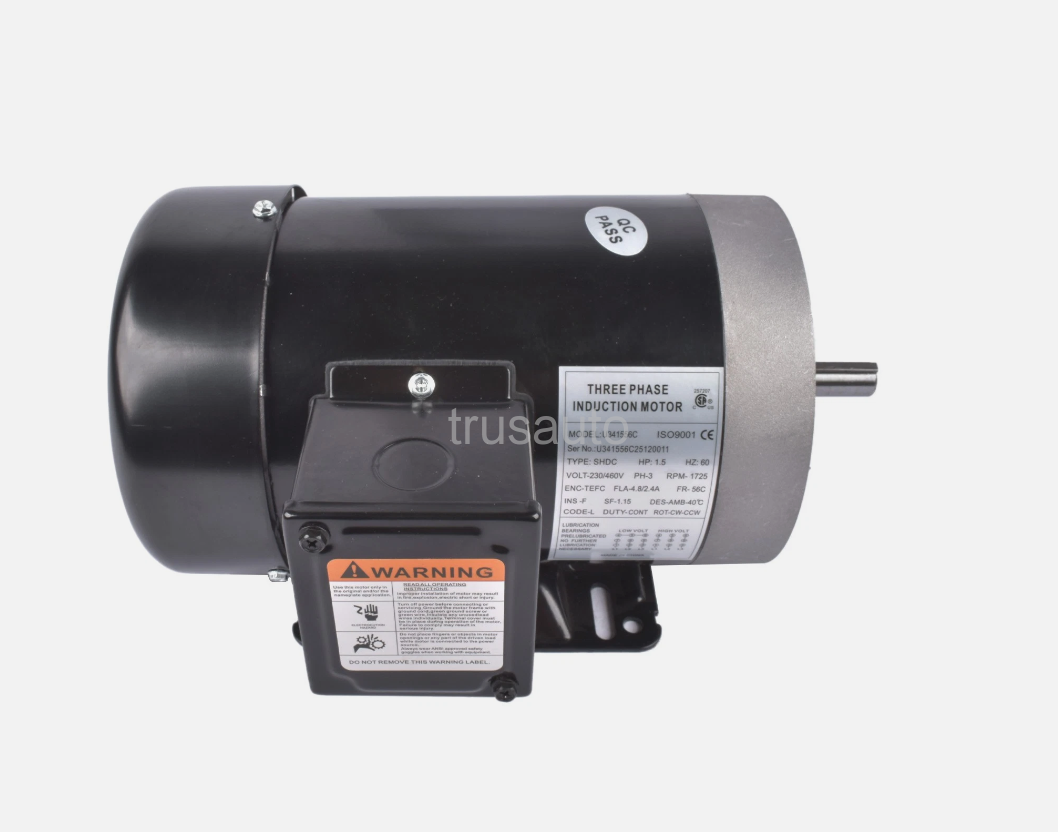

AC Motor 3PH/60HZ 1725RPM 56C/TEFC 206-230V/460V NEW 1-1/2HP with Base MA0515E
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 178.00
Market Price: $198.00 0 People Puchased
Free Delivery
AC Motor 3PH/60HZ 1725RPM 56C/TEFC 206-230V/460V NEW 1-1/2HP with Base MA0515E
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Part Number
MA0515E
Specifications
This motor is for 3 phase 206-230V/460V
General purpose,
AC Motor,
1-1/2HP,
1725RPM,
3PH/60HZ,
460V,
56C/ TEFC,
F Insulation (for inverter duty),
with removable foot,
1.15 Service Factor,
Rolled Steel Frame,
Reversible Rotation,
10:1 Variable Torque Rating,
2:1 Constant torque Rating.
Features
Totally Enclosed Fan Cooled (TEFC) enclosure
Dual mounting with NEMA 56C and removable base
Class F winding insulation
Inverter duty. 5/8" shaft OD.
Rolled steel shell frame / cast aluminum end bell
Removable base / bolt-on/bolt-off mounting feet
Large all-metal capacitor cover with rubber gasket
Large easy-to-wire junction box with rubber gasket
Heavy duty oversized ball bearings
High tensile strength steel shaft
Electrically reversible
UL listing
NEMA design B
Service Factor: 1.15
