Parameters
Part Type
replacement
Manufacturer Part Number
97080701
Interchange Part Number
97080701, Shallow Well Jet Water Pump, Shallow Well Jet Pump
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 250.00
Market Price: $282.00 0 People Puchased
Free Delivery

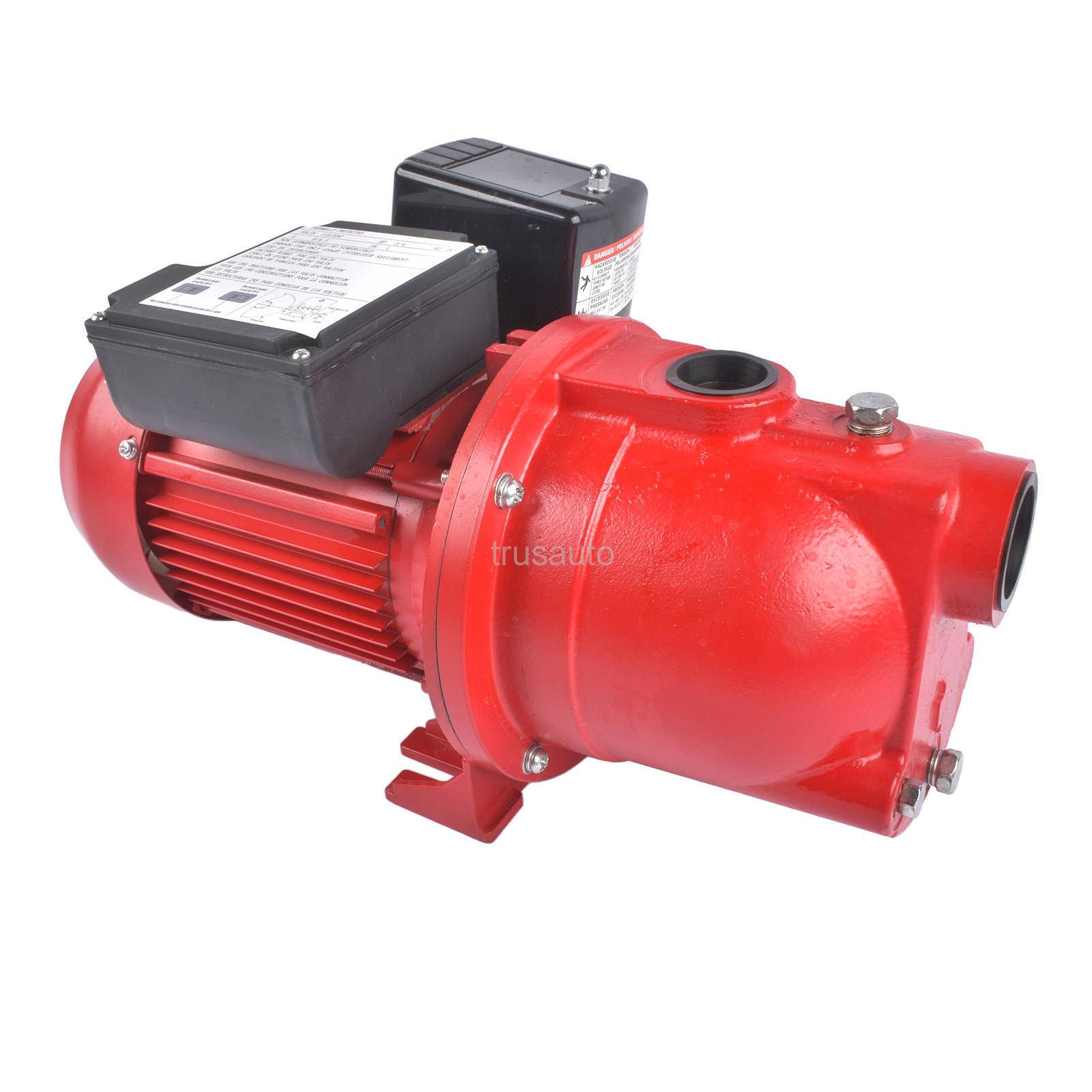

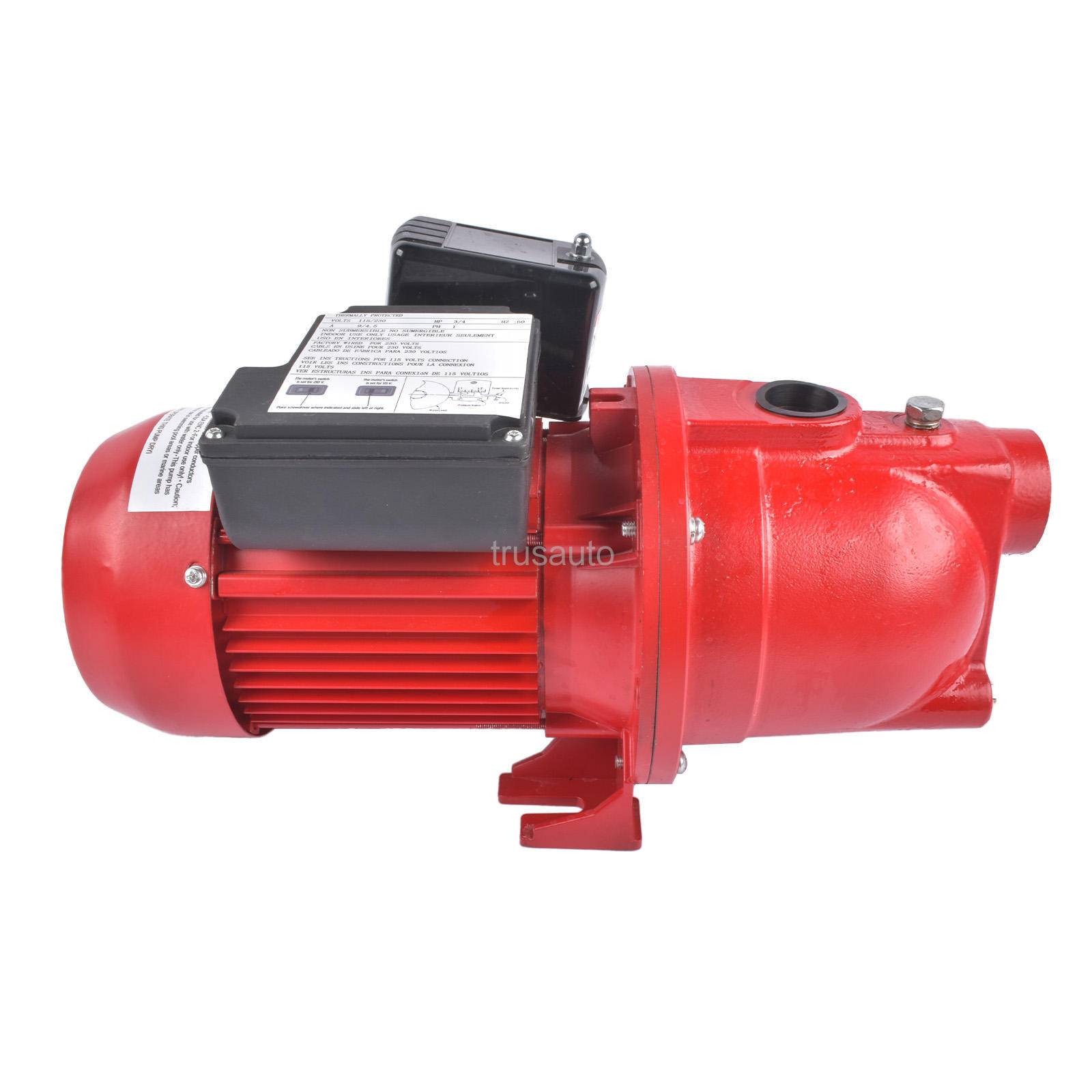

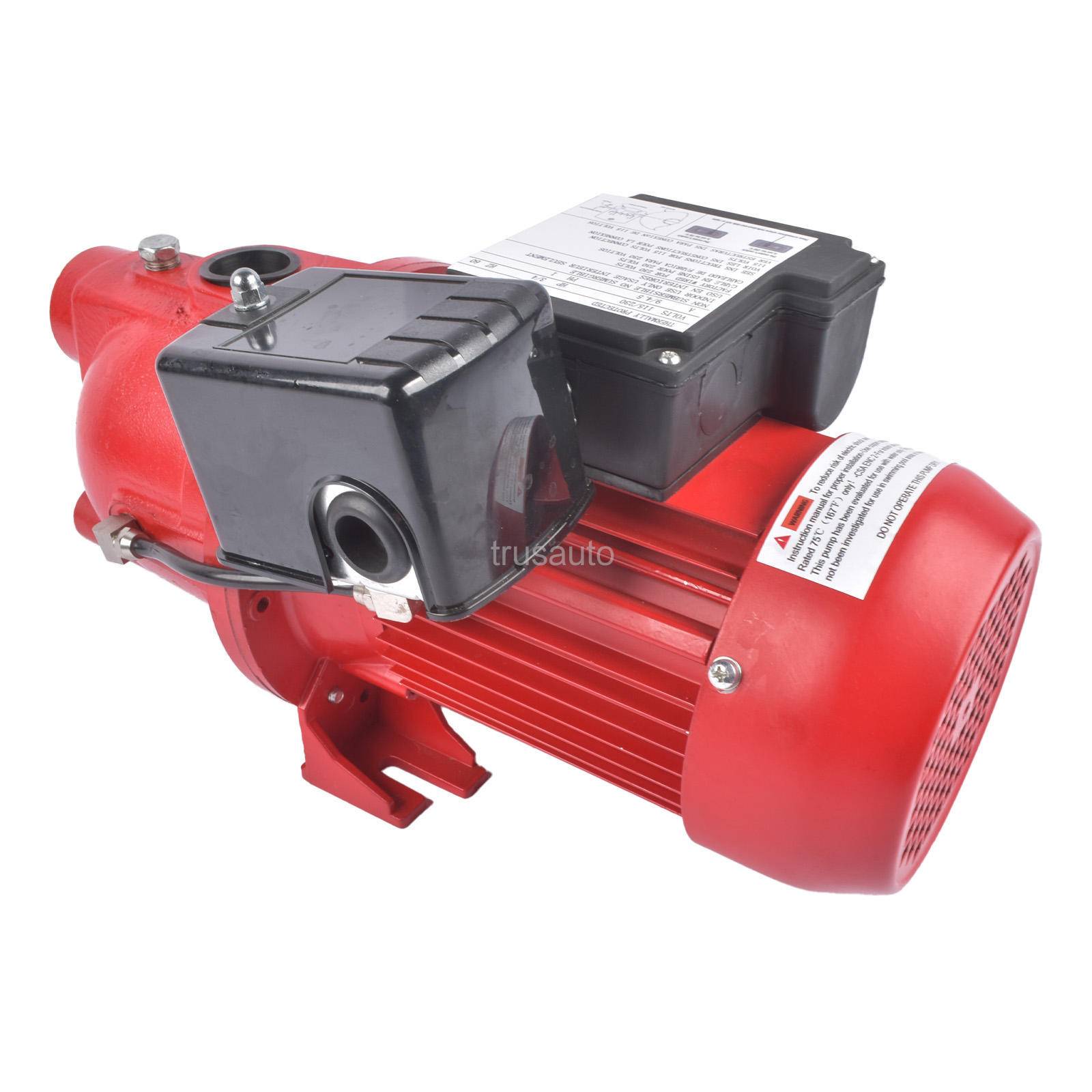

3/4 HP 13 GPM Shallow Well Jet Pump Cast Iron 115/230V Dual Voltage 30-50 PSI
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 250.00
Market Price: $282.00 0 People Puchased
Free Delivery
3/4 HP 13 GPM Shallow Well Jet Pump Cast Iron 115/230V Dual Voltage 30-50 PSI
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Product Type:
Cast Iron Shallow Well Jet Water Pump
OEM Number:
97080701
Specifications
Materials: Cast iron casing; glass-filled thermoplastic impeller
Motor Parameters: 3/4 hp, 115/230-volt with thermal overload protection
Amperage : 9.0 Amps 115V; 4.5 Amps 230V
Intake: 1-1/4" FNPTDischarge: 1" FNPT
Pressure gauge port size: 1/8" FNPT
Pressure switch included: Yes
Dimensions (LxWxH): (362 mm x 217 mm x 213 mm)
Feature
3/4 horsepower motor delivers up to 13 gallons per minute at 30 psi pressure, with a maximum working pressure of 70 psi. Equipped with a 30/50 pressure switch. Self-priming capability after initial water filling ensures stable water supply.
This cast-iron shallow-well jet pump is ideal for supplying fresh water to rural homes, farms and cottages with wells no deeper than 25 feet.
Package Include：
As shown in the picture
