➤ PRODUCT DETAILS ➤Type: Generator Conversion Switch Kit
Material: Q235
Operation Mode: ON-OFF-ON
Current Rating: 30 Amp
Operating Voltage: 120 Volts (AC)
Contact Type: Normally Closed
Connector Type: Plug In
Switch Type: Toggle
Terminal: Spst
Circuit Type: Parallel
Maximum Single-Pole Circuits: 10
Maximum Double-Pole Circuits: 5
Meter Type: Dual Watt
Max. Wattage: 7,500w

➤ OE PART NUMBER ➤
31410CRK

➤ CORE FUNCTIONS ➤
• Connects standby power sources (portable generators included) to household/building circuits linked to the mains electricity supply.

• Optimizes the building’s wiring system to bear the full power output of portable generators, supporting multiple electrical appliances during power outages.

• Safeguards backup power utilization by avoiding reverse power flow to the public grid.

• Waives the requirement of shutting off main power in emergencies where this step is not feasible.

➤ KEY FEATURES ➤
• Realizes seamless power transfer from generator to household/office appliances and circuits when power cuts occur.

• Comes with clearly marked circuit wires for easy wiring and reduced installation mistakes.

• Equipped with a user-friendly toggle switch for simple power control operations.

• Built-in junction box simplifies the installation process for quick and efficient setup.

• Integrated dual watt meters keep track of real-time electrical loads and prevent overloads reliably.

➤ PACKAGE CONTENT ➤

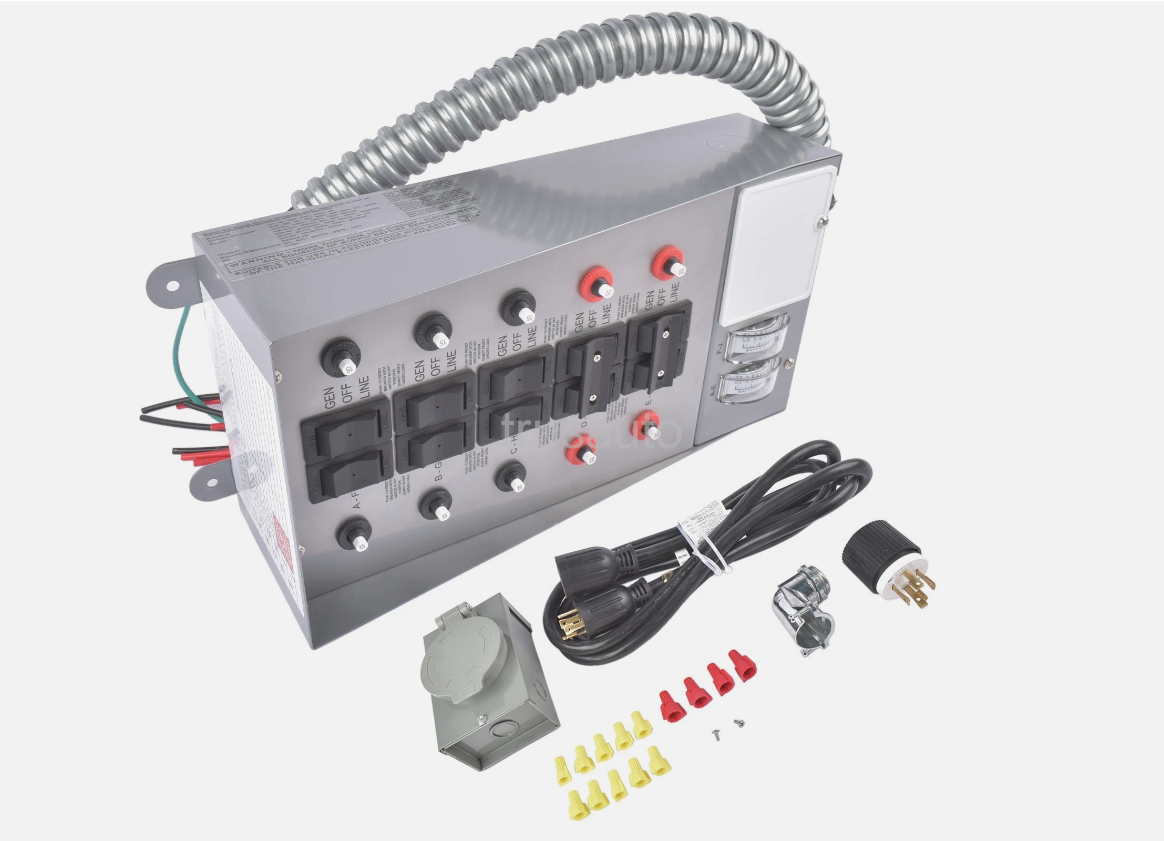

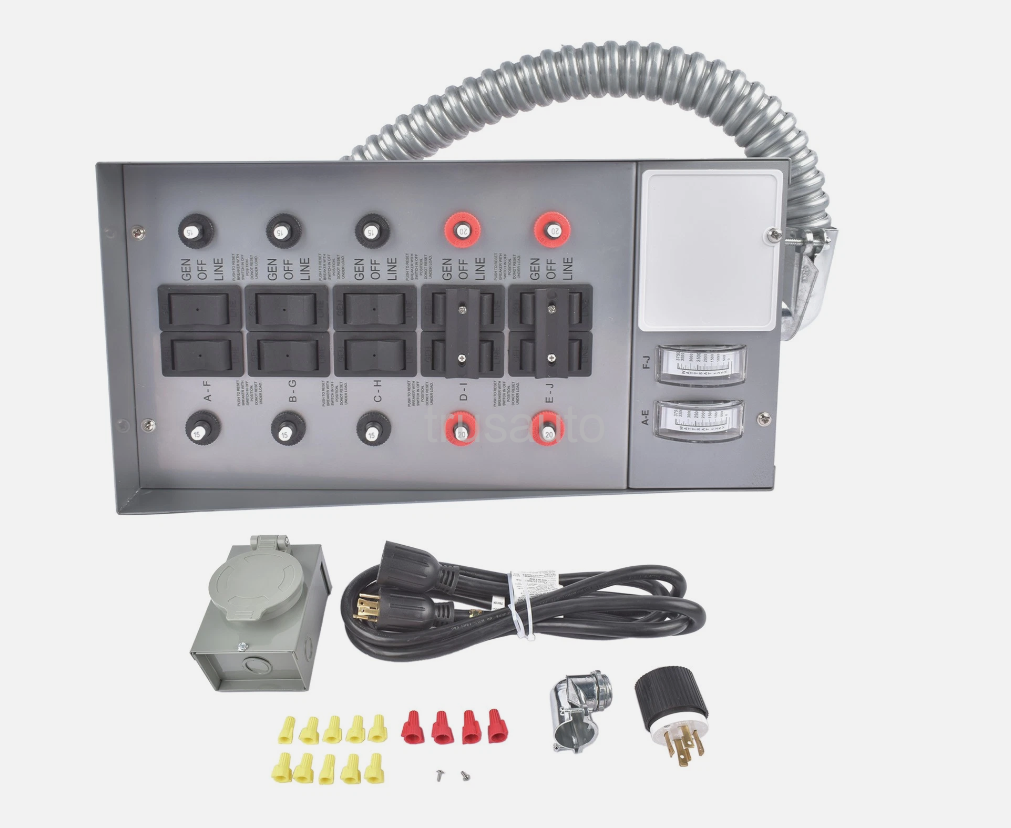

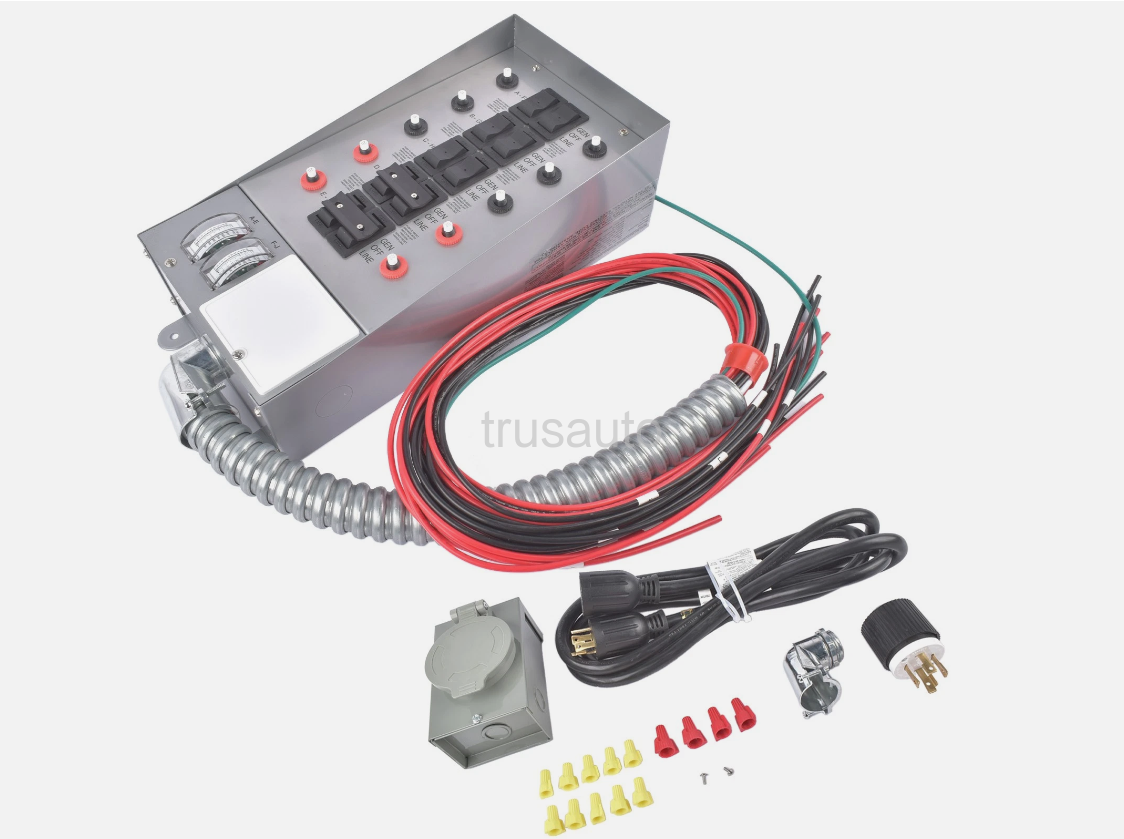

Pre-wired transfer switch (with power meter) | 10-foot power cord | 30-amp power entry box | Cable connectors | Spare plug ends

(As Pics Shown)
