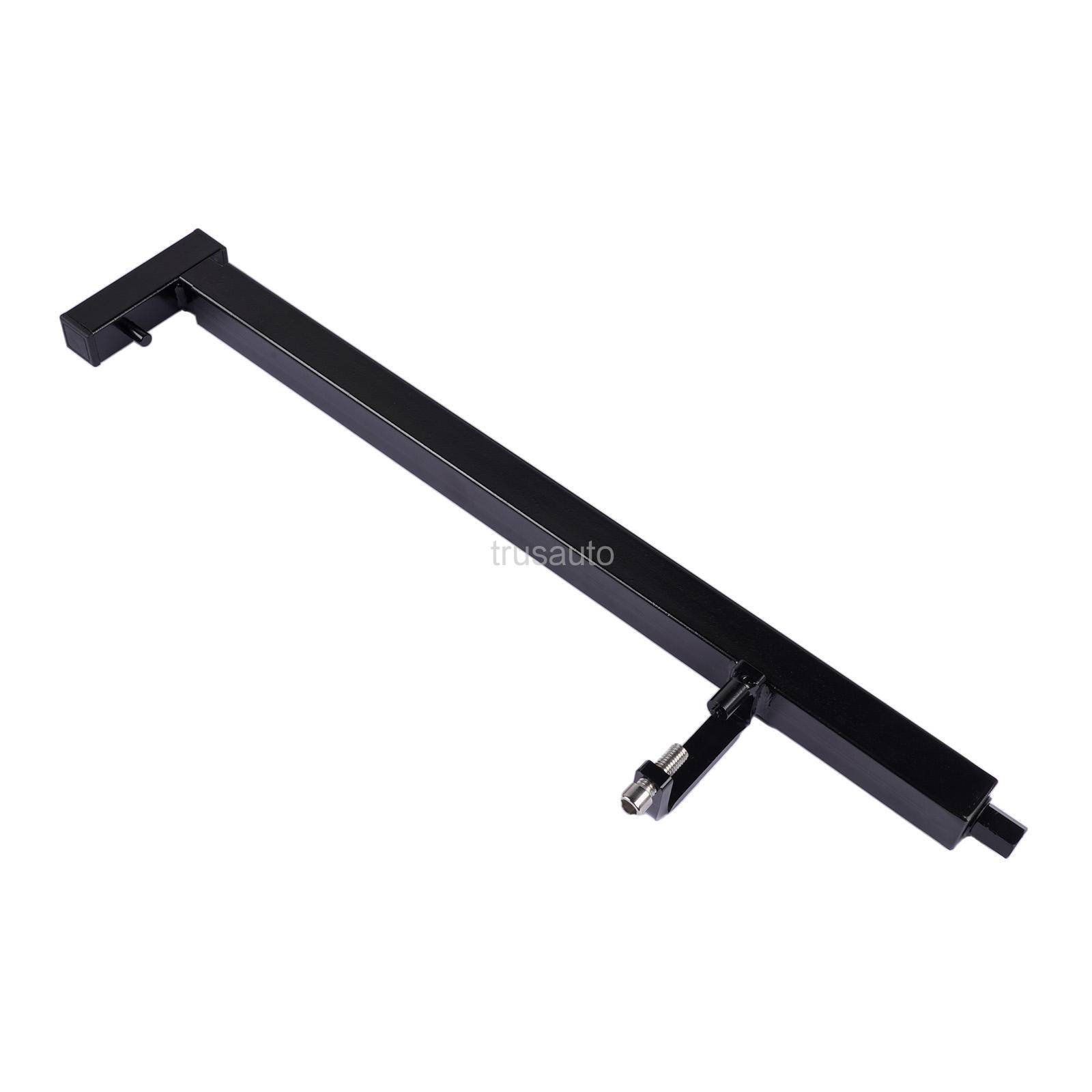

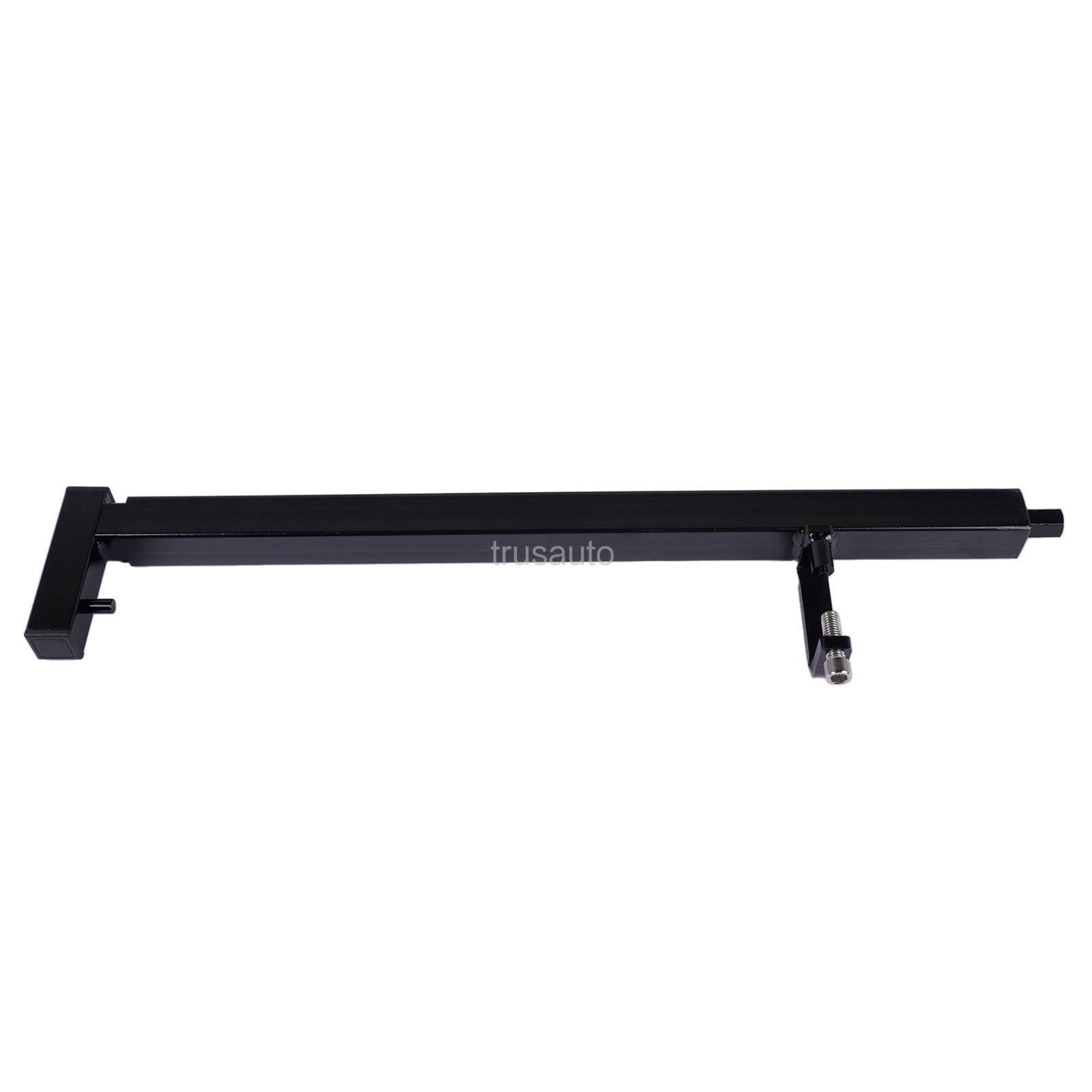

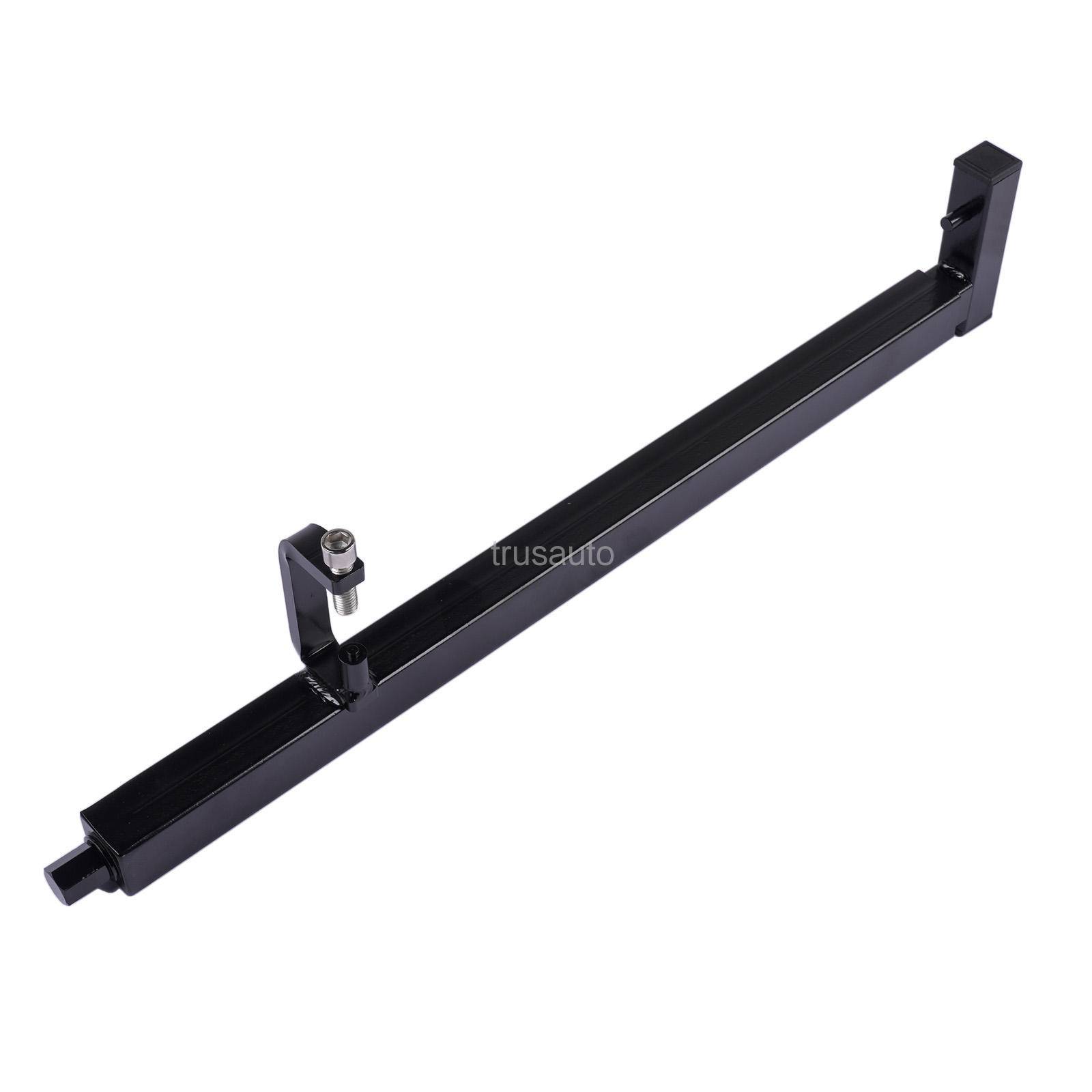

Part Number

TFSC 01

Specifications

Type: Fork Spring Compressor Tool

Color: Black

Material: High Strength Steel

Features

Perfect Fit: Designed to work on most current sport bikes, road racers and motorcycle with cartridge type forks, such as Victory Cross Country, Victory CCT, Kawasaki, etc.

Durable and reliable: Made of high-quality steel, it provides excellent value for many years. It is hardened for high strength and has a black powder coating at surface for excellent rust and corrosion resistance.

Useful tool: This tool is designed to fine-tune your riding experience and allow you to enjoy top-notch performance. It releases spring pressure and removes the fork tube cap without damaging the threads.

Easy to Use: The innovative design allows you to use this tool while installing or removing a bicycle front fork, providing simple and quick operation. Simply tighten the nut on the top and the bolt near the top to easily adjust the length and width to fit your forks.

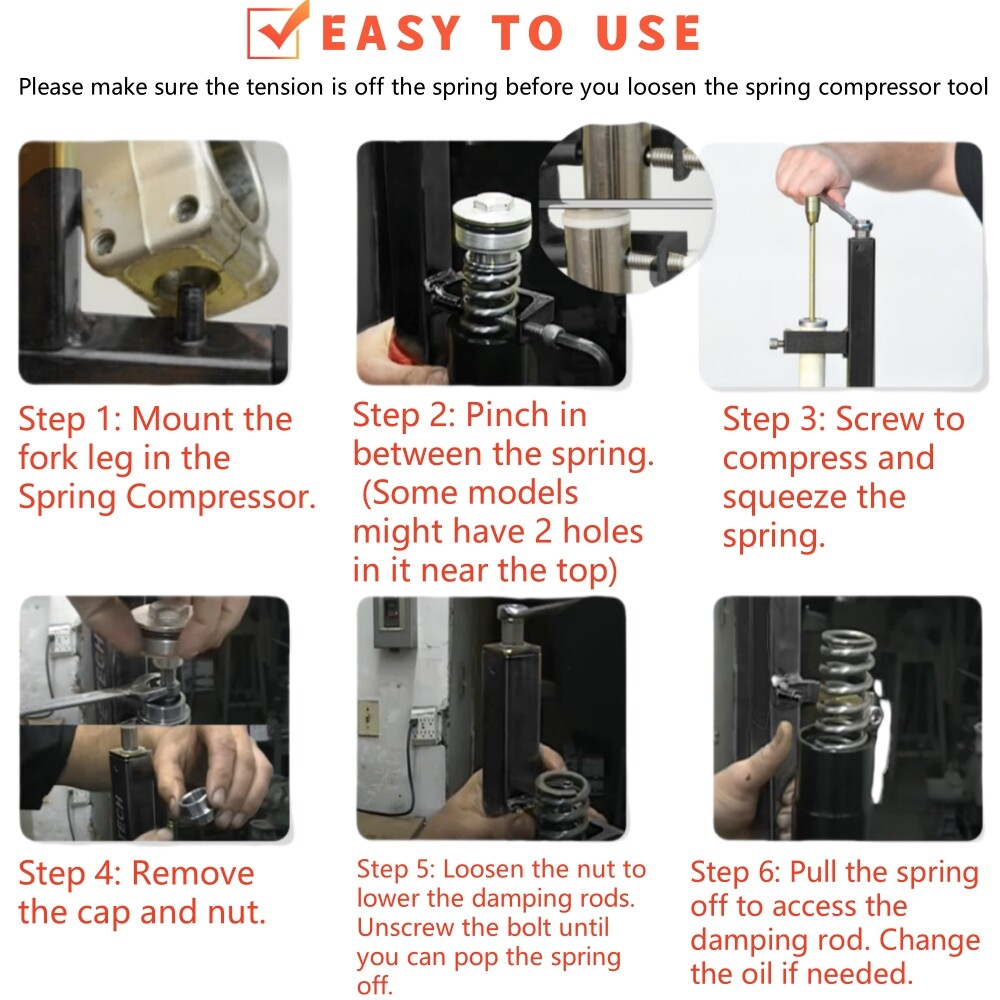

How To Use The Fork Spring Compressor Tool

1. Mount the fork leg in the Spring Compressor.
2. The Pin on the Foot goes into the hole in the bottom of the fork.
3. Put the pins of the Spring Compressor into the holes and tighten the adjuster screw until both pins are fullycaptured by the hole.
4. Tighten the Spring Compressor with an electric drill with a socket or a speed handle but make sure you stop before the tool hits the top of the fork tube.
5. Once the fork is compressed enough, extend the damping rod and remove the Bleeding Tool.
6. Install the Fork Cap. Make sure the Fork Spring Preload Adjuster is backed out all the way.
7. Bring the jam nut up against the fork cap.
8. Back out the adjuster a few clicks to give the Needle clearance from the Seat while you.
9. Tighten the Jam Nut.
10. Unscrew the Fork Spring Compressor Tool, remove the fork leg from the tool, and tighten the Cap.
11. Set all your adjusters, mount the forks on the bike, and enjoy.

Package Includes

1x TFSC 01 Fork Spring Compressor Tool (As Pics Shown)
