Descriptions

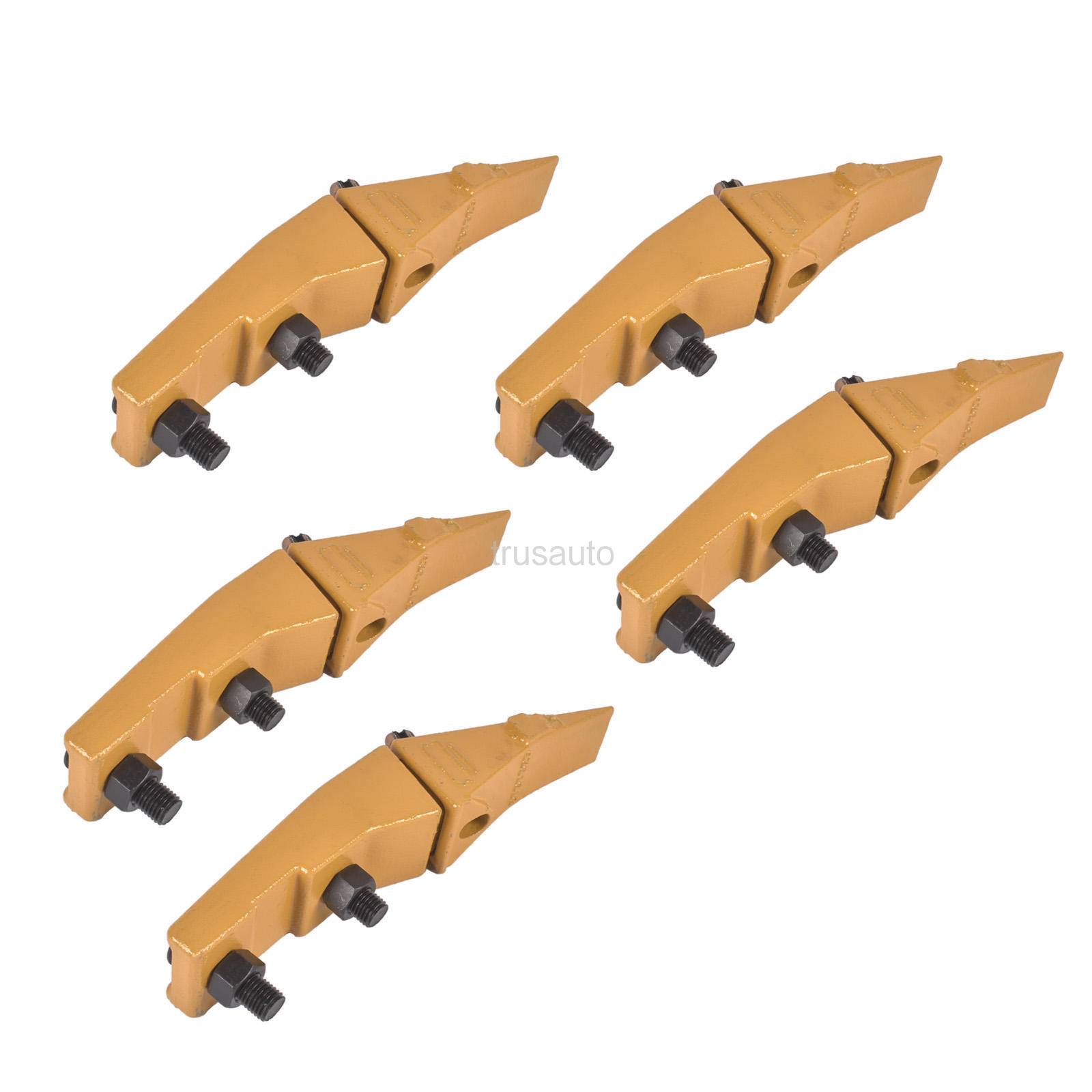

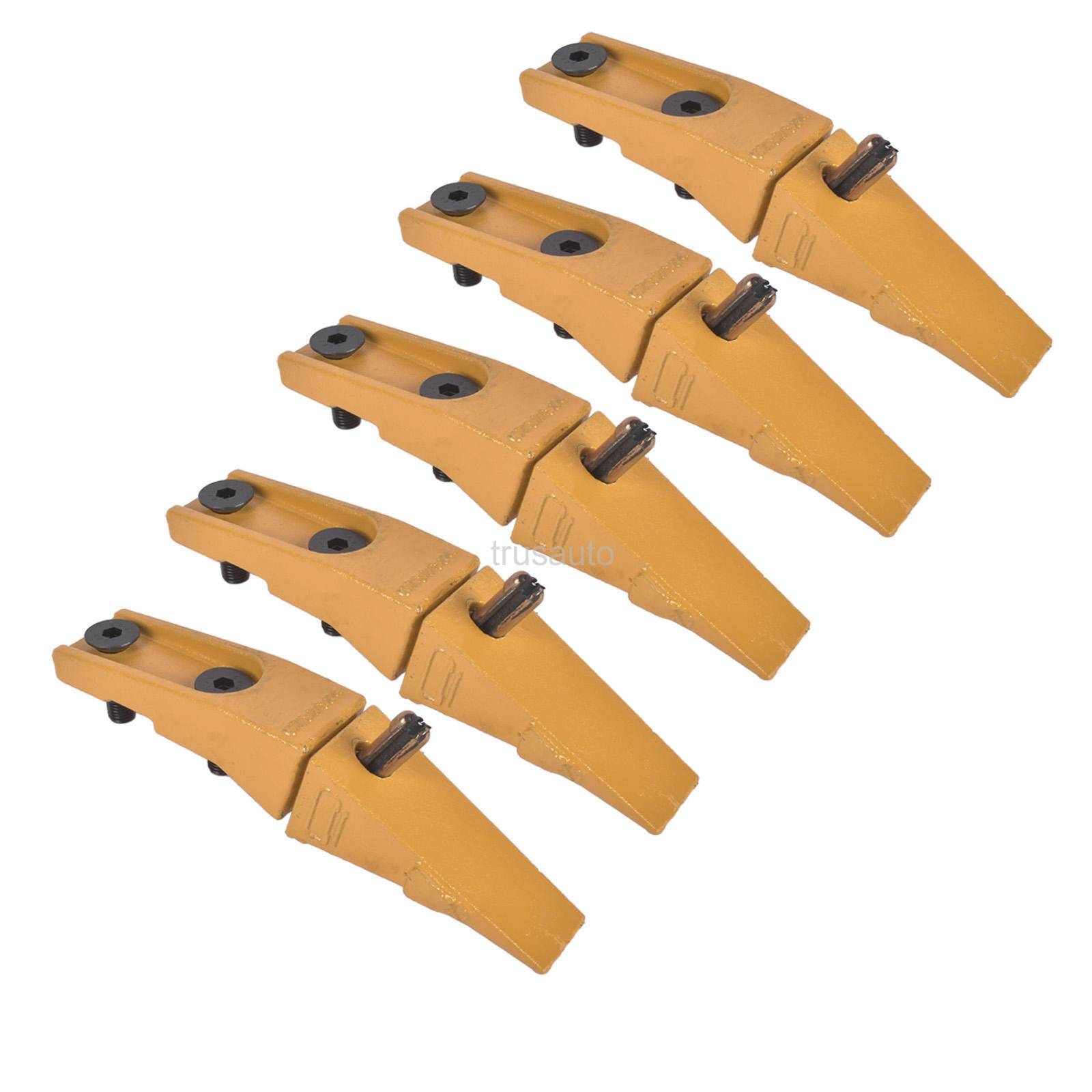

The 6737322Y bucket teeth bolt on assembly attaches to most buckets with the standard bolts that come with the assembly. The assembly includes the (6737325) tooth, (6737324) bolt on adapter, (6737326) Flex pin, and 2 nuts and bolts. The medium wear ground engaging tooth is ideal for digging with a skid steer or excavator buckets and will help you move more dirt, gravel, or sand.

Features

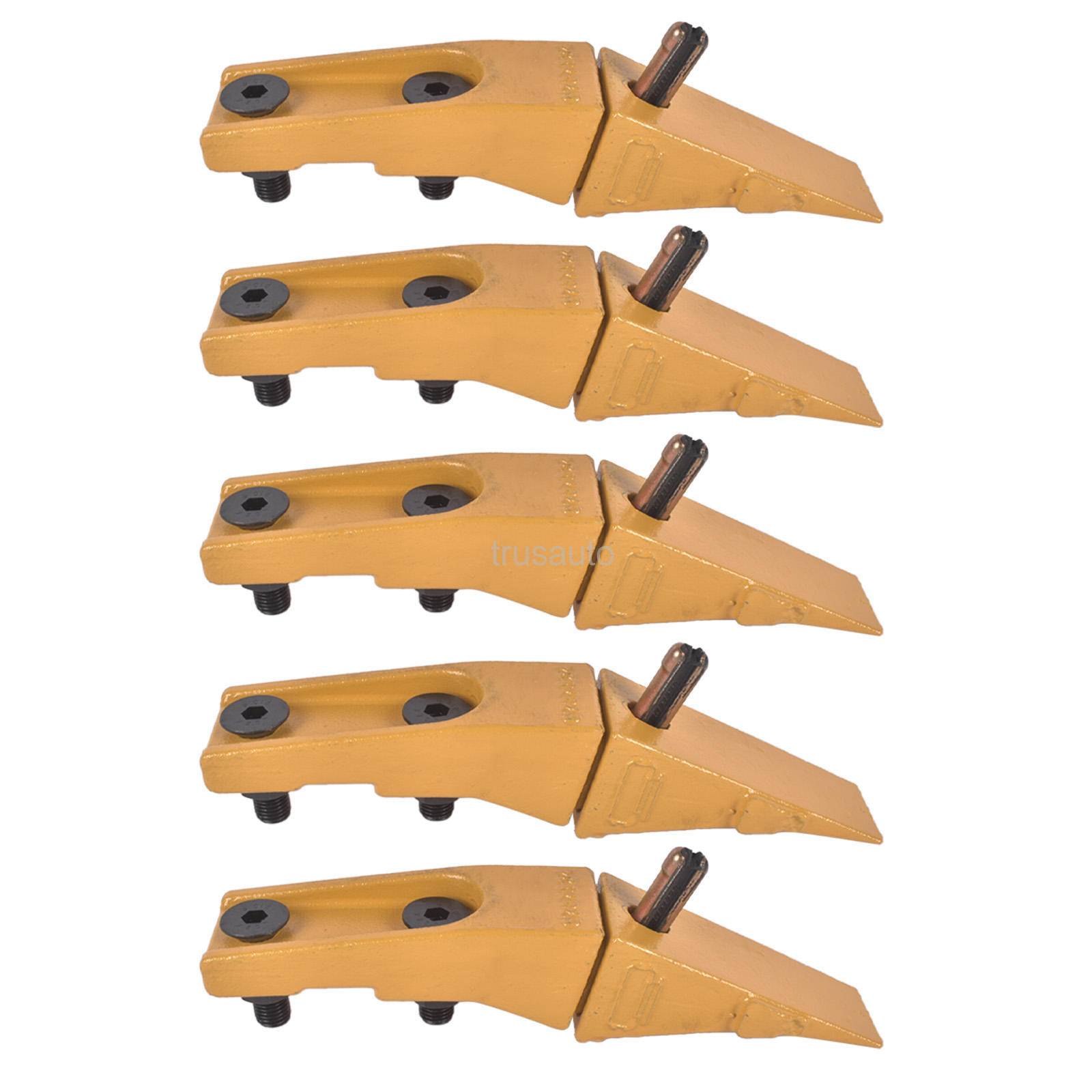

6737322Y Assembly: Including 6737324 Flush Mount Bolt on Shanks, Bolts and Nuts, 6737325 Dirt Teeth and 6737326 Flex Pins
Configuration: including 6737324 adapter + 6737324 bolts and nuts + 6737325 teeth+ 6737326 pins, with different variants.
Fits Bobcat Mini Excavators and Skid Steers.
6737322Y is made from abrasion-resistant materials like high-quality steel to withstand the wear and tear of the digging process.

Specifications

This 6737322Y assembly is 11 3/4" long, 2 1/8" wide, and 2" in height.
- It is assembled with a 6737324 bolt-on adapter, a 6737325 bucket tooth, and a 6737326 flex pin
- Tooth Part #: 6737325
- Adapter Part #: 6737324
- Flex Pin Part #: 6737326
- Quantities: 5 Sets

6737325 BUCKET TOOTH DIMENSIONS:
- LENGTH: 5.3″
- WIDTH: 1.75″
- HEIGHT: 1.75″

6737326 PIN DIMENSIONS:
- LENGTH: 2.2″
- WIDTH: 0.25″
- HEIGHT: 0.75″

6737324 Adapter DIMENSIONS:
- Length: 8.5″
- Distance between two mounting holes: 3" (center to center)
