Features & Details

【Professional Flaring Results】– Create leak-proof flares on steel and other metal pipes with included 3/16", 1/4", 5/16", and 3/8" dies. (Note: not for stainless steel pipes)
【Ultimate Application Versatility】– Dual rotating die heads with 37° and 45° angles let you easily produce single, bubble, and double flares for brake lines, fuel lines, transmission cooler lines, and more.
【Heavy-Duty Build Quality】– Crafted from premium steel, this brake flare tool kit delivers outstanding strength and wear resistance to handle the toughest jobs without failing.
【User-Friendly Precision Design】– Intuitive labels on the die head allow quick alignment of the tube flush with the dies and easy size selection, ensuring consistent, accurate flares every time.
【Simple One-Press Operation】– Achieve perfect flares with just one full lever press. The tool mounts securely on a vise for stability, and the included T-handle keeps dies and pipes firmly in place.

Specifications

Material: 40Cr, 42CrMo, 1045, Q235, & Copper Steel, Aluminum
Flare Angle: 37 Degree & 45 Degree
Net Weight: 10.4 lb. (4.7 kg)

How to Create a Perfect Flare

Securely mount the tool in a vise with the flat face die.
Select the correct die size for your tubing, place the tube between the die halves, and tighten the clamps.
Align the OP.0 cone with the tube port and press it in.
Select the OP.1 reaming cone, align it with the tube port, and turn the handle to press it in.
For a double flare, select the OP.2 cone and repeat the operation.

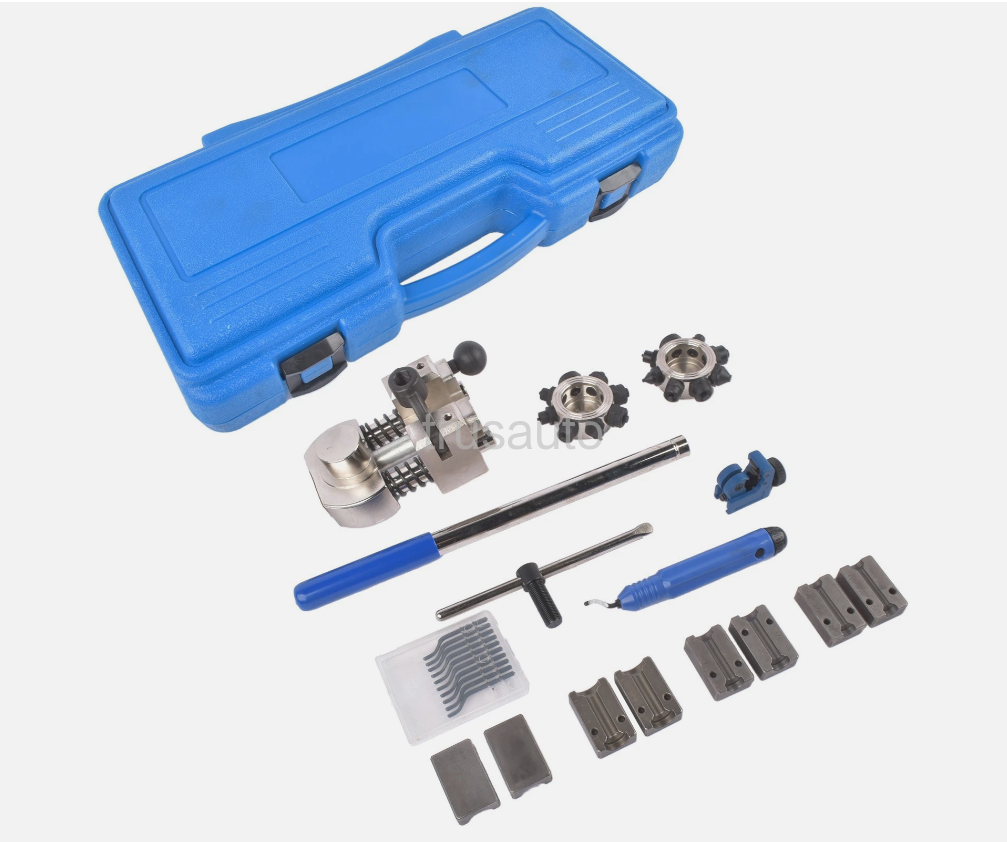

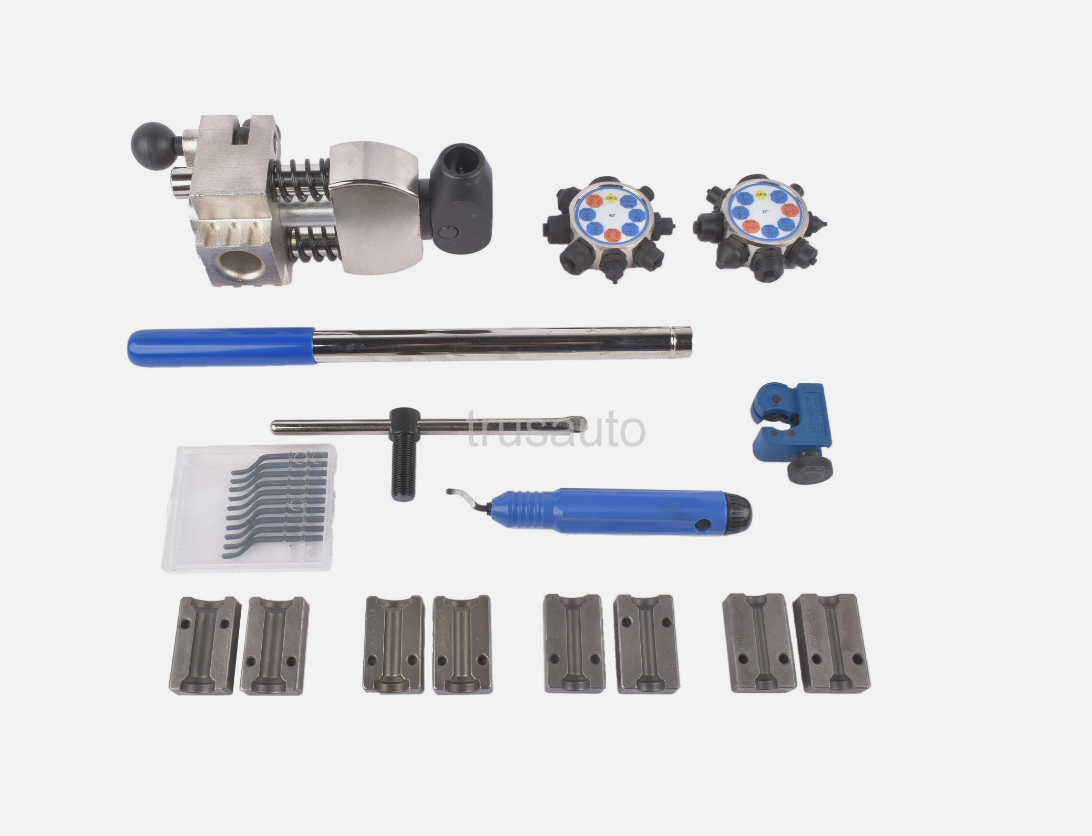

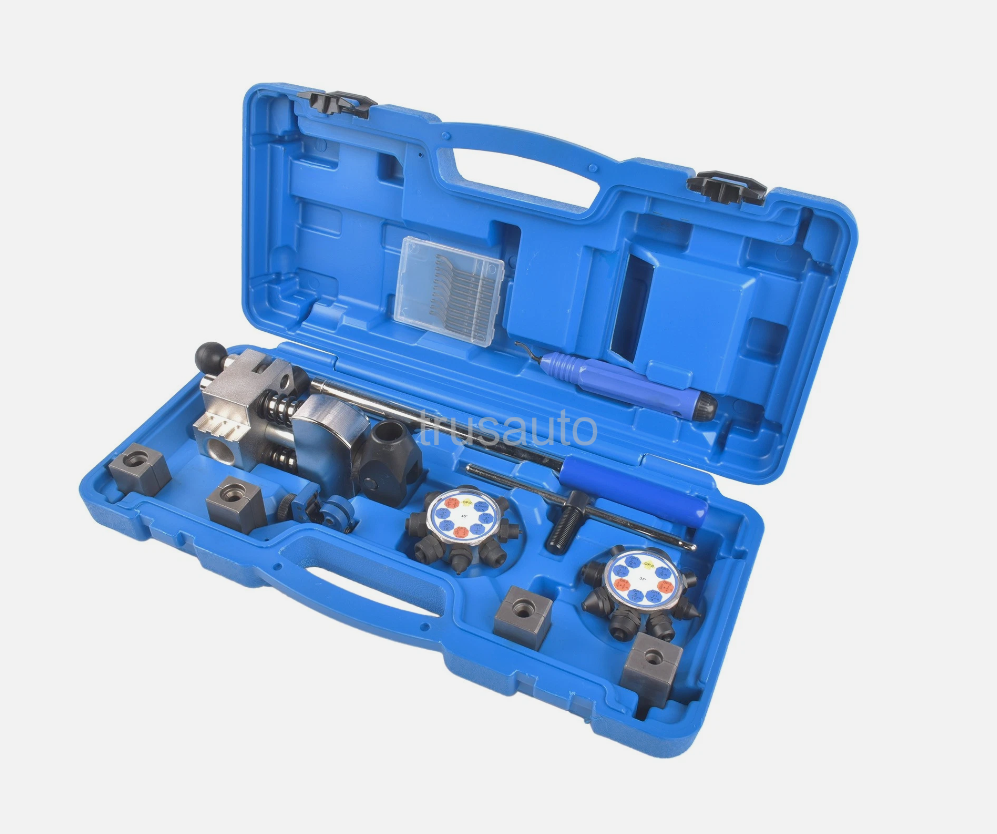

Package List

4x Dies
2x Die Heads
1x Cutter
1x Deburring Tool
1x Base Tool
2x Handles
2x Replacement Blades
1x Grease
1x Pair of Gloves
1x Carrying Case
1x Instructions

(As Pics Shown)

Usage Tips

Always deburr the inside and outside of the tubing before flaring.
Apply a small amount of anti-seize lubricant to the end of the tubing and a little oil to the flaring cones (OP.1 & OP.2).
Remember to place the appropriate fittings onto the tubing before starting the flaring process.
