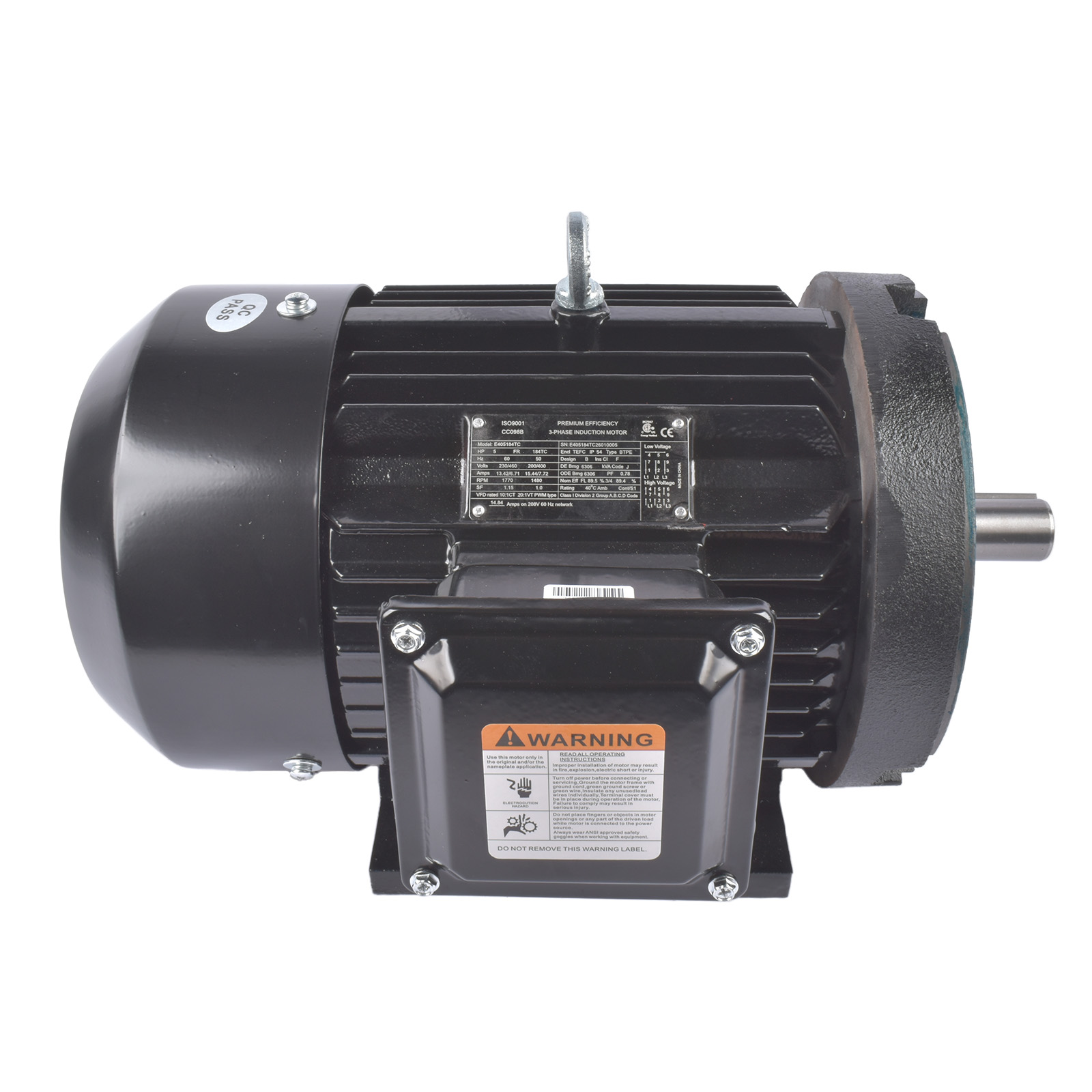

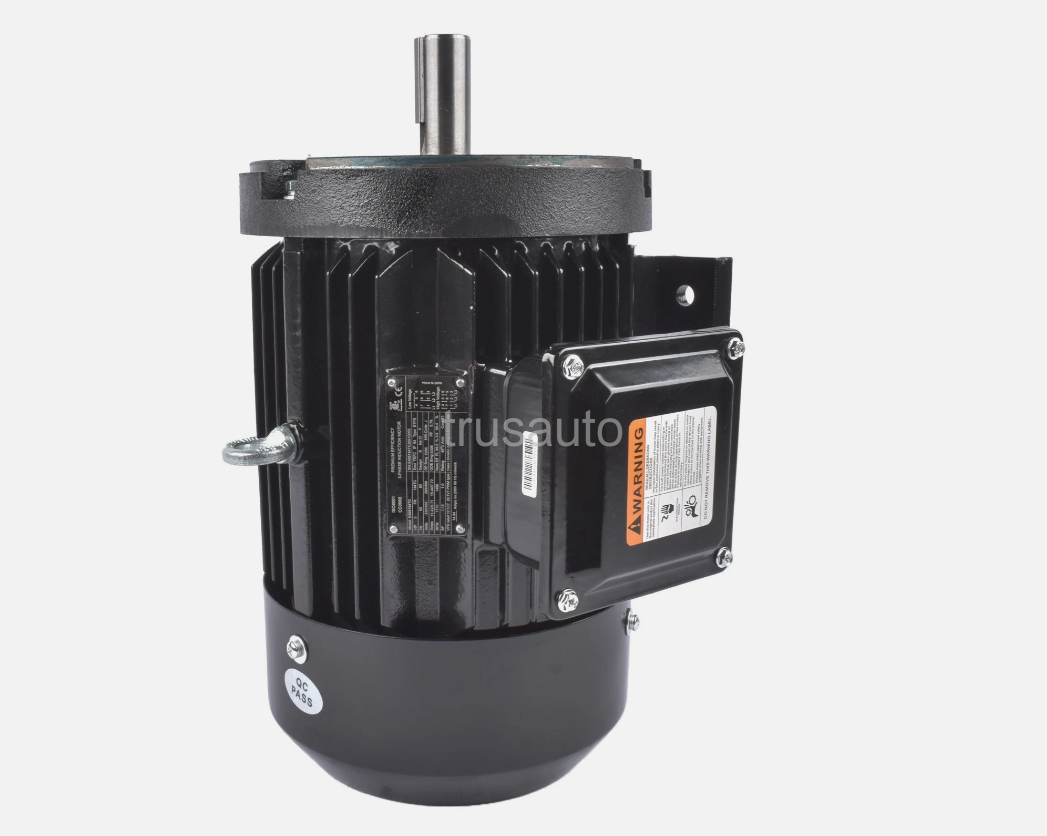

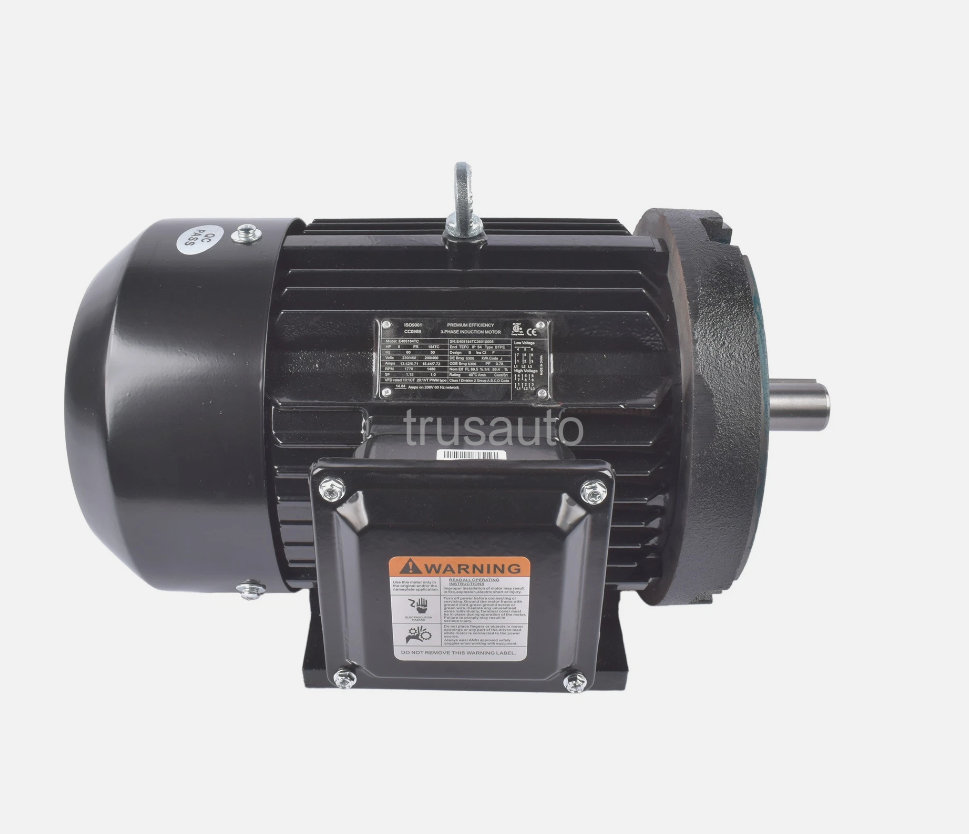

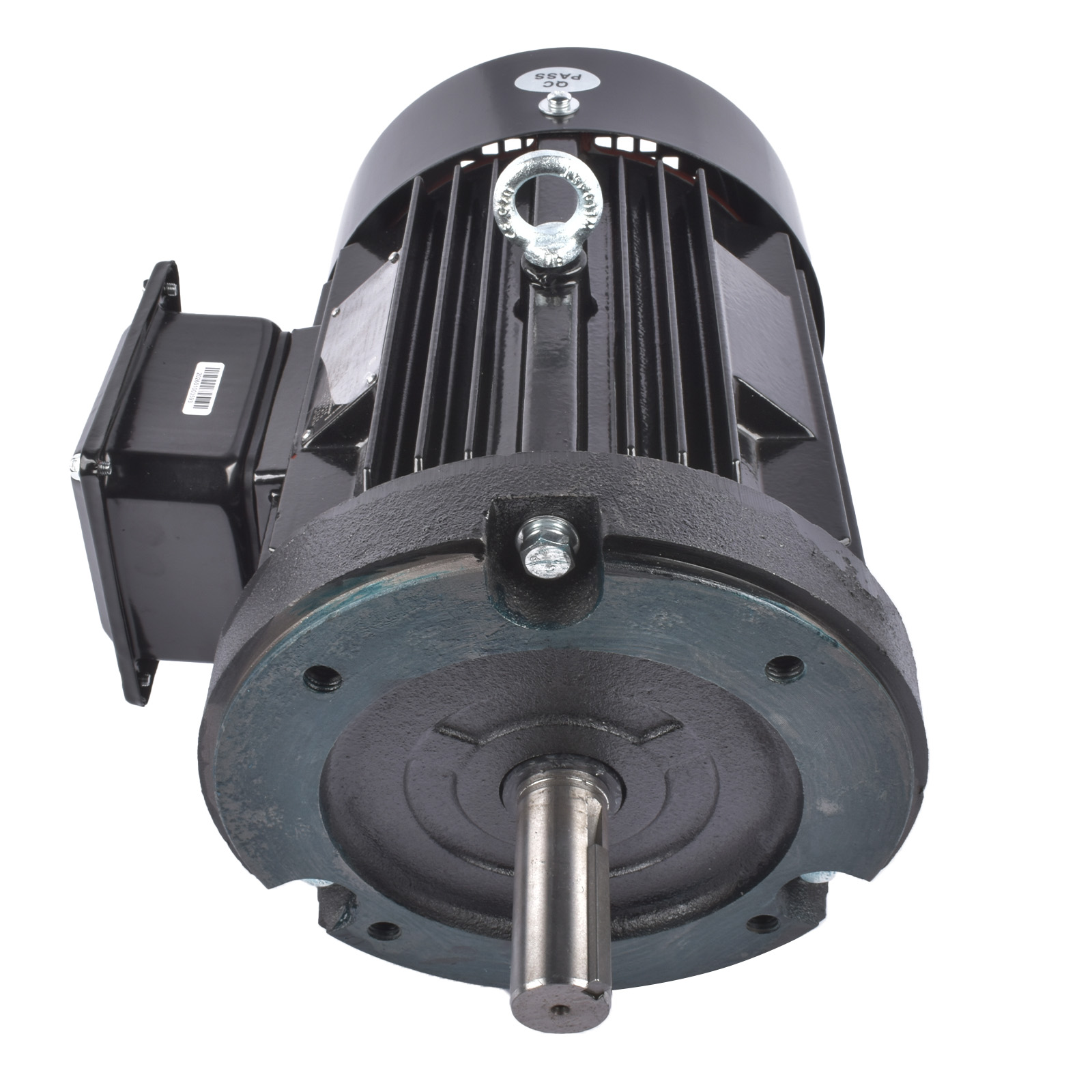

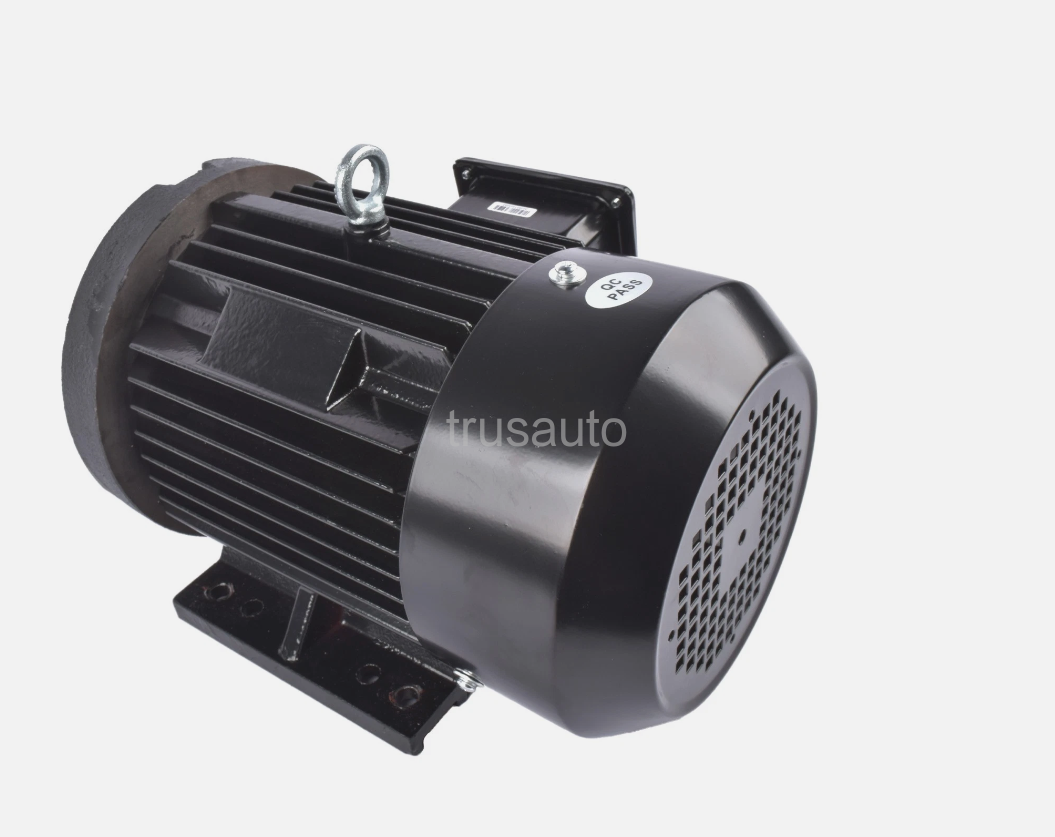

5HP 3 Phase 184TC C-Face 230/460 Volt Electric Air Compressor Motor (Black)

Brand New 5 horsepower, 3 phase premium efficiency severe duty electric motor with a C-Face. This motor features Class F insulation, external fan cooling, a 1.15 service factor, is a premium efficiency severe duty motor, and has a c-face so it can be easily mounted to a pump. Designed for 60Hz but is also suitable for 50Hz operation with a 1.0 service factor. Features a TEFC / IP54 enclosure, and is a 184TC frame.

Specifications:

• 5 Horsepower

• 3-Phase

• 184TC Frame

• TEFC / IP54 Fully Enclosed

• External Fan Cooled

• Service Factor 1.0/1.15

• Class F Insulation

• 230/460 Volt

• 1480/1770 RPM

• Reversible Rotation

• Shaft Length: Approximately 2.75"

• Keyed 1 1/8" Diameter Shaft

• Current: AC

• Full Load Amps: 13.42/6.71

• 60 HZ (Suitable for 50 HZ with 1.0 SF)

• Max Amb Temp: 40 Degrees C

Features:

✅Heavy-Duty TEFC Enclosure for Reliable Protection: Built with a Totally Enclosed Fan Cooled (TEFC) housing rated IP54, this 5 HP 3-phase motor provides superior protection against dust, debris, and moisture. The fan-cooled design ensures optimal heat dissipation during continuous operation, making it the ideal replacement for air compressors, pumps, and industrial machinery in demanding workshop environments.

✅Premium Cast Iron Housing & Copper Windings for Durability: Constructed with a robust forged iron housing and precision copper windings, this 184TC frame motor is engineered for long-lasting performance and wear resistance. The rigid base mounting minimizes vibration, while Class F insulation safeguards against overheating, ensuring reliable service even under heavy-duty cycles.

✅Quiet and Efficient Operation for Professional Workspaces: Experience smooth and reliable power with this AC three-phase motor, which utilizes high-quality ball bearings to reduce friction and operational noise. Its compact footprint allows for easy integration into existing setups, serving as a dependable replacement motor for air compressors, material handling equipment, and various industrial machines where continuous-duty performance is required.

Package Content:

1 x 5HP Electric Motor

(As Pics Shown)
