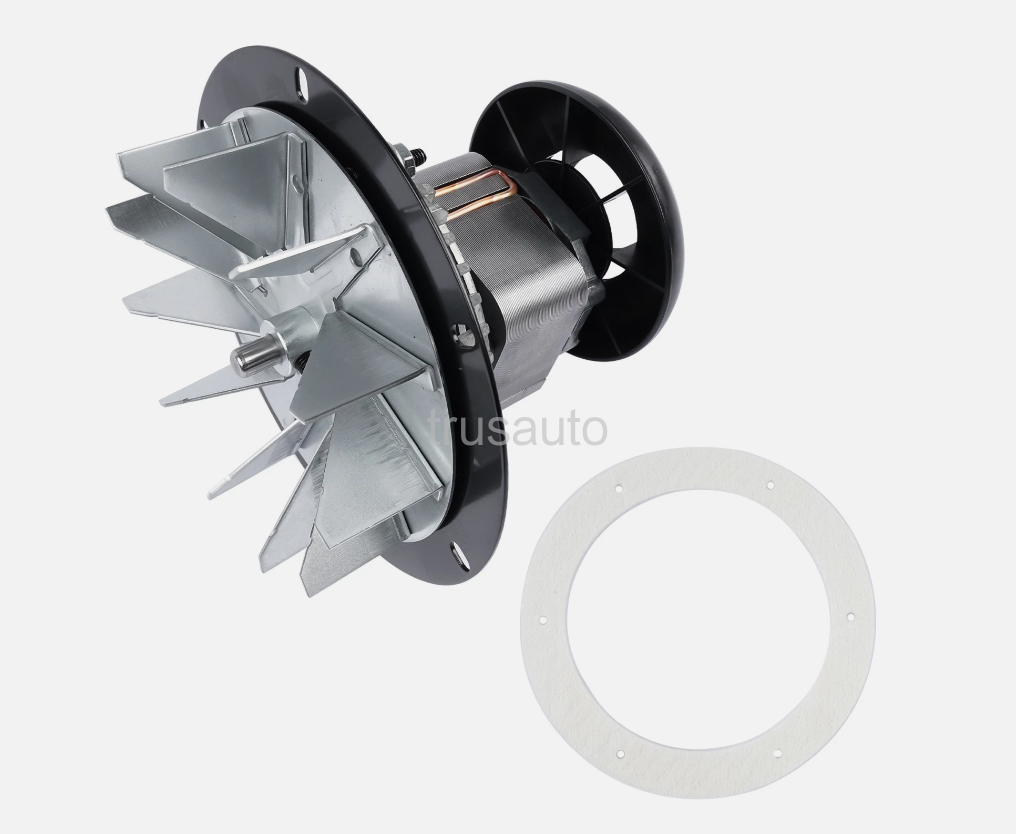

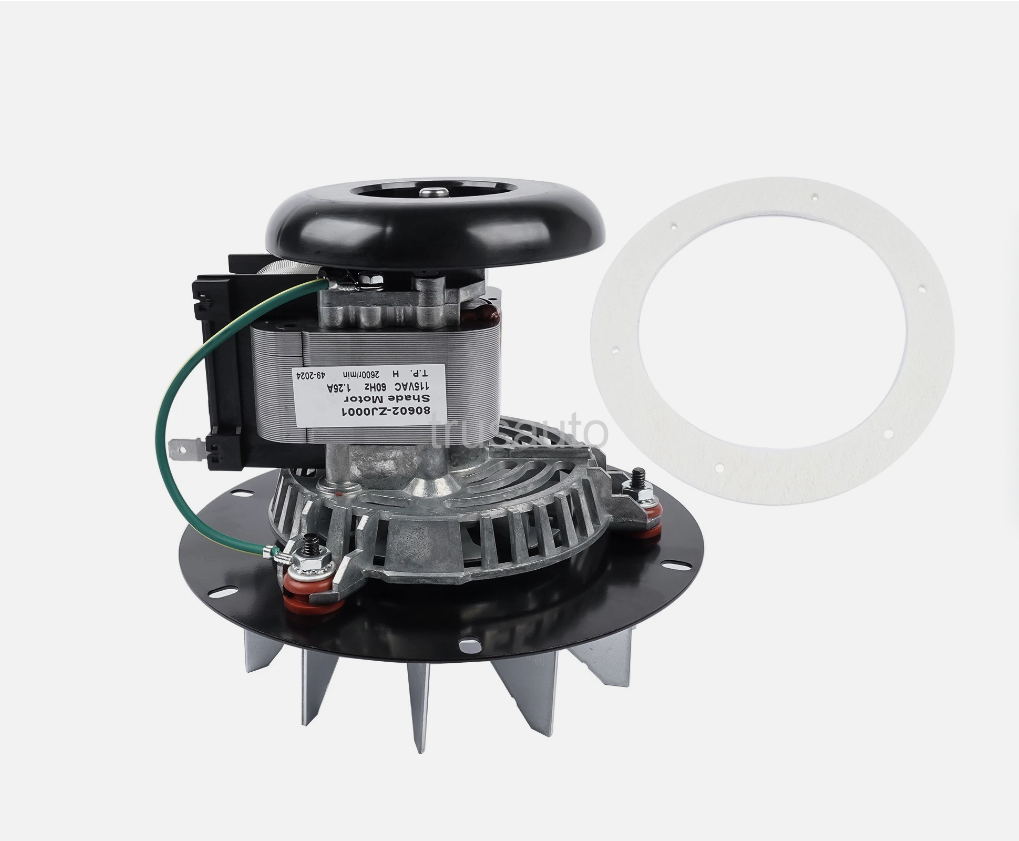

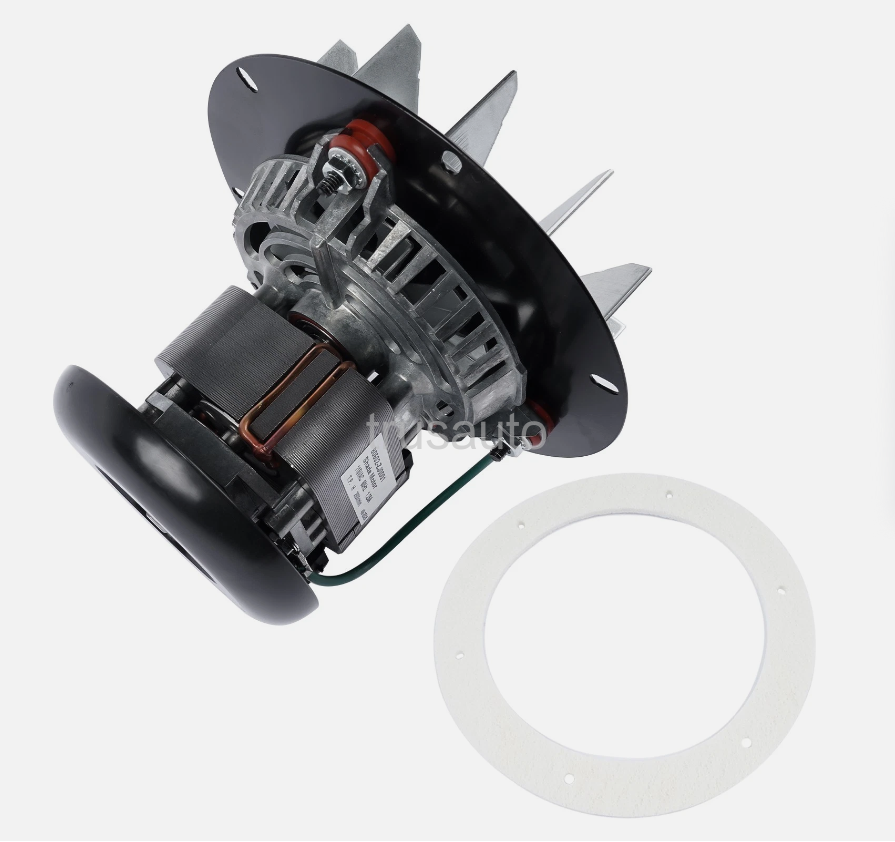

Our combustion blower motor kit is an excellent replacement for the specified Ashley, King, US Stove and Vogelzang pellet stove models. This is a sealed bearing motor requiring no lubrication and meeting all factory specifications. Our kit includes the combustion blower motor, 6″ round gasket for the motor to the housing, 6″ adapter plate, and 4-3/4″ fan paddle impeller blade. You will utilize your existing combustion blower housing with this kit which provides significant cost savings. Also referred to as the exhaust fan or draft motor, our kit provides easy installation for the specified models replacing part number 80602.

OE Number

80602 (W/O Housing)

Will Fit for Following Models

For Ashley/King Pellet Stoves:
5501S
AP5660L
AP5710
AP5770
AP5780B
AP5780PS
AP5780SS
AP5790

For US Stove Company (USSC) Pellet Stoves:
Bay Front 5660

For Vogelzang Pellet Stoves:
VG5770
VG5790

Specifications

Electrical: 115V AC, 60 Hz, 1.25A, 2600 RPM.

Features

Whisper-Quiet Operation: Equipped with 100% sealed lubricated ball bearings for ultra-smooth, low-vibration airflow—so quiet, you’ll barely notice your stove is running.

Built to Last: Features a high-efficiency cooling umbrella fan to prevent motor overheating, ensuring longer lifespan and reliable performance even during extended use.

Package Contents

1x Combustion Blower Kit W/O Housing (As Pics Shown)

Installation: Terminal End Connectors - Please Note: Some of the above models have a molex connector on the original fan. We do send additional terminal end connectors with this motor kit. If your model has a molex connector, you will simply snip that off and place the provided terminal end connectors on the lead wires going to the motor. Make sure you have a new mounting gasket in place. Any questions we are happy to assist.
