Parameters
Part Type
replacement
Manufacturer Part Number
19455-3SH-3KW-GR
Interchange Part Number
19455-3SH-3KW-GR
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 133.00
Market Price: $150.00 0 People Puchased
Free Delivery

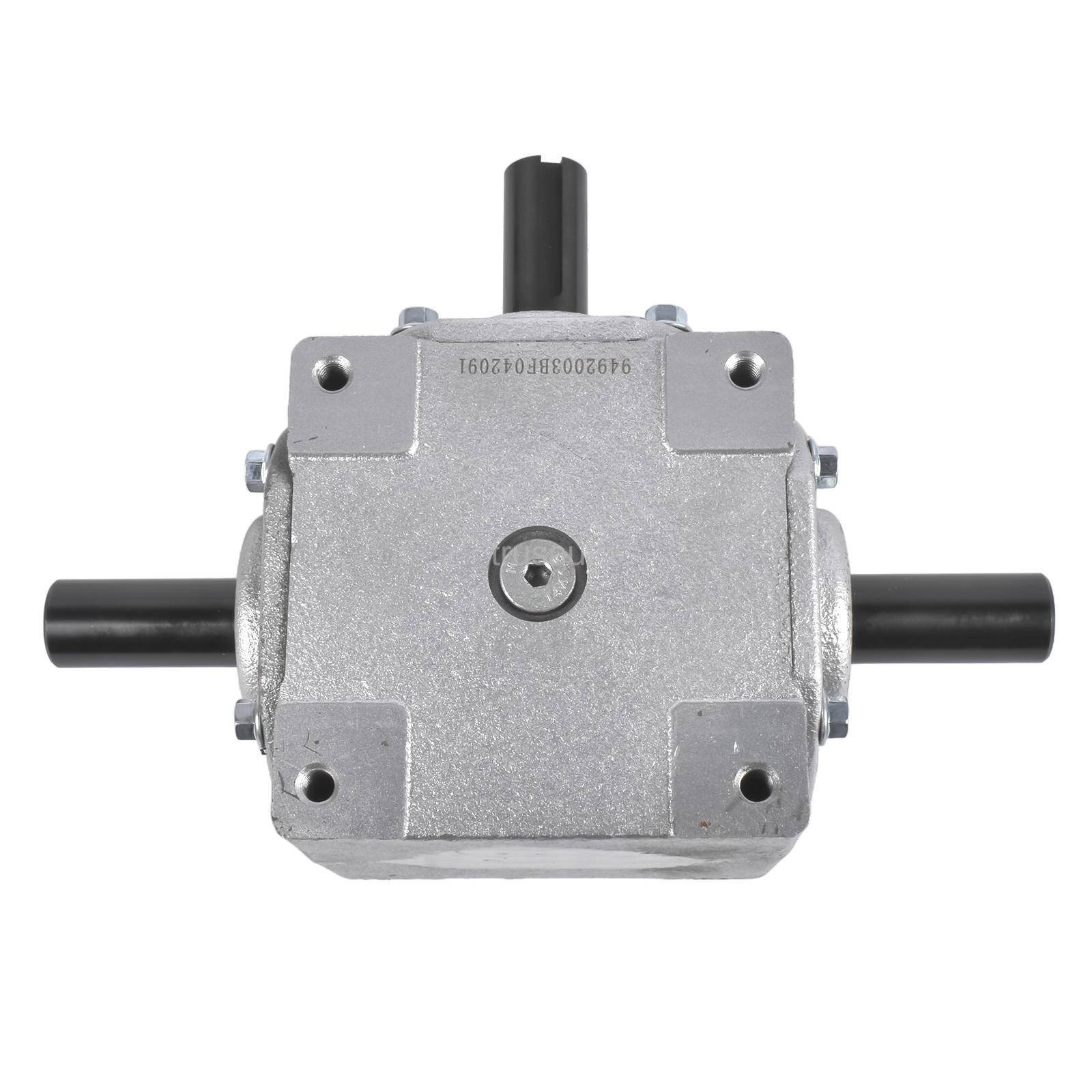

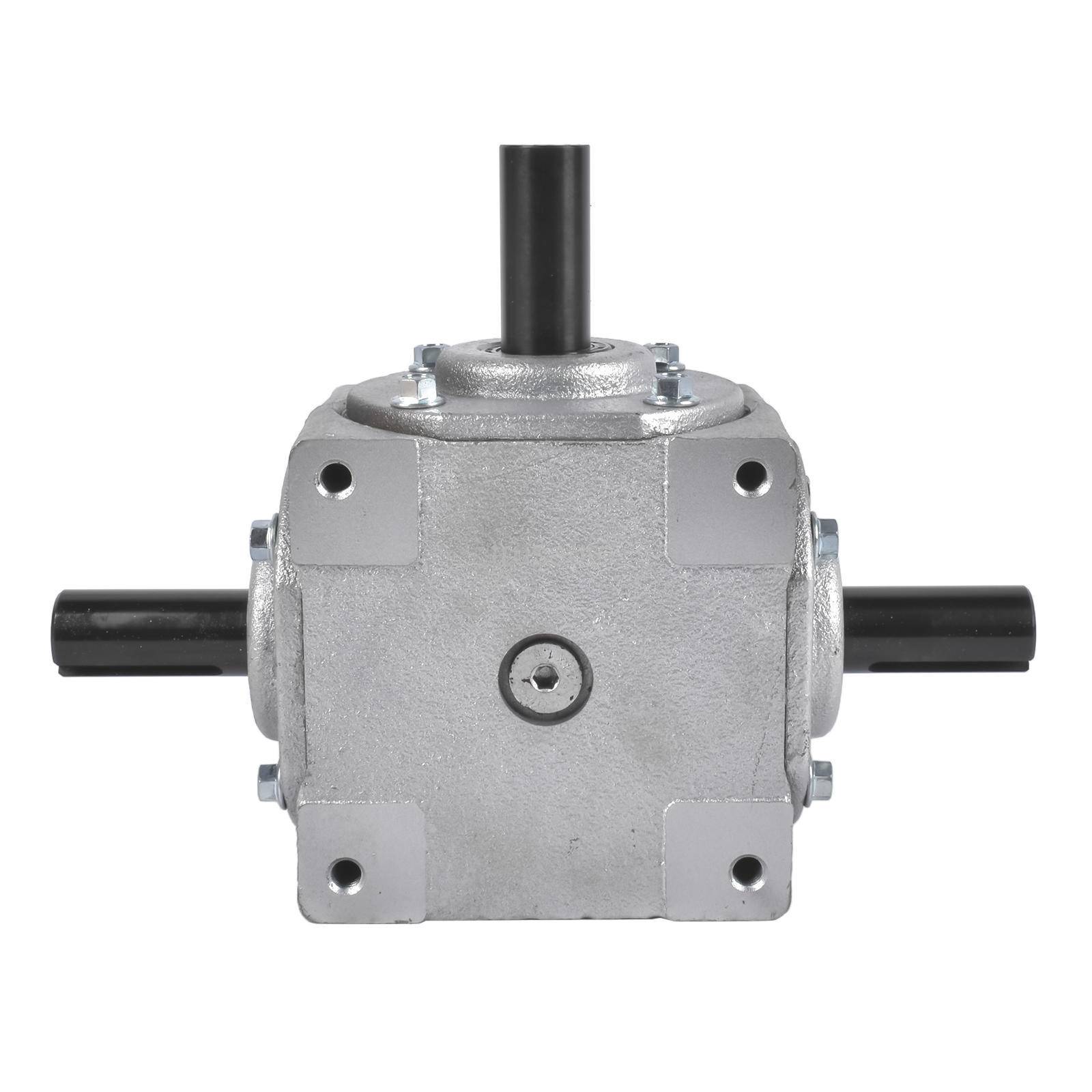

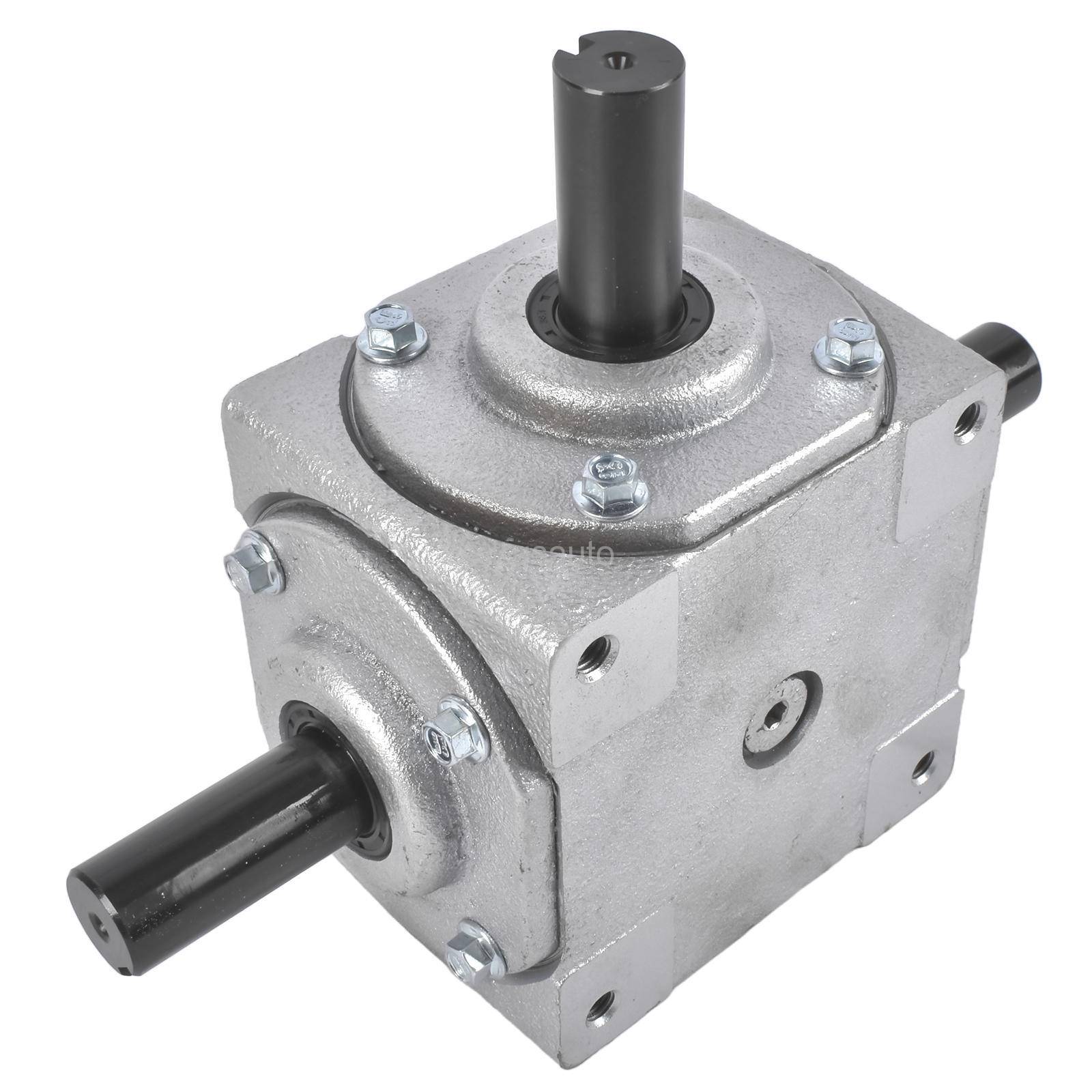

19455-3SH-3KW-GR 40 HP Right Angle Bevel Gearbox with Three 1" Keyed Shafts 1:1
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 133.00
Market Price: $150.00 0 People Puchased
Free Delivery
19455-3SH-3KW-GR 40 HP Right Angle Bevel Gearbox with Three 1" Keyed Shafts 1:1
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Description
Right angle gearbox with three 1" keyed shaft. Cast iron housing is sealed to protect the gears and taper roller bearings. The body is drilled and tapped 4-1/4" square with 3/8" holes. Ships without oil (1/3 qt of 80-90 W)
Gearbox is drilled and tapped with the same bolt pattern on both sides of the gearbox. This allows you to mount and arrange the shafts the way you need them. Input shaft turning clockwise will make one output shaft turn clockwise and the other turn counterclockwise (CW/CW/CCW).
Part Number
19455-3SH-3KW-GR
Specifications
Dimensions: 5-7/8" x 6-1/2" x 4-1/8"
Bolt Pattern: 4-1/4" Square with 3/8" Tapped Holes
Input Shaft: 1" X 2-1/4" with 1/4" Keyway
Output Shaft: 1" X 2-1/4" with 1/4" Keyway (Both)
Input Power: 40 HP
Input Speed: 1,800 Max RPM
Shaft Rotation: CW to CW/CCW with 1:1 Ratio
Package includes
1× Bevel Gearbox (As Pics Shown)
