Parameters
Part Type
replacement
Manufacturer Part Number
MA0507E
Interchange Part Number
MA0507E
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 151.00
Market Price: $169.00 0 People Puchased
Free Delivery

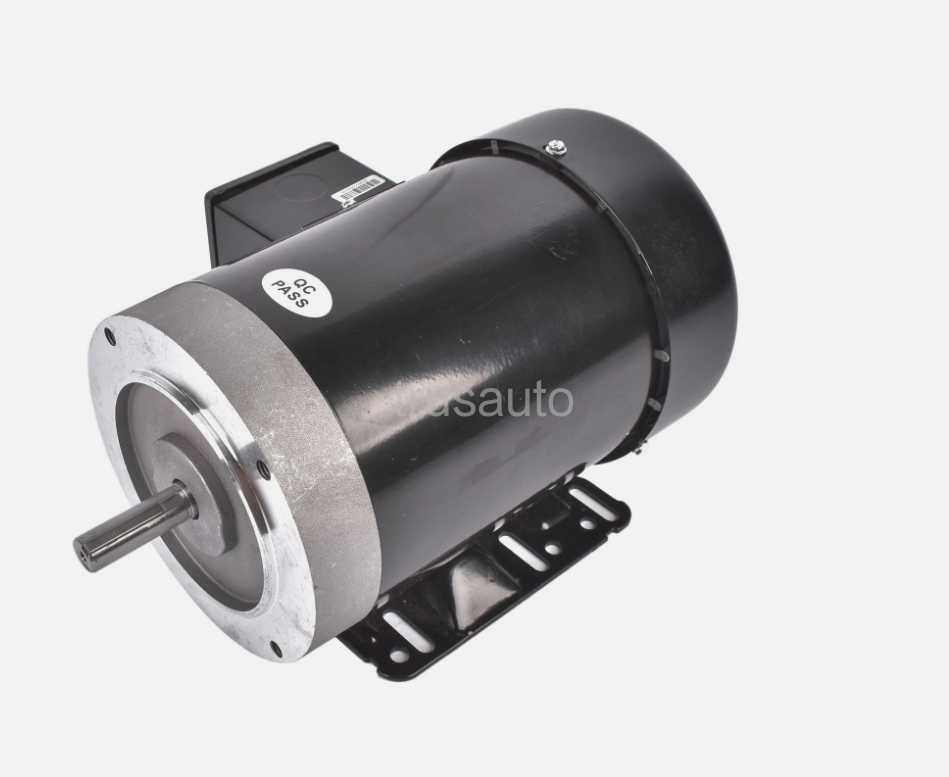

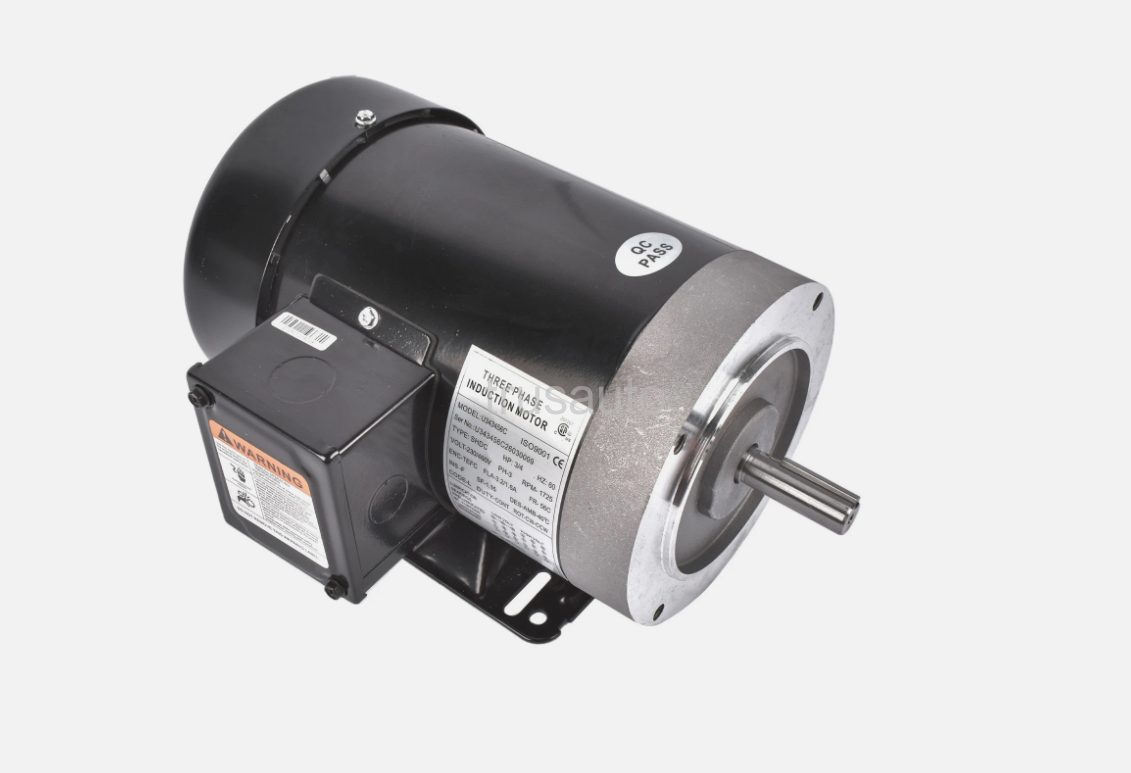

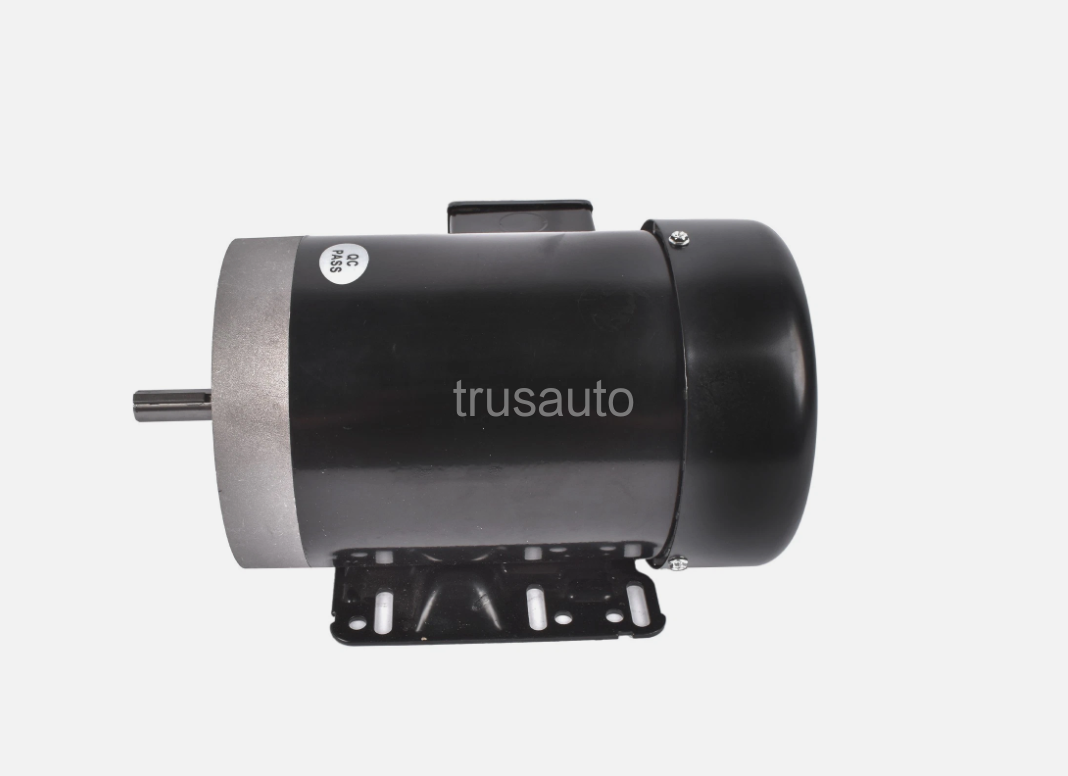

AC Motor #MA0507E 1725RPM 3/4HP 56C 3PH 60HZ 230/460V 1.15SF Reversible Rotation
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 151.00
Market Price: $169.00 0 People Puchased
Free Delivery
AC Motor #MA0507E 1725RPM 3/4HP 56C 3PH 60HZ 230/460V 1.15SF Reversible Rotation
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Part Number
MA0507E
Specifications
HP: 3/4
Voltage: 208-230/460V
RPM: 1725
Phase: 3
Frame: 56C
Hertz: 60
Enclosure: TEFC
Full Load Amp: 2.5/1.24
Insulation: F
Overload: None
Shaft size: 5/8"
Service Factor: 1.15
"C" Dimension: 11.9"
Rotation: Reversible
Features
Totally Enclosed Fan Cooled (TEFC) enclosure
Dual mounting with NEMA 56C and removable base
Class F winding insulation
Inverter duty
Rolled steel shell frame / cast aluminum end bell
Removable base / bolt-on/bolt-off mounting feet
Large all-metal capacitor cover with rubber gasket
Large easy-to-wire junction box with rubber gasket
Heavy duty oversized ball bearings
High tensile strength steel shaft
Electrically reversible
NEMA design B
Service Factor: 1.15
Package Includes
1x MA0507E AC Motor (As Pics Shown)
