Description:

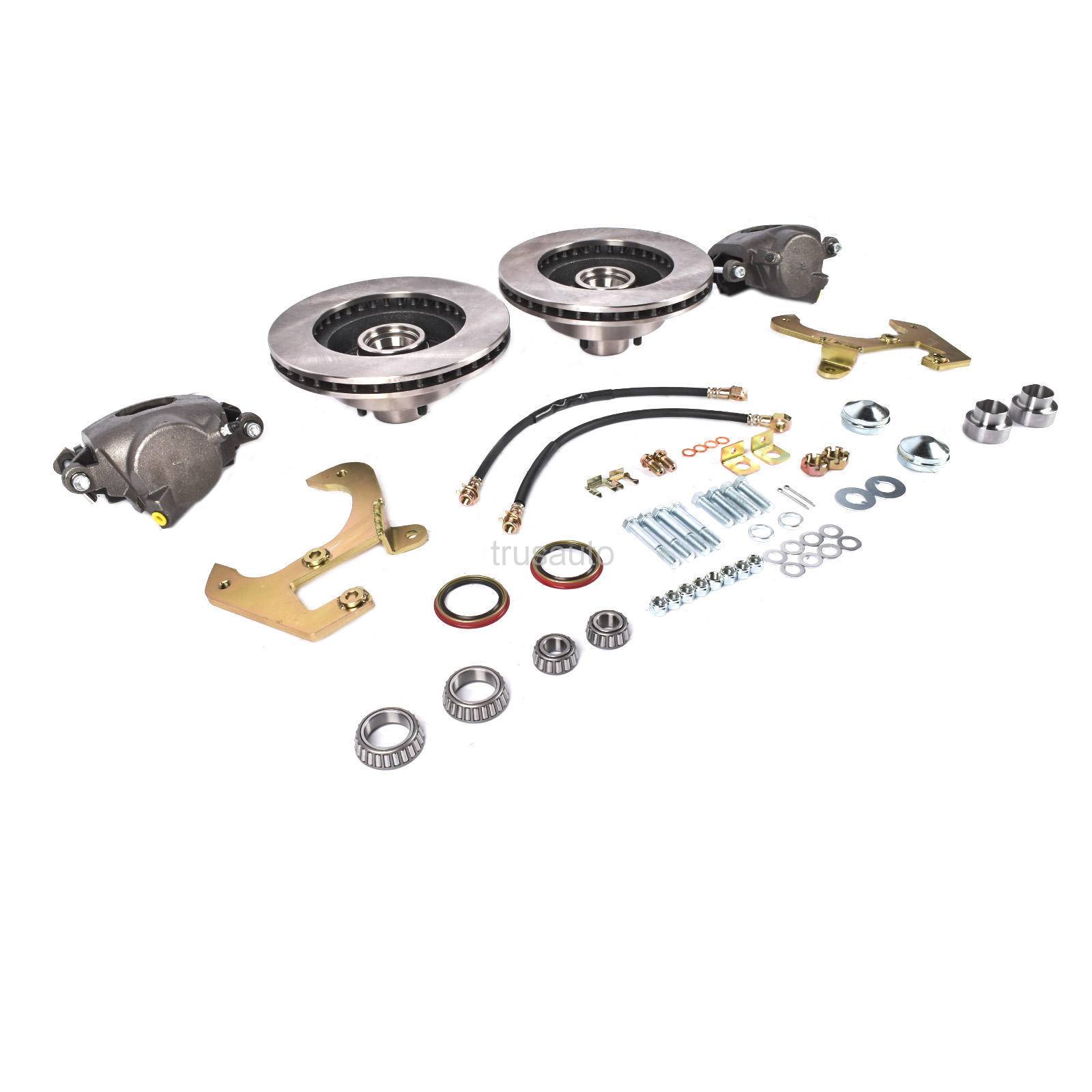

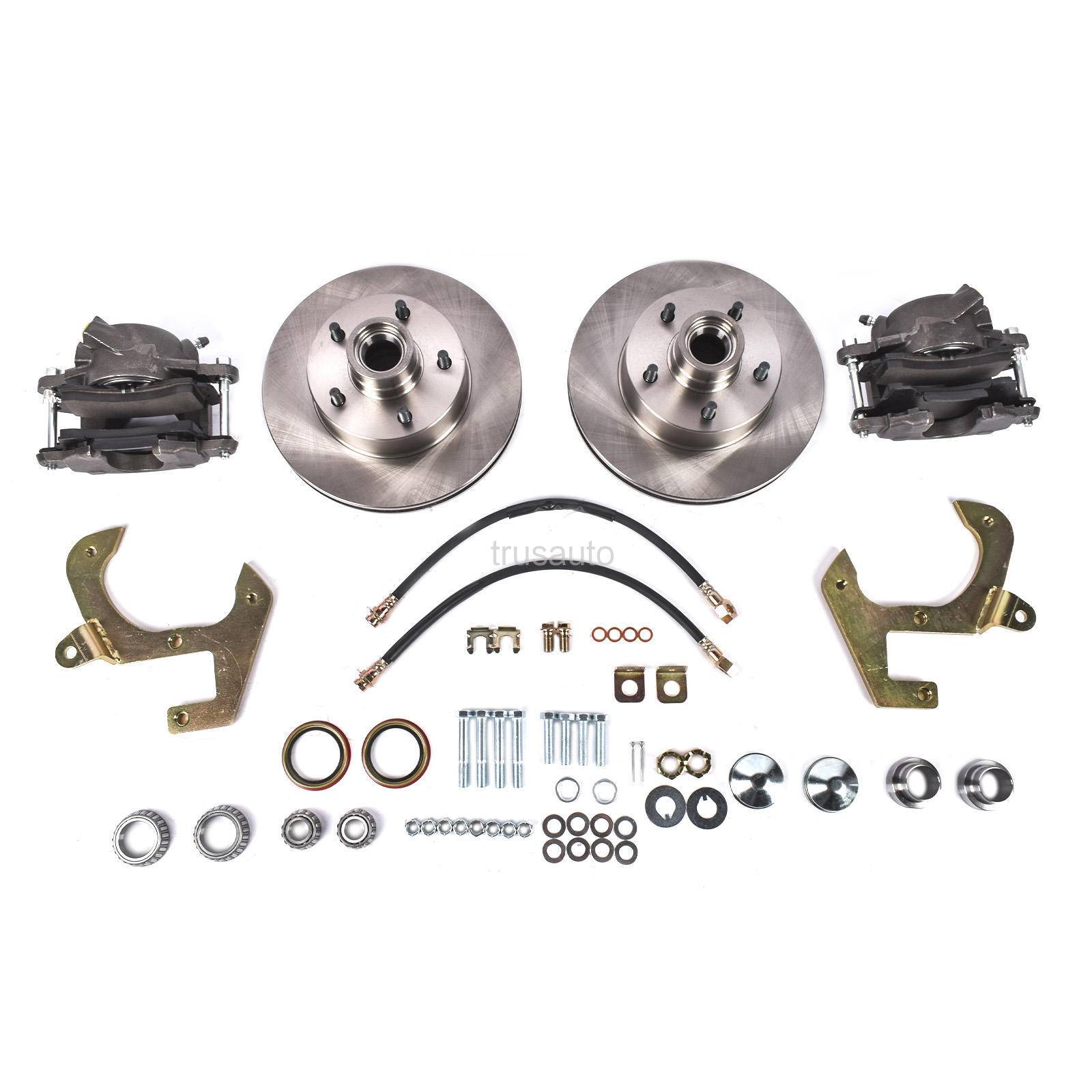

This kit allows you to upgrade your 1949-1954 Chevy car to front disc brakes and retain the original 5 on 4-3/4 inch bolt pattern. Front disc brakes provide a significant improvement in braking performance versus the drum brakes your old Chevy came with. This kit includes everything you need to convert your stock 1949-1954 Chevy car to disc brakes.

Will Fit Following Models:

Chevy Corvette 1953-1962

Chevy Bel Air 1950-1954

Chevy One-Fifty Series 1953-1954

Chevy Two-Ten Series 1953-1954

Chevy Sedan Delivery 1949-1954

Chevy Styleline Deluxe 1949-1952

Chevy Styleline Special 1949-1952

Note: Please compare your item carefully with photo and OE Number to avoid mistake!!!

Specifications:

Works with stock passenger car spindles

11" diameter vented rotors

2-1/2" single-piston intermediate GM type brake calipers w/ 10MM-1.5 inlet thread

5 on 4-3/4 inch bolt pattern

Works with most 15" diameter wheels

Not for straight axle

Position: Front

Bolt Pattern: 5 on 4.75"

Rotor Diameter: 11 Inch

Rotor Shape: Round

Rotor Material: Steel

Rotor Type: Vented

Front Rotor Included: Yes

Front Caliper Included: Yes

Brake Hoses Included: Yes

Front Spindles Included: No

Master Cylinder Included: No

Brake Booster Included: No
