Parameters
Part Type
replacement
Manufacturer Part Number
5 HP Farm Duty Single Phase Electric Motor 1800 RPM 184T Frame TEFC 208/230 Volt
Interchange Part Number
5 HP Farm Duty Single Phase Electric Motor 1800 RPM 184T Frame TEFC 208/230 Volt
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 441.00
Market Price: $490.00 0 People Puchased
Free Delivery

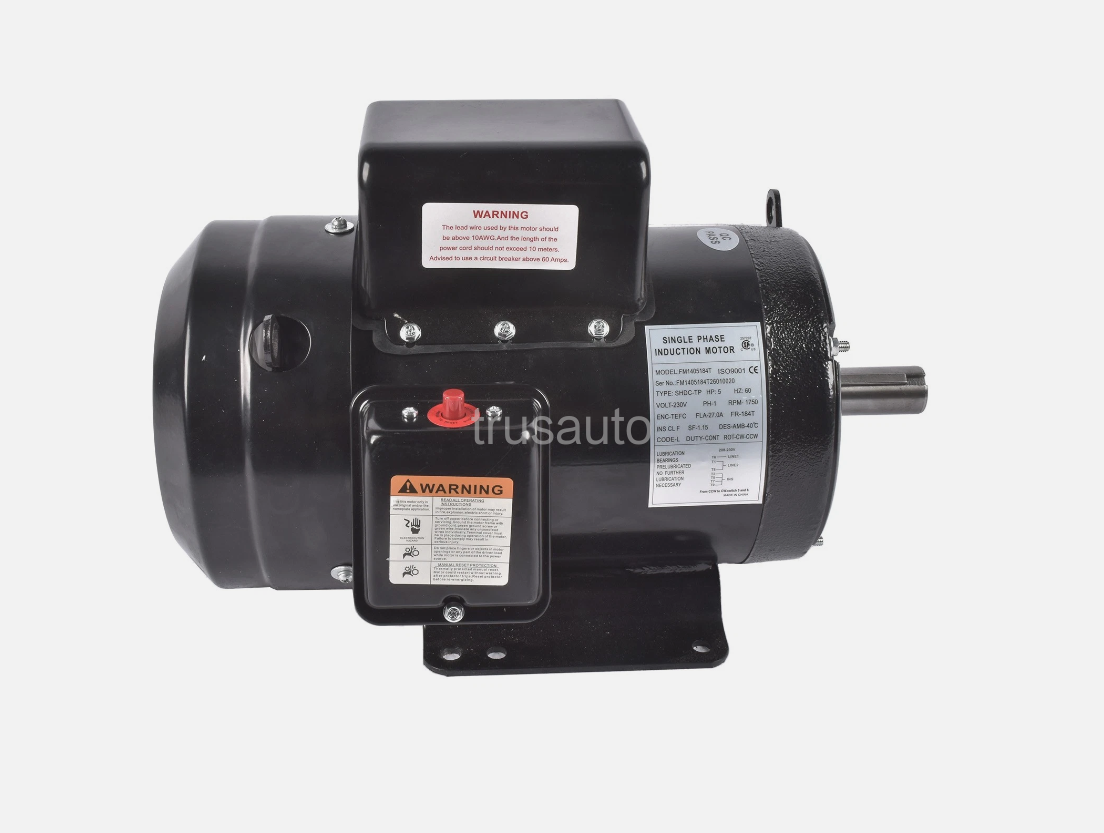

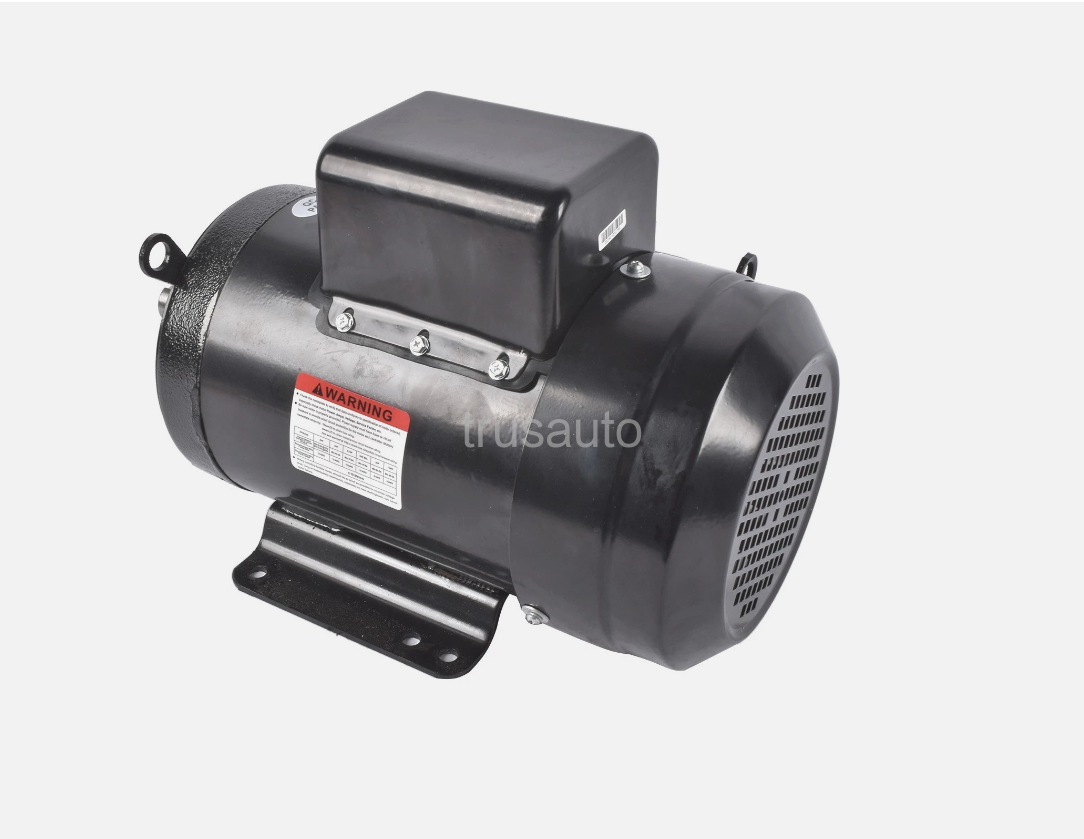

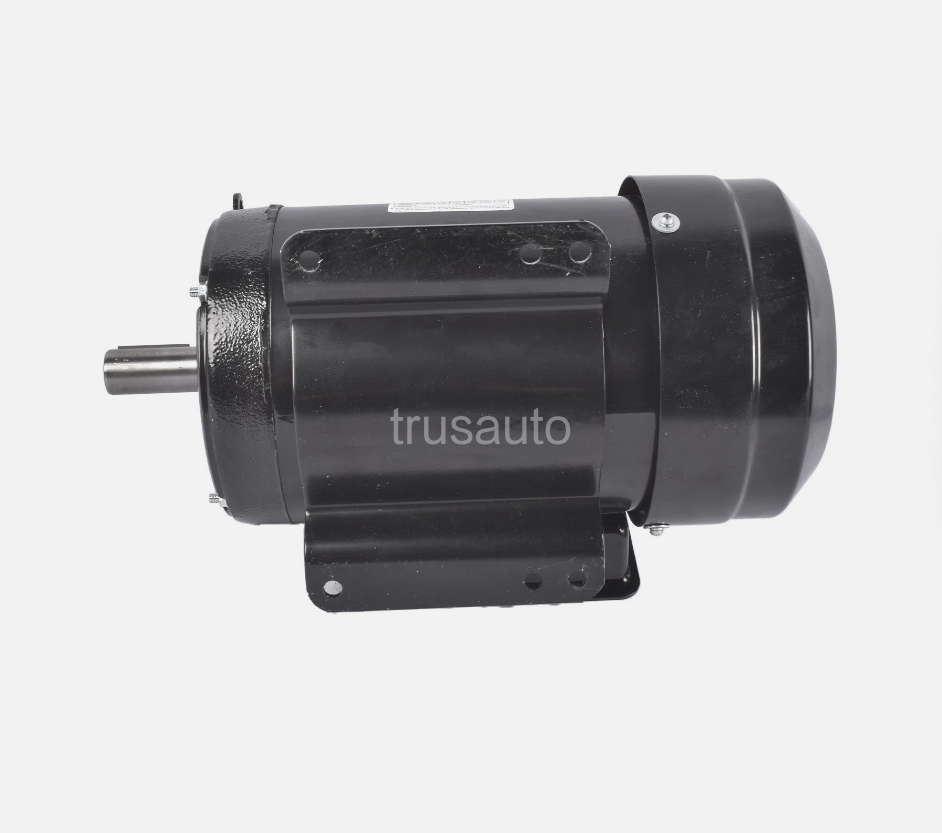

5 HP Farm Duty Single Phase Electric Motor 1800 RPM Frame TEFC 208/230 Volt
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 441.00
Market Price: $490.00 0 People Puchased
Free Delivery
5 HP Farm Duty Single Phase Electric Motor 1800 RPM Frame TEFC 208/230 Volt
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Feature
A 5 hp, single-phase TEFC electric motor with a rigid base, suitable for agricultural applications
Specifications:
5 Horsepower
Single Phase
TEFC / IP55 Fully Enclosed
Poles: 4
184T Frame
Frame Service Factor 1.15 Class
F Insulation
208-230 Volt
1800 RPM
Fan Cooled
Shaft Length: Approximately 2 7/8"
Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 22.2-20.2
60 HZ
Shaft Material: 1045 Carbon Steel
Max Temp: 40 Degrees C
