Specifications

Type: Farm Duty Motor
Phase: Single Phase
Voltage: 230 V
Amps: 14.5 A
Rated Load: 3 HP
Frequency Rating: 60 Hz
Frame: 184T
Service Factor: 1.15
Poles: 4
Rotational Speed: 1750 RPM
Shaft Diameter: 1-1/8 in
Shaft Length: 2.75 in
Rotation: CW/CCW
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Insulation Class: F
Mounting Type: Base-Mounted
Protector: Yes

Features

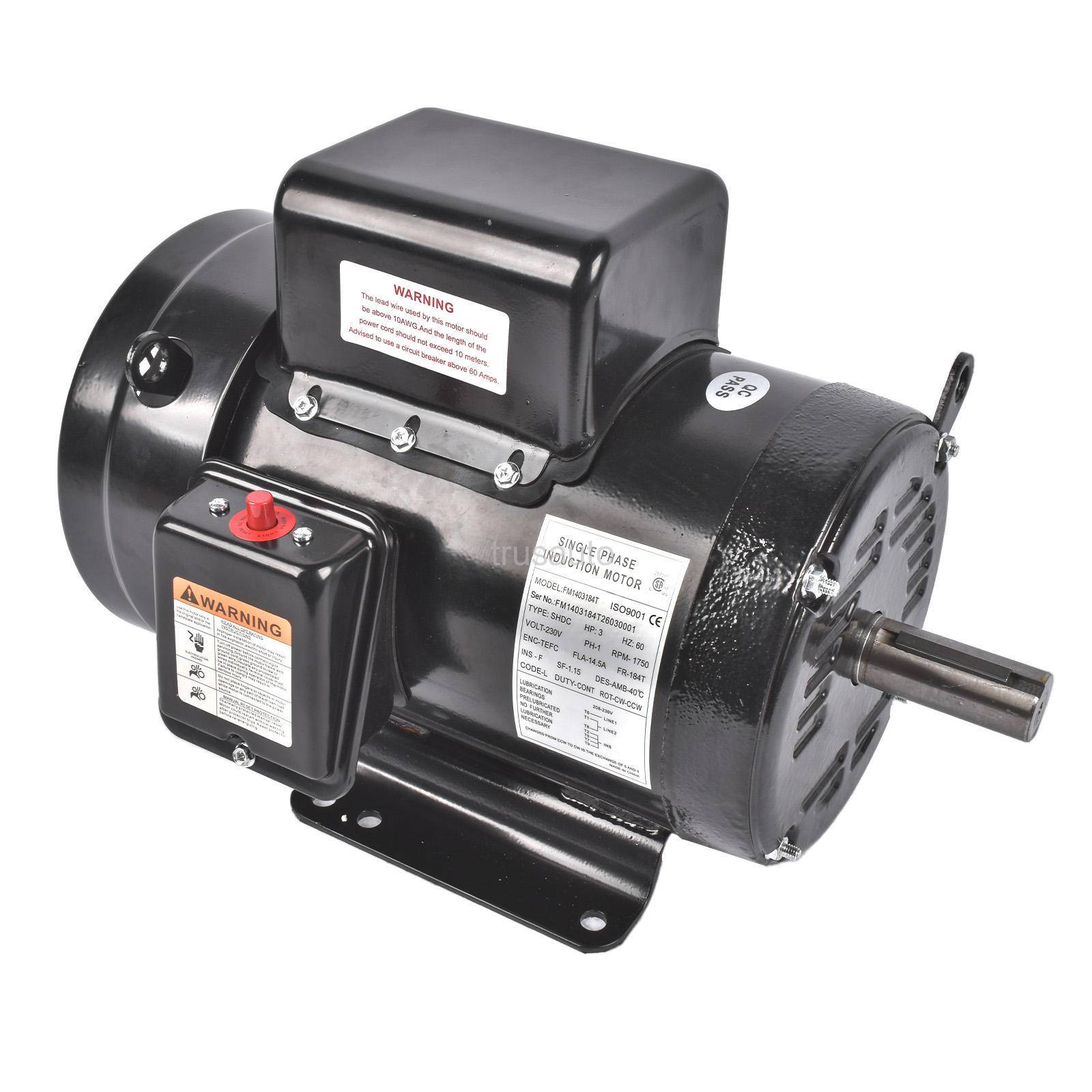

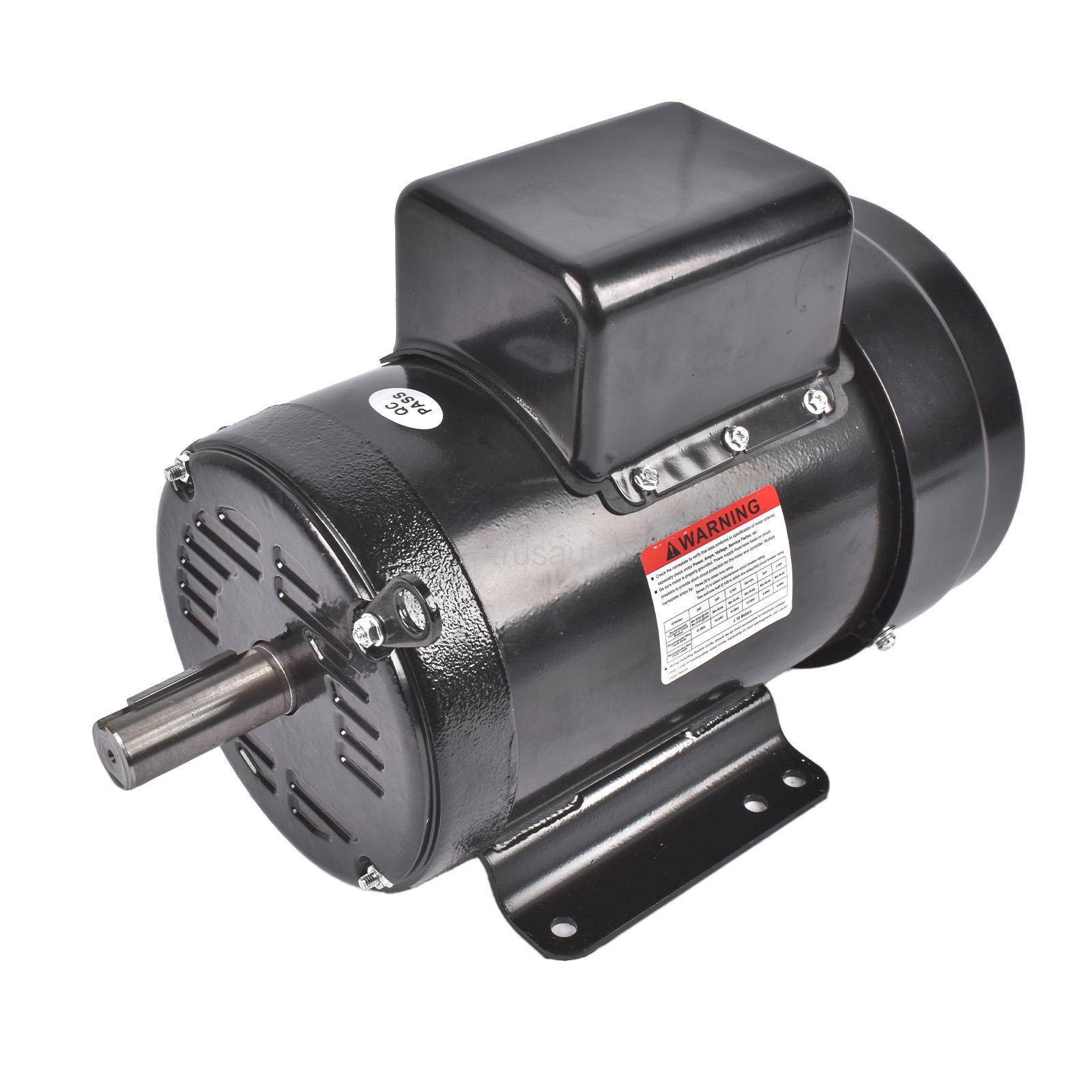

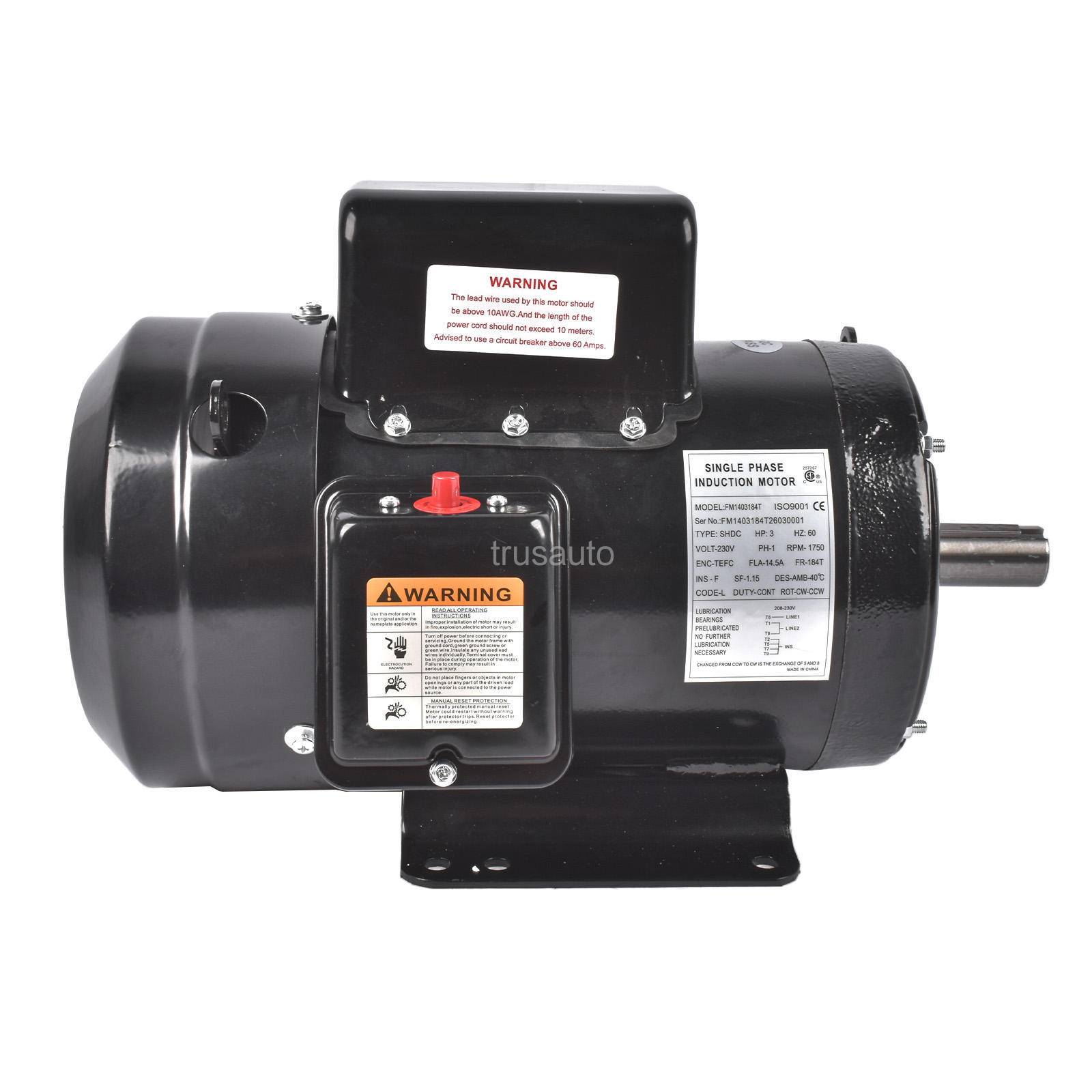

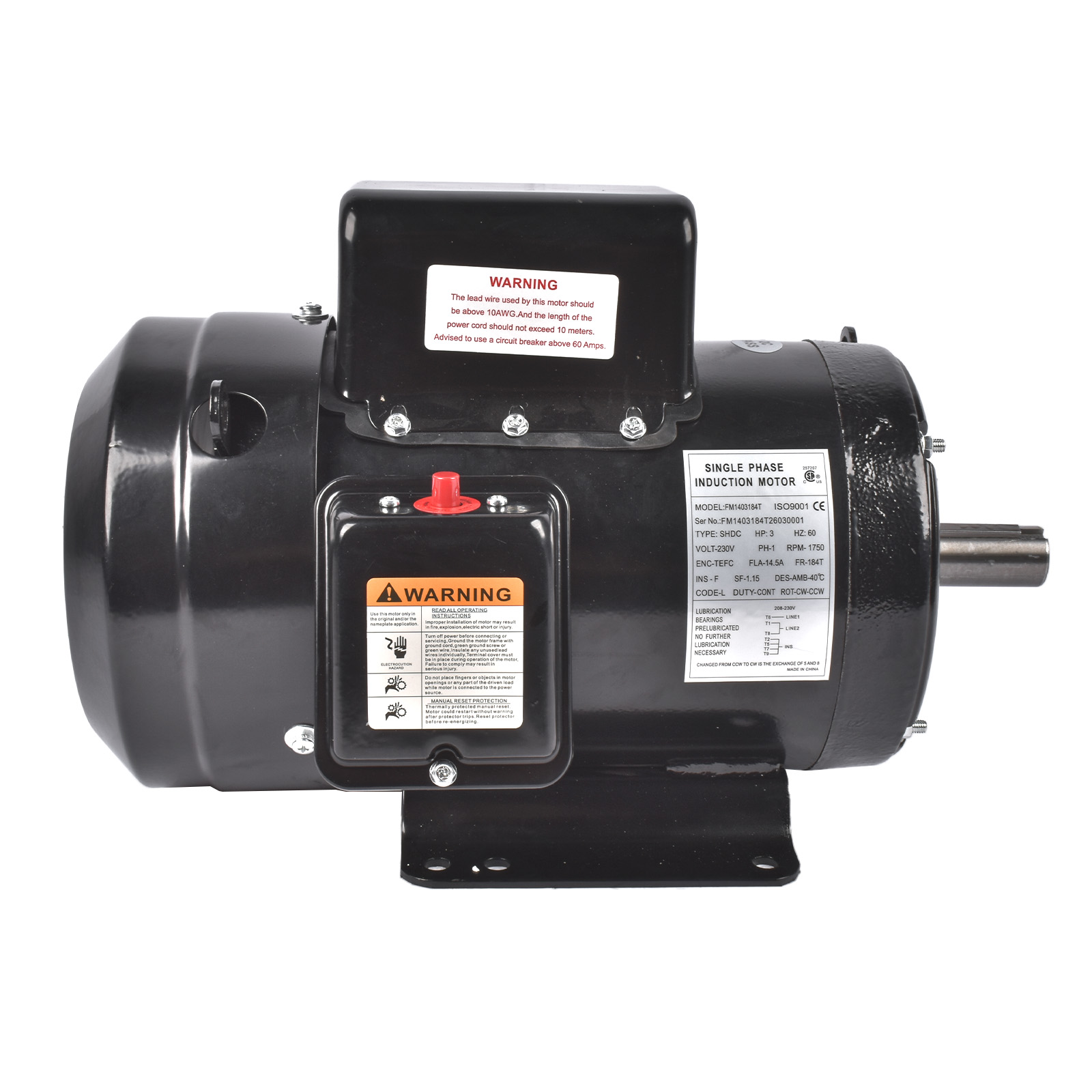

3HP Electric Motor
High power motor can improve the work efficiency, is the same type of energy-saving motor, can reduce the energy cost or overhead.

Maximum Speed 1750 RPM
The rated horsepower,voltage,current should be checked before the motor is put into operation to ensure that it is used in the correct environment.

Fully Enclosed Fan
Prevents free exchange of air between the frame interior and exterior, but does not make the frame completely airtight. A fan is mounted on the shaft and pushes air onto the frame during operation to aid the cooling process. Even in harsh environments, fans cool the motor within hours of operation to reduce energy costs and operating temperatures, saving you energy.

High Quality Framework
The electric compressor motor adopts heavy rolled steel shell structure, high strength, durable. In addition, the smooth surface provides smooth use.

Maintenance Notes

Clean the fuselage frequently and keep the surroundings clean.
When not in use for a long time, it is necessary to apply oil or anti-rust oil storage management on the body.
Often check the power control switch, power line is abnormal.
Check the oil level and add lubricant to the motor regularly.
Measure the voltage and current of the motor regularly.

Package Includes

1x Electric Motor (As Pics Shown)
