Parameters
Part Type
replacement
Manufacturer Part Number
Front 3" Rear 5" Drop Spring Lowering Kit w/ Shocks
Interchange Part Number
Front 3" Rear 5" Drop Spring Lowering Kit w/ Shocks
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 216.00
Market Price: $239.00 0 People Puchased
Free Delivery
3inch Front 5inch Rear Drop Lowering Kit for Chevy C10 GMC C15/C1500 1963-72
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 216.00
Market Price: $239.00 0 People Puchased
Free Delivery
3inch Front 5inch Rear Drop Lowering Kit for Chevy C10 GMC C15/C1500 1963-72
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Introduction:
The front dropped coils and shocks will drop a 3" in the front and 5" in the rear.
Necessary hardware are included for bolt-on installation.
This is a redesigned drop spring and shocks lowering system.
It increases your vehicle stability and handling and gives your truck a appealing stance.
Specification:
Extended length:F 345MM= 13.58" R 480MM=18.89"
Collapsed length: F 260MM=10.23" R 335MM=13.18"
Travel range: F: 85MM=3.34" R 145MM=5.70"
Spring length: F 280mm=11.02" R 225mm=8.85"
Spring rate: F 20kg/mm=1 119.94lbs/in R 6kg/mm=335.98lbs/in
Diameter of piston rod: 20mm/ 0.78"
Piston diameter: 32mm/ 1.25"
Outer cylinder diameter: 50mm/ 1.96"
Will fit Following Models
For Chevrolet C10 1963-1972
For GMC C15/C1500 1963-1972
Note: Not advised to use for heavy C10 applications like for Suburbans or panel trucks

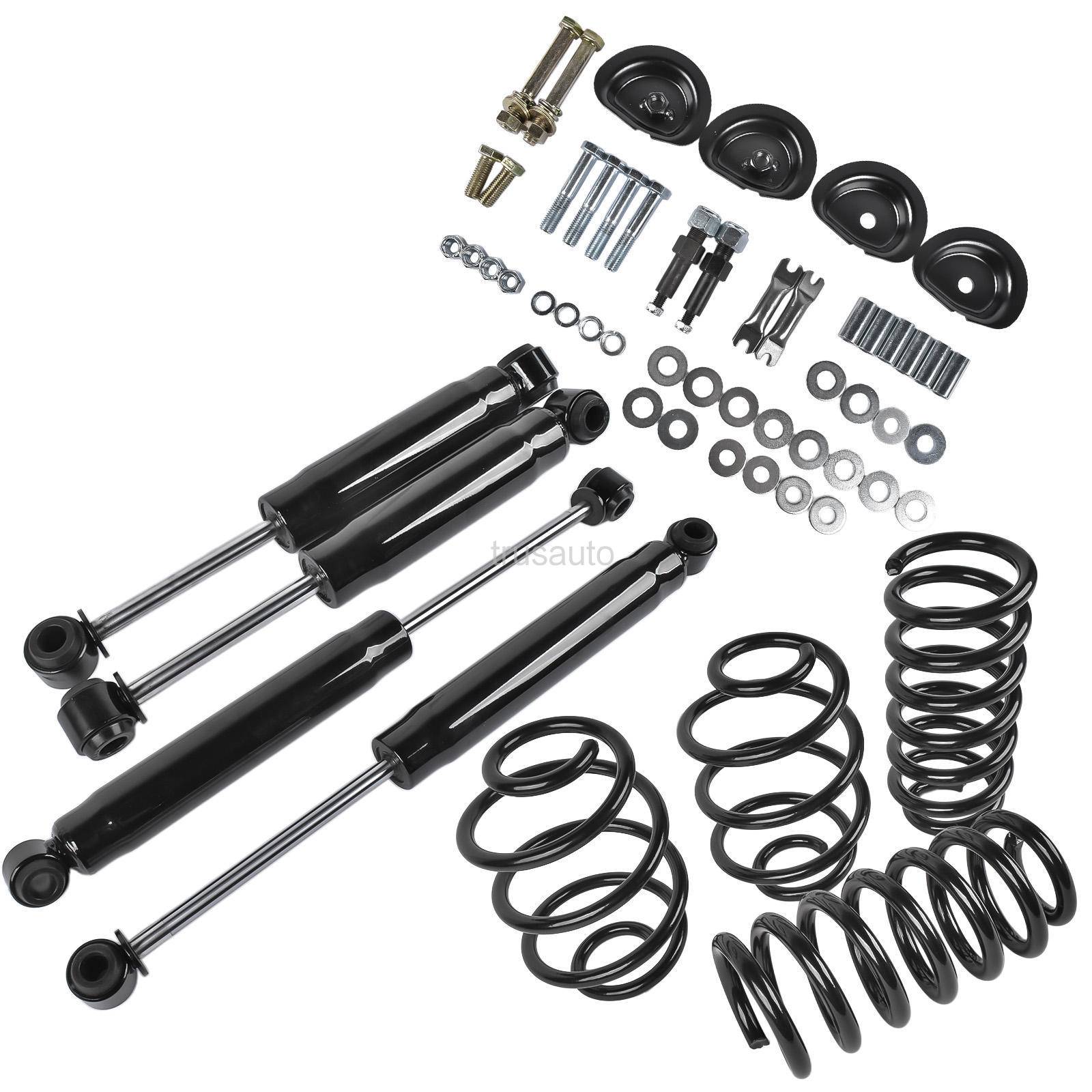

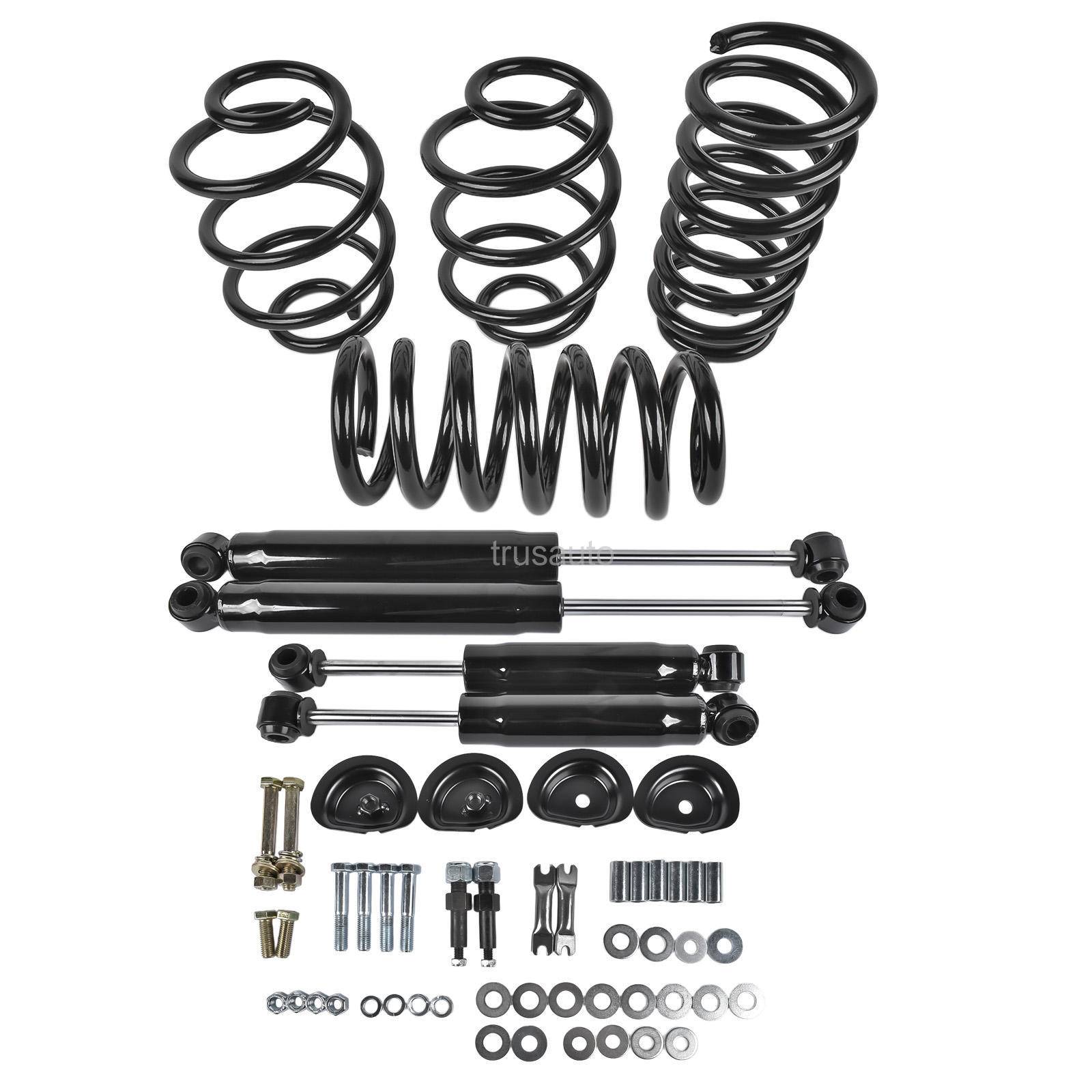

Package included:
2 x Front Springs
2 x Front Shocks
2 x Rear Springs
2 x Rear Shocks
4 x Rear Spring Retainers
