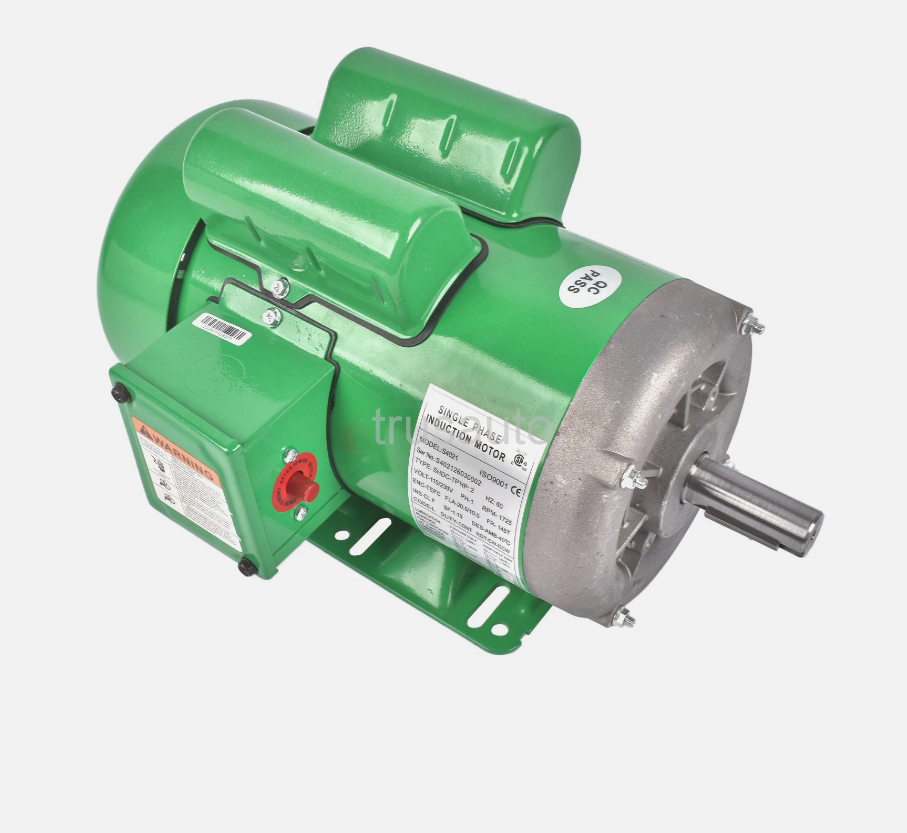

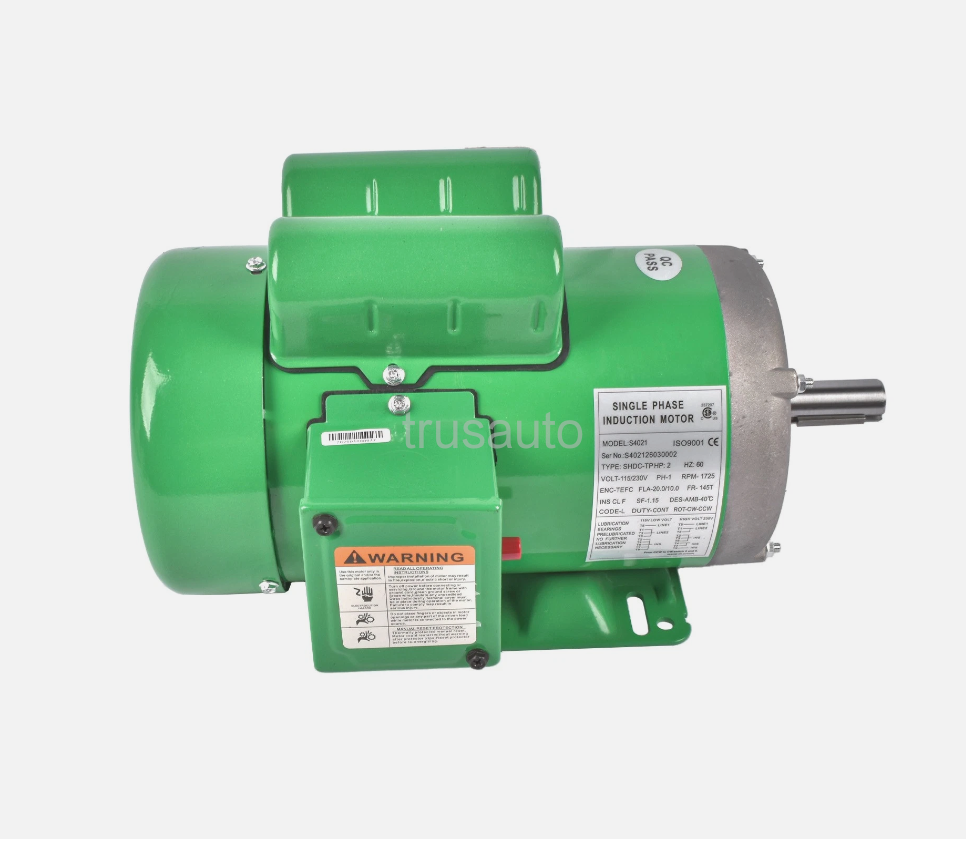

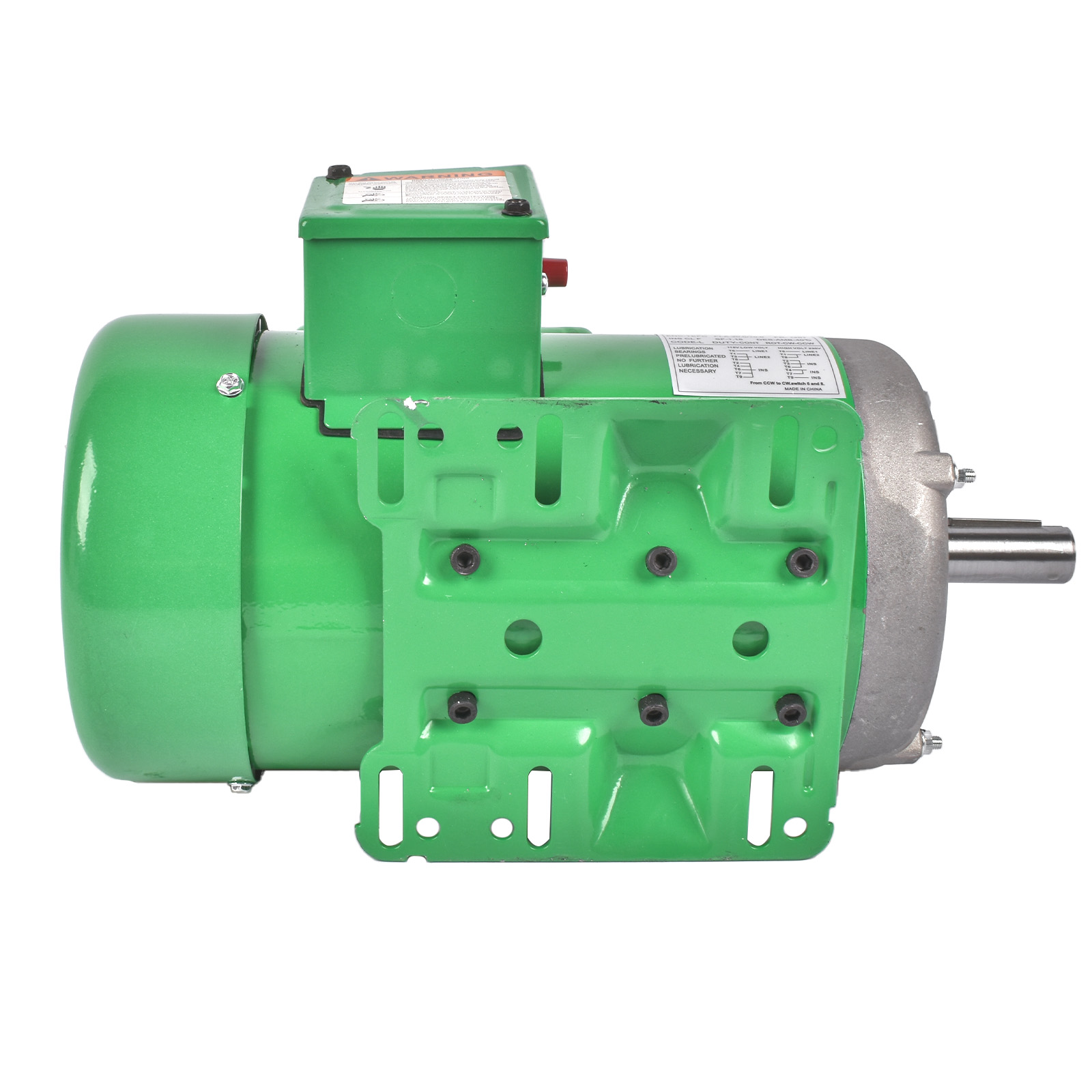

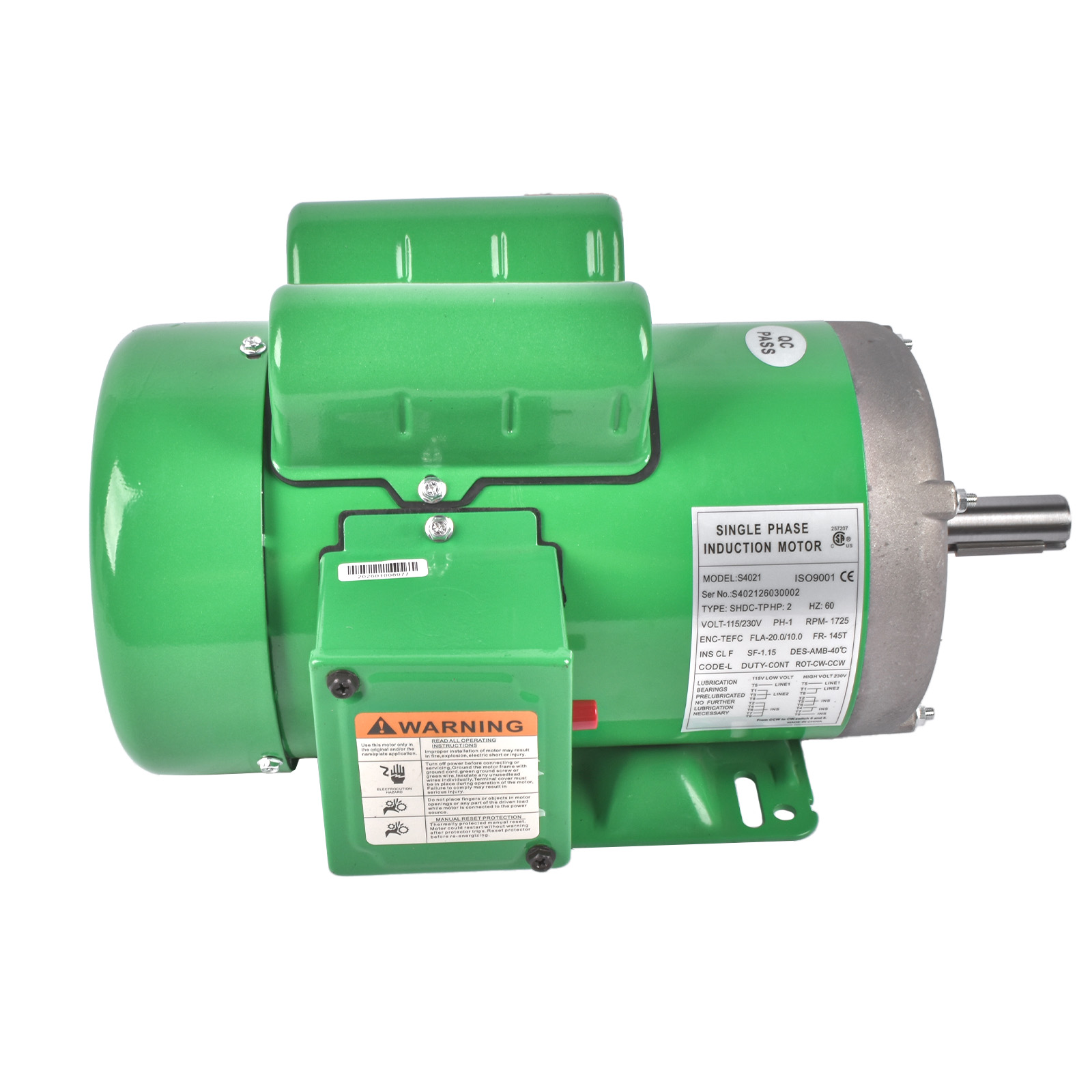

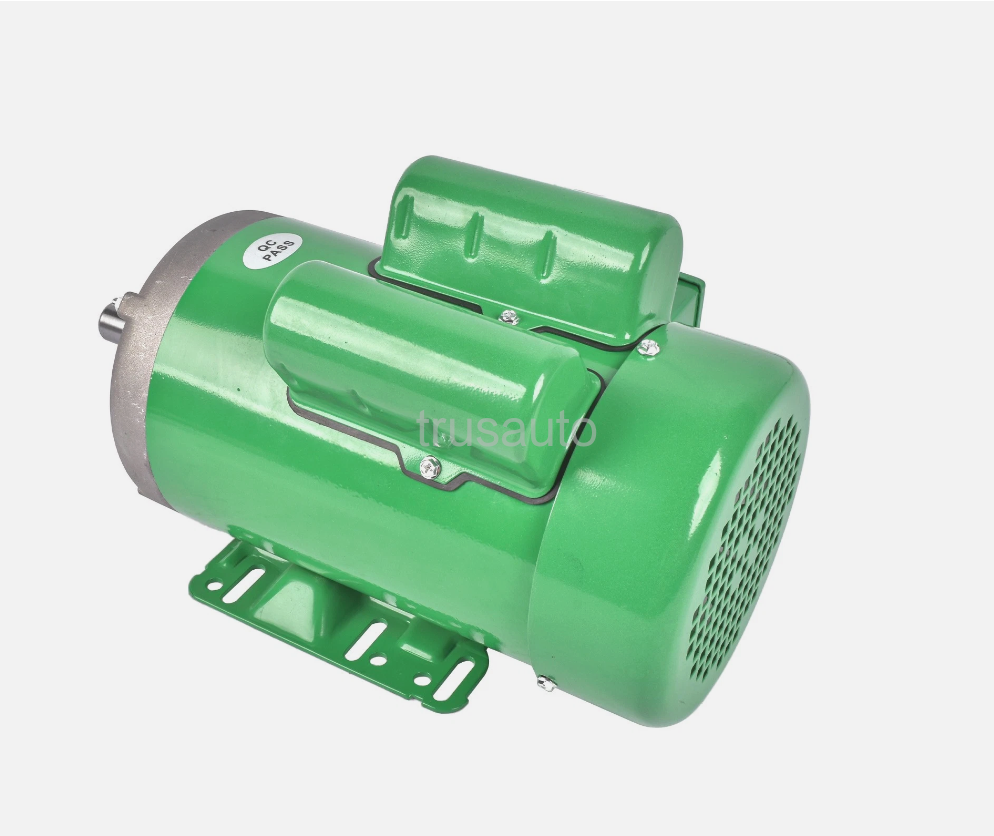

2 HP Farm Duty Single Phase Motor (Green)

The listing is about a 2 HP 1725 RPM single phase farm duty motor. These single-phase electric motors are designed, manufactured, and tested to meet the latest European and international standards and give maximum operating performance and reliability. CW/CCW two running directions, according to their own needs, arbitrary switch.

Specifications:

• Frequency Rating: 60 Hz

• Reversible/Non-Reversible: Reversible

• Nominal Rated Input Voltage: 115V/230V

• Rated Load (HP): 2

• Special Motor Construction: Spindle Motor

• Current Type: AC

• Shaft Diameter: 7/8 in

• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)

• Phase: Single Phase

• Insulation Class: F (Max 311°F)

• Mounting Type: Base-Mounted

• Pole: 4

• Amps: 20.0A / 10.0A

• Motor Type: Induction/Asynchronous

• Base RPM: 1725RPM

• IP Rating: IP5

• Shaft Length: 2.25in

• Protector: Yes

• Housing Material: Rolled Steel Shell

• Model: General Electric Motor

• IEC Frame Size: 56

Features:

✅Fully Enclosed Fan: Electric motor with large fan at one end, even in wet and dusty conditions, cools the motor during long runs, thus reducing energy costs, reducing operating temperatures and increasing service life.

✅High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 1725 rpm, high working efficiency; There are lots of heat sinks, so it has huge heat sinks. Housing material is rolled steel shell. Adopt S1 continuous working system, safe and durable.

✅Protector and Application: 2HP farm duty motor with protector. The farm duty motor exclusively service to all kinds of agricultural equipment.

Package Includes:

1 x 2HP General Electric Motor

(As Pics Shown)
